Buy 1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32 Products Online In India
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32
1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32

1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32

Bicool

USA Icon USA Store
Condition: New
Price
Save Rs. -5,021
/
  • Free shipping all over India
  • Free & Easy Returns*
  • 100% Secure payments*
theglobalgenie payment options
🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.
  • In stock, ready to ship
  • Backordered, shipping soon
Features
240x240 resolution, 65K RGB colors, clear and colorful displaying effect

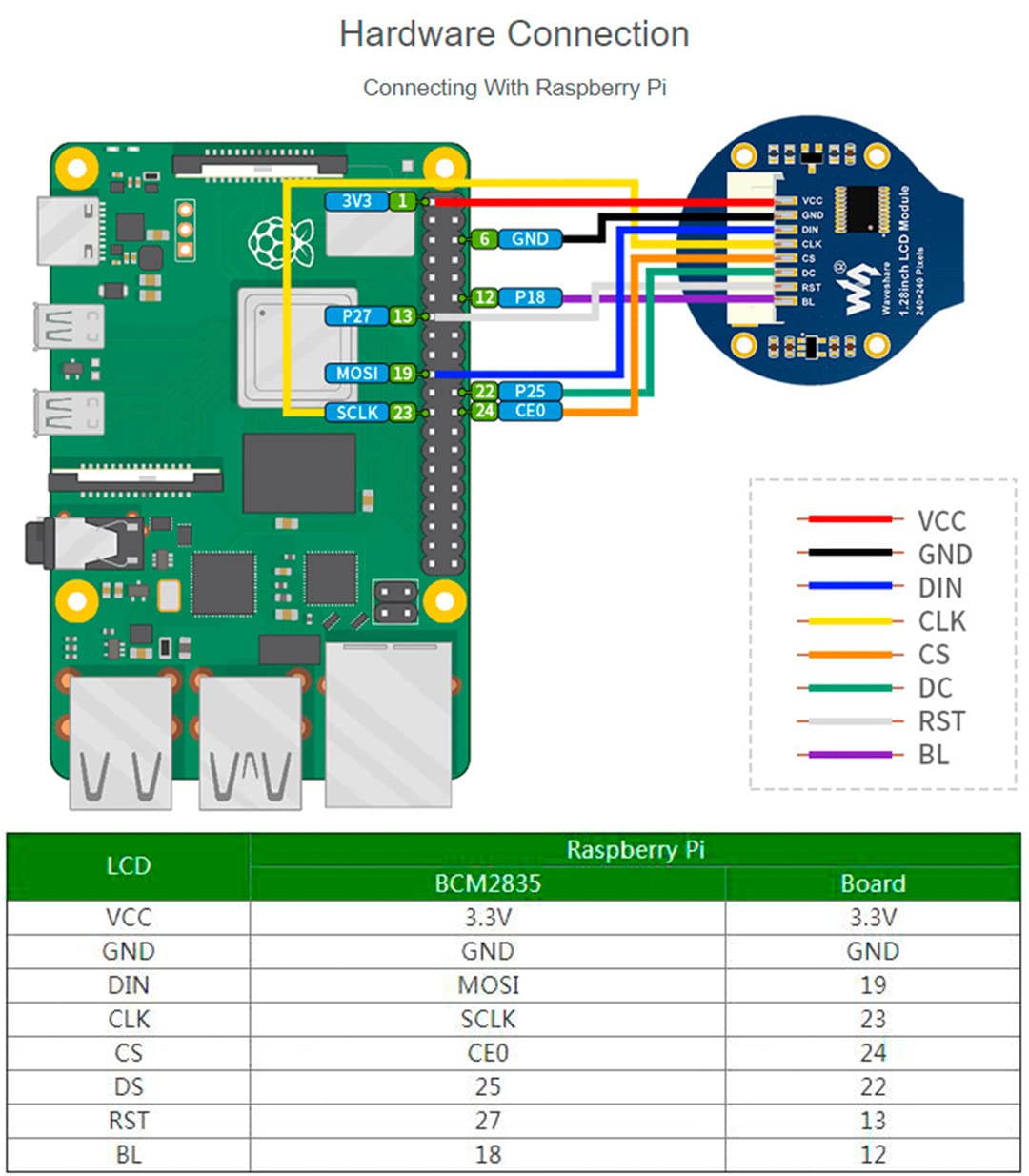

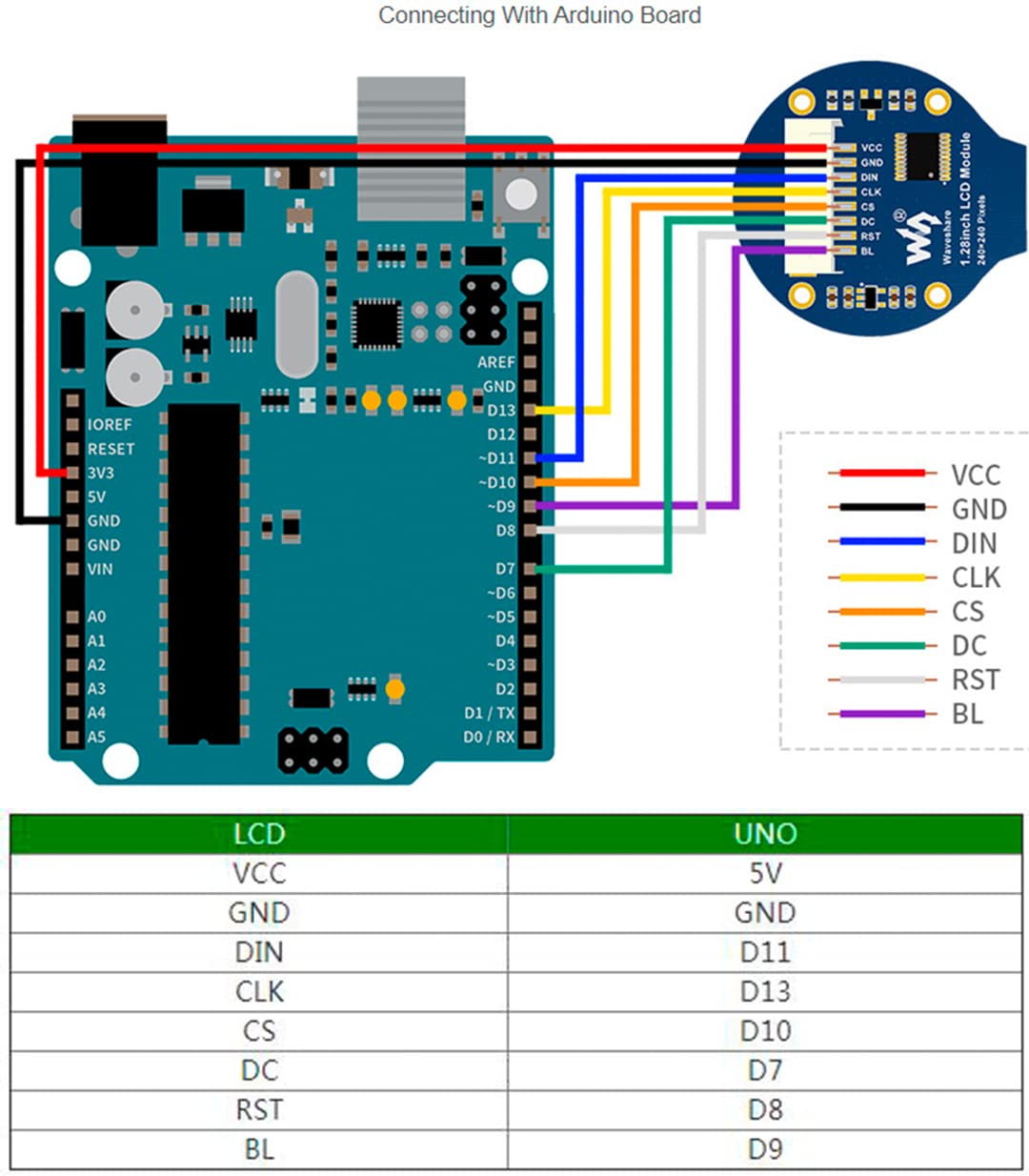

SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Ardu/STM32
Comes with development resources (examples for Raspberry Pi/Ardu/STM32)
Specifications
Operating voltage: 3.3V/5V
Interface: SPI
LCD type: IPS

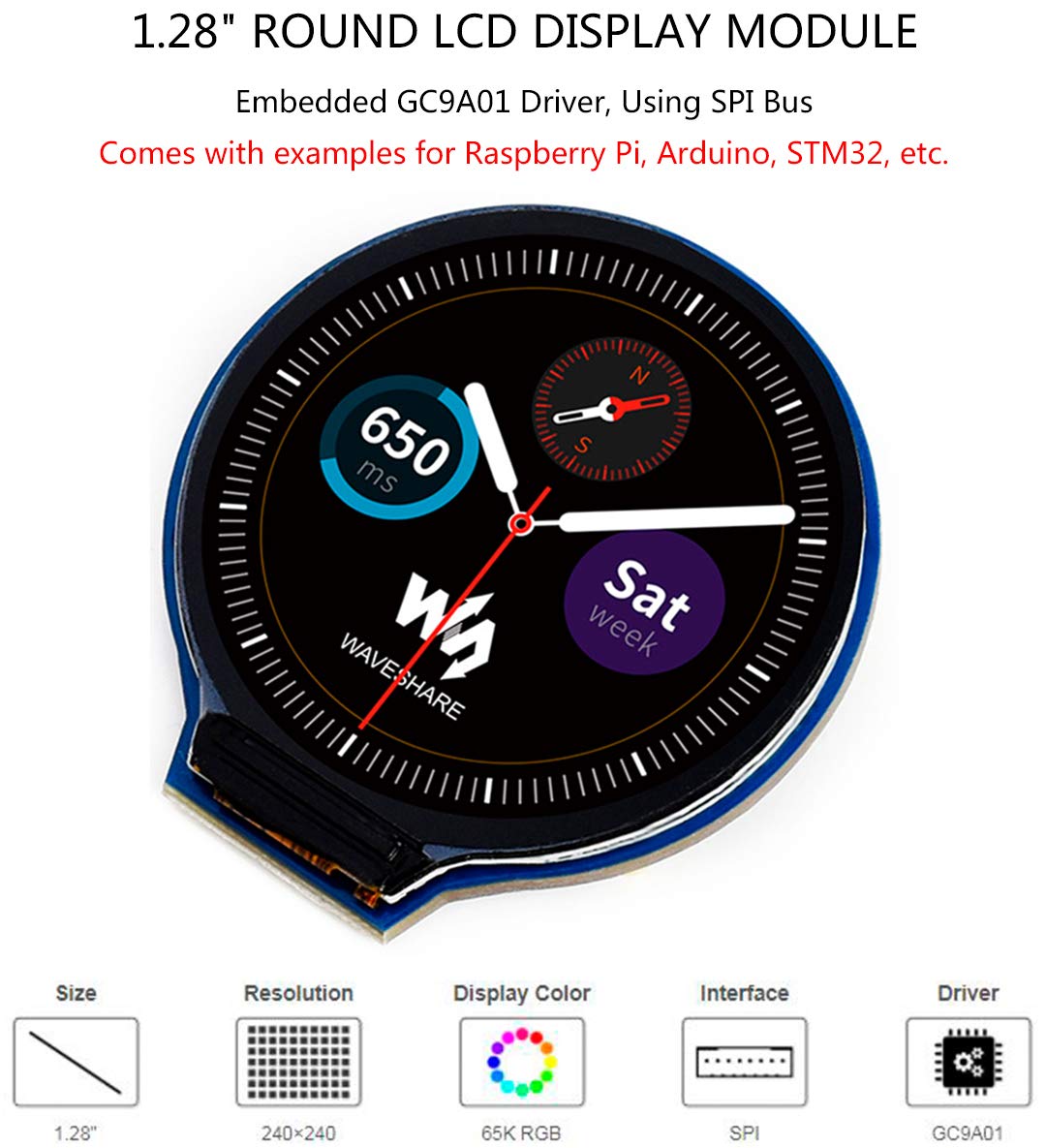

Controller: GC9A01
Resolution: 240(H)RGB x 240(V)
Display size: F32.4mm
Pixel size: 0.135(H)x0.135(V)mm

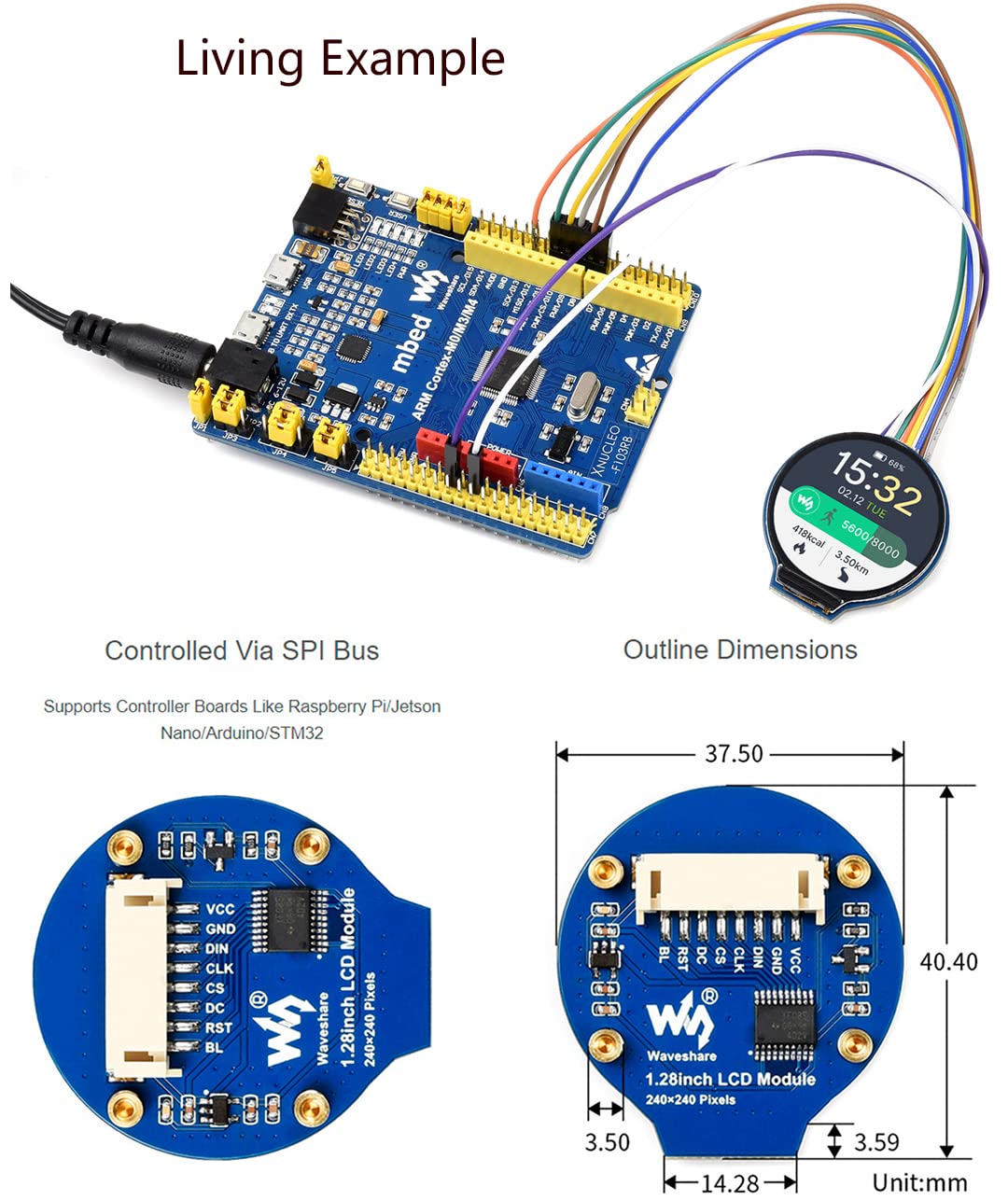

Dimension: 40.4×37.5(mm) F37.5(mm)
LCD and the controller
The driver used in this LCD is GC9A01, with a resolution of 240RGB×240 dots and 129600 bytes of GRAM inside. This LCD supports 12-bits/16-bits/18-bits data bus by MCU interface, which are RGB444, RGB565, RGB666.
For most LCD controllers, the communication method of the controller can be configured, they are usually using 8080 parallel interface, 3-line SPI, 4-line SPI, and other communication methods. This LCD uses a 4-line SPI interface for reducing GPIO and fast speed.LCD
If you are wondering which point is the first pixel of the screen (because the screen is round), you can understand it as a square screen with an inscribed circle drawn in it, and it only displays the content in this inscribed circle. The pixels in other locations are simply discarded (just like most round smartwatches on the market)
PACKAGE CONTENT
1.28inch LCD Module x1
20cm cable x1

  • 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
  • OPERATING VOLTAGE:3.3V / 5V
  • DISPLAY PANEL: IPS. PIXEL SIZE: 0.135 × 0.135mm
  • DRIVER: GC9A01
  • Item Dimensions: Width: , Height: , Length:
  • Item Package Dimensions: Width: 5.1054 centimeters, Height: 7.493 centimeters, Length: 2.5908 centimeters

Attribute Value
connectivity technology GPIO
included components 1 x 1.28inch LCD Module, 1 x 20cm Cable
viewing angle 178
has color screen True
total hdmi ports 0
resolution 240 x 240
model name 1.28inch Round IPS LCD
item package quantity 1
brand Bicool
item type keyword computer-monitors
part number 1.28inch Round IPS LCD
specific uses for product Fitness
aspect ratio 1:1
color 1.28inch Round IPS LCD
screen surface description Glossy
item package weight 0.018
manufacturer Bicool
item shape Round
model number 1.28inch Round IPS LCD
supplier declared dg hz regulation not_applicable
display
batteries required False
voltage 5
product site launch date 1/30/2021 3:55:49 PM
compatible devices Raspberry Pi, Jetson Nano, Arduino, STM32
mounting type Wall Mount
native resolution 240 x 240
batteries included False
