Buy 3-Axes Manual Linear Stage,60 x 60mm Trimming Tuning Sliding Table,Micrometer Linear Stage Trimming ,for Production Machinery,Testing Equipment,Optical Products Online In India

3-Axes Manual Linear Stage,60 x 60mm Trimming Tuning Sliding Table,Micrometer Linear Stage Trimming ,for Production Machinery,Testing Equipment,Optical

3-Axes Manual Linear Stage,60 x 60mm Trimming Tuning Sliding Table,Micrometer Linear Stage Trimming ,for Production Machinery,Testing Equipment,Optical by Jectse

Name: 3-Axes Manual Linear Stage,60 x 60mm Trimming Tuning Sliding Table,Micrometer Linear Stage Trimming ,for Production Machinery,Testing Equipment,Optical
Brand: Jectse
SKU: TGG-B081L7NZTB
Price: 16916.0 INR
Availability: InStock

Brand: Jectse

USA Store

Price

~~Rs. 21,145.00~~

Save Rs. 4,229

🚀 In Stock. Ready to ship

Low stock - 1 item left
Backordered, shipping soon

Free shipping all over India

Free & Easy Returns*

100% Secure payments*

Discover the authentic 3-Axes Manual Linear Stage,60 x 60mm Trimming Tuning Sliding Table,Micrometer Linear Stage Trimming ,for Production Machinery,Testing Equipment,Optical by Jectse, part of our Linear Roller Bearings collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.

Highlights & Benefits

Original Linear Roller Bearings – 3-Axes Manual Linear Stage,60 x 60mm Trimming Tuning Sliding Table,Micrometer Linear Stage Trimming ,for Production Machinery,Testing Equipment,Optical by Jectse
100% authentic and sourced from trusted suppliers
Imported from the USA with strict quality checks
Available at the best price in India
Fast and secure delivery across the country

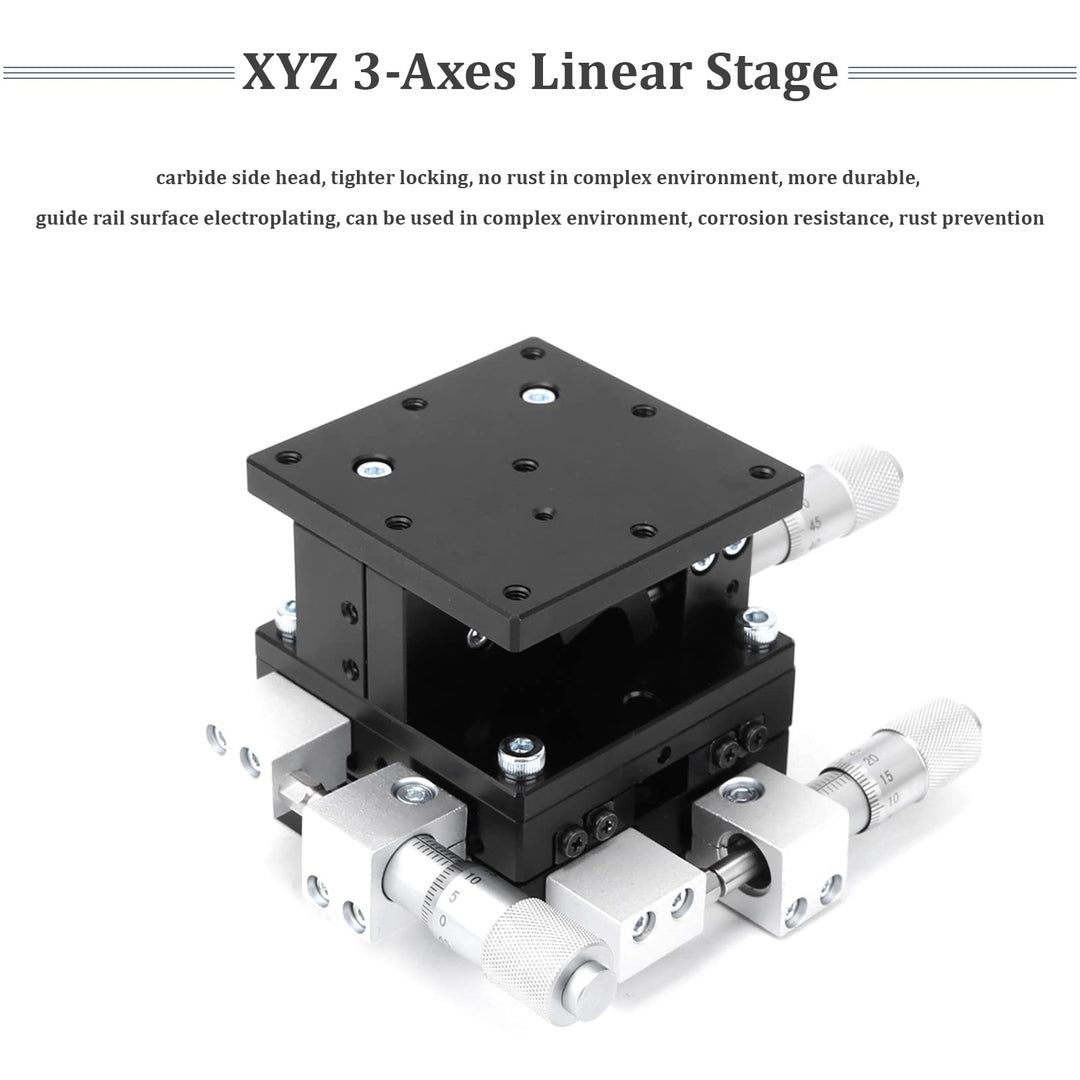

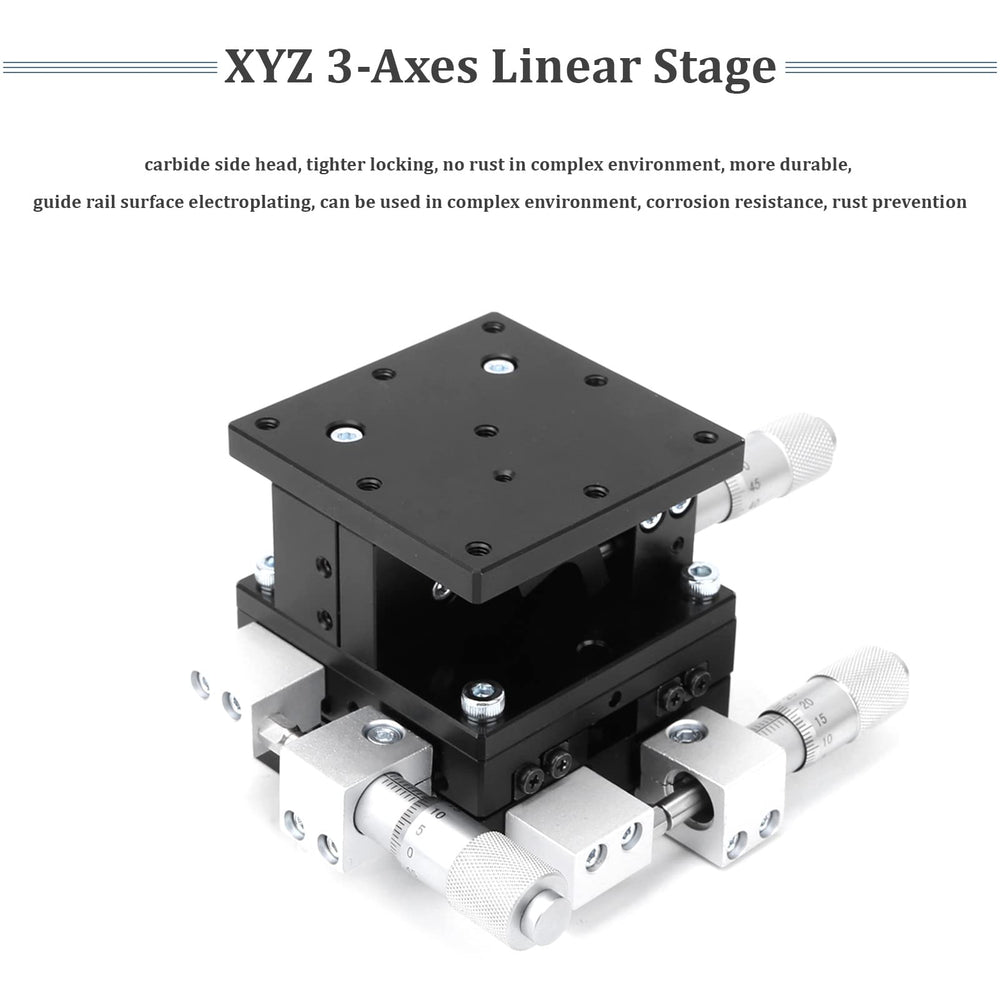

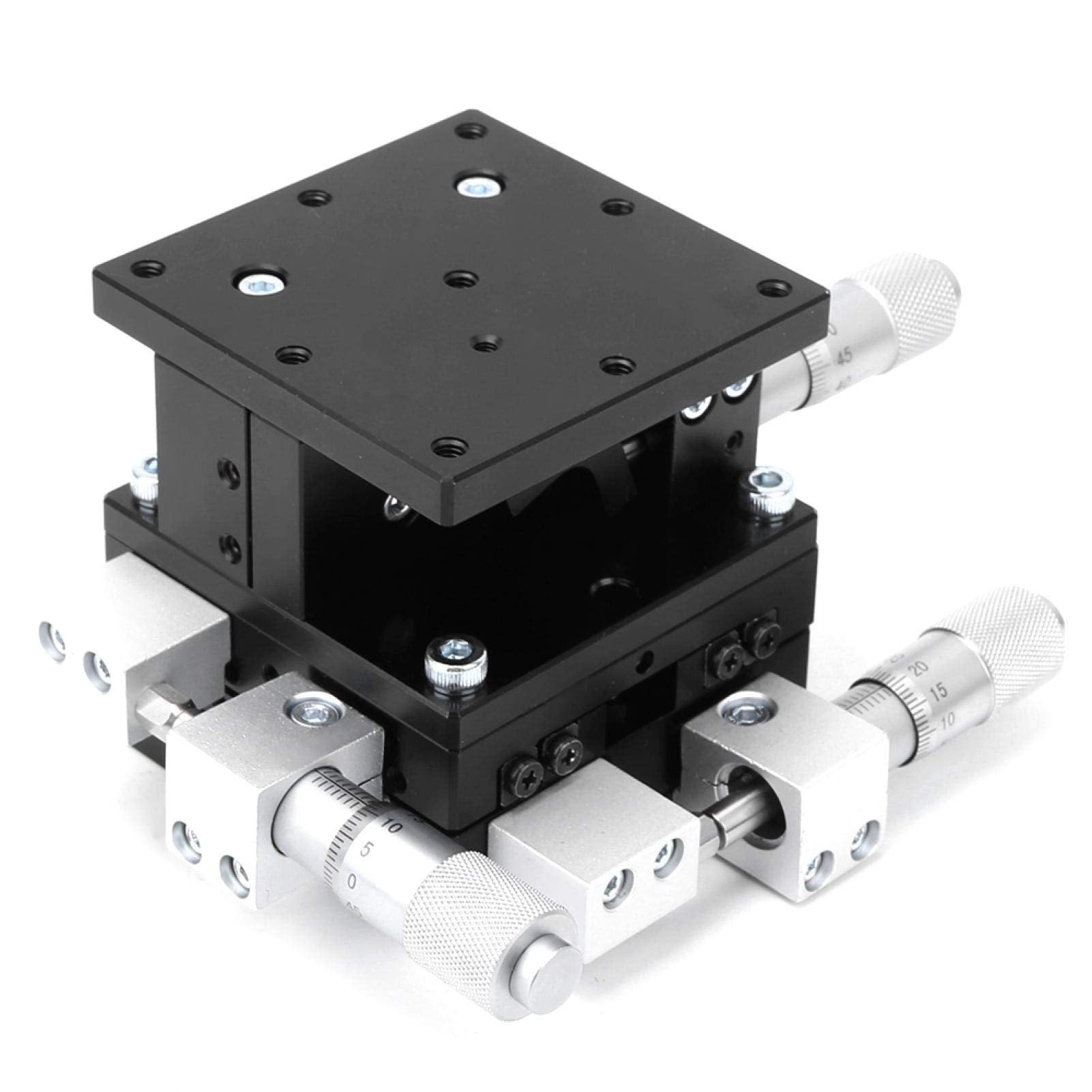

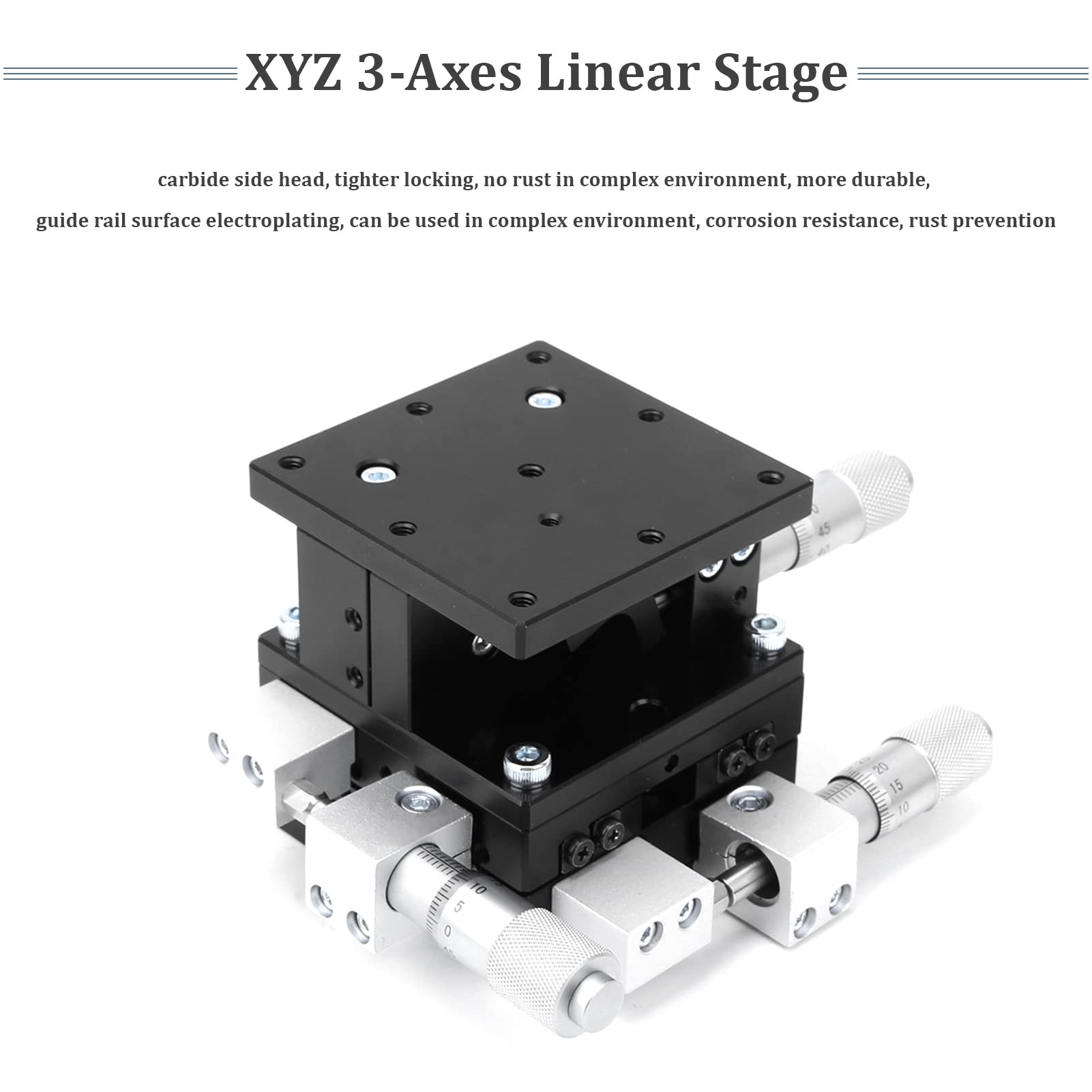

Feature:

1. Widely used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.
2. 3-Axes DOF can be adjusted, internal cross rail, high precision, strong load bearing.
3. plated locking screw, plated fine adjustment knob.
4. Carbide side head, tighter lock, no in complex environment, more , resistant.
5. It adopts high-strength bearing steel cross rail, which has strong bearing capacity, stable work and better wear .
6. The surface of the rail is electroplated and can be used in complex environments, resistant and resistant.
7. Micrometer driving method with an accuracy of 0.03mm.

Specification:

Item Type: Linear Stage Trimming

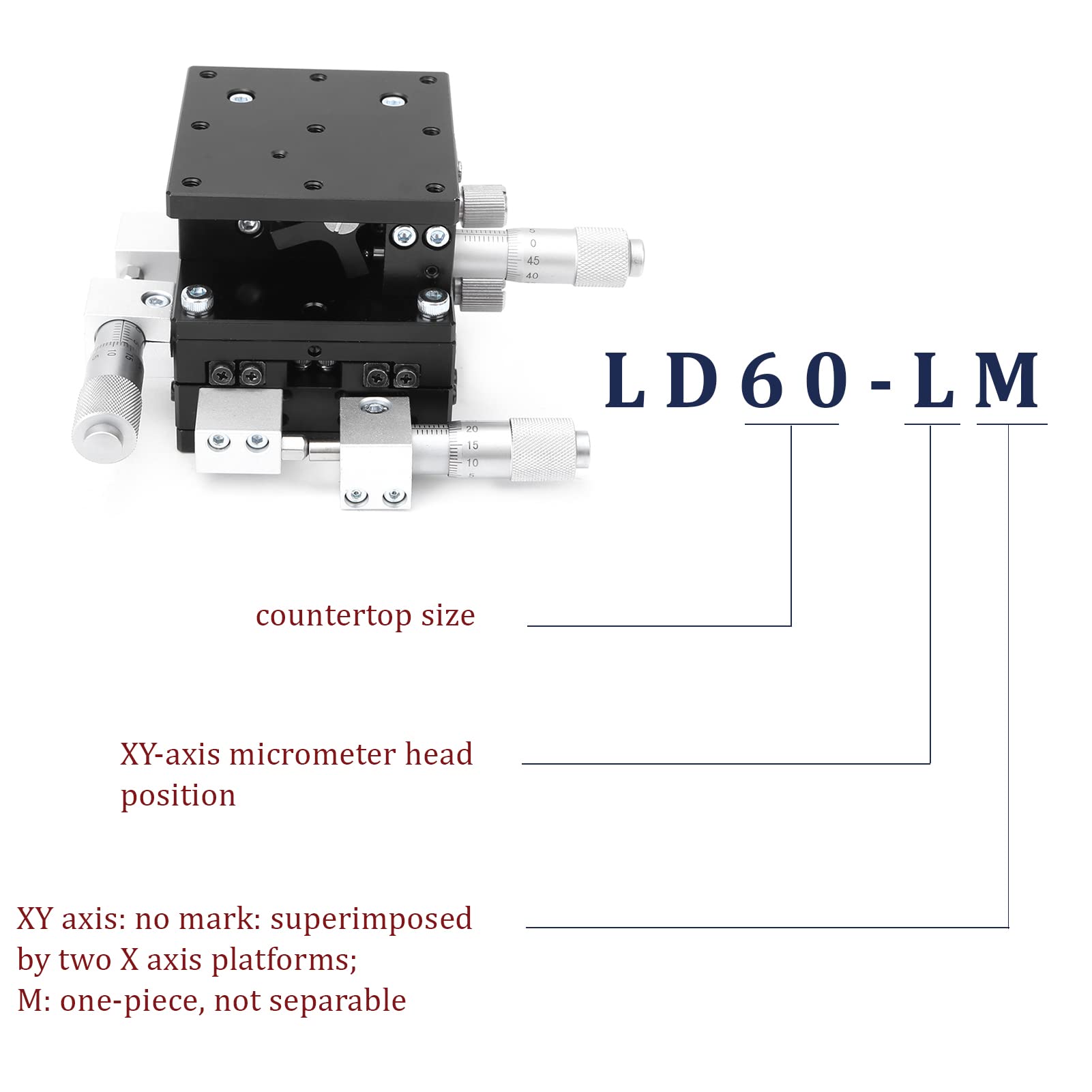

Model: LD60-LM
Material: Aluminum Alloy (black anodized surface)
Table Size: Approx. 60 x 60mm / 2.4 x 2.4in
Overall Height: Approx. 65mm / 2.6in
Moving Rail: Cross rail
Drive Mode: Micrometer
Direction of Movement: 3-Axes DOF
XY Axes Travel: ±6.5mm
Z Axes Travel: 10mm
Load: 24.5N (3kgf)

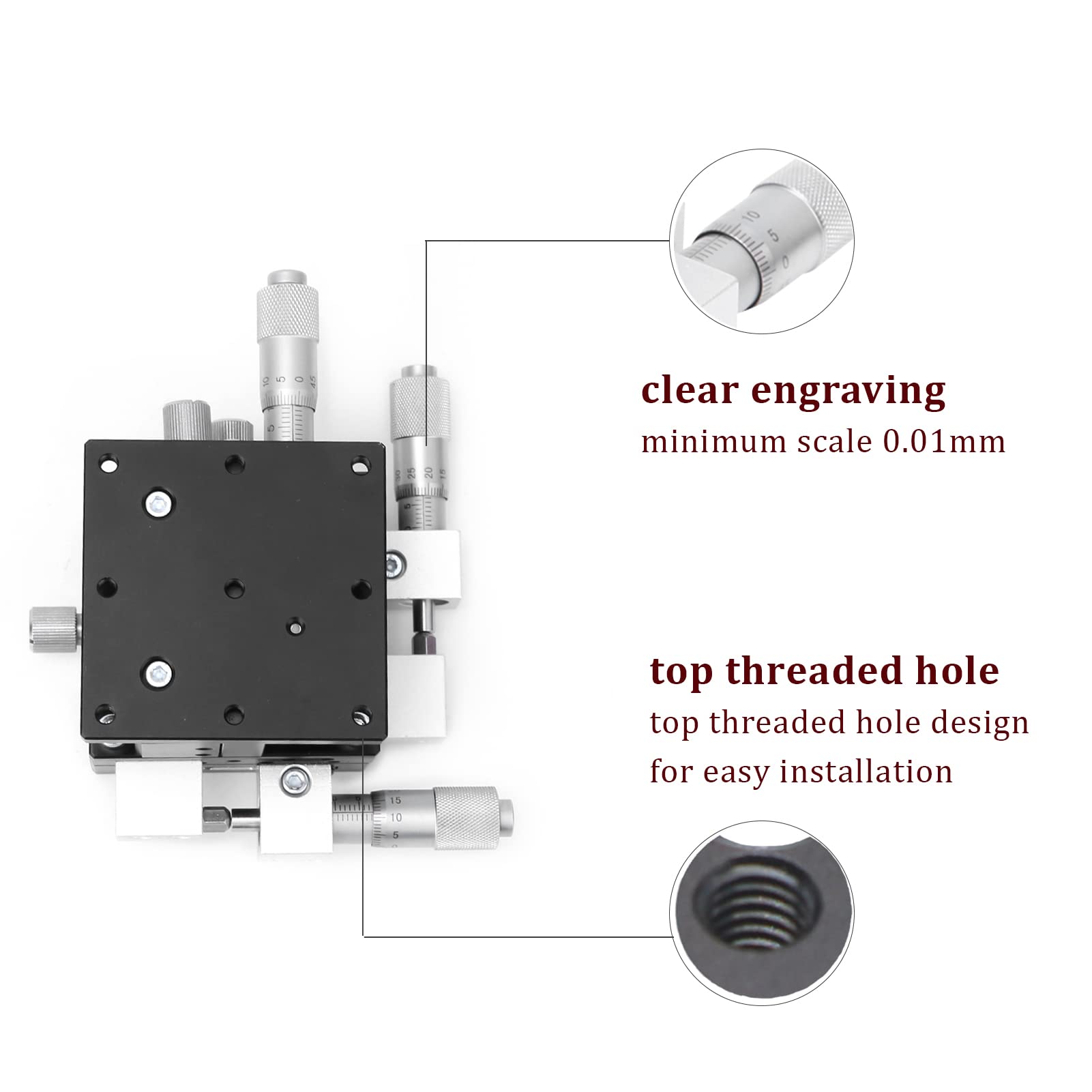

Minimum Scale: 0.01mm
Accuracy: 0.03mm
Parallelism: 0.03mm
Scope of application: Production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.

Package List:

1 x Linear Stage Trimming

HIGH QUALITY:Carbide side head, tighter locking, no in complex environment, more , rail surface electroplating, can be used in complex environment, , prevention
CROSS RAIL: Adopt high-strength bearing steel cross rail, which has strong bearing capacity, stable operation and better wear
THREE-AXIS ADJUSTABLE: three-axis adjustable degrees of freedom, -plated locking screws, -plated fine-tuning knobs, internal rails, high precision and strong bearing capacity
PARAMETER: Micrometer drive mode, accuracy 0.03mm; XY axis travel: ±6.5mm; Z axis travel: 10mm; load: 24.5N (3kgf); minimum scale: 0.01mm; parallelism: 0.03mm
WIDELY APPLICATION: Widely used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.
Item Dimensions: Width: 0 centimeters, Height: 0 centimeters, Length: 0 centimeters
Item Package Dimensions: Width: 11.9888 centimeters, Height: 13.0048 centimeters, Length: 6.8072 centimeters

Attribute	Value
fcc radio frequency emission compliance
item package quantity	1
brand	Jectse
bearing
item type keyword	linear-roller-bearings
number of items	1
part number	Jectseanze68g3ou
item package weight	0.762
manufacturer	Jectse
model number	Jectseanze68g3ou
batteries required	False
product site launch date	11/20/2019 1:52:36 AM
material	Steel
