Description

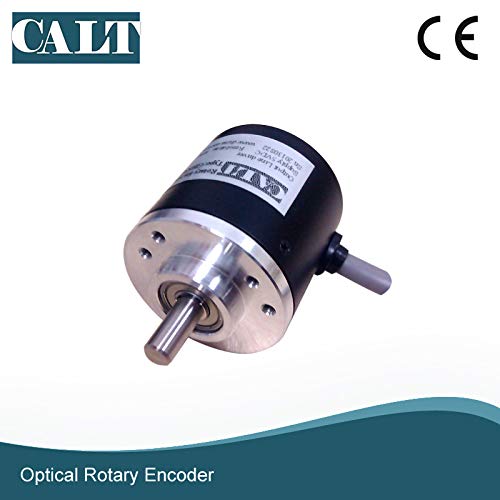

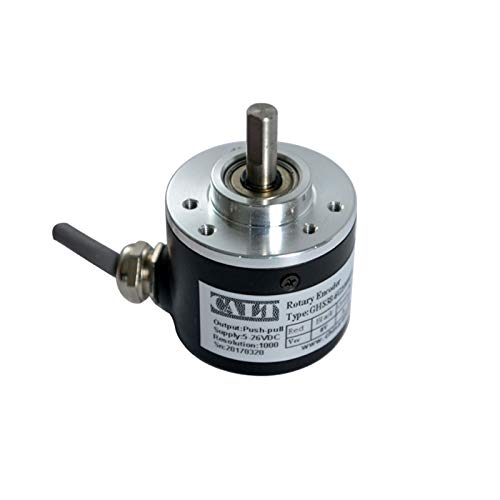

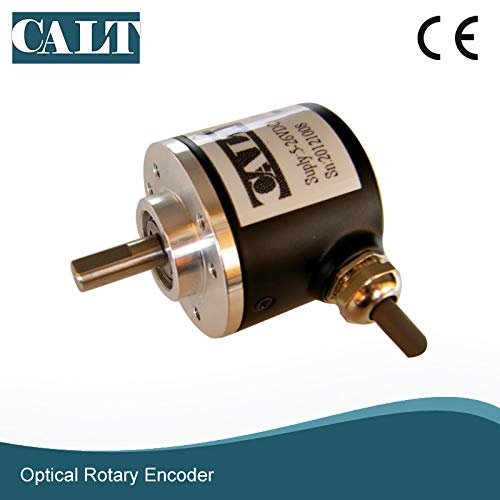

The Incremental Rotary Encoder is designed to provide pulse feedback when the shaft is rotated. It is low cost yet compact, high quality and an incremental rotary encoder. Widely used in Steel Industry, Textile Machinery, Port Machinery, Plastic Machinery, Lifting Machinery, Pressure Machinery, Glass Machinery, Printing Machinery, Wood Machinery, Packaging Machinery, Machine Tool, ogistics Machinery, Tire Machinery, Electronics and Solar, Elevator.
Color: Like the picture show
power supply:DC5-26V wide voltage or DC5V
Speed: more than 6000 r / min
Size: Shaft: 6mm Dia, Shell Size: 38mm Dia,
Output: Line Driver output with ABC A-B-C- signals ;Voltage out put ;Push-pull with ABZ 3 signals;NPN

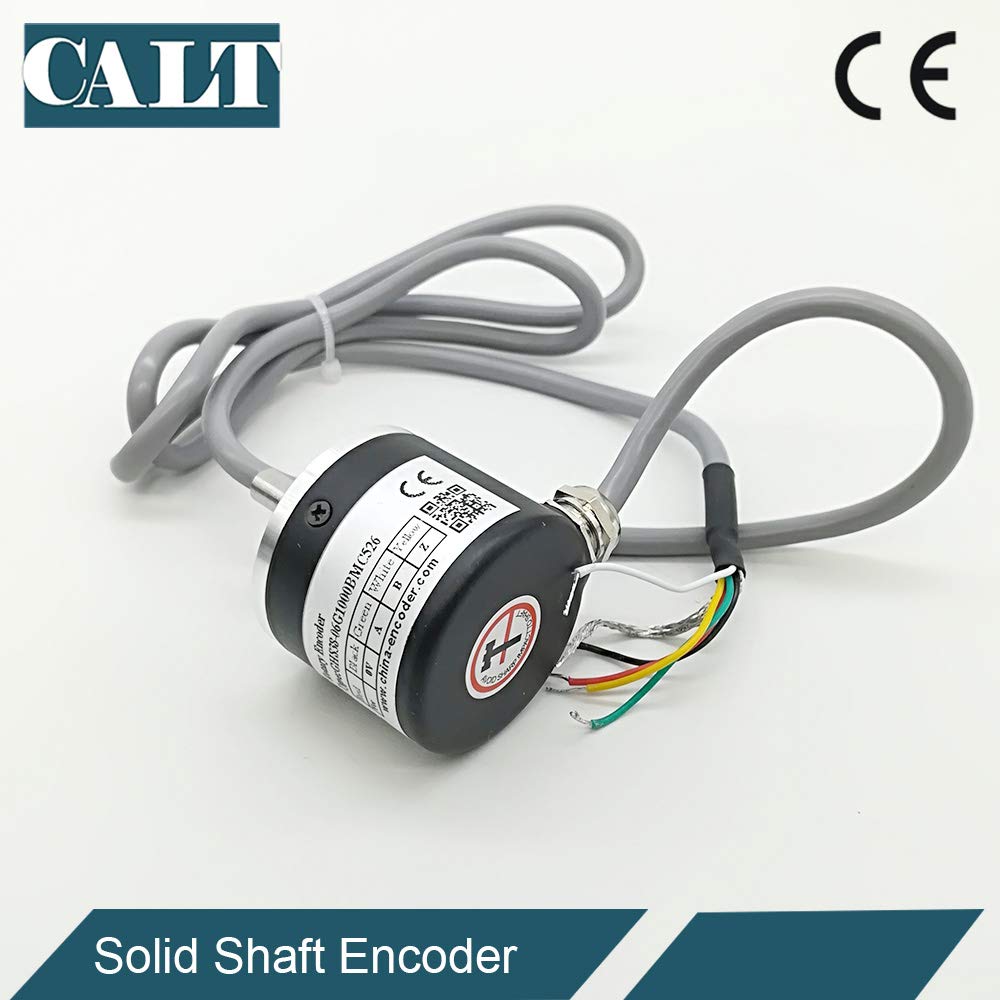

Connection: When 3 channels: Red=VCC, Black = 0V, Green = A, White = B, Yellow = Z When 6 channels: Red = VCC, Black = 0V, Green = A, White = B, Yellow = Z, Brown=A-, Grey=B-, Orange= Z Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output without pull-up resistor when there is no voltage output) If you want the oscilloscope in AB two-phase output with two pull-up resistors.

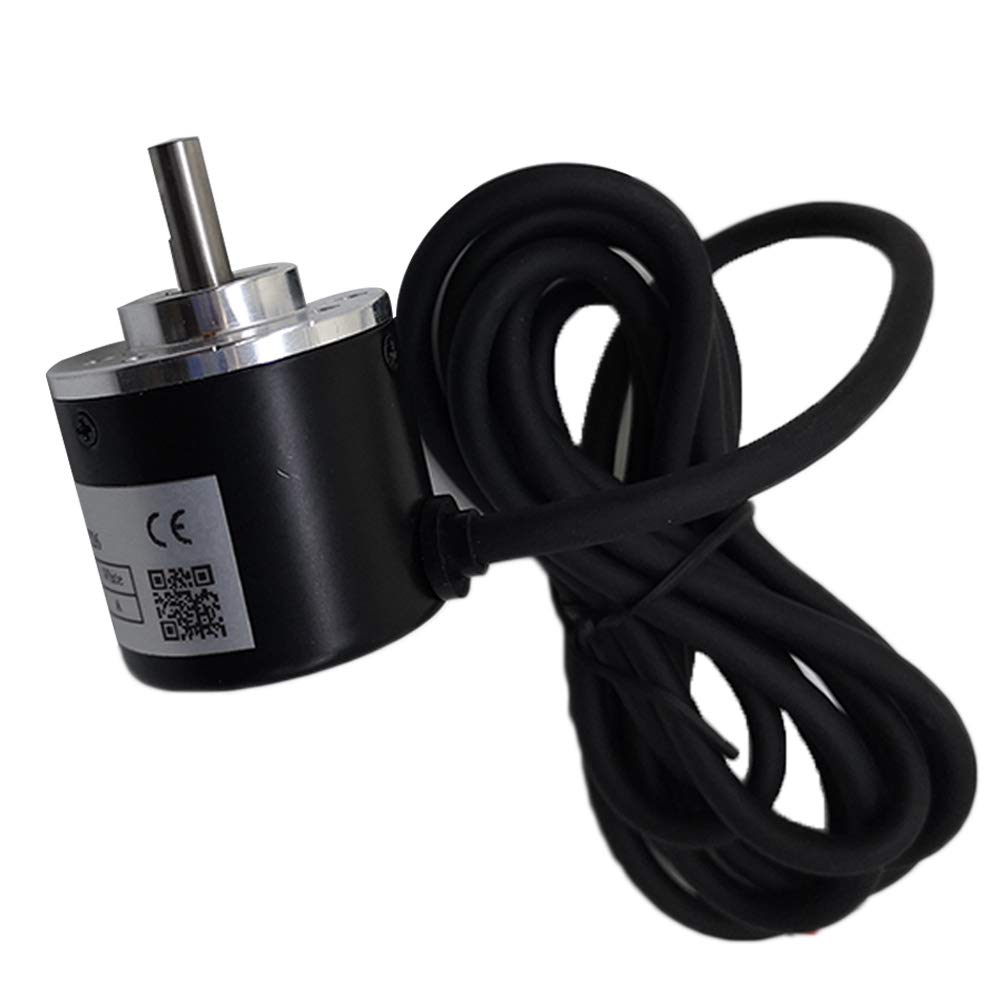

Cable:1meter cable side
