Discover the authentic 5V - 24V Motor Controller Motor Forward/Reverse Controller Timing Delay Time Cycles Relay Motor Controller Board with LED by YWBL-WH, part of our Motor Speed Controllers collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Motor Speed Controllers – 5V - 24V Motor Controller Motor Forward/Reverse Controller Timing Delay Time Cycles Relay Motor Controller Board with LED by YWBL-WH
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
Power supply: DC 6.5-25V, DC 5V
Working current: 83mA
Standby current: 41mA
Relay load current: <5A
Delay time: 0.1-.9 seconds, 1-9999 seconds, 1-9999 minutes

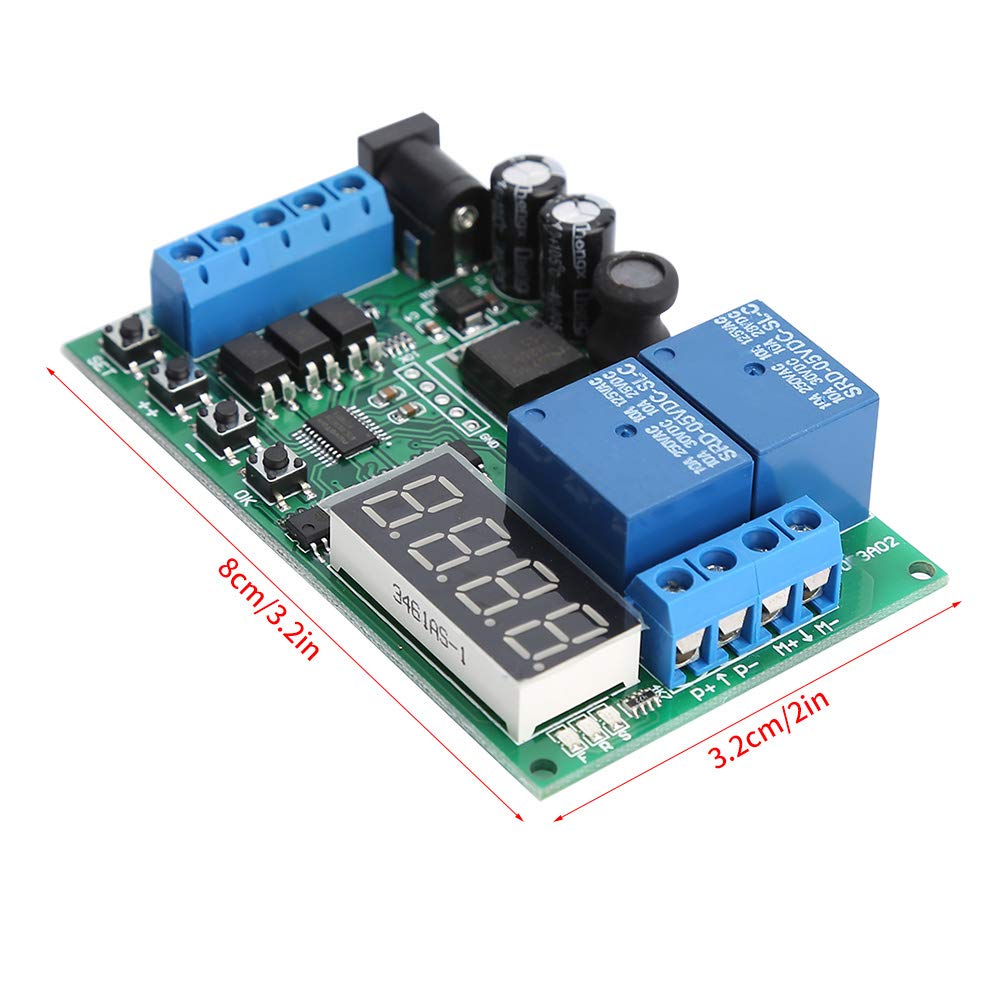

Size: 8*5cm/3.2*2in
Weight: Approx. 51g/1.8oz
- Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V.
- Working Current: (Normal Mode) Standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA.
- Cycle Times: No cycle, 2-99 cycles, always cycle. Delay time: 0.1-.9 seconds, 1-9999 seconds, 1-9999 minutes.

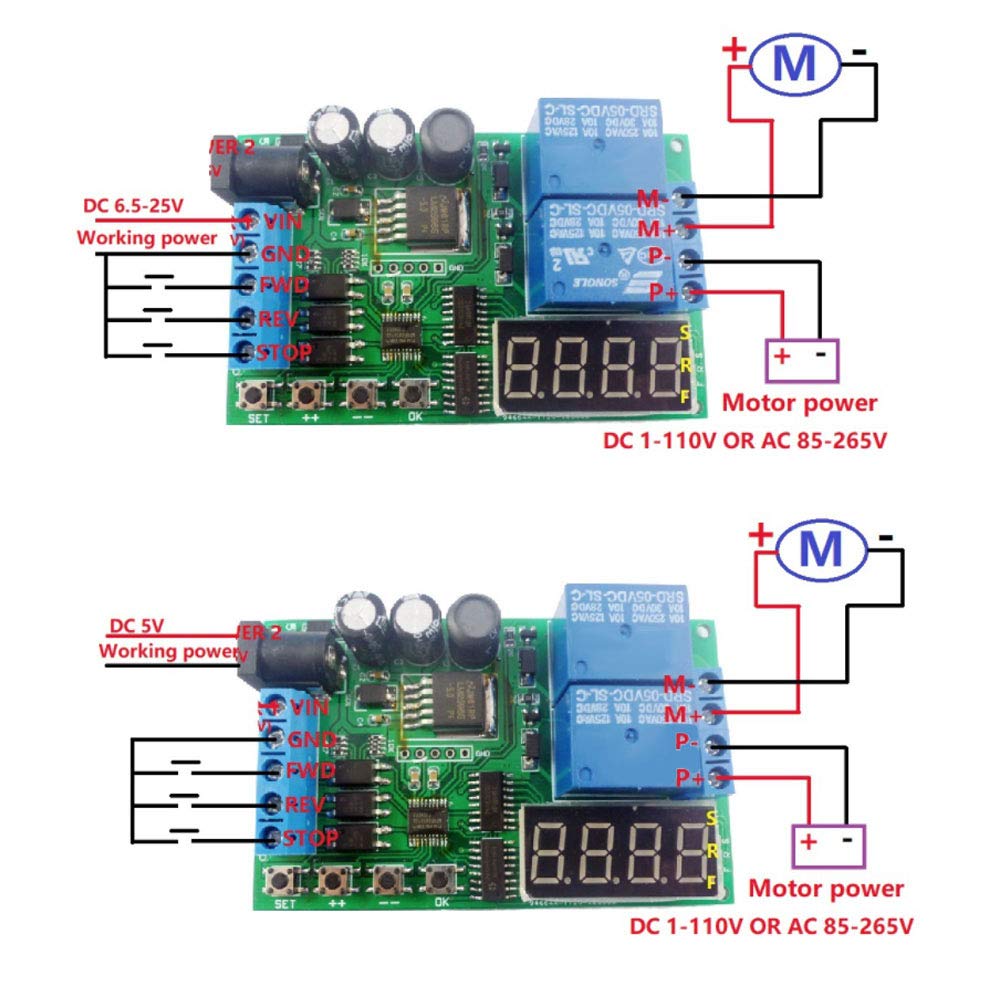

- Two input modes, Low-Pulse mode, Low-Level mode. There are three input control port: forward control(FWD), reverse control(), and stop control(STOP).
- This is a multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.
- Item Weight: 0.05 kilograms
- Item Dimensions: Width: 5 centimeters, Height: 2 centimeters, Length: 8 centimeters
- Item Package Dimensions: Width: 6.5 centimeters, Height: 11.2 centimeters, Length: 2.1 centimeters
| Attribute | Value |
|---|---|
| measurement system | Imperial, Metric |
| maximum switching current | 5 |
| contact | |
| specification met | IEC/EN 60947 |
| item package quantity | 1 |
| brand | YWBL-WH |
| coil | |
| current rating | 5 |
| item type keyword | motor-speed-controllers |
| operating time | 9999 |
| part number | YWBL-WHpn2wg5dy69 |
| item package weight | 0.05 |
| manufacturer | YWBL-WH |
| model number | YWBL-WHpn2wg5dy69 |
| supplier declared dg hz regulation | not_applicable |
| operation mode | Automatic |
| batteries required | False |
| maximum switching voltage | 25 |
| product site launch date | 5/17/2019 12:23:39 PM |
| material | Plastic |
| unit count | 1 |
| batteries included | False |
