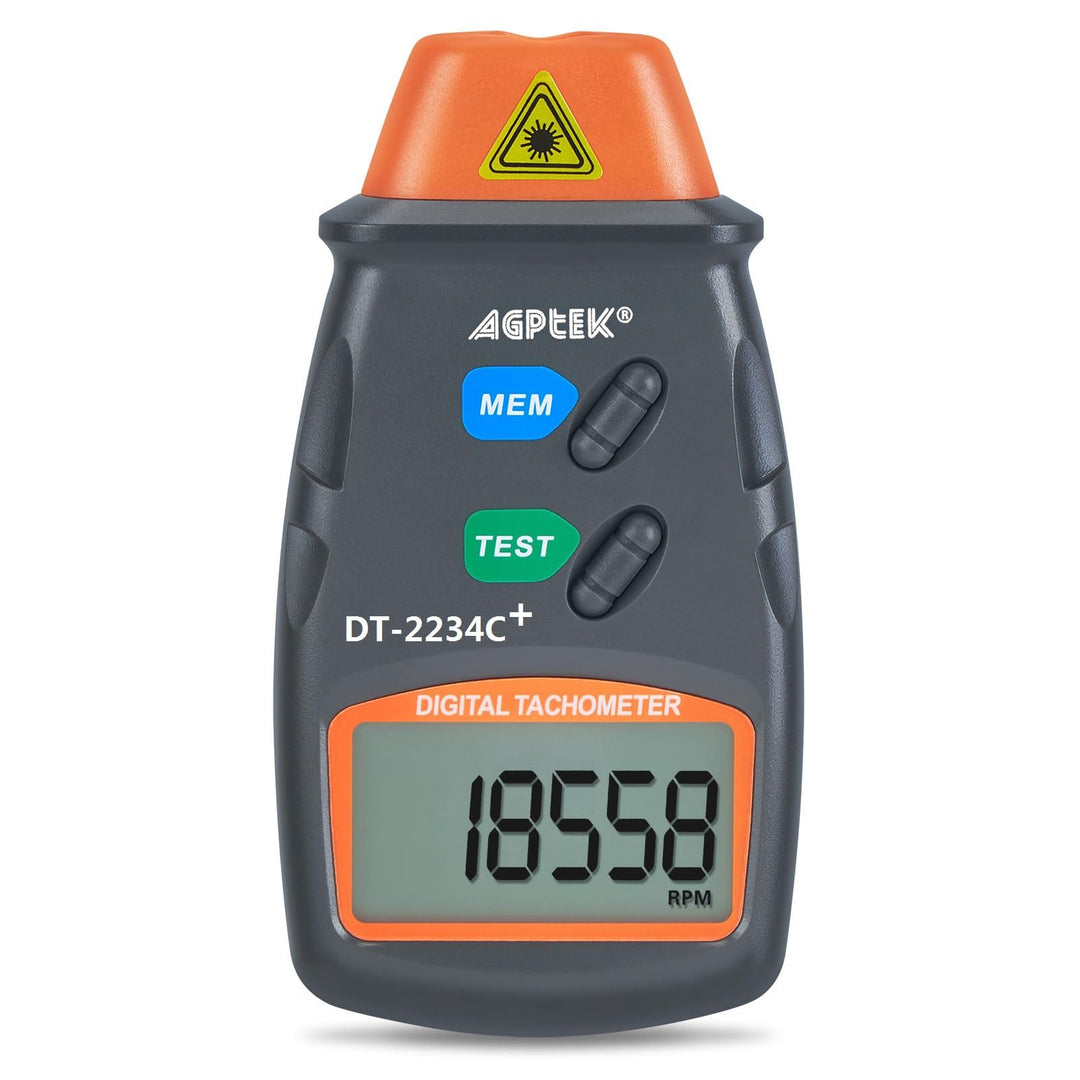

This tachometer is a high quality instrument to measure the Rotational Speed (RPM) with wide measuring range and high resolution. It is featured with high accuracy measurement, quick measuring time and long detecting distance up to 500 mm (20 inch) with Laser.
This tachometer is very easy to use by applying a reflective mark (included in package) on target object, then aim at the mark by Laser beam. This tachometer has wide range of applications include measuring rotating speed of machine, motors, model cars, wheels, lathe for metal or wood cutting work etc.
Specifications:
Display: 5 digits, 18 mm (0.7¡± inch) LCD with Function Annunciation.
Testing Range: 2.5 ~ 99,999 RPM (rate / min).
Resolution:
0.1 RPM (2.5 ~ 999.9 RPM) .
1 RPM (over 1,000 RPM).
Accuracy: (0.05 % + 1 digit).
Sampling Time: 0.8 seconds (over 60 RPM).
Test Range Selection: Automatic.
Memory: Maximum value, Minimum value and Last Measured value.
Detecting Distance: 50 ~ 500 mm (2 ~ 20 inch) (Laser).
Time base: Quartz Crystal.
Circuit: Exclusive one-chip of microcomputer LSI circuit.
Power: 9V PP3 Battery.
Operating Temperature: 0 ~ 50 ¡ãC (32 ~ 122 ¡ãF).
Dimension: approx. 131 (L) x 70 (W) x 29 (D) mm (5.16¡¯ x 2.76¡¯ x 1.14¡¯ inch).
Weight: approx. 160g

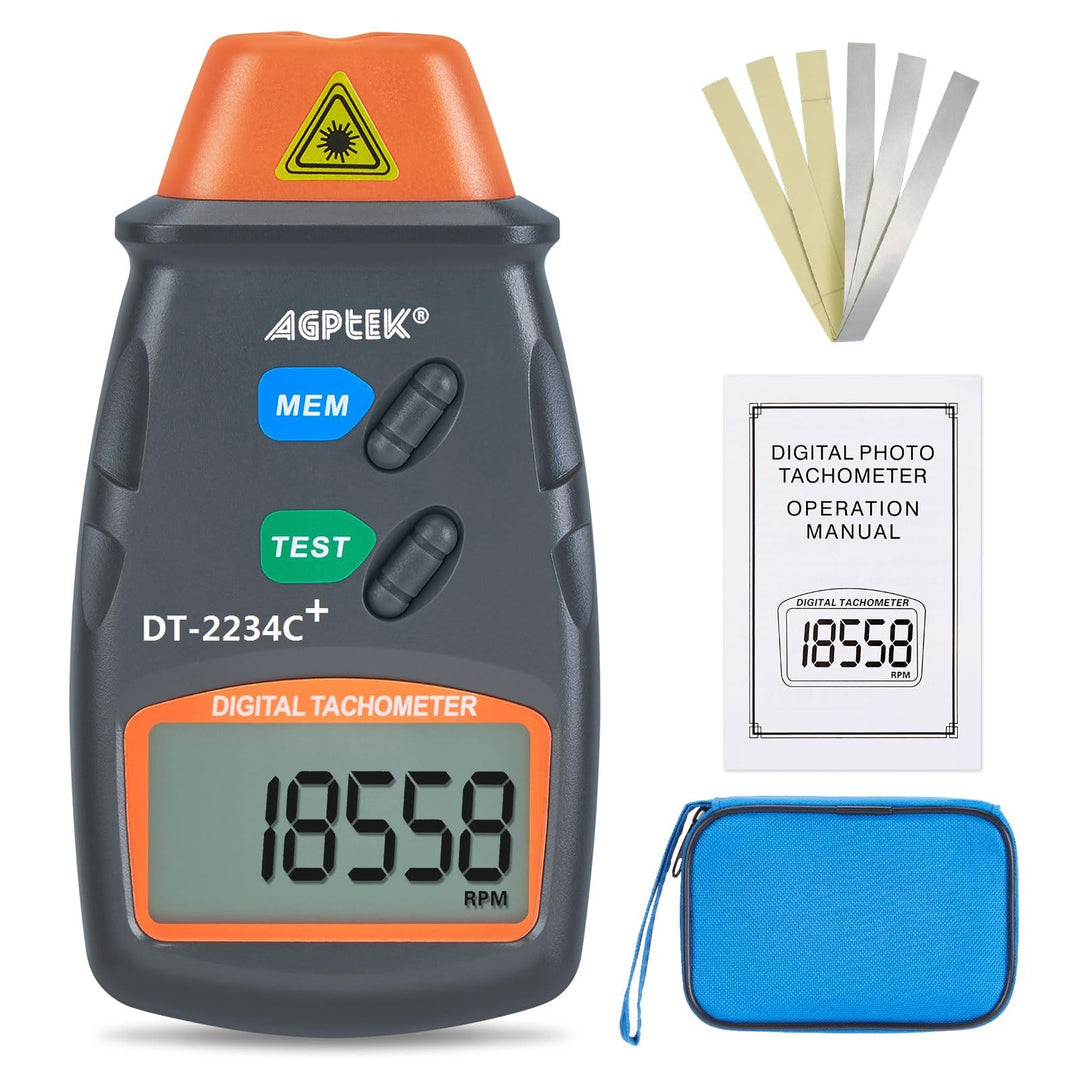

Package Content:
1 x New Digital Laser Photo Tachometer Non Contact RPM Tach
1 x English Manual
1 x Carrying Bag
3 x approx. 20cm of reflective stripes

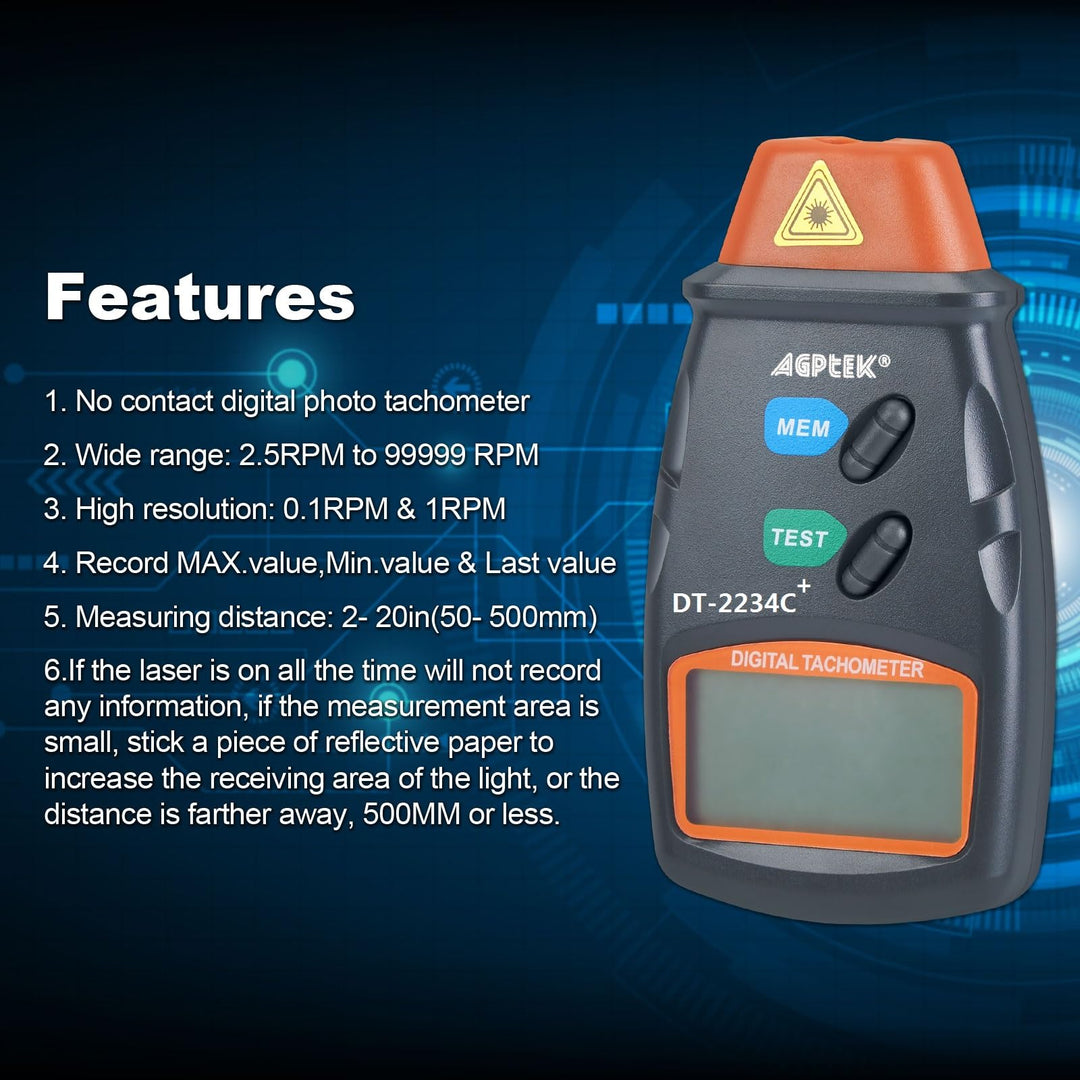

- *ACCURATE MEASUREMENT:Wide measuring range(2.5RPM to 99999 RPM);High resolution(0.1RPM or 1RPM).Accurately measure the speed of motors and machine parts.Measuring distance: (50- 500mm).

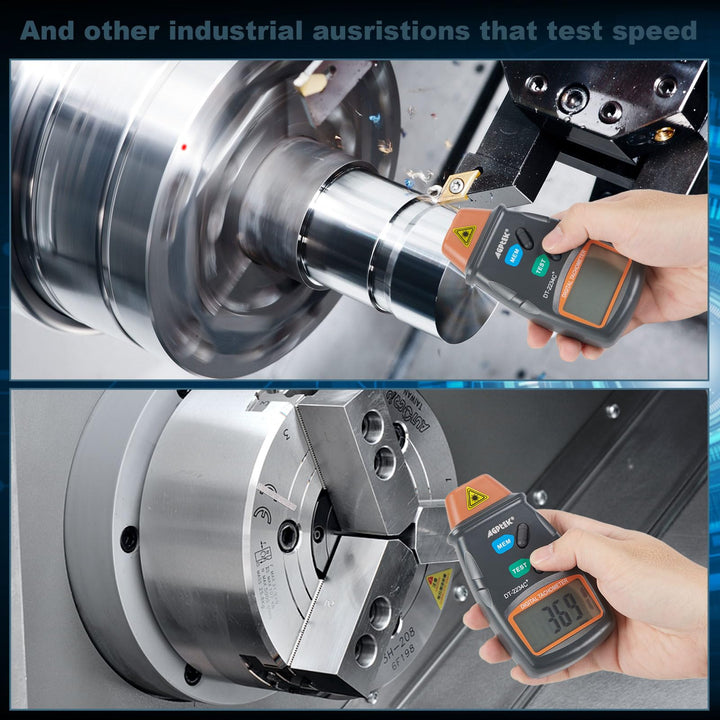

- *WIDELY USE:Used in the field of motor, metal and wood cutting lathes, electric fan, paper making, fiber manufacturing, washing machines and automotive manufacturing etc.It is not support for sawmill or lawn mower.

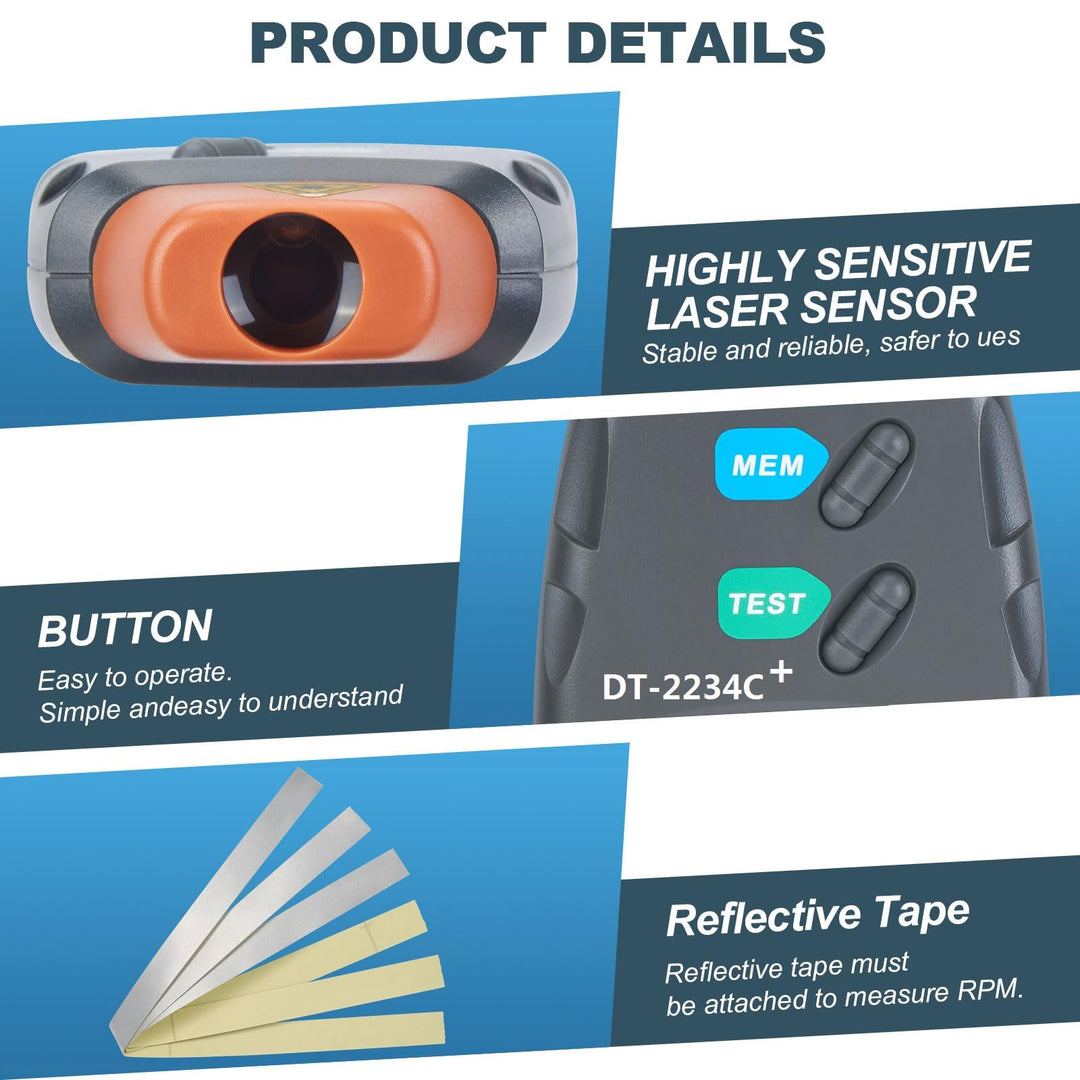

- *REFLECTIVE TAPE:Reflective tape must be attached to measure RPM.Note: If measuring laser objects be sure to stick reflective paper.
- *TECHNOLOGY&DISPLAY: The use of microcomputer technology, anti-jamming technology and other advanced technology, can accurately measure the speed value. Large screen liquid crystal display, clear reading.
- *PORTABLE:Compact and lightweight.Easy to take out . Product Package: 1*Tachometer , 1*9V Battery, 1*Manual, 3*Reflective Tapes, 1*Blue Storage Bag
- Item Dimensions: Width: 2.76 inches, Height: 1.14 inches, Length: 4.91 inches
- Item Package Dimensions: Width: 9.906 centimeters, Height: 15.0114 centimeters, Length: 5.207 centimeters
Attribute | Value |
---|---|
item package quantity | 1 |
brand | AGPTEK |
item type keyword | industrial-tachometers |
part number | iT8+iT85 |
color | DT-2234C+ |
item package weight | 0.15 |
battery | |
manufacturer | AGPTEK |
model number | 4350282862 |
supplier declared dg hz regulation | not_applicable |
num batteries | , |
gpsr safety attestation | True |
batteries required | False |
product site launch date | 3/2/2011 8:03:26 AM |
material | Plastic |
batteries included | False |
