Passive Video Balun with Power BNC to RJ45 Adapter Cat5 / Cat6 Cable to BNC Male Network Transceiver for CCTV Security Surveillance Camera 1 Pair

Passive Video Balun with Power BNC to RJ45 Adapter Cat5 / Cat6 Cable to BNC Male Network Transceiver for CCTV Security Surveillance Camera 1 Pair by ANHAN

Name: ANHAN Passive Video Balun with Power BNC to RJ45 Adapter Cat5 / Cat6 Cable to BNC Male Network Transceiver for CCTV Security Surveillance Camera 1 Pair
Brand: ANHAN
SKU: TGG-B0784W4Z5G
Price: 3865.0 INR
Availability: InStock

Brand: ANHAN

USA Store

Price

~~Rs. 0.00~~

Save Rs. -3,865

🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.

In stock, ready to ship
Backordered, shipping soon

Free shipping all over India

Free & Easy Returns*

100% Secure payments*

Discover the authentic Passive Video Balun with Power BNC to RJ45 Adapter Cat5 / Cat6 Cable to BNC Male Network Transceiver for CCTV Security Surveillance Camera 1 Pair by ANHAN, part of our Surveillance Camera Cables collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.

Highlights & Benefits

Original Surveillance Camera Cables – Passive Video Balun with Power BNC to RJ45 Adapter Cat5 / Cat6 Cable to BNC Male Network Transceiver for CCTV Security Surveillance Camera 1 Pair by ANHAN
100% authentic and sourced from trusted suppliers
Imported from the USA with strict quality checks
Available at the best price in India
Fast and secure delivery across the country

SPECIFICATION

Audio: 2 screw-mount

Video: 2 screw-mount

Power Input: 1

Connector Input: RJ45

Output Connector: Male BNC connector

Power Cable length:about 16cm

Video Format PAL,NTSC,SECAM

Operating Frequency DC to 6MHz

Common-mode/Different-mode rejection 15KHz to 5MHz 60 dB typ

Attenuation 1.5dB typ Max

Impedance Male BNC:75O

Terminal:100O

Wire type

Network Wiring One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm)

Category Type 5 or better

Impedance 100±20ohms

DC Loop Resistance 52 ohms per 1000ft(18 ohms per 100m)

DC Loop Resistance Different Capacitance

Power: No External power required

Protection

Video Input 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)

Video Output 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)

Mechanical

Housing ABS engineering plastic

Gross weight 83g

Environment

Operating Temperature -20°C-70°C

Relative Humidity: 0-95%(non-condensing)

Storage Temperature -40°C-80°C

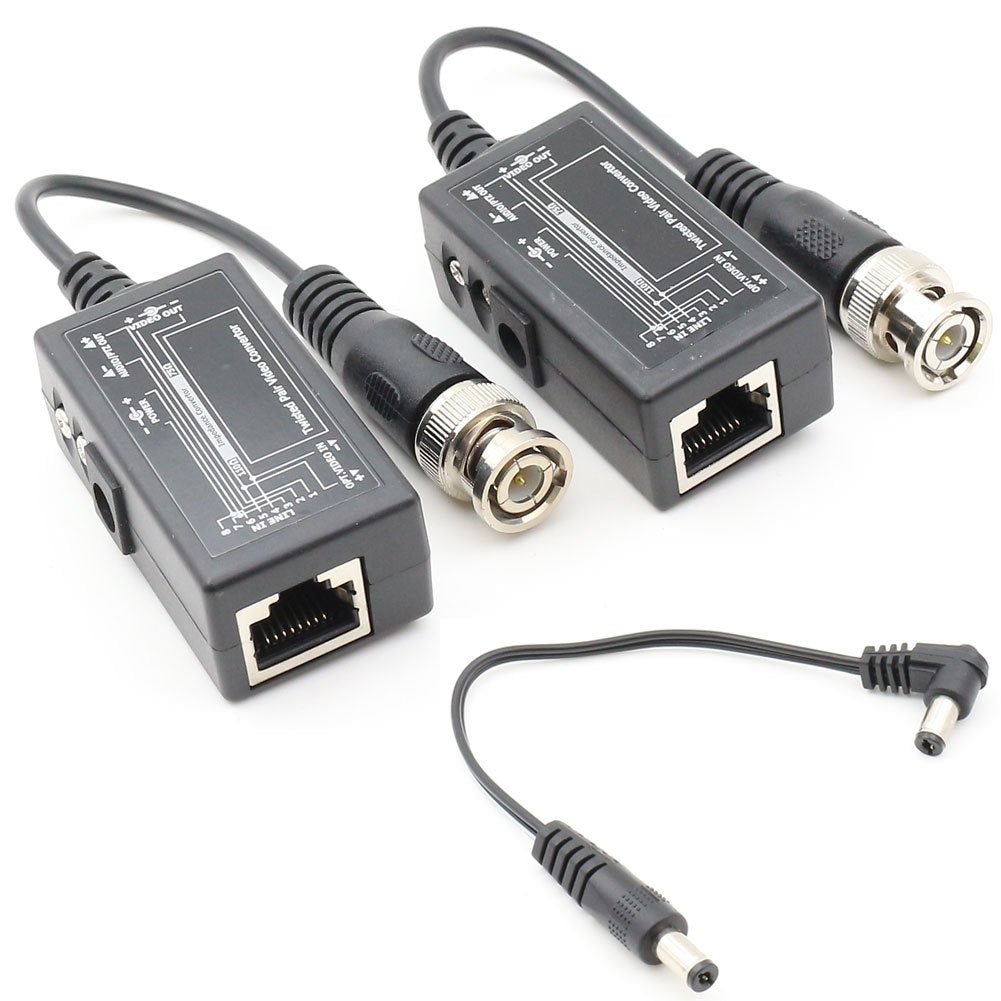

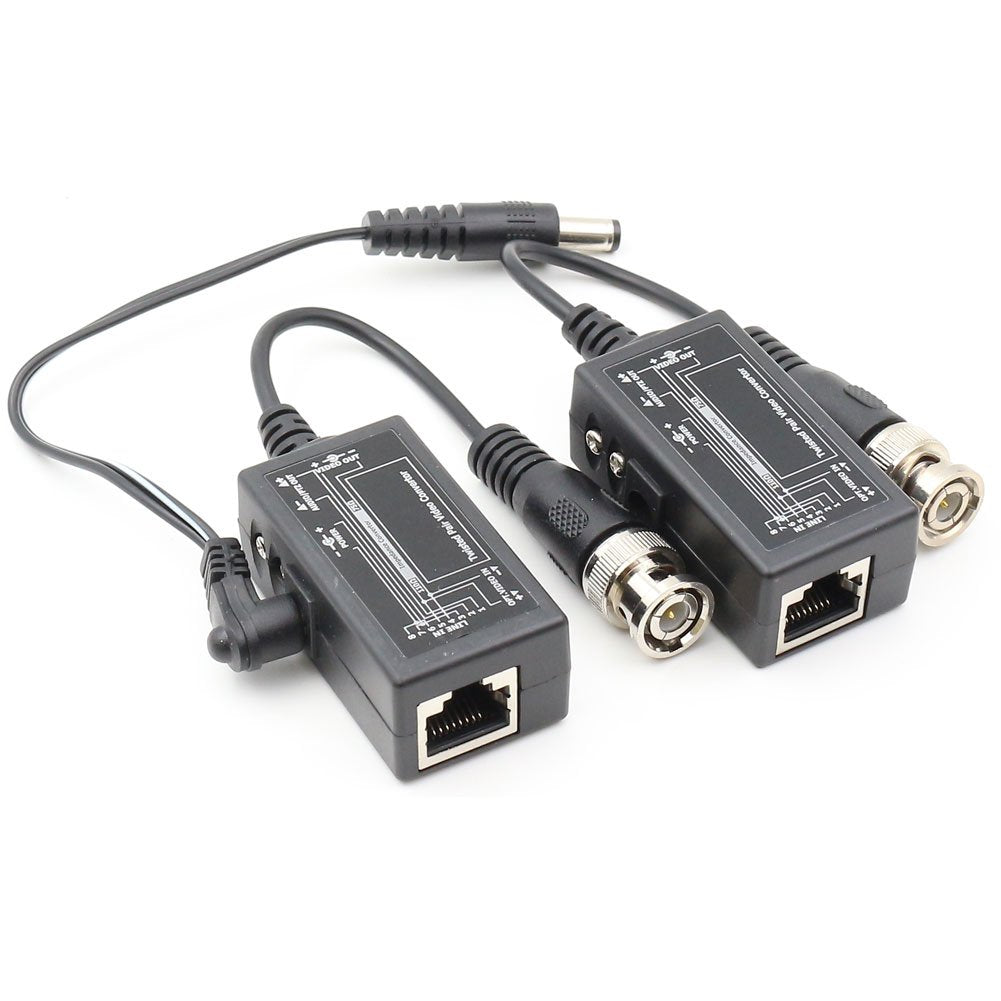

Package Inclueds (1 pairs = 2pcs)

1 Pair BNC Transceiver to RJ45 Connector

1 x Power Cable

Power ,audio and Video signals are routed via Cat5e/Cat6 Cable with RJ45 connectors instead of coaxial cable,Low-cost cable, reduce the video noise

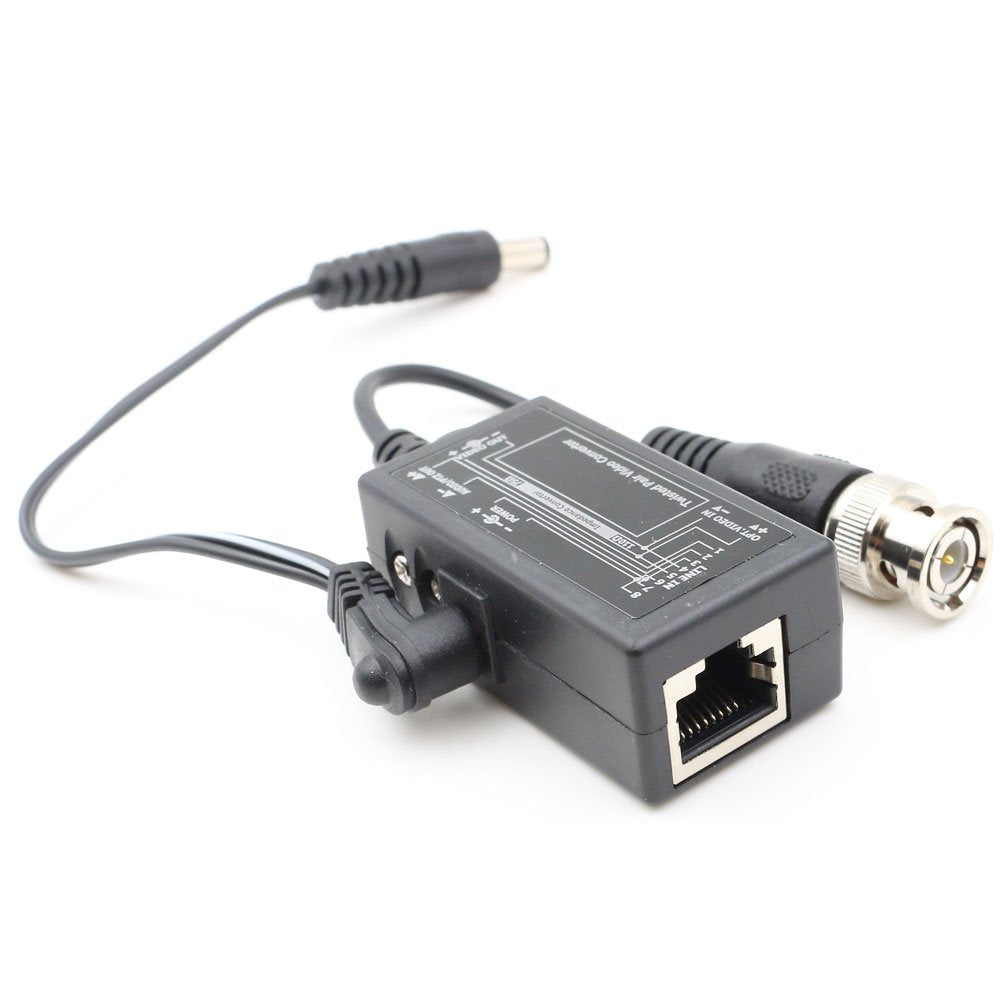

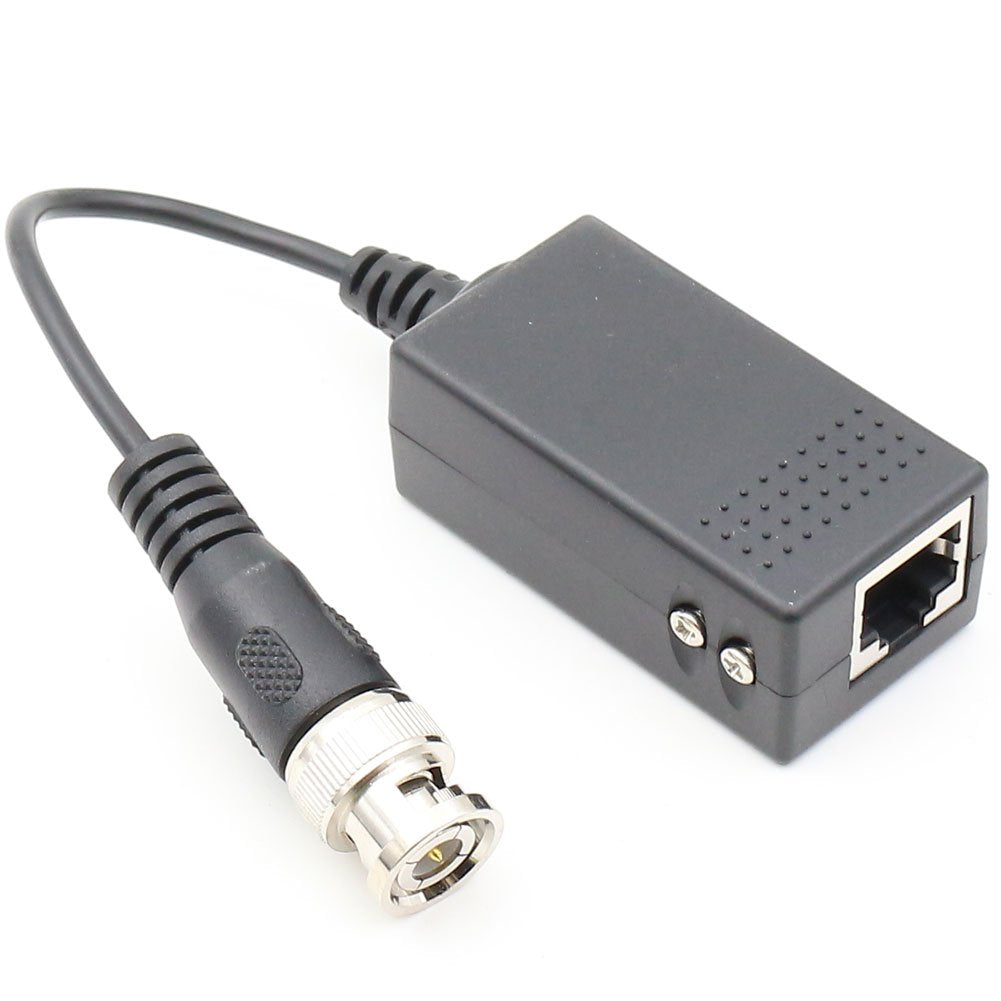

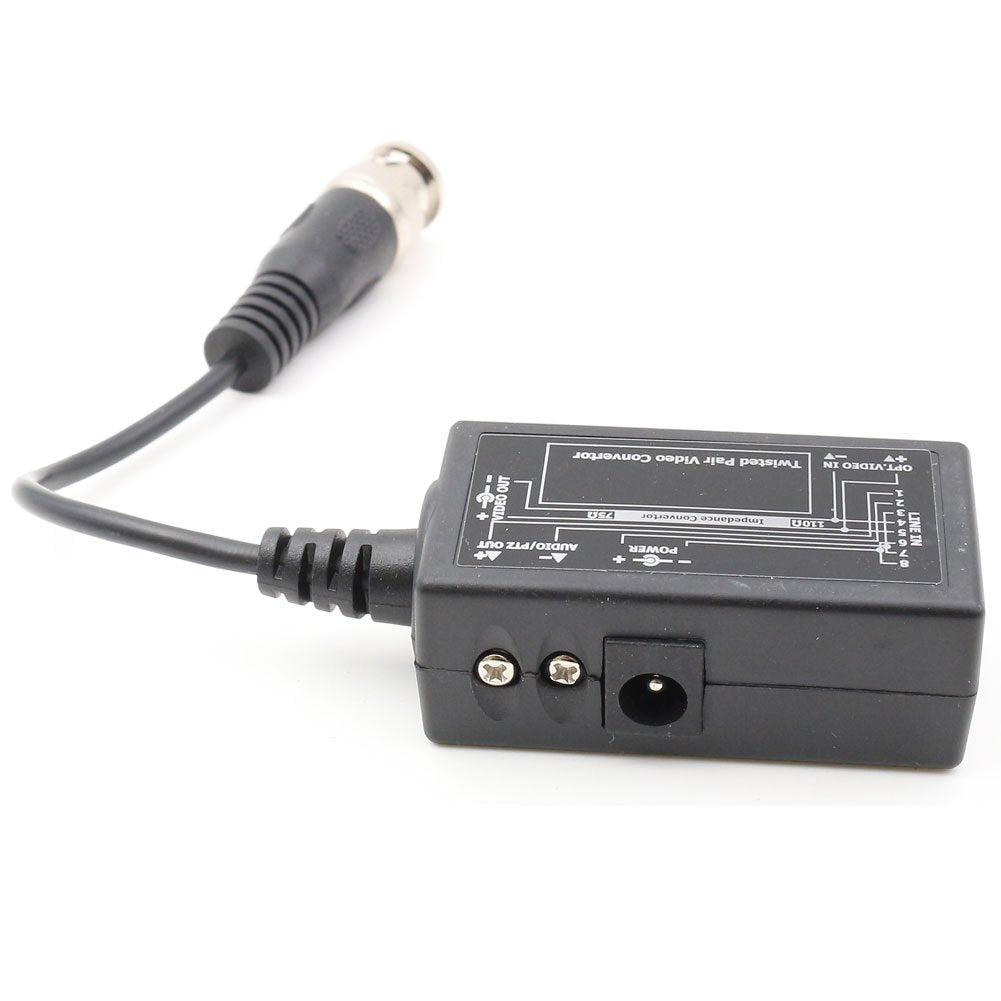

Type: Video Balun transceiver. Video input/output Male BNC / RJ45 Port / DC Jack. Male BNC with extended mini-coax pigtail
BNC Male to RJ45 Long Transmission Distance Network Transceiver:Power signal up to 600 ft (200m) in pairs,12V/24V, DC/AC .Color video up to 1000 ft (300m) in pairs via UTP Cat5e/6.please increase power voltage when distance is more than 150m
Passive Video Power Balun Works with most video devices, Compact size for easy installation
Package Inclueds :1 Pair BNC to RJ45 Video Balun Transceiver Adapter,1 x Power Cable
Item Dimensions: Width: , Height: , Length:
Item Package Dimensions: Width: 12 centimeters, Height: 15 centimeters, Length: 3 centimeters

Attribute	Value
data transfer rate	6
fcc radio frequency emission compliance
frequency	6
item package quantity	1
connector type	RJ45
specification met
brand	ANHAN
cable
gauge
connector gender	Male-to-Male
maximum voltage	24
item type keyword	surveillance-camera-cables
recommended uses for product	Security,Surveillance
size	1000 feet
part number	CAL013
style	Video Balun to RJ45
number of pins	10
color	black or white
item package weight	0.04
customer package type	Standard Packaging
manufacturer	ANHAN
item shape	Round
indoor outdoor usage	outdoor, indoor
model number	4335042115
supplier declared dg hz regulation	not_applicable
special feature	Compact
batteries required	False
voltage	12
product site launch date	11/28/2017 8:00:00 AM
compatible devices	Camera
unit count	1
batteries included	False
