Discover the authentic DC 5-120V 100A Mini Digital Current Voltage Amp Meter Ammeter Gauge with Hall Effect Sensor Transformer by bayite, part of our Ammeters collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Ammeters – DC 5-120V 100A Mini Digital Current Voltage Amp Meter Ammeter Gauge with Hall Effect Sensor Transformer by bayite
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
Main Specifications:
Measurement Range: + -100A
Measuring Accuracy: + -1%
Resolution: 0.3A
Working current: 7-15mA
Power supply: DC 5-120V
Overall Dimensions: 48mm*29mm*23mm
Cutout size: 45.5mm*25.5mm
Sensor hole diameter: 19mm
Operating temperature: -4°F - 140°F (-20°C - 60°C)
- Through-hole design: Easy Wiring; Measure positive or negative current; No current direction limitation
- Electrically isolated from high voltage power source which eliminates risk to delicate monitoring equipment and also minimizes safety concerns
- Display Voltage or (+ -)Current; Voltage Range: 5V-120V; Current range: 0-100A
- Compatible with large wire; Diameter of the hole through sensor is 3/4 inch(19 mm)

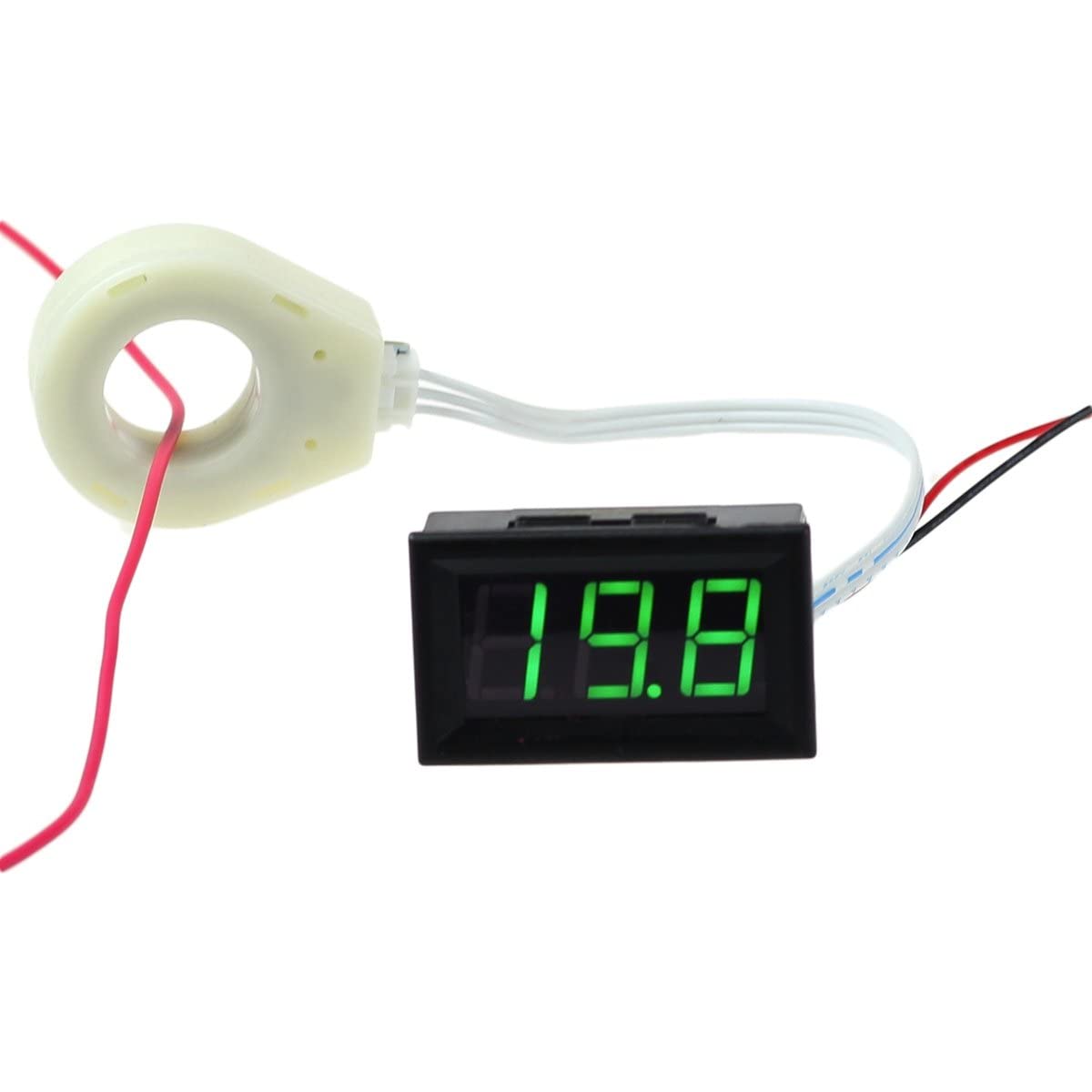

- Loop through sensor multiple times to strengthen signal. For example, if your current signal is only 0.2 Amps, you could loop the wire through the sensor 10 times and the signal would by 10X stronger and would appear as 2.0 Amps
- Item Weight: 6.7 ounces
- Item Dimensions: Width: 1.14 inches, Height: 0.9 inches, Length: 1.89 inches
- Item Package Dimensions: Width: 7.112 centimeters, Height: 7.1882 centimeters, Length: 6.4008 centimeters
Attribute | Value |
---|---|
item package quantity | 1 |
brand | bayite |
item type keyword | automotive-instrument-panel-amp-meter-gauges |
part number | BYT-VAM-033 |
style | Digital |
item package weight | 0.191 |
supplier declared dg hz regulation | not_applicable |
batteries required | False |
product site launch date | 3/24/2016 12:26:16 PM |
material | Acrylonitrile Butadiene Styrene (ABS) |
batteries included | False |
