Discover the authentic 2-Pin 8mm LED Strip Connectors Solderless Unwired Clips - DIY Strip to Wire Quick Connection for 12v 24v Single Color SMD 3528 2835 Led Strip Lights (Pack of 10) by Biantie La, part of our Connectors collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Connectors – 2-Pin 8mm LED Strip Connectors Solderless Unwired Clips - DIY Strip to Wire Quick Connection for 12v 24v Single Color SMD 3528 2835 Led Strip Lights (Pack of 10) by Biantie La
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country

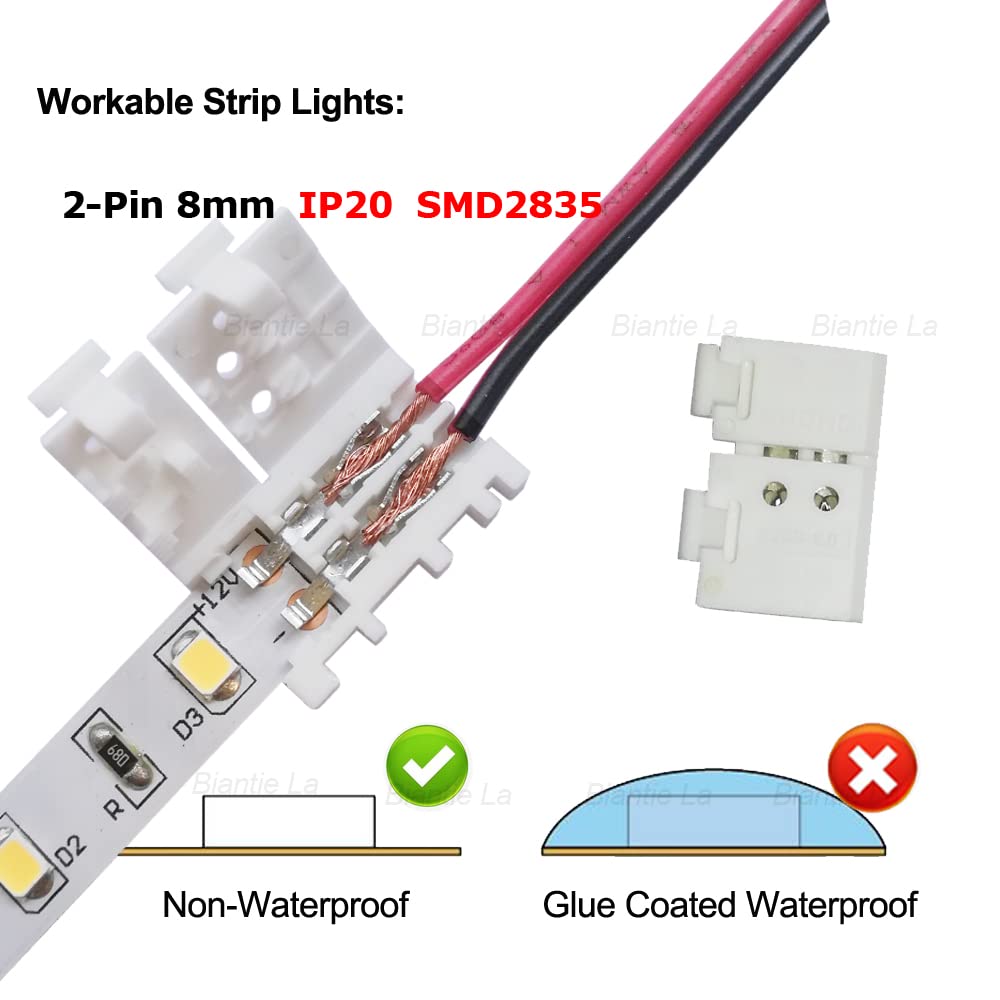

NOTE: 1.Make sure your section of led light strip is 8mm wide 2 pin IP20 Non-WATERPROOF LED Strip.
2. Need to peel off the silicone on the surface of led lights when you want to connect WATERPROOF LED strip light.

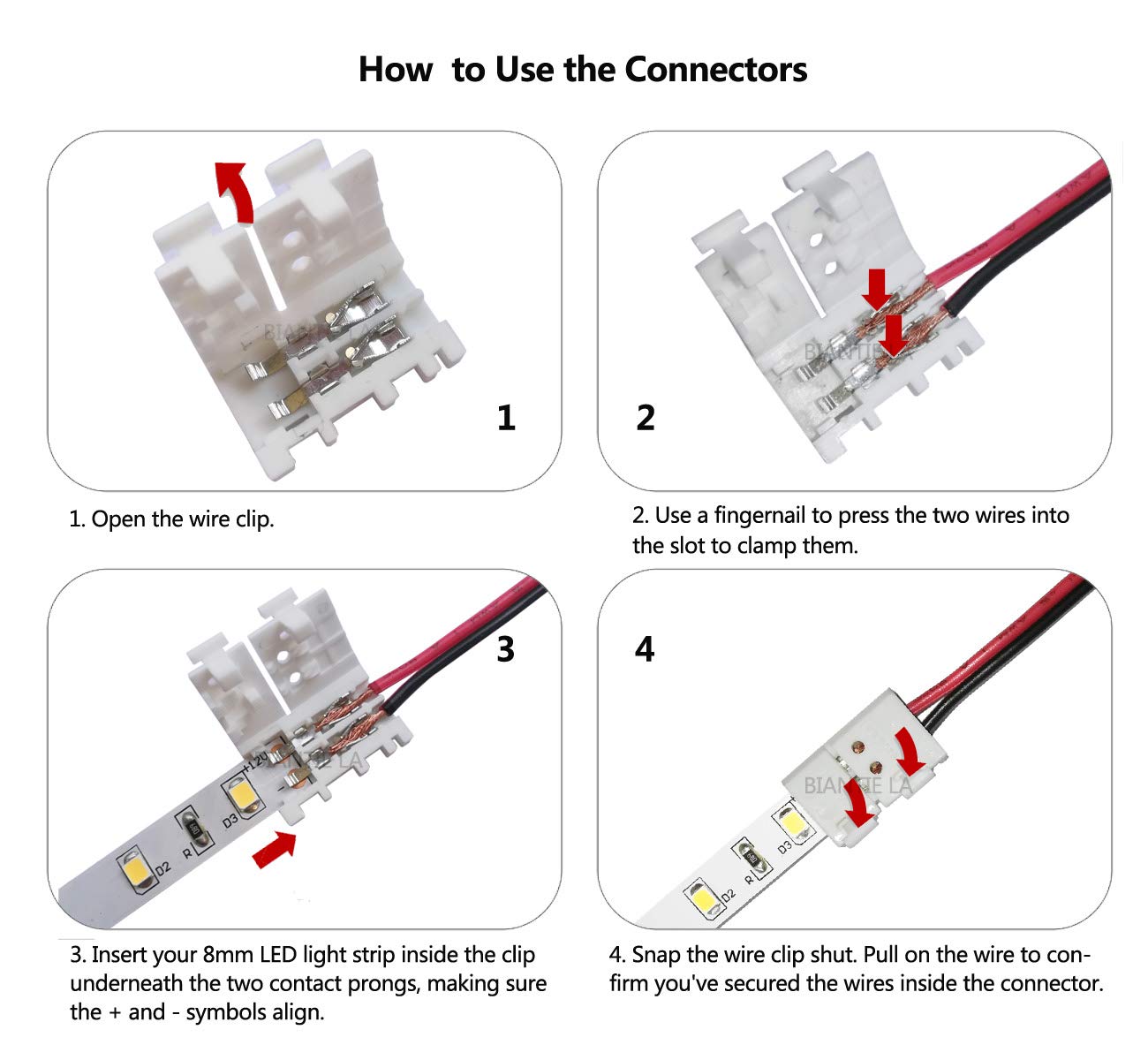

Installation Tips:
Strip End:
1.Open the wire clip. It should snap open with just a little effort.
2.Insert your 8mm LED light strip inside the clip underneath the two contact prongs, making sure the + and - symbols align.
3.Snap the wire clip shut. Gently pull on the tape to confirm you've secured the strip inside the connector.
Wire End:

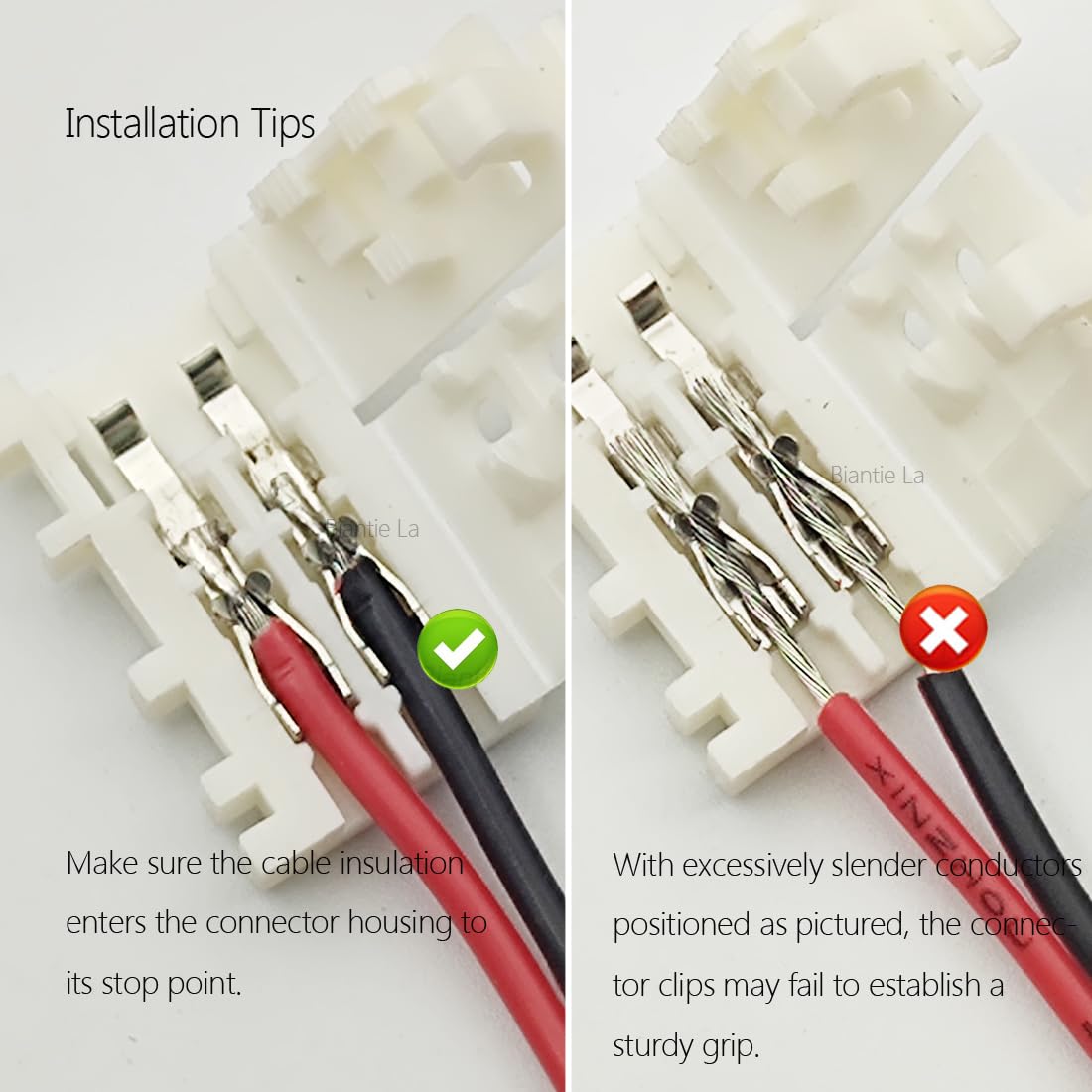

1.Separate 2 wires and stripping
2. Use a fingernail to press the two wires into the slot to clamp them.
3. Snap the wire clip shut. Pull on the wire to confirm you've secured the wires inside the connector.
If you have any problem about installation, pls feel free to contact me.
Package:

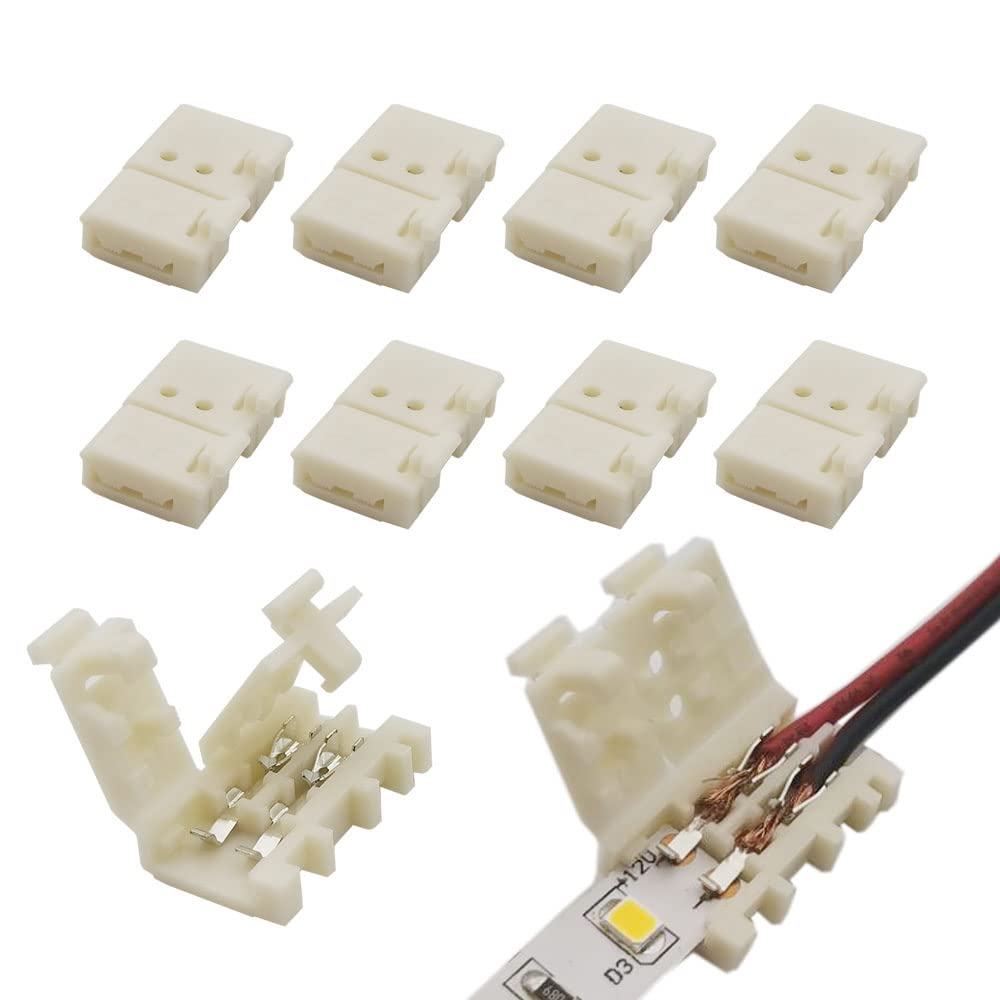

10pcs Strip to Wire Connectors (BL20B-8)
- Easy connection: Join LED tape to wire without soldering; Suitable for 8mm width SMD 3528 2835 3014 5630 single color LED strips; Connects two-conductor flat cable to LED strip; Not for 10mm LED strips, 3528 RGB LED strips

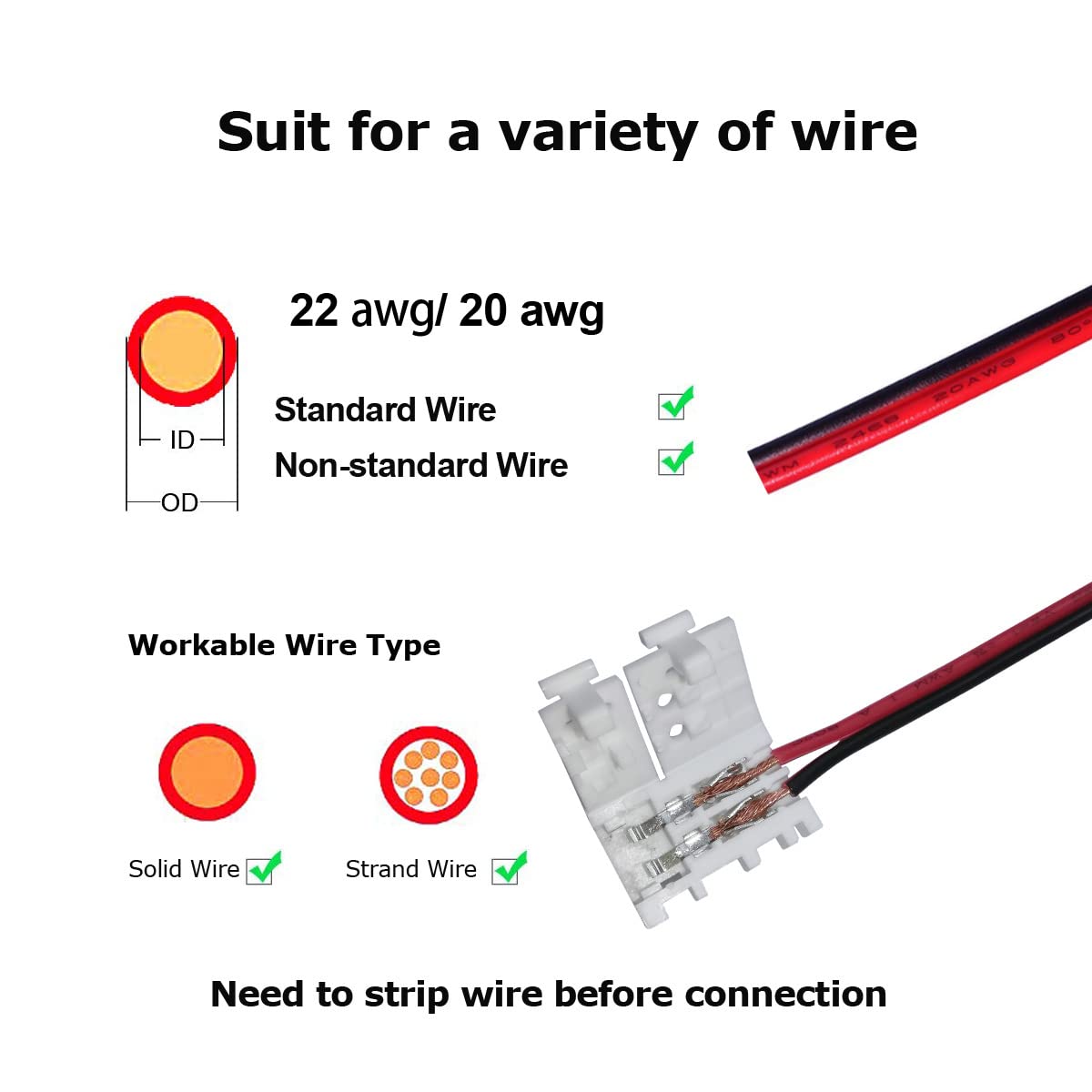

- Wire versatility: Works with 22 AWG, 20 gauge solid wire, and multi-core wire; Press stripped wire into slot for secure connection; Addresses issues of wire piercing and allows for reuse
- High current capacity: Supports up to 6A current; Compatible with 5V, 12V, 24V LED strips; Enables longer LED strip connections with a single connector; Adjust extension distance and angle for board-to-wire input and strip-to-strip jumper configurations
- Waterproof strip compatible: Remove silicon covering around solder area to connect waterproof LED strip lights; Expands lighting project possibilities
- Package contents: Set of ten connectors without pre-attached wires; Strips and wires not included; Offers flexibility for 8mm single color LED strip installations
- Item Weight: 0.01984160358 pounds
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 8.2 centimeters, Height: 15.6 centimeters, Length: 1.3 centimeters
| Attribute | Value |
|---|---|
| connectivity technology | Unspecified Wired |
| color temperature | 2700 |
| included components | LED Strip Connectors |
| brand | Biantie La |
| number of light sources | 10 |
| control method | application |
| item type keyword | track-lighting-connectors |
| number of items | 10 |
| size | small |
| part number | BL20B-8 |
| style | Modern |
| color | White |
| water resistance level | waterproof |
| light source | |
| item package weight | 0.01 |
| customer package type | Standard Packaging |
| light color | White |
| manufacturer | Alightings |
| wattage | 48 |
| controller type | Remote Control |
| indoor outdoor usage | indoor |
| theme | Christmas |
| model number | BL20B-8 |
| num batteries | |
| special feature | strip to wire connection |
| batteries required | False |
| power source type | DC |
| voltage | 24 |
| product site launch date | 6/27/2019 7:00:00 AM |
| material | Plastic |
| unit count | 10 |
| batteries included | False |
