Discover the authentic 200PCS White Solder Seal Wire Connectors, 26-24 AWG Self Soldering Heat Shrink Wire Connectors Marine Grade Waterproof Insulated Electrical Butt Splice Wire Terminals for Automotive Boat Truck by Camtek, part of our Butt collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Butt – 200PCS White Solder Seal Wire Connectors, 26-24 AWG Self Soldering Heat Shrink Wire Connectors Marine Grade Waterproof Insulated Electrical Butt Splice Wire Terminals for Automotive Boat Truck by Camtek
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
Our kit will provide you with high quality terminals that can be used in a variety of wiring projects.
Whether you are on a boat, in a car, at home or on a science project, our heat shrink solder seal wire connectors ensure that solid soldering is achieved every time.
SPECIFICATIONS:
Color:
White
Size:

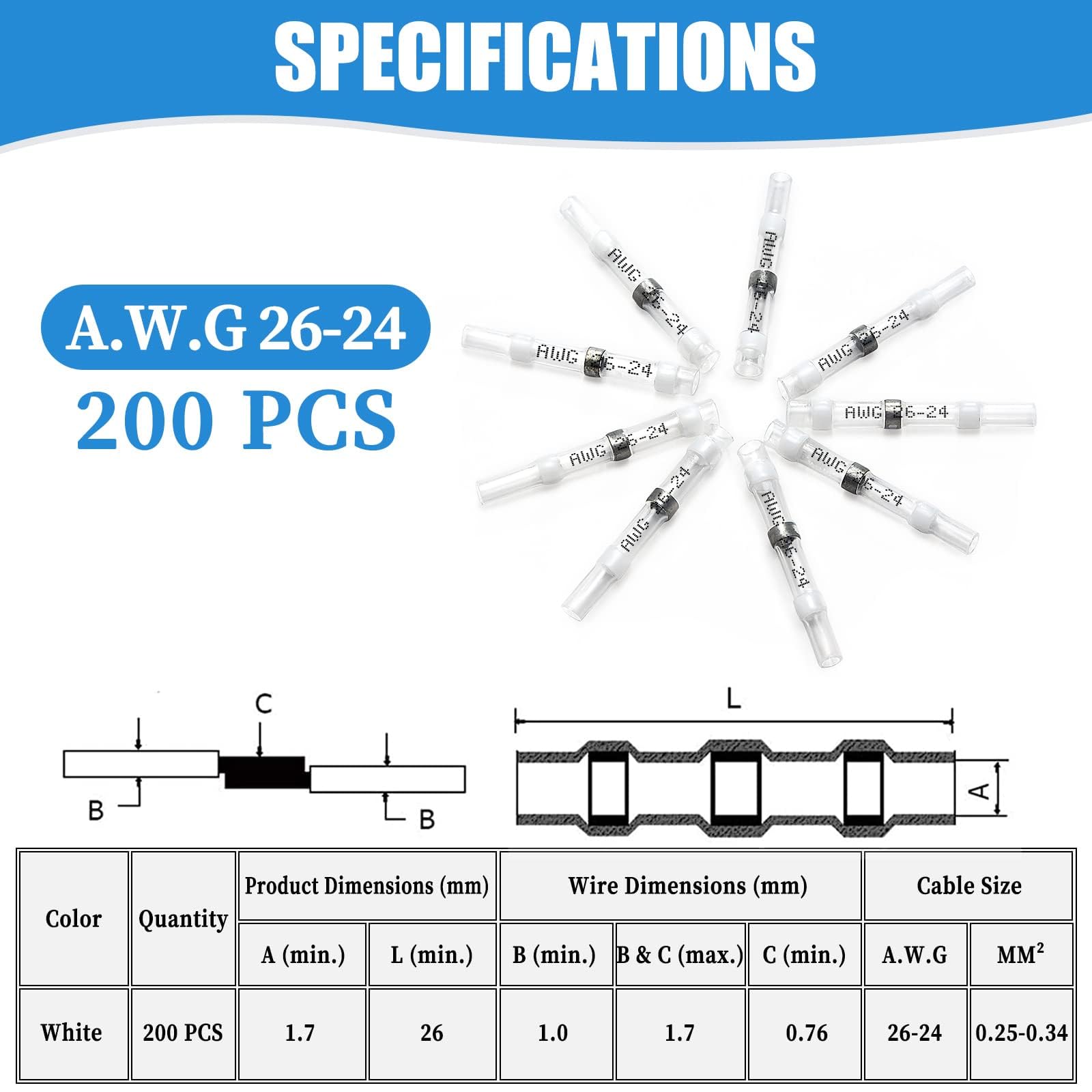

200 x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm² (A.W.G. 26-24)

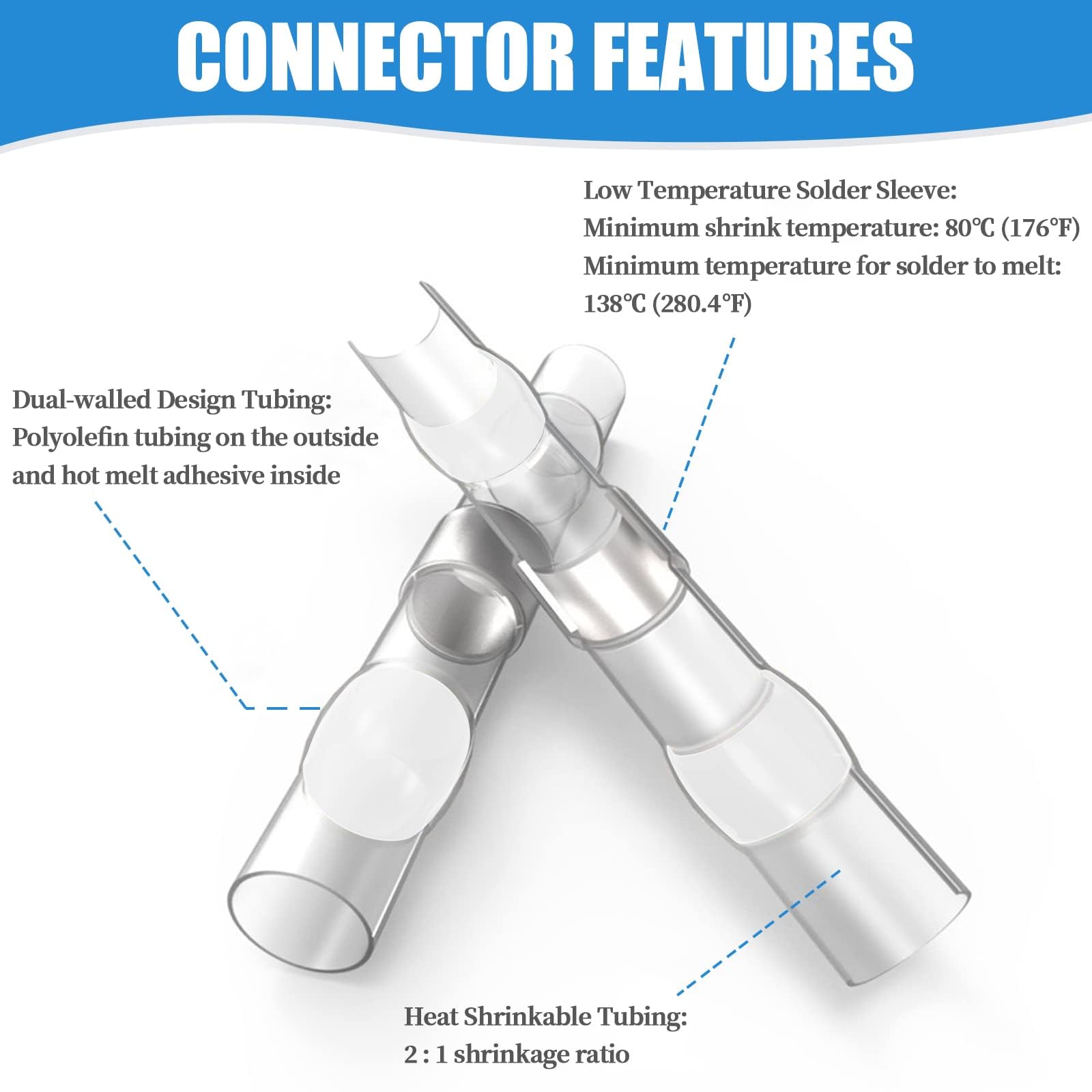

FEATURES:
Shrinkage ratio is 2:1
Solder and Hot Melt Adhesive inside can be perfectly Waterproof.
Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside.
Waterproof Connectors would prevent wires from corrosion.
Transparent Sleeve of the butt connectors provide Visual Inspection.
No wire damage due to lower shrink temperature.

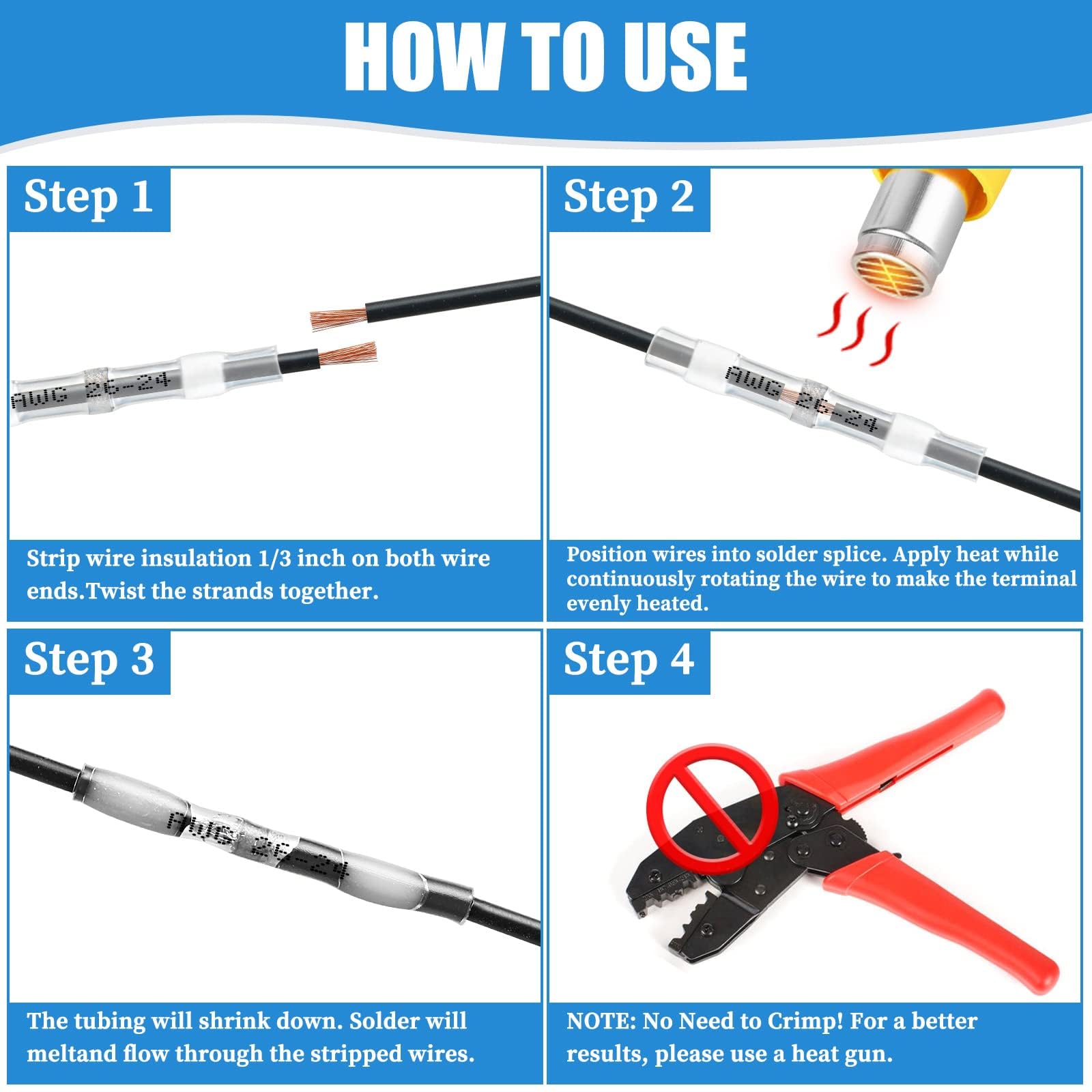

USING INSTRUCTIONS:
Step 1: Strip wire insulation 1/3 inch on both wire ends. Insert into the solder sleeve and twist the wire strands together.
Step 2: Position wires into solder splice. Continuously rotate the connector when using a heat gun to apply heat evenly around the solder until it flows into the wire strands.
Step 3: Then apply heat to the two ends of the tubing until the adhesive flows and seals the wires.
NOTE: No Need to Crimp! For a better results, please use a heat gun.
OPERATING TEMPERATURE RANGE:
Connector working temperature: -55 ~ 125 (-67 ~ 257)
Minimum shrink temperature: 80 (176)
Minimum temperature for solder to melt: 138 (280.4)
PACKAGE:

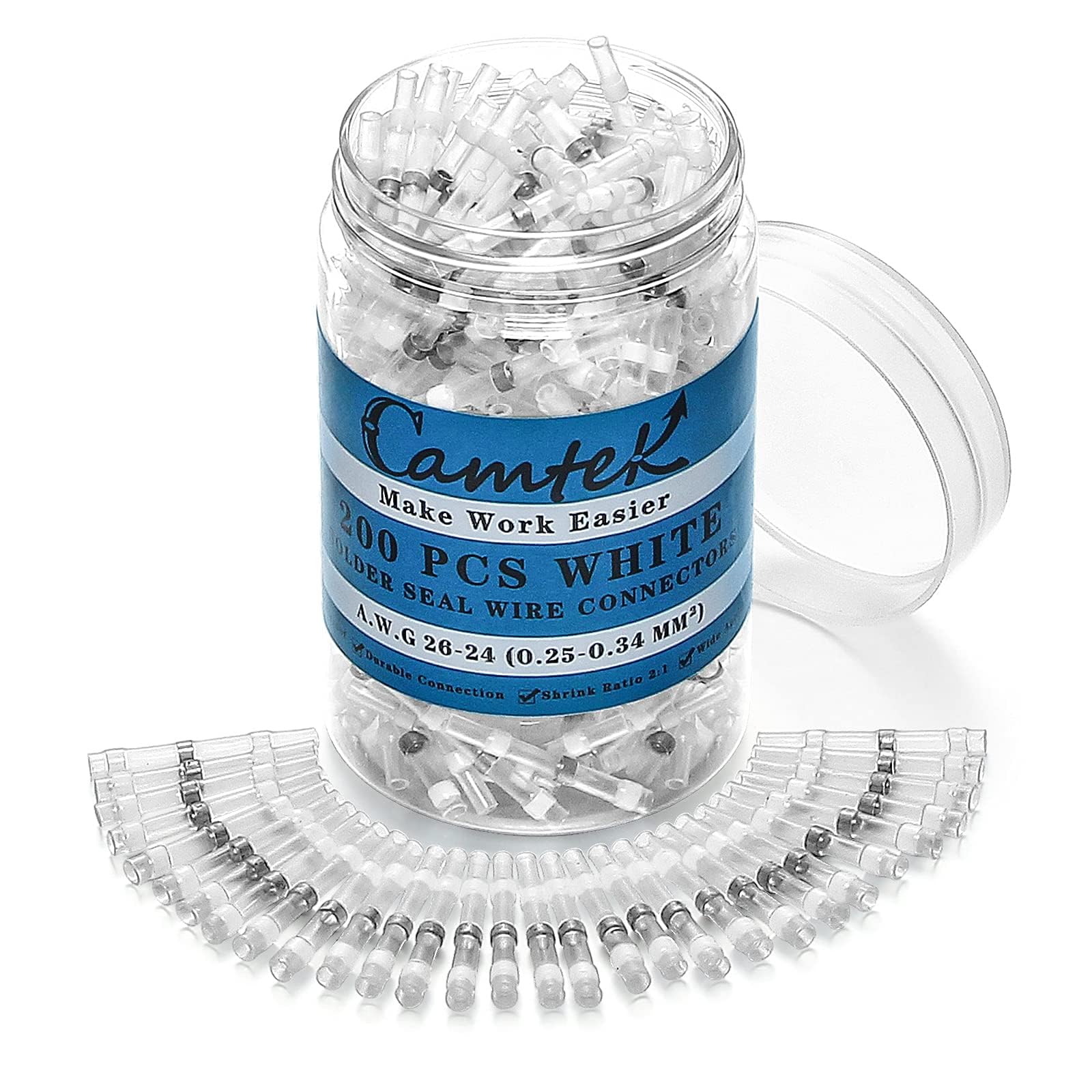

1 x 200pcs White Solder Seal Heat Shrink Wire Terminals with reusable case
- HIGH QUALITY: Polyolefin tubing outside and hot melt adhesive inside would effectively improve the waterproof performance of solder seal wire connectors and prevent wire corrosion. Shrink Ratio 2:1
- PACKAGE: Solder connector kit come within a reusable case, easy to store and carry. This package includes 200pcs white solder seal connectors that can be used on wire AWG from 26 to 24
- WIDE APPLICATIONS: Ideal used for vehicle, motorcycle, boat, DIY electrical wirings and other outdoor applications
- EASY TO USE: NO Crimping Needed. With only a heat gun, in one step create a compact, secure, waterproof and insulated connection
- NO SLIP WIRE CONTACT: Tubing reduces in size and solder will melt and flow through the stripped wires, ensure strong holding, your wire will never slip out of the connector
- Item Dimensions: Width: 5 centimeters, Height: 8 centimeters, Length: 5 centimeters
- Item Package Dimensions: Width: 5.0038 centimeters, Height: 8.1026 centimeters, Length: 4.9022 centimeters
| Attribute | Value |
|---|---|
| measurement system | Imperial, Metric |
| contact | |
| item package quantity | 200 |
| connector type | Butt Splice |
| brand | Camtek |
| gauge | |
| temperature rating | 257 degree fahrenheit |
| insulation | |
| item type keyword | butt-terminals |
| number of items | 200 |
| part number | Camtek-175 |
| terminal type | Butt Terminal |
| color | White |
| item package weight | 0.041 |
| item length width height | |
| manufacturer | Camtek |
| model number | Camtek-175 |
| supplier declared dg hz regulation | not_applicable |
| batteries required | False |
| voltage | 12 |
| product site launch date | 5/20/2021 6:19:09 AM |
| material | Copper |
| unit count | 200 |
| batteries included | False |
