3 Channel PWM Pulse Signal Generator Adjustable Frequency Square Wave Rectangular Wave Signal Module LCD Display 1Hz-150Khz with pinheader Dupont Cable by DKARDU
Discover the authentic 3 Channel PWM Pulse Signal Generator Adjustable Frequency Square Wave Rectangular Wave Signal Module LCD Display 1Hz-150Khz with pinheader Dupont Cable by DKARDU, part of our Function Generators collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
Original Function Generators – 3 Channel PWM Pulse Signal Generator Adjustable Frequency Square Wave Rectangular Wave Signal Module LCD Display 1Hz-150Khz with pinheader Dupont Cable by DKARDU
100% authentic and sourced from trusted suppliers
Imported from the USA with strict quality checks
Available at the best price in India
Fast and secure delivery across the country

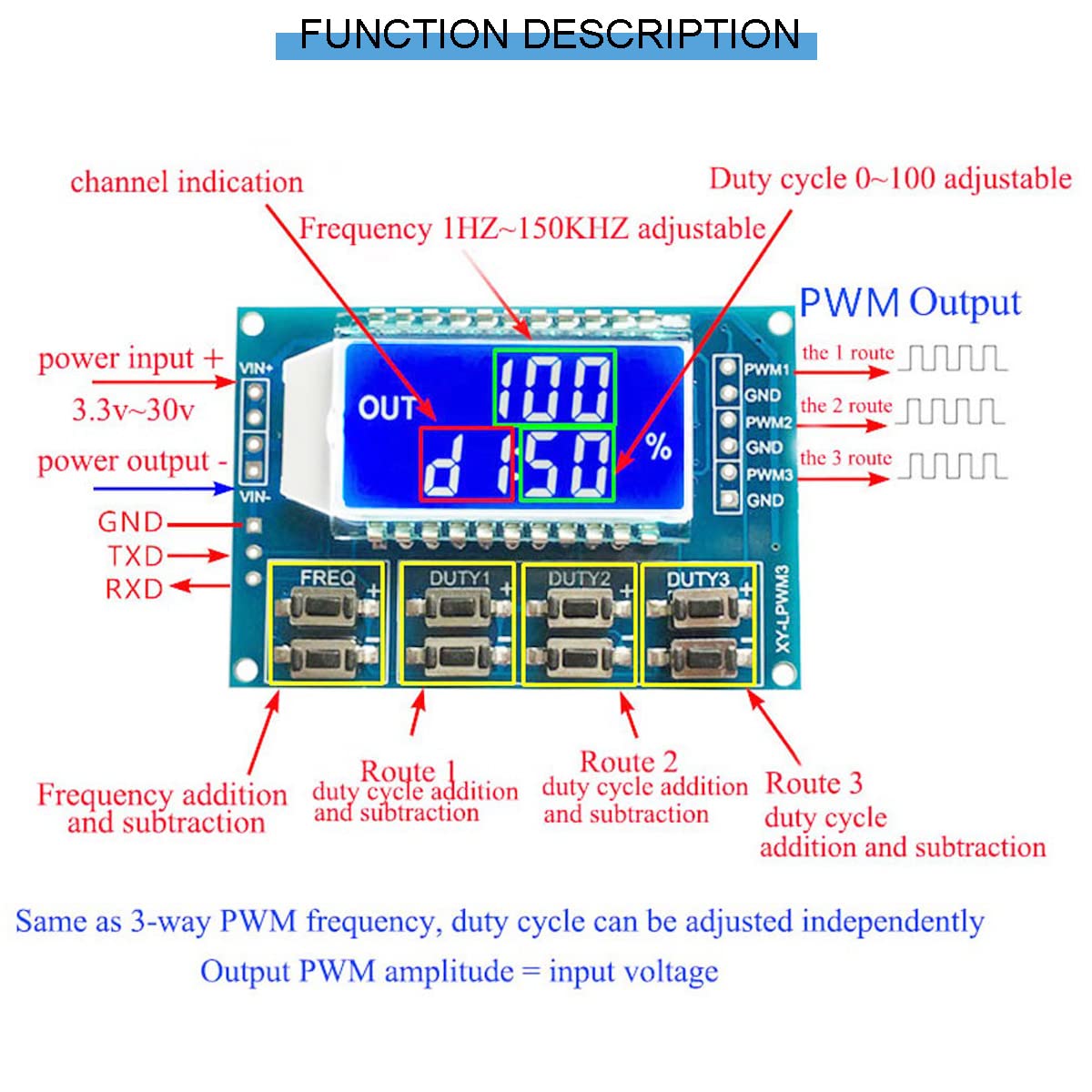

Product Description Description: Three-channel PWM is outputted,wide frequency range and the duty ratio can be adjusted independently Frequency is divided into four areas,automatic switching: 1.XXX(No decimal point): 1HZ Stepping Unit,Range:1Hz~999Hz; 2.X.XX(The decimal is in the hundreds place):0.01KHZ Stepping Unit,Range: 1.00Khz~9.99Khz; 3.X.XX(The decimal is in the tens place):0.1KHZ Stepping Unit,Range: 10.0Khz~99.9Khz; 4.X.X.X(The decimal is in the ones place):1KHZ Stepping Unit,Range: 1Khz~150Khz; e.g. ,frequency display:100 represent the pulse of 100Hz ; 1.01 represent the pulse of 1.01KHz; 54.1 represent the pulse of 54.1KHz 1.2.4 represent the pulse of 124Hz The value range of dutyfactor: 0~100%,100% is represented by A0%. All parameters setted up can be automatically saved in case of power cut. Parameter: Has 8 independent keys,used to set the frequency and duty ratio,support short press (increase or decrease a unit) and long press (fast increase or decrease),very simple,set the parameters automatically save,power loss. 3-Way duty ratio button can be pressed at the same time,real-time adjustment, liquid crystal display is the last pressed button duty ratio,real-time is very strong,can be used as a simple several road duty ratio scan.

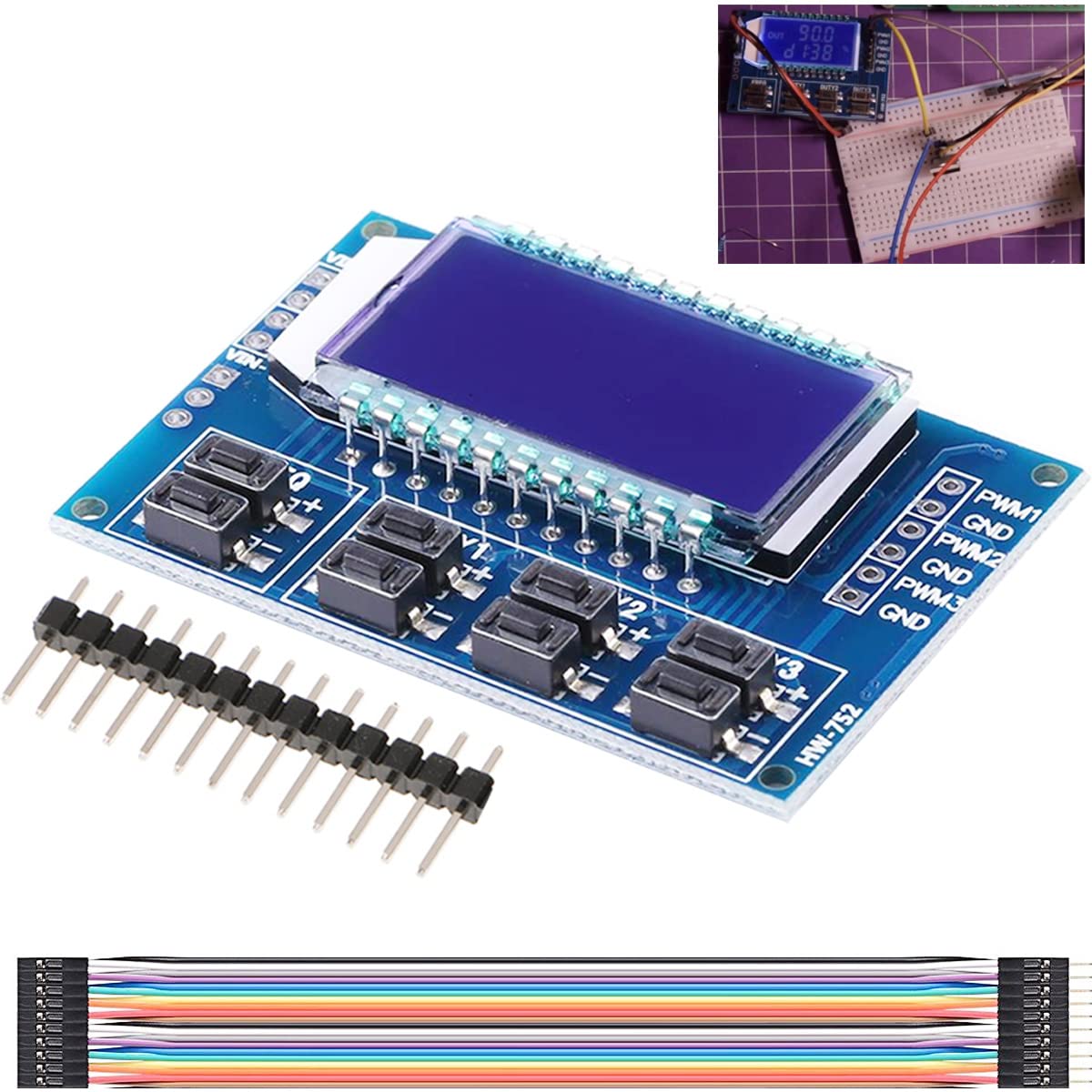

Package includes: 1 x 3 Channel PWM Pulse Generator Module 1 x 13pin header 1 x 20pin male and female Dupont cable
Independent adjustment: Three-channel PWM is outputted, wide frequency range and the duty ratio can be adjusted independently.
Independent keys: Has 8 independent keys, used to set the frequency and duty ratio,support short press (increase or decrease a unit) and long press (fast increase or decrease),very simple,set the parameters automatically save,power loss.

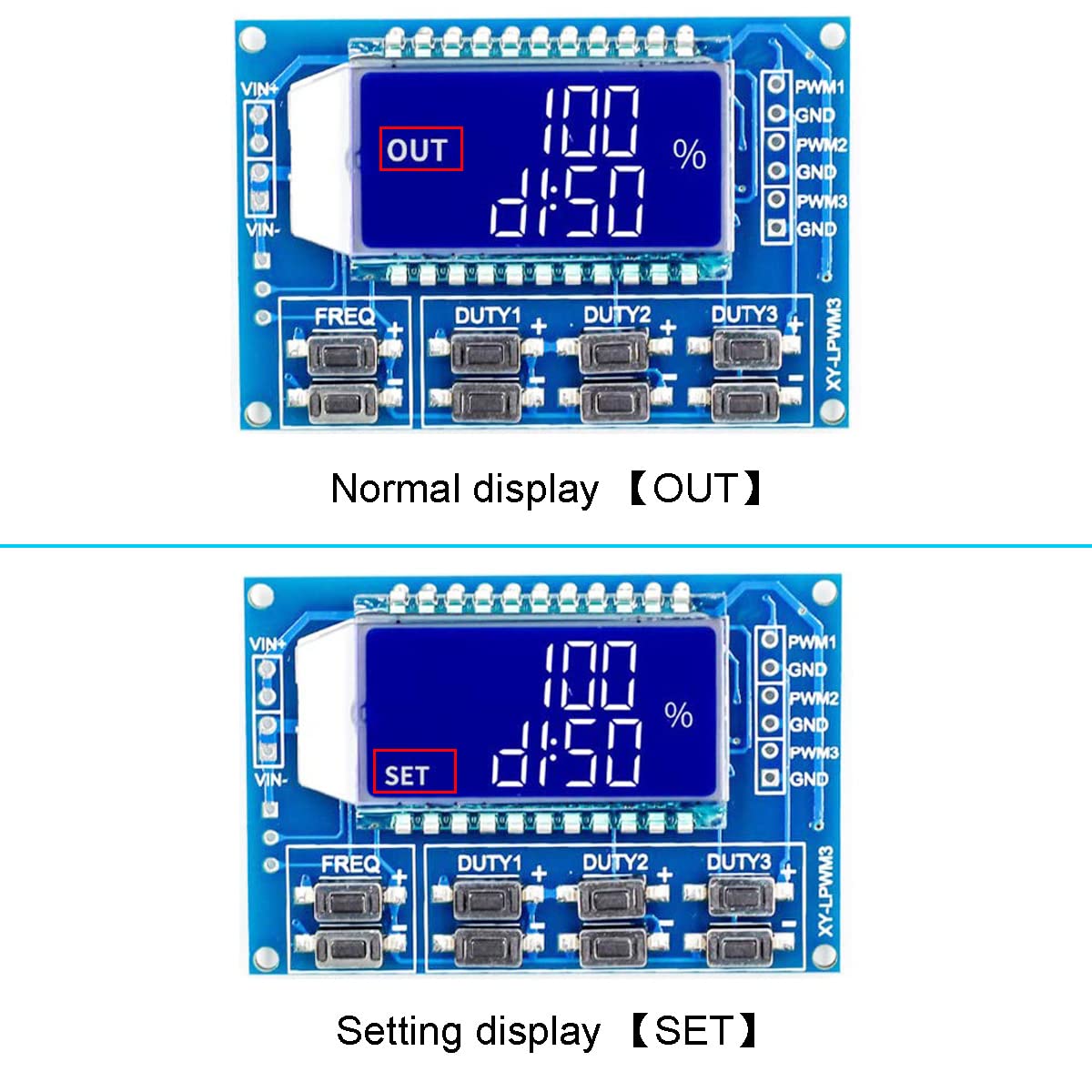

Real-time performance: 3-Channels duty ratio button can be pressed at the same time,real-time adjustment, liquid crystal display is the last pressed button duty ratio,real-time is very strong,can be used as a simple several road duty ratio scan.
Applications:1.Used as square wave signal generator to generate square wave signal for experiment development and use. 2.Used to generate a square wave signal to control the motor driver;3.Generating adjustable pulses for MCU use;4.Generate adjustable pulse, control related circuit (PWM dimming speed and other applications).
Item Condition: The module is 100% made of original electronic components, and the product is a brand new product, you can buy it with confidence
