DROK 10-100V 12v Battery Monitor Meter
Parameters:
Working voltage: 10V Min; 100V Max
Working consumption: 5mA Typical; 6mA Max
Voltage accuracy:±0.1%Typical; ±0.5%
Temperature accuracy:±0.5Typical; ±1 Max
Sleep consumption: 6uA Min; 10uA Typical; 12uA Max
Buzzer voltage: adjustable 11.5V-100V
Buzzer volume: 70db Min; 75db Typical; 80db Max
Working temperature:-10Min; 25Typical; 55Max

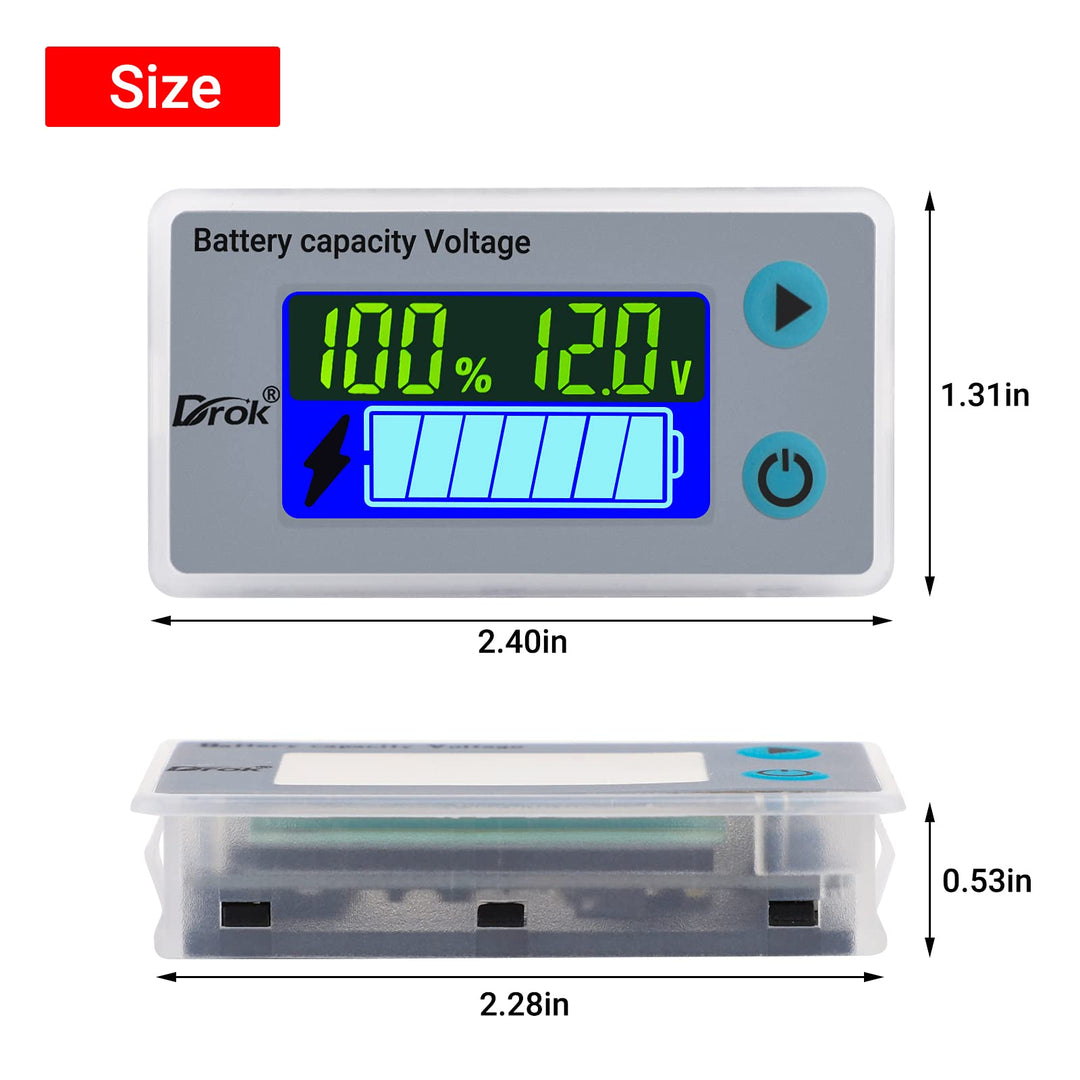

Product size: 61.5*33.5*13.5mm
Installation size: 58.5*28.5mm
Display size: 36*19.5mm
Package Includes:

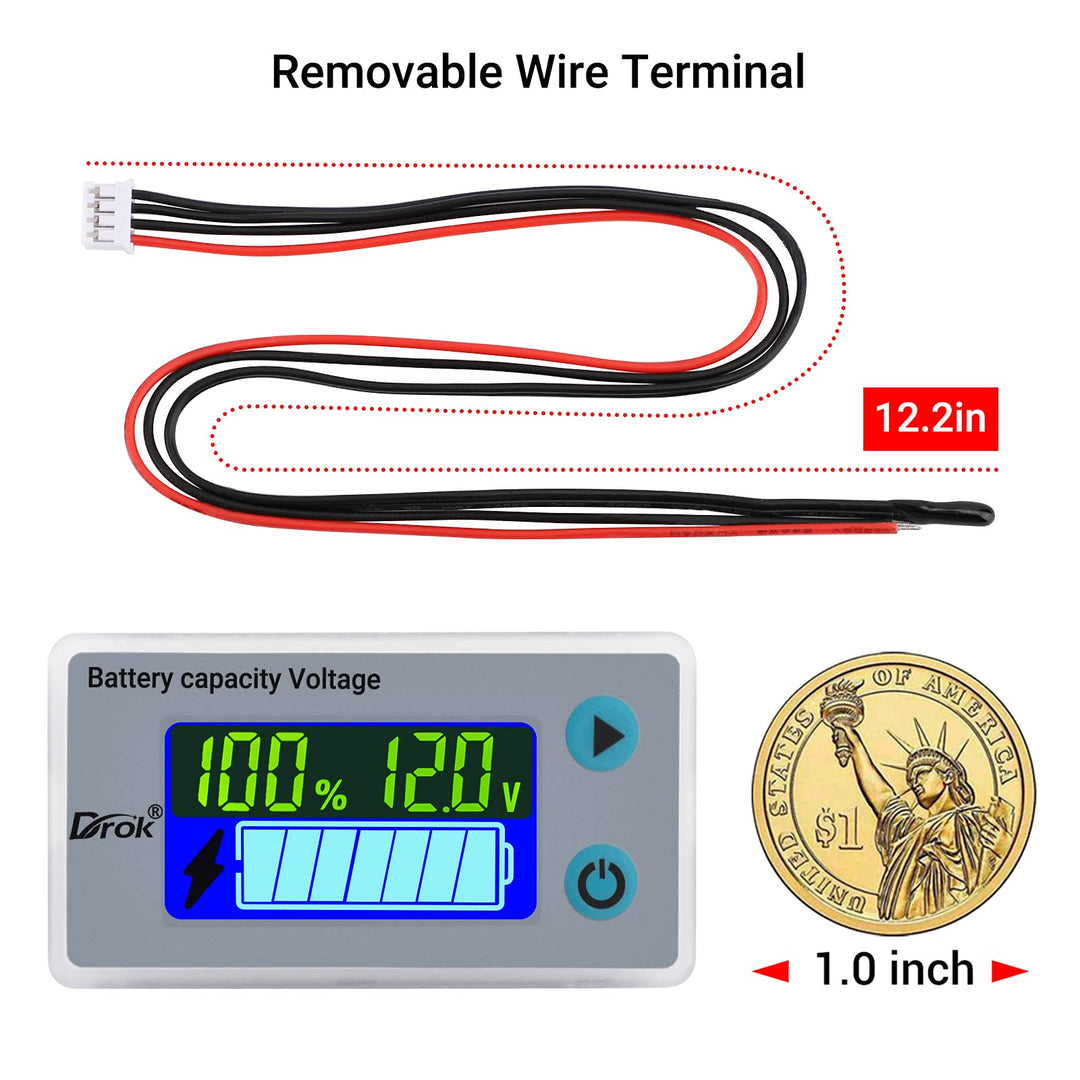

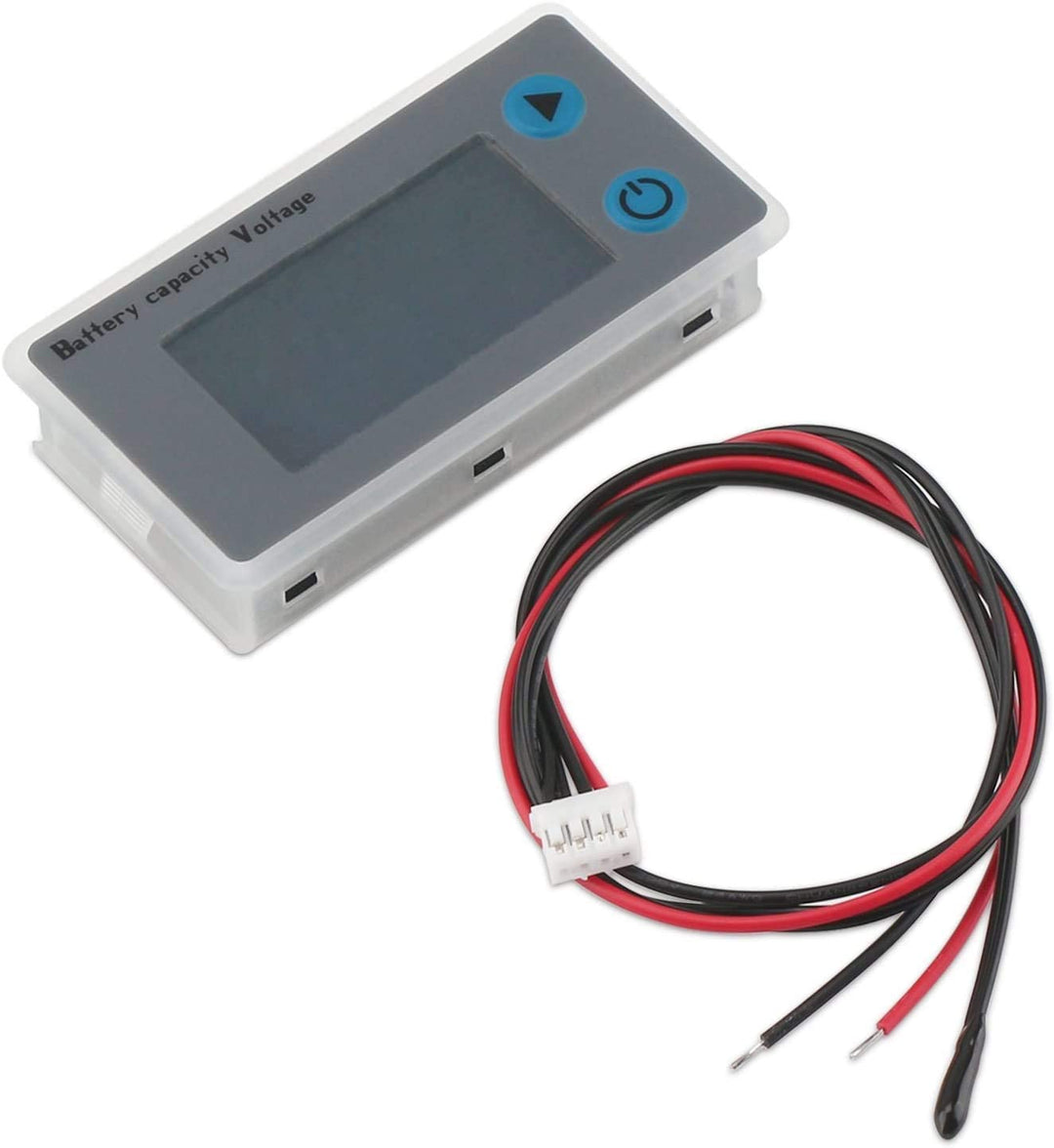

1* Programmable Battery Display

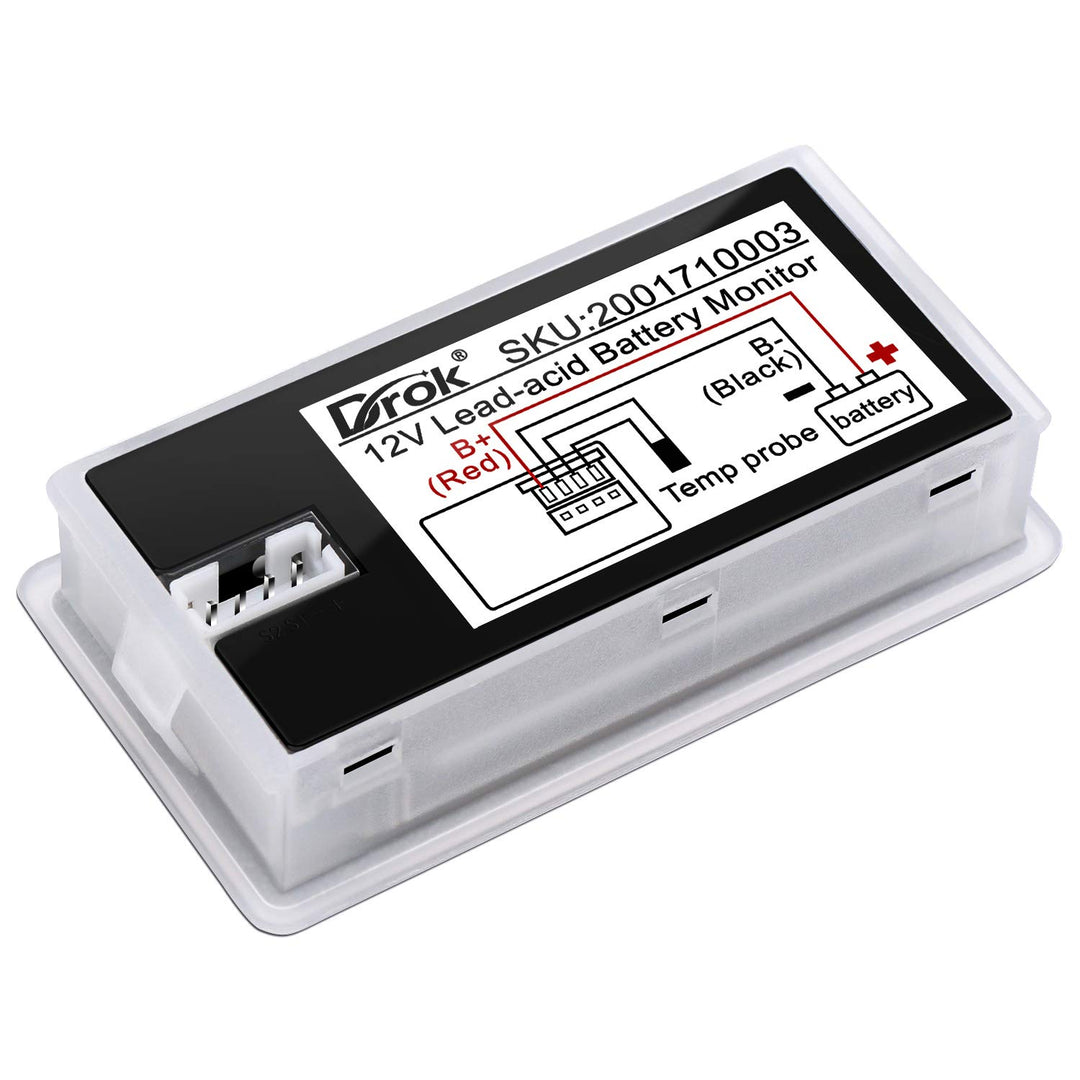

- APPLICABLE BATTERY --- DROK digital battery monitor is suitable for 12v lithium battery, lead-acid battery, lithium iron phosphate battery, Ni MH battery. Default 12 volt lead acid battery.
- APPLICATION --- this multimeter can be used as battery voltage meter, battery capacity tester and temperature indicator panel for car, marine, RV, boat, etc.
- PROTECTION --- the battery power detector comes with protective shell, dustproof waterproof surface; input reverse connection protection.

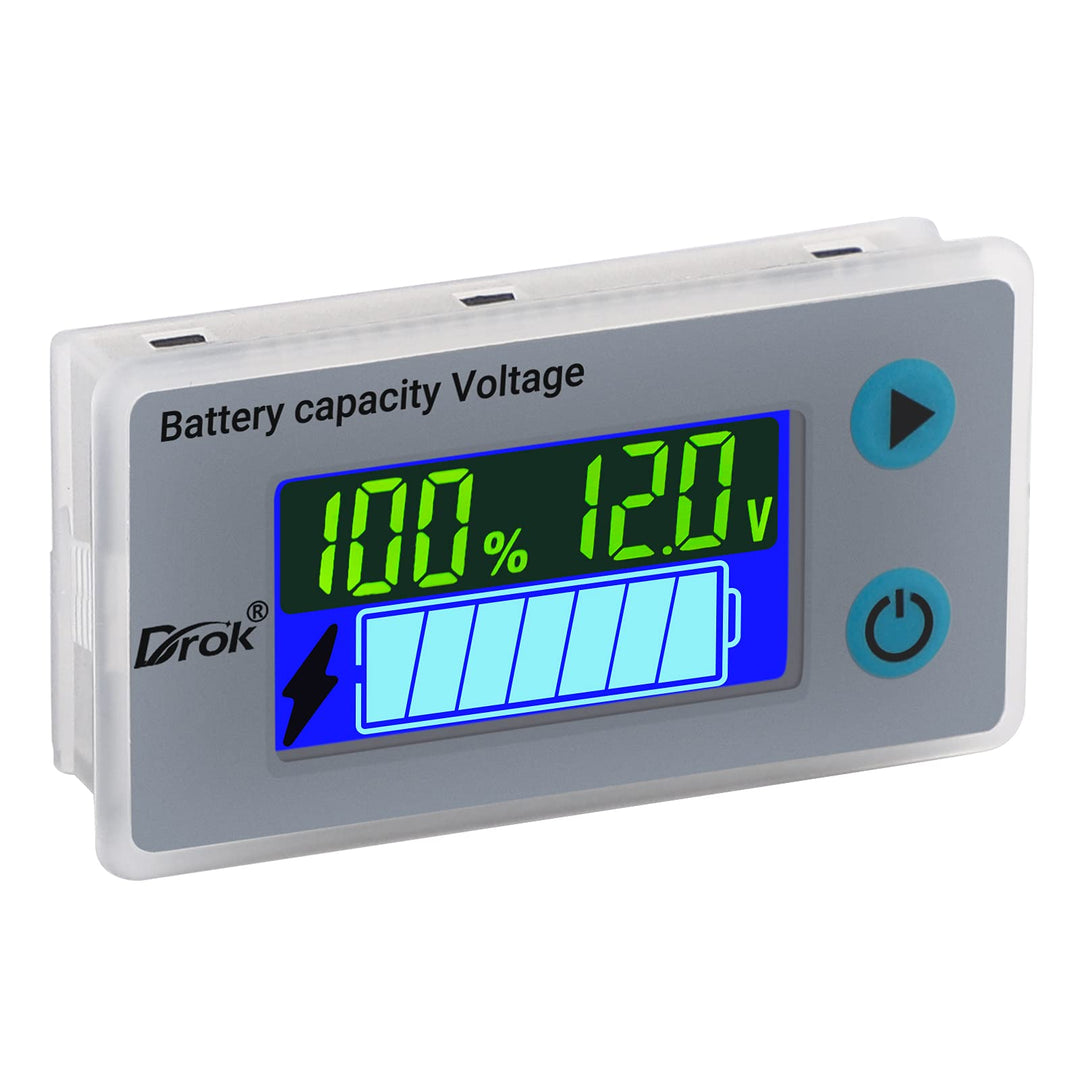

- LCD DISPLAY --- the battery status reader adopts clear LCD color screen, displays battery capacity, voltage, temperature value(switched by the key).
- ALARM --- if low voltage, red indicator flashes and buzzer alarms.
- Item Weight: 0.31 pounds
- Item Dimensions: Width: 33.36 millimeters, Height: 13.5 millimeters, Length: 61.36 millimeters
- Item Package Dimensions: Width: 7.2898 centimeters, Height: 9.6012 centimeters, Length: 2.794 centimeters
Attribute | Value |
---|---|
measurement type | Multimeter |
item package quantity | 1 |
brand | DROK |
lower temperature rating | 10 |
item type keyword | auto-battery-testers |
size | 12V |
part number | 2001710003 |
style | 12V |
color | Grey |
item package weight | 0.032 |
manufacturer | DROK |
minimum operating voltage | 10 |
model number | 10-100V |
supplier declared dg hz regulation | not_applicable |
batteries required | False |
power source type | Battery Powered |
product site launch date | 11/4/2017 7:00:00 AM |
material | Metal |
upper temperature rating | 55 |
batteries included | False |
