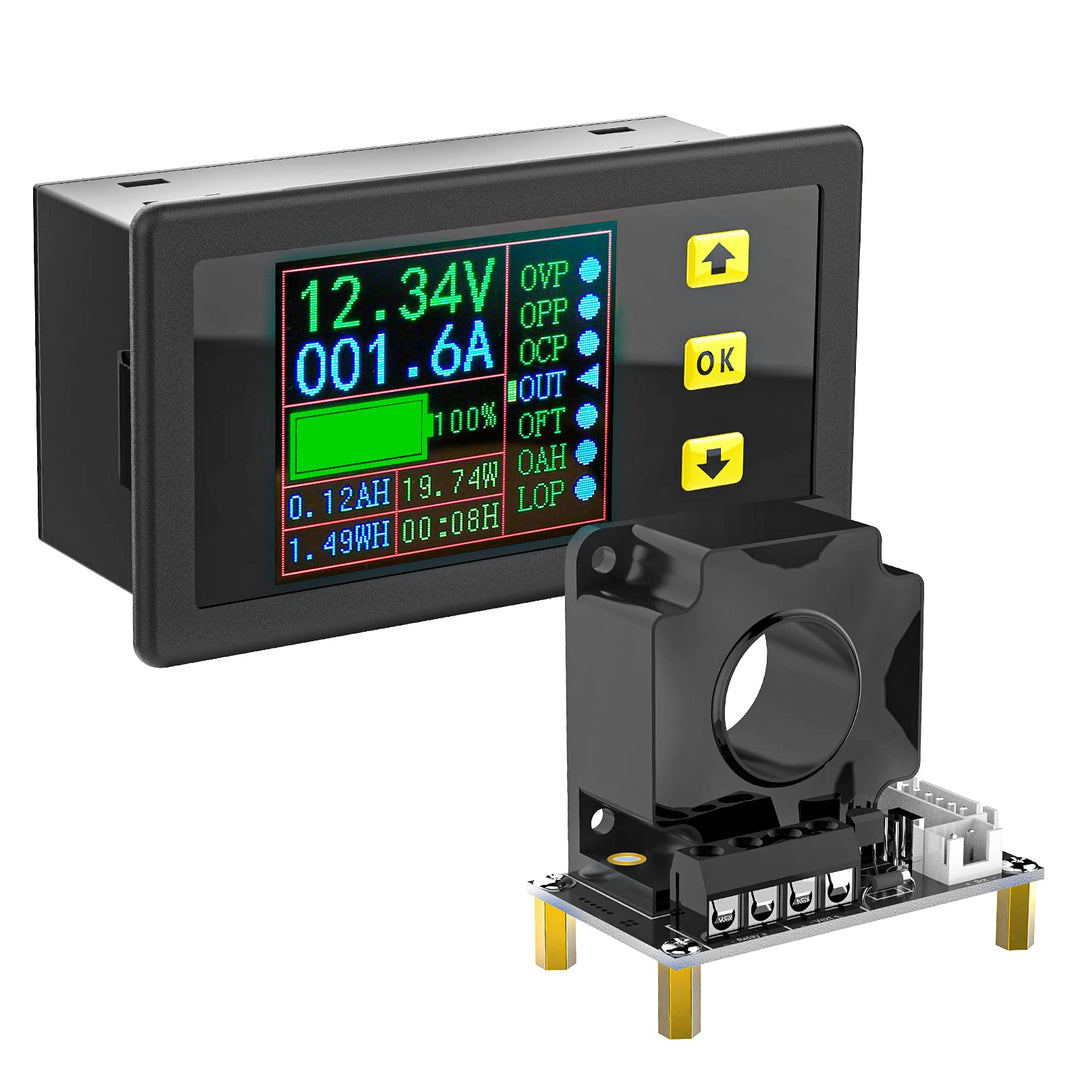

DROK DC Voltage Current Power Battery Capacity AH WH Time Multimeter

Specification:
Measuring Parameters: Voltage, current, power, battery capacity, amp-hour, watt-hour, time.
Voltage Measurement Range: DC 0-90V
Current Measurement Range: DC 0-100A
Voltage Measurement Accuracy: ± 2% ± 5 digits
Current Measurement Accuracy: ± 3% ± 5 digits
Display Resolution: 0.1A, 0.01V,0.01AG, 0.01H(1 min)
Measurement rate: 5 times/second
Display: 1.8 inch LCD color screen

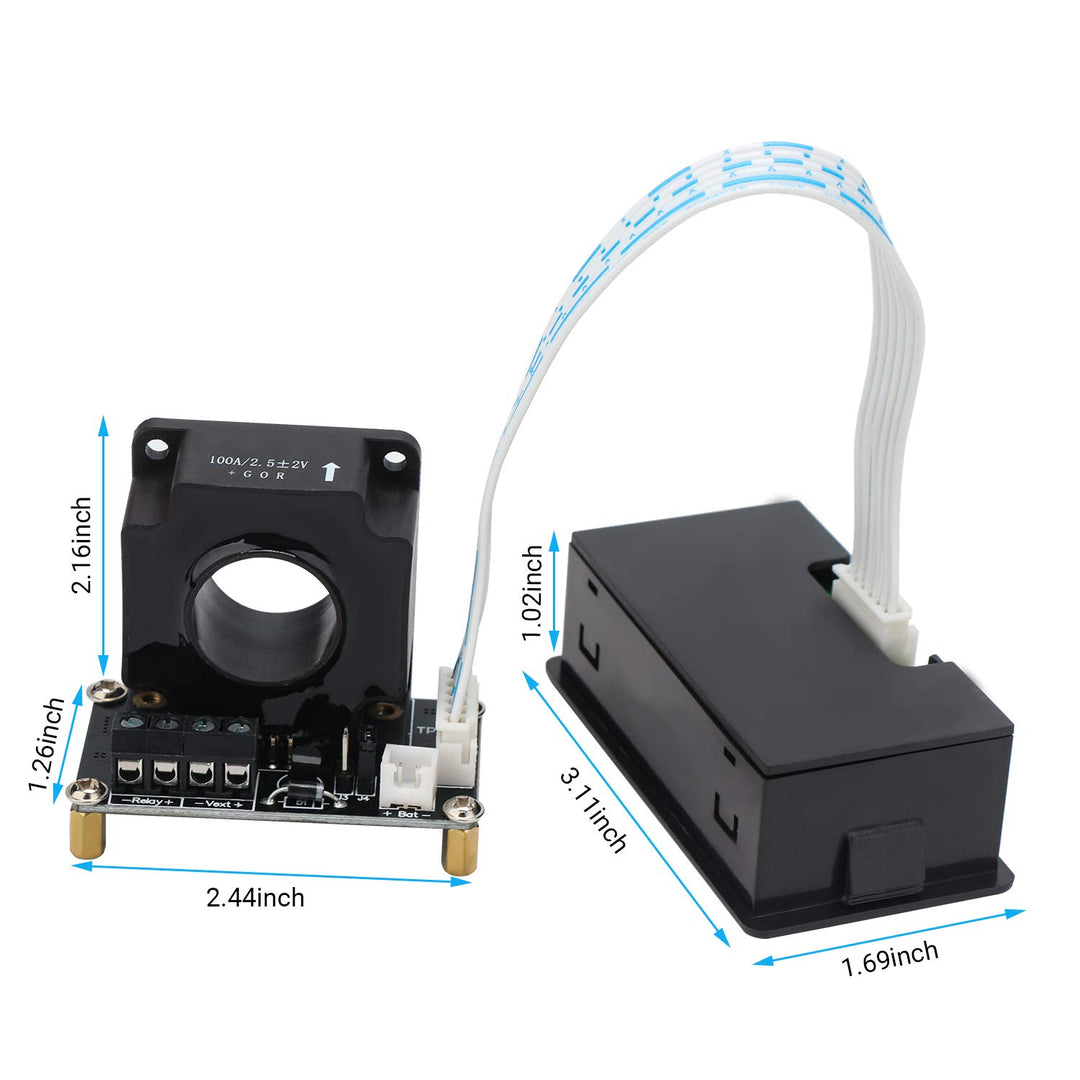

Meter Overall Dimension: 79*43*26mm/3.11*1.69*1.02 inch
Meter Opening Hole Size: 76.5*39.2mm/3.01*1.54 inch
Hall Sensor Size: 57*32*50mm/2.24*1.26*1.97 inch (with screw and copper pillars)
Hall Sensor Hole Diameter: 20mm/0.79 inch

Protection Function:
OVP (Over-voltage protection): 0.01V-90V
OCP(Over-current protection): 0.1-100A
OPP(Over-power protection): 0.01W-9.99KW
LOP(Low-voltage protection): 0.01V-90V
OAH(Over-charge protection): 0.01AH-9999AH
OFT(Over-time protection): 1min-99hour59min

Application:
As battery charge-discharge monitor for electric car;
As battery power energy level indicator for photovoltaic system;
As battery voltage current power tester meter.

Other Function:
AH power off memorized function;
Time & AH reset function;
Calibration function;
LCD screen can be switched off automatically or manually.
With output control button to enable/disable output (requires a relay).

Package Includes:
1x Charge-Discharge Monitor

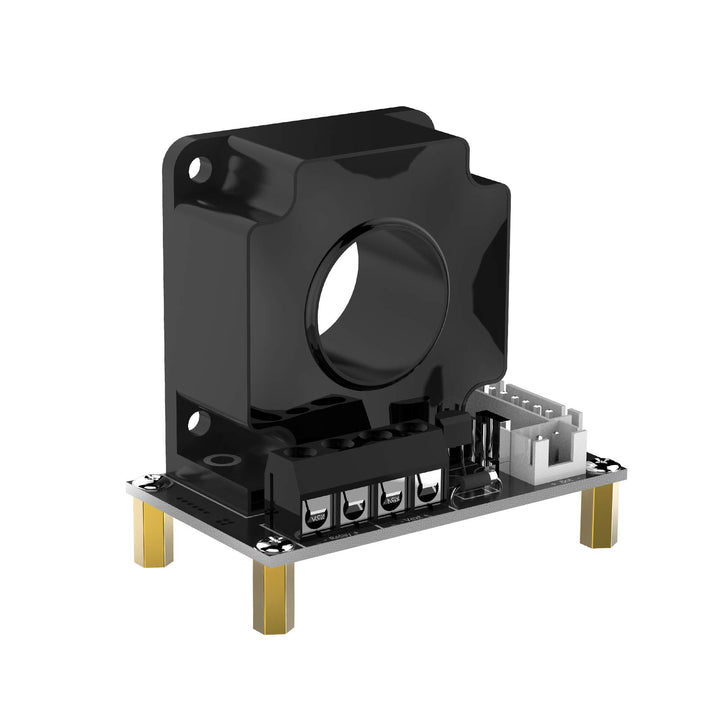

1x Hall Sensor

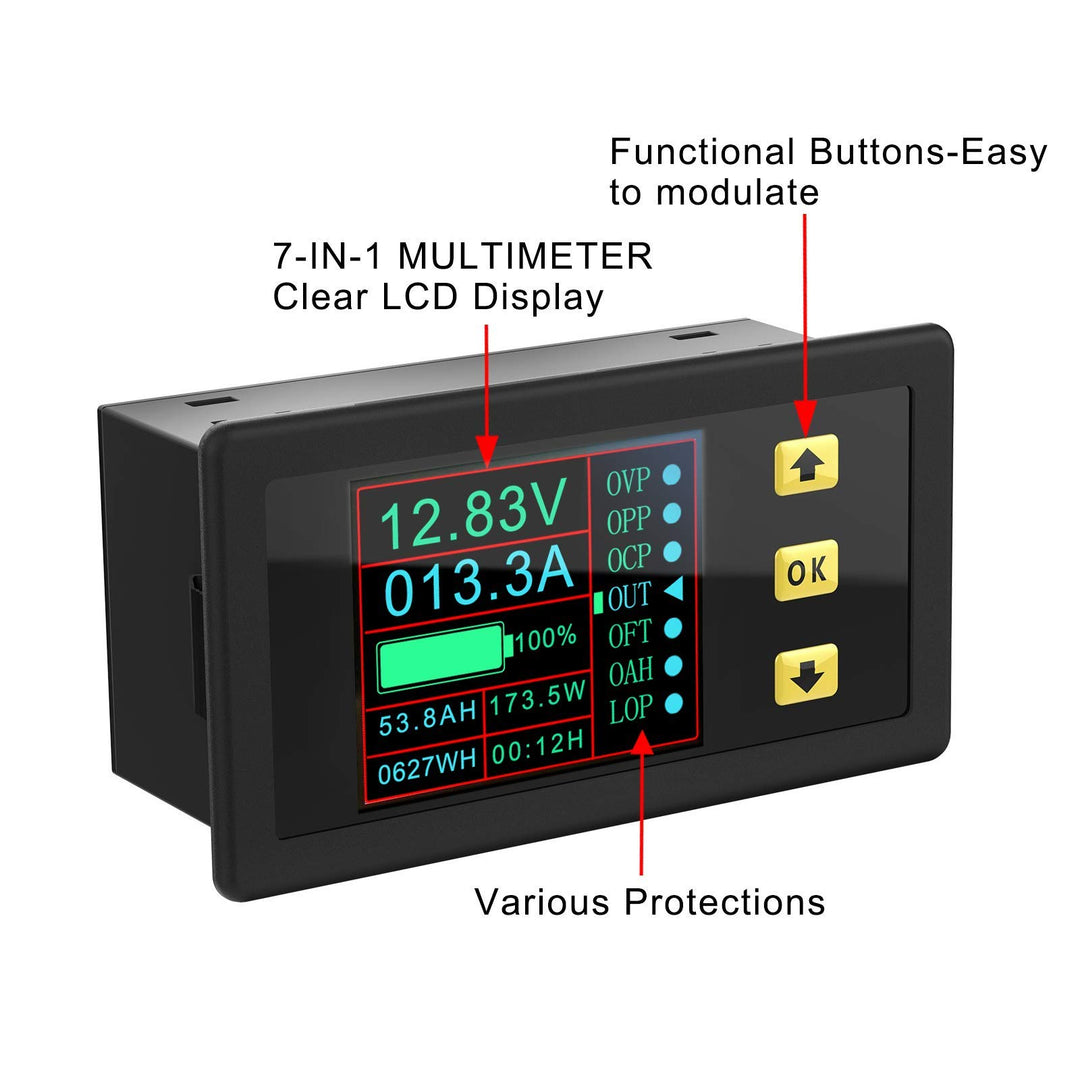

  • 7-IN-1 MULTIMETER --- measure and display voltage (0-90V), current (0-100A), power, battery capacity, amp-hour, watt-hour and time simultaneously.
  • APPLICATION --- can be used as battery charge-discharge tester meter for automobile and car battery; as battery capacity monitor for photovoltaic system; as voltage meter, current meter, power meter, etc.
  • BIDIRECTIONAL AMMETER --- the multimeter can detect current in dual direction without changing the wiring direction when used for monitoring charging and discharging.
  • PROTECTION --- over-voltage protection, over-current protection, over-power protection, over-charged protection, time limitation, etc.
  • OTHER FEATURES --- LCD color display; AH power off memorized function; time & AH resettable; calibration function; automatically/manually switch off LCD screen; with output control button to enable/disable output (requires a relay).
  • Item Dimensions: Width: , Height: , Length:
  • Item Package Dimensions: Width: 9.9 centimeters, Height: 13 centimeters, Length: 8.2 centimeters

Attribute Value
measurement type Ammeter, Multimeter, Voltmeter
color Black
item package weight 0.22
manufacturer DROK
brand DROK
supplier declared dg hz regulation not_applicable
batteries required False
power source type Battery Powered
item type keyword multimeters
product site launch date 10/9/2019 9:36:35 AM
size 0-90V 100A
material Plastic
style Voltage Tester
batteries included False
