DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module
DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module

DROK Frequency Generator, DC 3.3V-30V 5-30mA 1Hz-150kHz Adjustable Output PWM Pulse Duty Cycle Square Wave Function Signal Generator Module

DROK

USA Icon USA Store
Condition: New
Price
Save Rs. -3,183
/
  • Free shipping all over India
  • Free & Easy Returns*
  • 100% Secure payments*
theglobalgenie payment options
🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.
  • In stock, ready to ship
  • Backordered, shipping soon
DROK Function Generator

Parameter:

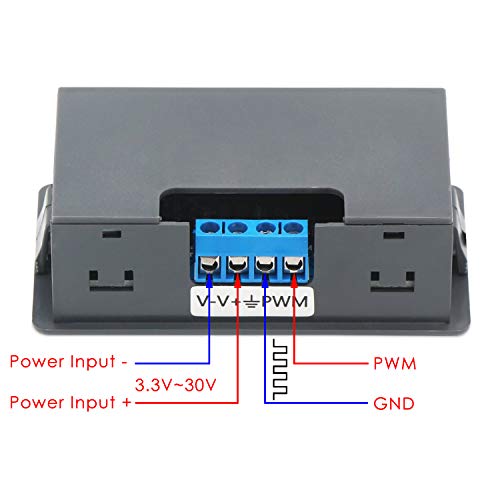

Working voltage: DC 3.3V-30V
Frequency range: normal mode 1Hz-150kHz; accurate mode 1Hz-15kHz
Frequency accuracy: 2% in each range
Signal load capacity: output current about 5-30mA
Output amplitude: PWM amplitude equals to input voltage value
Working temperature: -20~+70
Duty cycle range: 0-100%

Features:
With 2 modes.

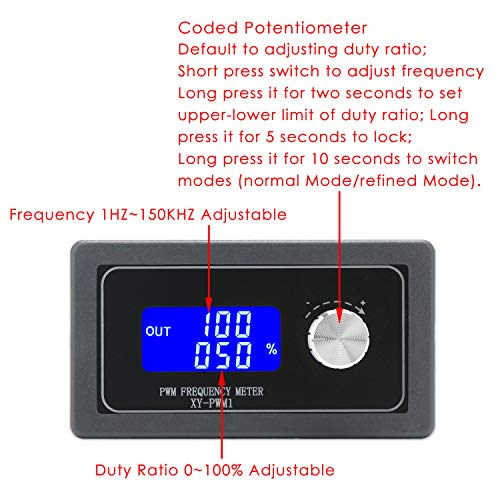

Operated by code potentiometer.
With lock function to avoid misoperation.
Duty cycle upper and lower bounds is adjustable.

2 Modes:
Normal mode:
Frequency range 1Hz-150kHz, duty cycle 000-100%, duty cycle step 1%
Accurate mode:
Frequency range 1Hz-15kHz, duty cycle 00.0-100%, duty cycle step 0.1%

Application:
As square wave signal generator for experimental development;
As square wave signal generator for motor driver;
As adjustable pulse generator for MCU;
As pulse generator, control related circuits (PWM dimming, speed regulating).

Frequency Display Instruction:
The frequency is divided into 4 ranges and switched automatically.
1. XXX: minimum unit 1Hz, value range 1Hz~999Hz.
2. X.XX: minimum unit 0.01kHz, value range 1.00kHz~9.99kHz.
3. XX.X: minimum unit 0.1kHz; value range 10.0kHz~99.9kHz.
4. X.X.X: minimum unit 1kHz; value range 1kHz~150kHz.
e.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;
                      displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz

Package Included:
1x Function Signal Generator

  • PARAMETER --- working voltage range 3.3V-30V; frequency range 1Hz-150kHz/1Hz-15kHz; output current 5-30mA; frequency accuracy 2% in each range.
  • APPLICATION --- as square wave signal generator for experimental development; as square wave signal generator for motor driver; as adjustable pulse generator for MCU; as adjustable pulse generator for PWM dimming, speed regulating, etc.

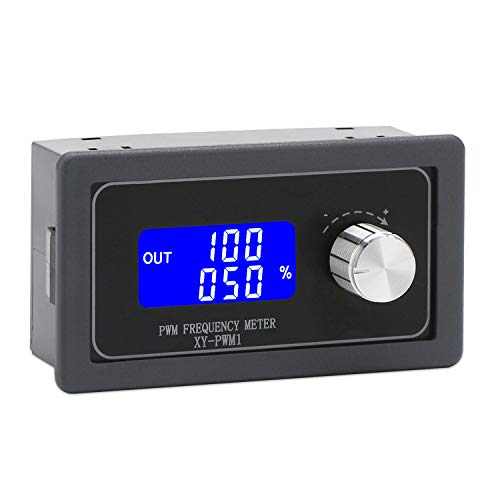

  • DISPLAY--- clear LCD displays frequency & duty ratio value.
  • MODE --- 2 modes, normal mode & accurate mode.
  • FEATURE --- with lock function; PWM output, can set frequency & duty cycle separately; duty cycle upper and lower bounds adjustable; support serial communication; all data auto saved after setting.
  • Item Weight: 0.01 kilograms

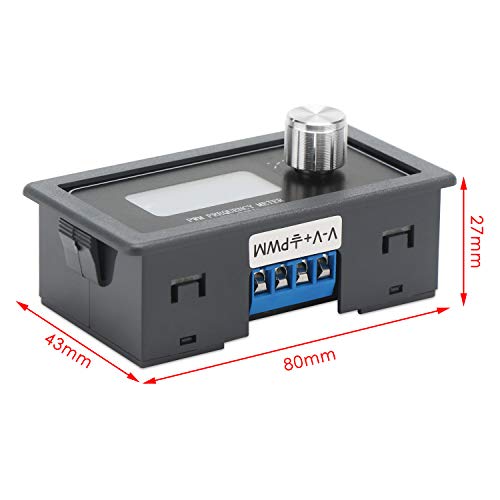

  • Item Dimensions: Width: , Height: , Length:
  • Item Package Dimensions: Width: 8 centimeters, Height: 8.8 centimeters, Length: 4.5 centimeters

Attribute Value
brand DROK
item type keyword function-generators
number of items 1
part number 200393
item package weight 0.05
manufacturer DROK
model number 200393
batteries required False
product site launch date 2/28/2019 9:42:03 AM
batteries included False
