Technical Parameters:
Product Name : Thermostat Temperature Control Switch
Model: KSD301
Action Temperature: 70°C
Action Type: N.C (Normally Closed)
Rated Voltage/Current : 250V 10A
Pin Width : 6.3mm/0.25inch
Contact Life: More than 50,000 times (action times)
Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon
Product Description :
1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature
2.Feature: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon
3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats
Please Note:
1.Do not collapse, loosen or deform the top of cover surface during installation to avoid affecting performance
2.Do not allow liquid to penetrate into the interior of the thermostat or crack the housing
3.The thermostat should be stored in a warehouse with RH less than 90% and ambient temperature less than 40 , which is ventilated, clean, dry
Package Content :

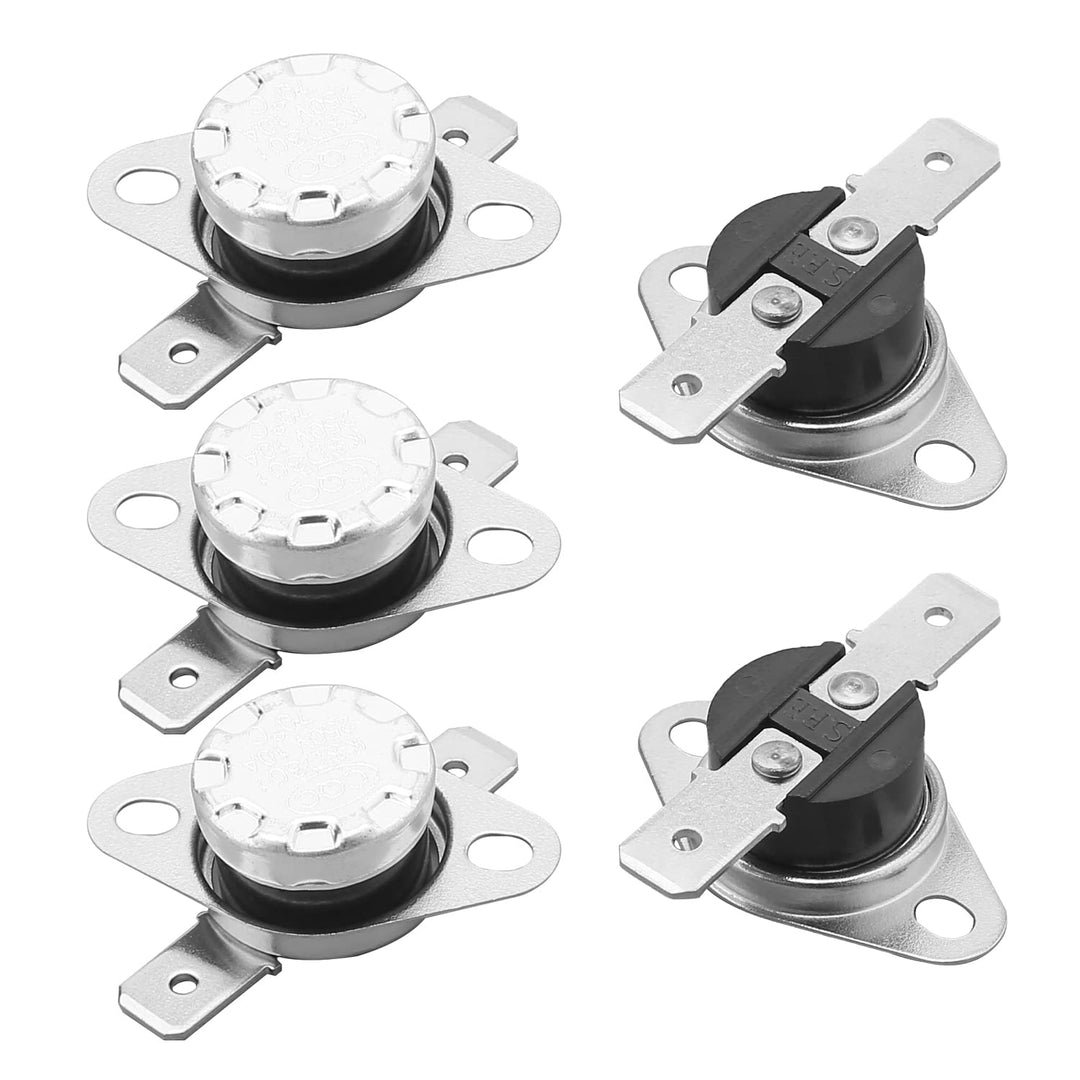

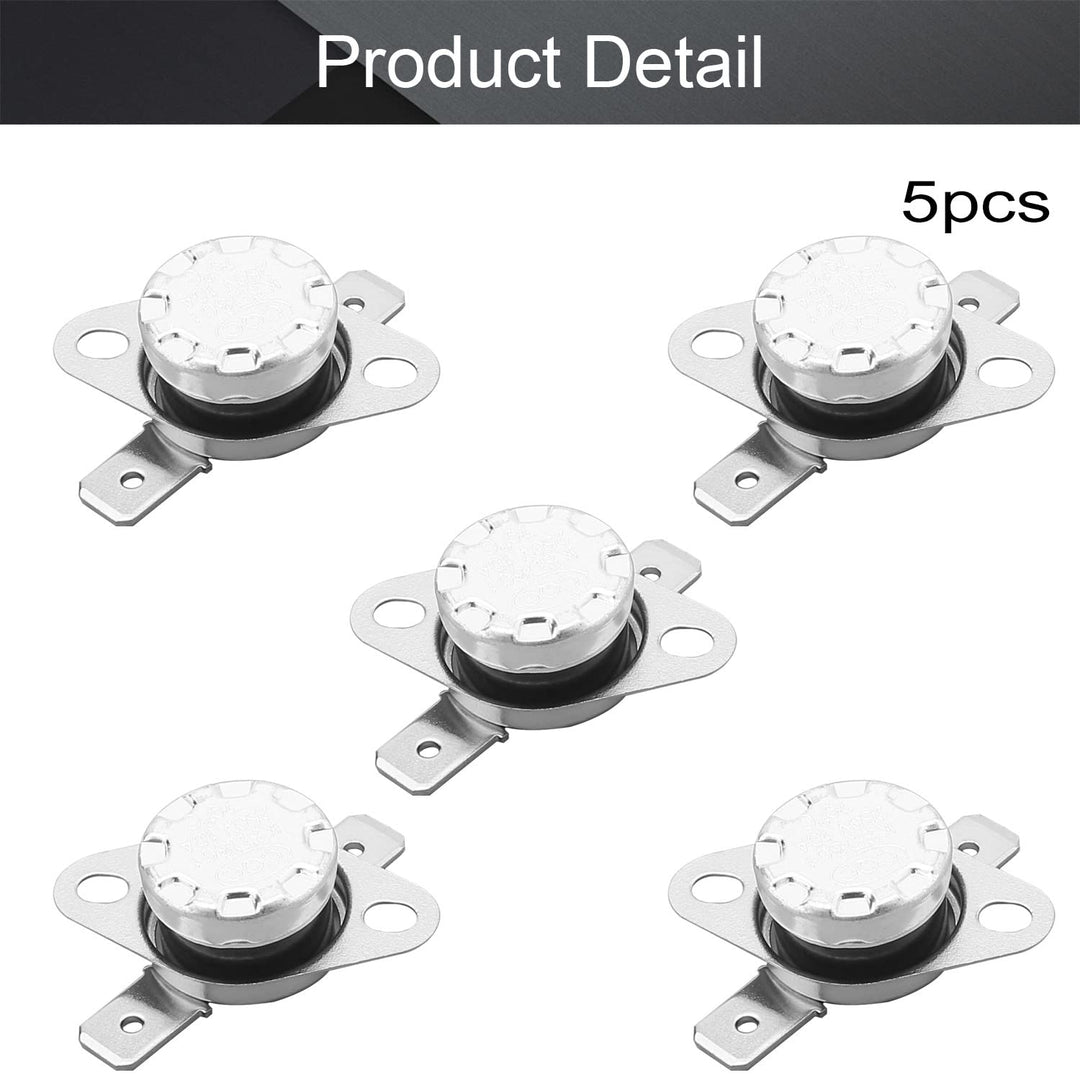

5Pcs x KSD301 Thermost
- Type- KSD301 70 degrees Celsius Thermal Control Switch 250V 10A; Body Material:Bakelite; NC (Normal Close); Pin width: 6.3mm/0.25inch
- Normally Closed- The original state of KSD301 temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature 70 Celsius degree
- Advantage- KSD301 Thermostat has double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.
- Easy to installation- The flange on temperature control switch is float and easy to install.
- Wide applications- Thermostat thermal switch mainly used for microwave,oven, coffee maker,Speed Cook oven,heater,gas furnace, Heater,wall heater, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater,etc.
- Item Weight: 0.01 ounces
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 4.318 centimeters, Height: 7.874 centimeters, Length: 0.508 centimeters
| Attribute | Value |
|---|---|
| switch type | Limit Switch, Float Switch, Temperature Switch |
| connector type | Flange |
| brand | Fielect |
| current rating | 10 |
| item type keyword | thermostat-controllers |
| number of items | 5 |
| connectivity protocol | X-10 |
| part number | FLT20191121W-0026 |
| terminal type | Pin |
| color | 70C 5Pcs |
| item package weight | 0.018 |
| manufacturer | Fielect |
| model number | FLT20191121W-0026 |
| supplier declared dg hz regulation | not_applicable |
| operation mode | Automatic |
| batteries required | False |
| product site launch date | 12/8/2019 7:38:04 AM |
| material | Copper |
| mounting type | Surface Mount |
| operating voltage | 250 |
| batteries included | False |
