Technical Parameters:
Product Name : Thermostat Temperature Control Switch
Model: KSD301
Action Temperature: 75°C
Action Type: N.O(Normally Open)
Rated Voltage/Current : 250V 10A

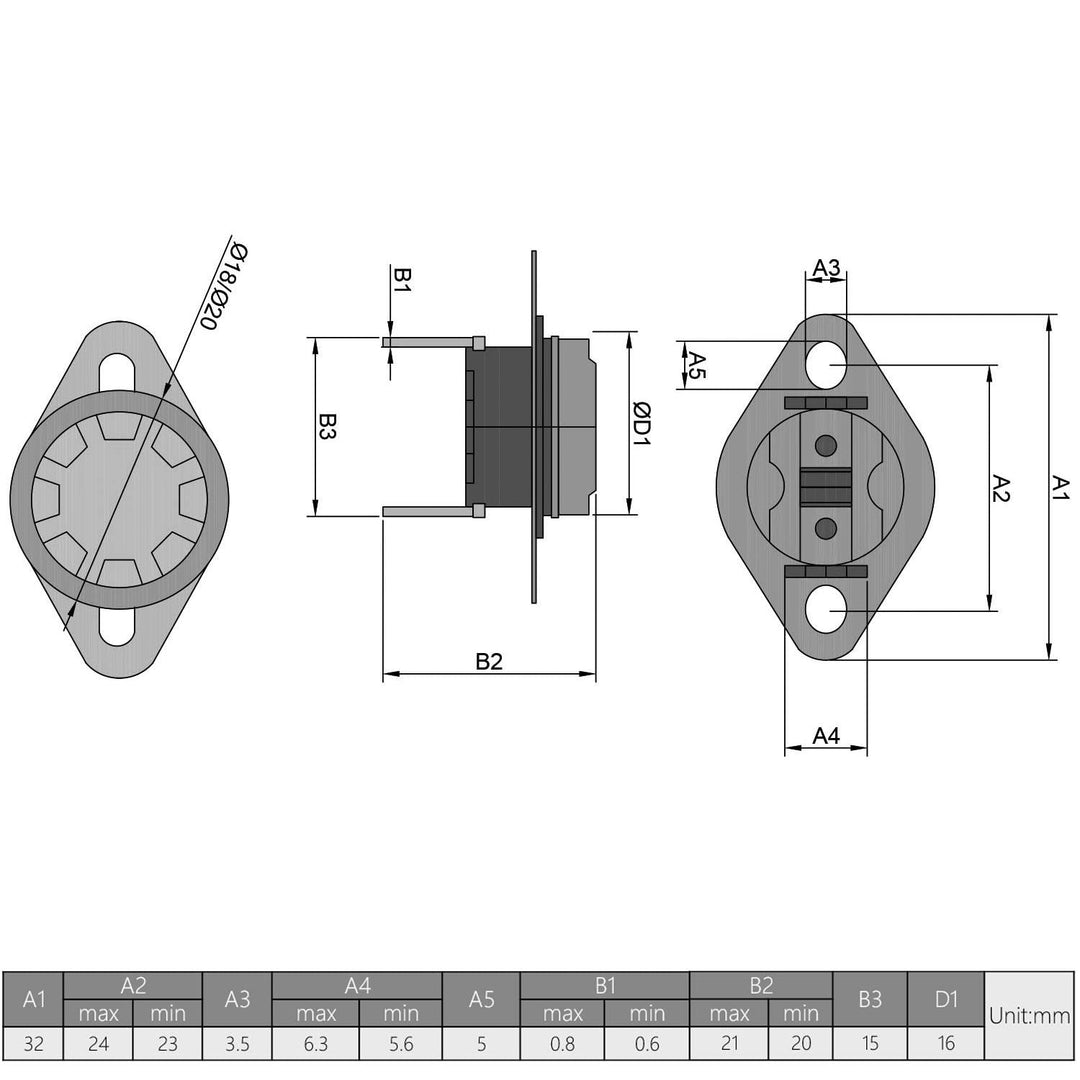

Pin Width : 6.3mm/0.25inch
Contact Life: More than 50,000 times (action times)
Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon
Product Description :
1.Normally Open: The original state of temperature control switch contact is open, and closed when the temperature sensing exceeds the rated temperature 40 Celsius degree

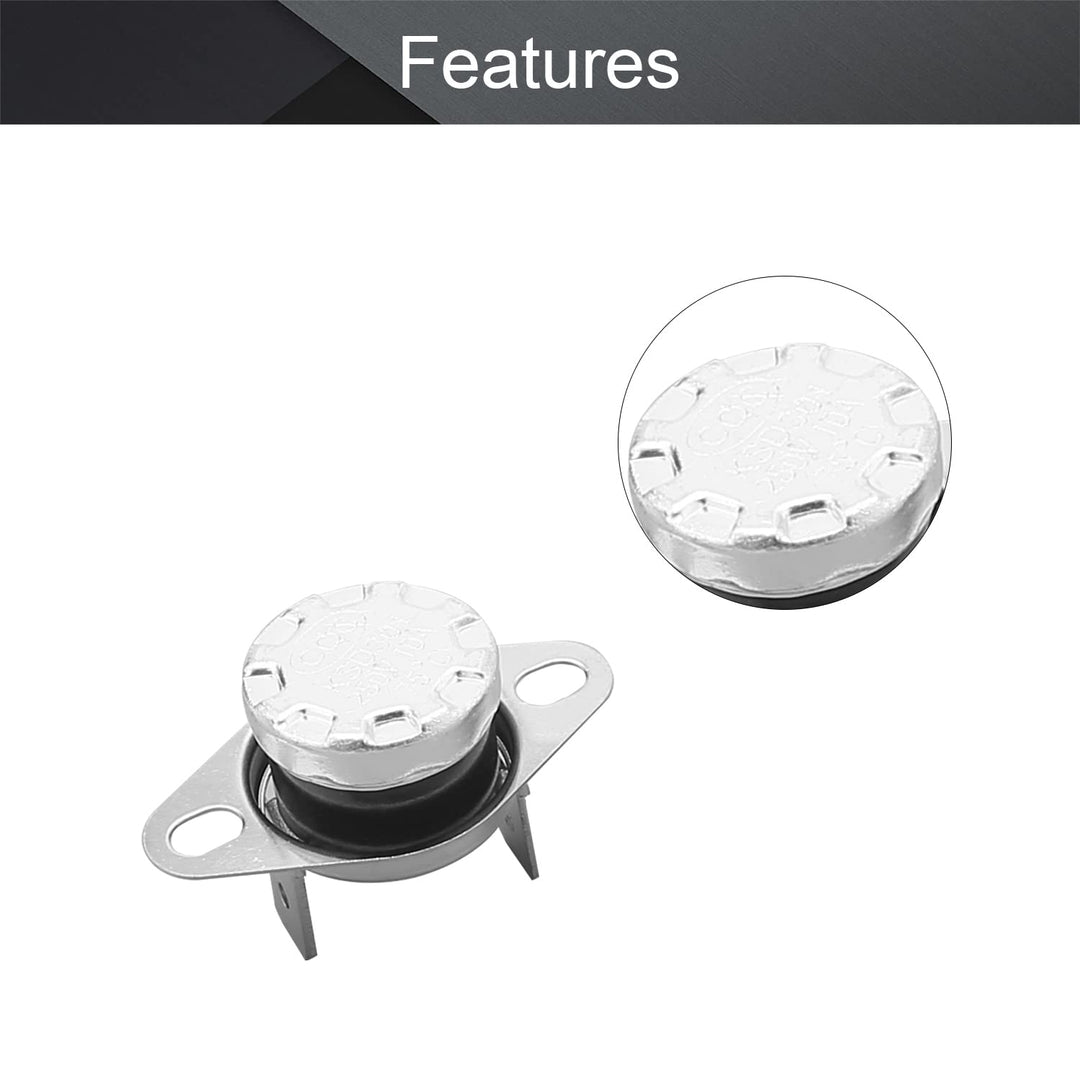

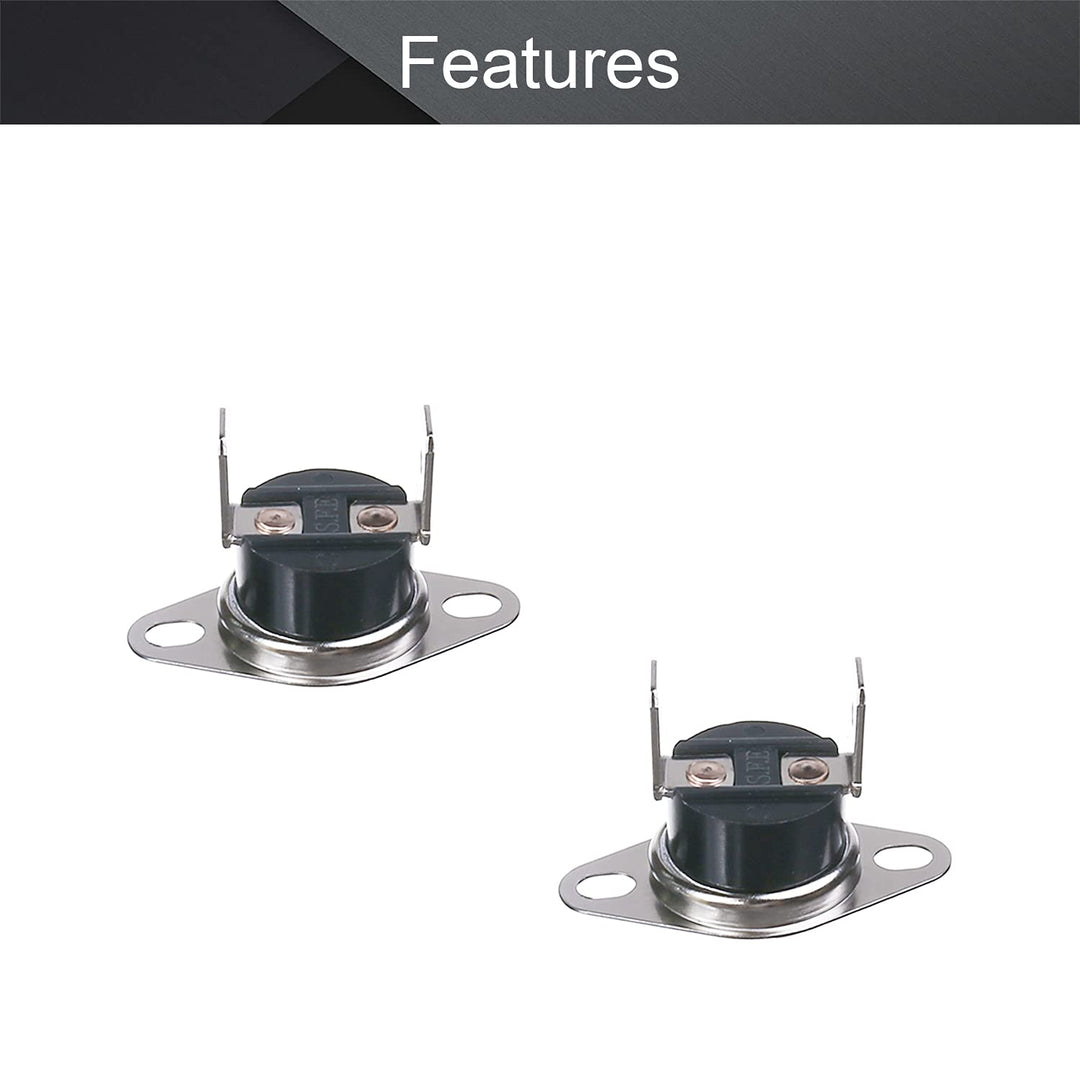

2.Feature: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon
3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats
Please Note:
1.Do not collapse, loosen or deform the top of cover surface during installation to avoid affecting performance
2.Do not allow liquid to penetrate into the interior of the thermostat or crack the housing
3.The thermostat should be stored in a warehouse with RH less than 90% and ambient temperature less than 40 , which is ventilated, clean, dry
Package Content :
5Pcs x KSD301 Thermostat
- Type- KSD301 75 degrees Celsius Thermal Control Switch 250V 10A; Body Material: Bakelite; NO (Normal Open); Pin width: 6.3mm/0.25inch
- Normally Open:- The original state of temperature control switch contact is open, and closed when the temperature sensing exceeds the rated temperature 75 Celsius degree
- Advantage- KSD301 Thermostat has double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.
- Easy to installation- The flange on temperature control switch is float and easy to install.
- Wide applications- Mainly used for microwave,oven, coffee maker,Speed Cook oven,heater,gas furnace, Heater,wall heater, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater.

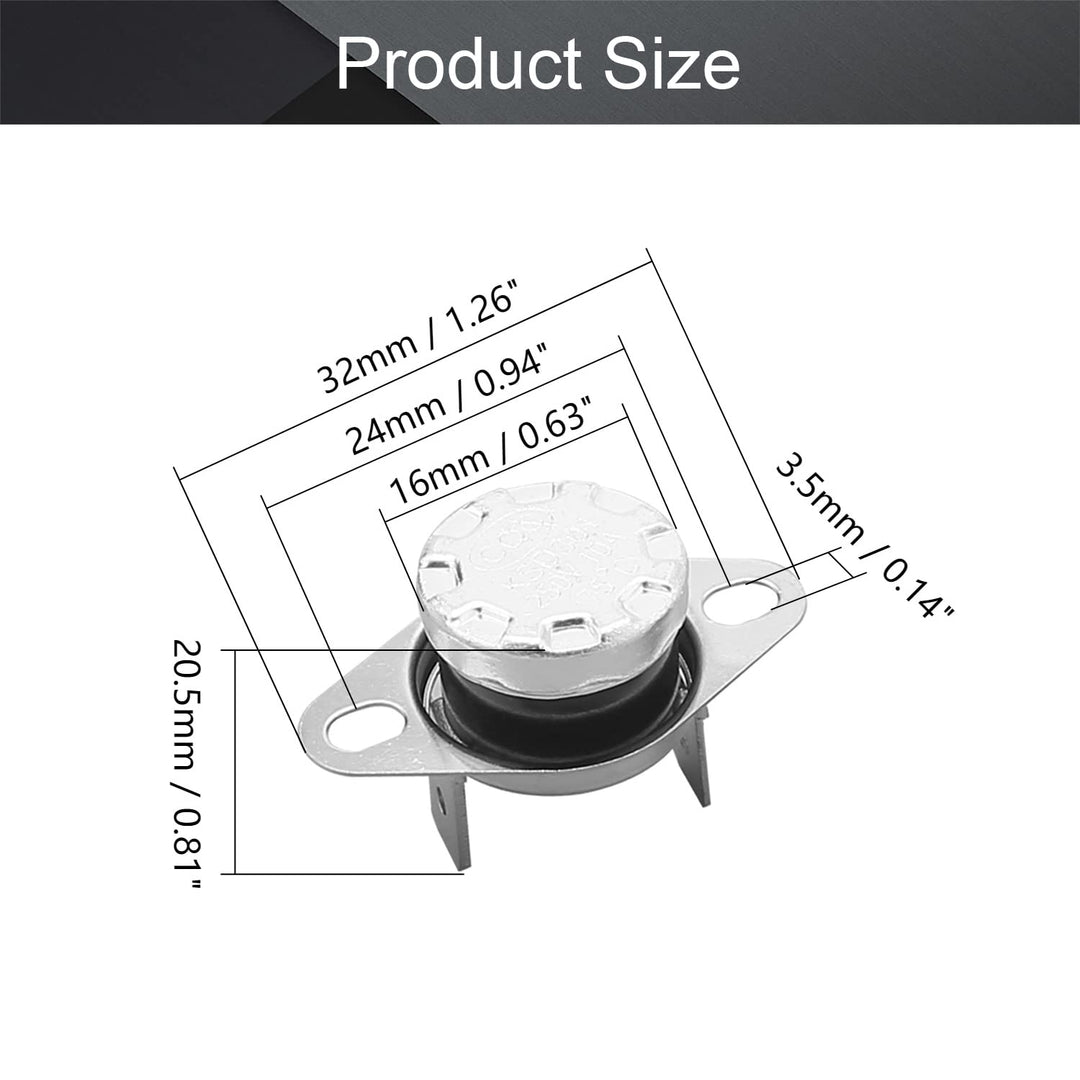

- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 0.0762 centimeters, Height: 8.128 centimeters, Length: 0.0762 centimeters
Attribute | Value |
---|---|
switch type | Float Switch, Temperature Switch |
brand | Fielect |
current rating | 10 |
item type keyword | thermostat-controllers |
part number | FLT20191121W-0124 |
color | 75C 5Pcs |
item package weight | 0.018 |
manufacturer | Fielect |
item shape | Round |
model number | FLT20191121W-0124 |
supplier declared dg hz regulation | not_applicable |
batteries required | False |
voltage | 250 |
product site launch date | 12/2/2019 1:08:14 AM |
material | Metal |
mounting type | Surface Mount |
operating voltage | 250 |
batteries included | False |
