Discover the authentic - Fiber Patch Cable 1M/3ft OM3, LC to LC Fiber Optic Cable Cord LSZH 10GB Multimode Duplex 50/125um, Length Options: 0.2m-200m by FLYPROFiber, part of our Optical collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Optical – - Fiber Patch Cable 1M/3ft OM3, LC to LC Fiber Optic Cable Cord LSZH 10GB Multimode Duplex 50/125um, Length Options: 0.2m-200m by FLYPROFiber
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
Product Name

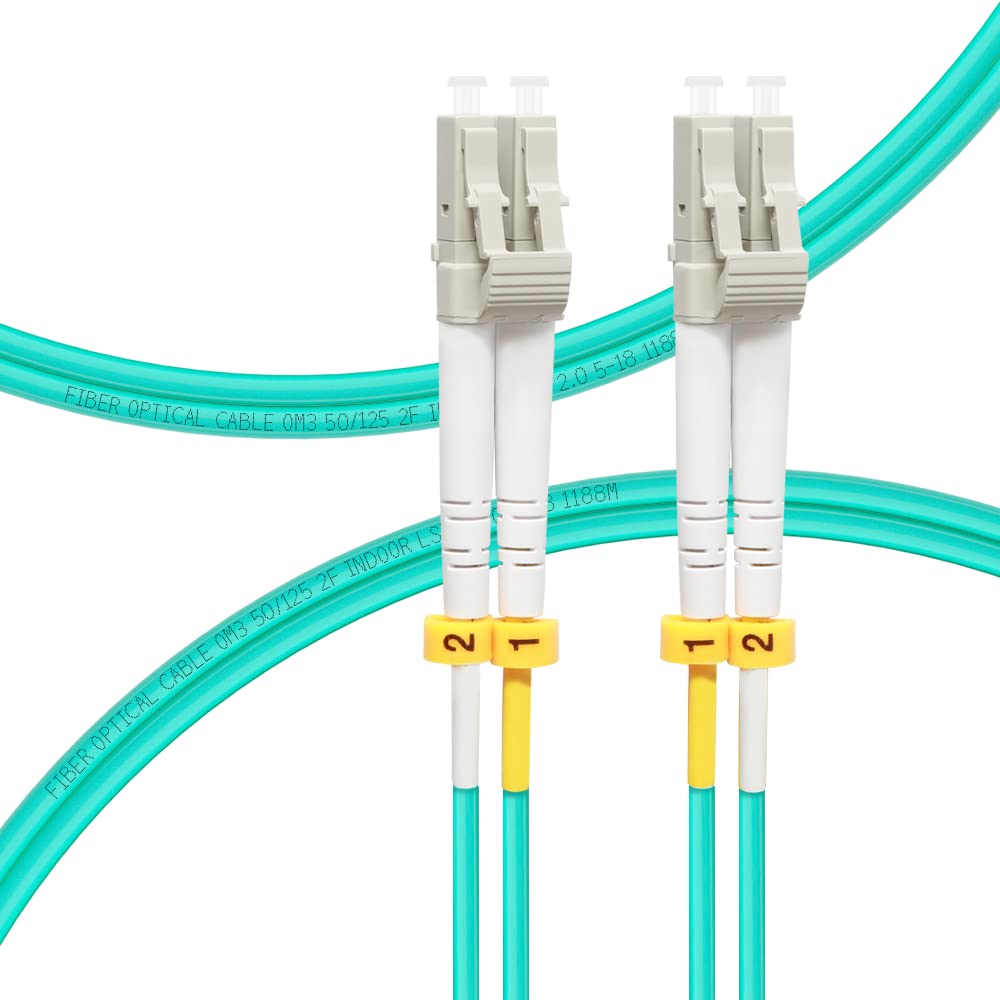

OM3 LC-LC Fiber Optic Patch Cable 1M(3FT) 10Gb Multimode Fiber Optic Cord (MMF) 50/125um LSZH Duplex UPC 2.0mm Aqua
Size: 1M(3FT) (included Connector)
Manufacturer: FLYPROFiber

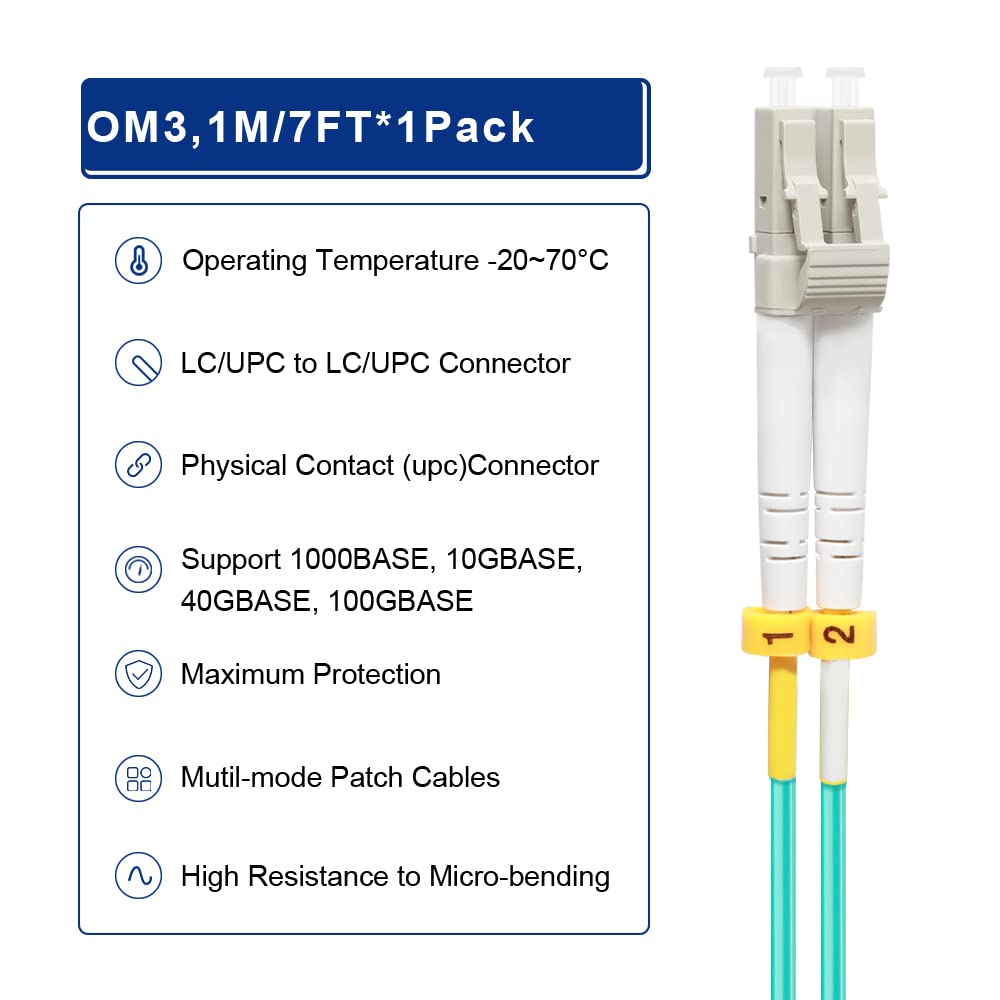

CABLE SPECIFICATIONS:
Fiber Core: Corning US 50/125um Fiber and Cladding
Ferrule Material: Ceramic
Connectors: Duplex LC-LC
Polish Type: UPC to UPC
Fiber Type: OM3(Laser-optimized) Multimode
Cable Jacket: LSZH
Cable Diameter: 2.0mm
Cable Color: Aqua
Minimum Bend Radius: 7.5mm
Operating Temperature: -20~70°C
Wavelength: 850nm and 1300nm
1G Ethernet Max Distance: 550 Meters at 850nm
10G Ethernet Max Distance: 300Meters at 850nm
40G Ethernet Max Distance: 300Meters at 850nm
100G Ethernet Max Distance: 200Meters at 850nm
Bandwidth: 2000 MHz·km @850nm
Insertion Loss: =0.3dB
Return Loss: =30dB
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm : 1.0 dB/km
ADVANTAGES
Plug and play cables save time in the field since there is no onsite termination necessary. The 50/125µm OM1 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It's a long term, cost effective solution to securely transmit data requiring high transfer rates.
APPLICATIONS
Computer Networking - Transfers data at a higher rate of speed. Military and Defense - Transmits data signals more clearly.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
FLYPROFiber cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.

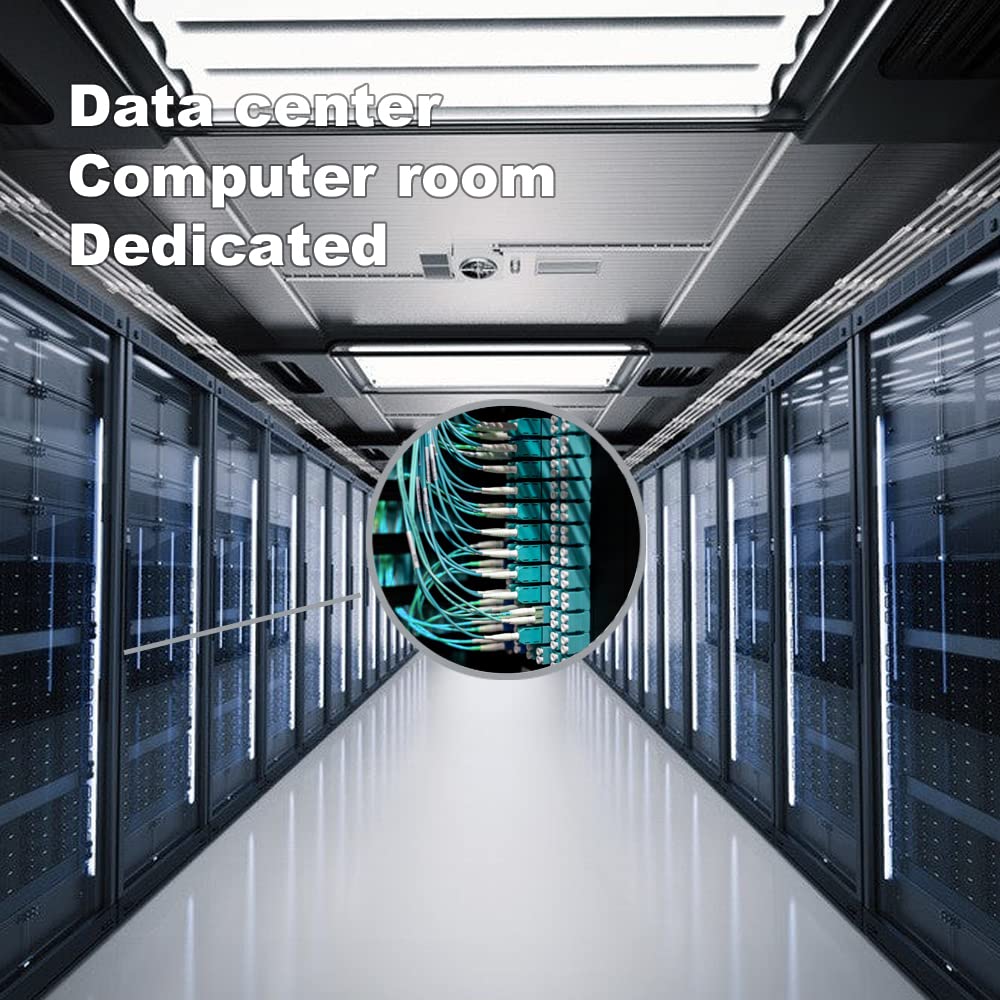

- 1M(3ft), OM3 LC-LC Fiber Optic Patch Cable Multimode 10Gb is designed for high density applications in gigabit ethernet, fiber channel, local area networks, data center, premise installation, wide area networks, commercial and so on, ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
- Maximum Transmission Distance - 1Gb Ethernet Distance of 550Meters at 850nm; 10Gb Ethernet Distance of 300Meters at 850nm; 40Gb Ethernet Distance of 300Meters at 850/nm; 100Gb Ethernet Distance of 200Meters at 850nm. Bandwidth is 2000 MHz·km @850nm.

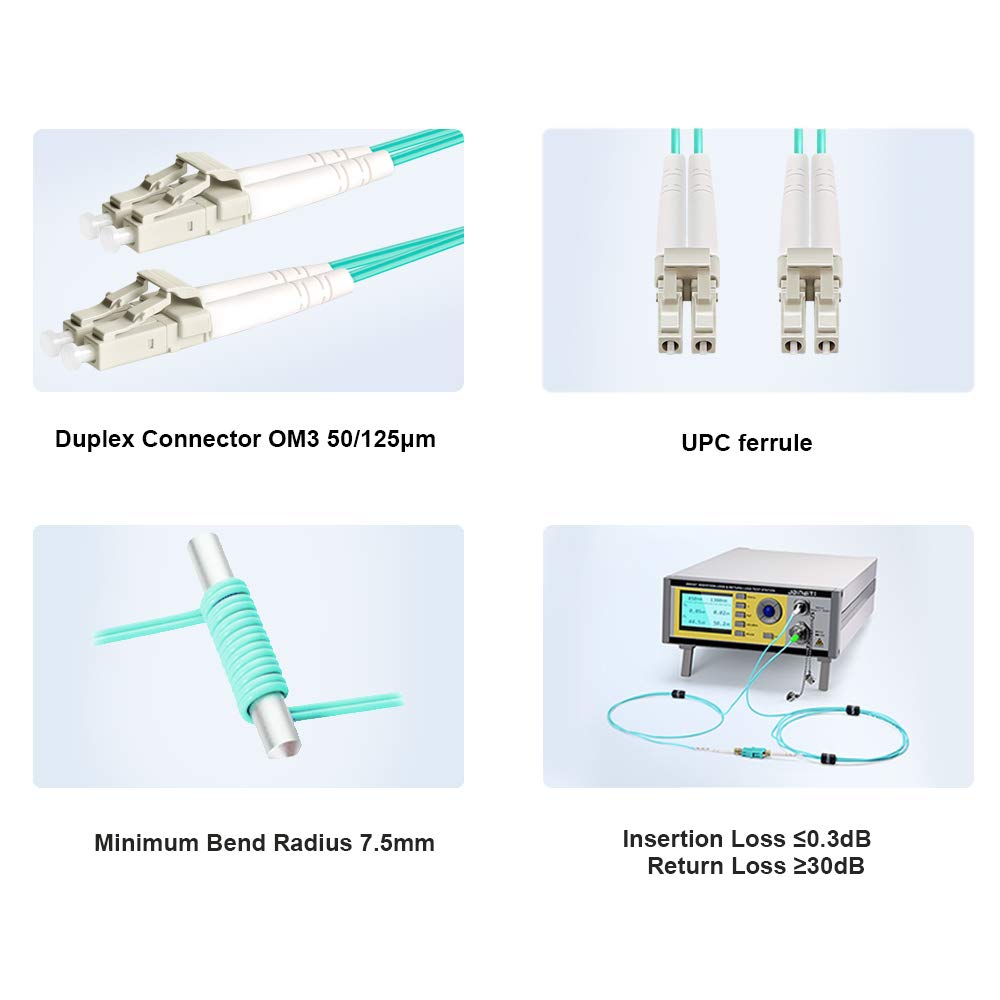

- 7.5mm Minimum Bend Radius - High Rated 50/125um Fiber and Cladding, which is Insensitive to bending, easy peeling, easy welding, ensures small optical loss and stable transmission (insertion loss=0.3dB, return loss =30dB.), Ideal for SAN network cabinets that require 20 or more bends in the cabinet or high-density installations with cables crammed into an extremely small footprint.

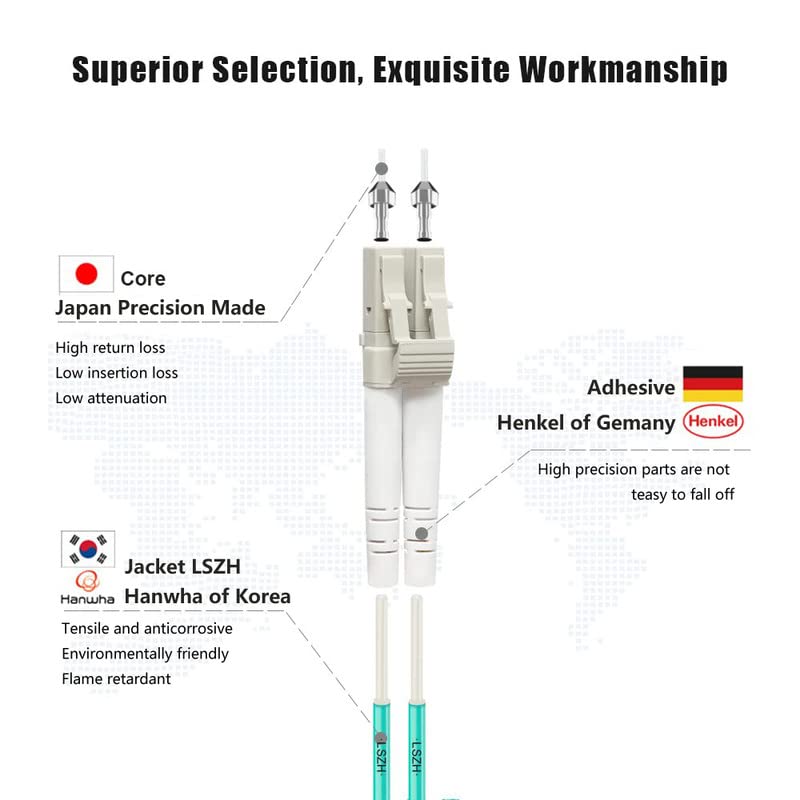

- Construction Design - LSZH environmentally friendly Jacket; Adjustable connector clips allow individual fiber access; Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 provide quick identification of Tx and Rx when installing, testing, and troubleshooting equipment connections; UPC polish and Japan made zirconia ceramic ferrules with high return loss, low insertion loss, and low attenuation features, provide precise alignment to ensure the signal integrity.
- FLYPROFiber has been focusing on fiber optics for 15 years. Each cable is tested in the factory to meet quality control and insertion loss requirements, providing customers with high-quality products. We also have a professional customer service team. If you have any questions, please contact us promptly.
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 16.2052 centimeters, Height: 17.8054 centimeters, Length: 1.0922 centimeters
Attribute | Value |
---|---|
data transfer rate | 10 |
model name | FLYPROFiber Fiber Patch Cable |
specification met | Lszh |
item package quantity | 1 |
connector type | Lc to Lc Duplex |
brand | FLYPROFiber |
cable | |
connector gender | Male-to-Male |
outer | |
item type keyword | fiber-optic-audio-cables |
number of items | 1 |
recommended uses for product | indoor |
size | 1m (3ft) |
part number | 1 |
color | OM3 LC/LC Multimode |
item package weight | 0.018 |
customer package type | sealed anti-static bag |
manufacturer | FLYPROFiber |
item shape | Round |
indoor outdoor usage | indoor |
model number | FLYPROFiber Fiber Patch Cable |
supplier declared dg hz regulation | not_applicable |
special feature | Data Transfer |
batteries required | False |
voltage | 5 |
product site launch date | 4/26/2021 8:52:53 AM |
compatible devices | Television, Router, PC |
unit count | 36 |
