Buy GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi Products Online In India
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi
GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi

GeeekPi 6Pack TXS0108E 8 Channel Logic Level Converter Bi-Directional High Speed Full Duplex Shifter 3.3V 5V for Arduino Raspberry Pi

GeeekPi

USA Icon USA Store
Condition: New
Price
Save Rs. -1,818
/
  • Free shipping all over India
  • Free & Easy Returns*
  • 100% Secure payments*
theglobalgenie payment options
🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.
  • In stock, ready to ship
  • Backordered, shipping soon


Description:
This 8-bit noninverting translator uses two separate configurable power-supply rails.
The A port is designed to track VCCA. VCCA accepts any supply voltage from 3.6 V.
The B port is designed to track VCCB. VCCB accepts any supply voltage from 5.5 V.
This allows for low-voltage bidirectional translation between any of the 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.
To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.


Features:

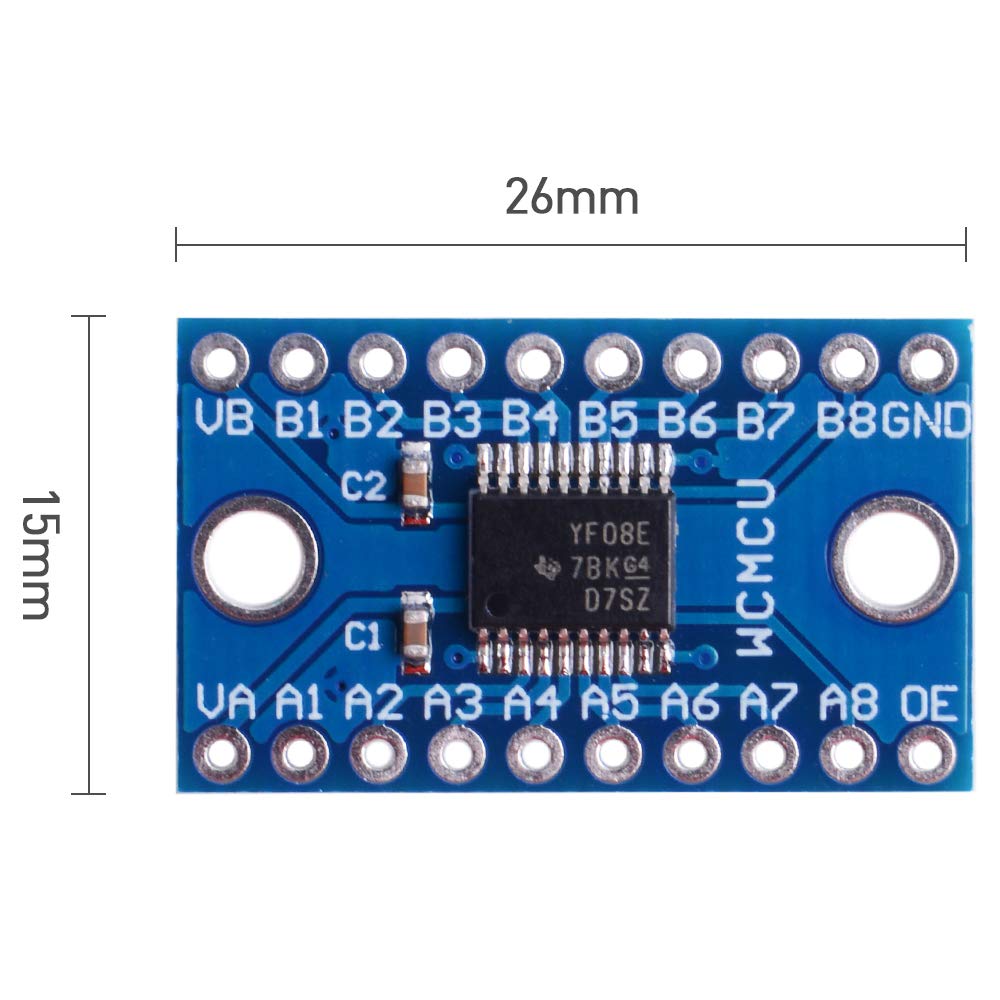

Module using chip: TXS0108E
Common level shifting capabilities such as 3.3-5V 1.8-3.3v are available
High-speed full-duplex 8-channel level conversion module
Provide two-way communication capabilities
VCCA terminal support voltage 1.2V-3.6V
VCCB terminal support voltage 1.65v-5.5v

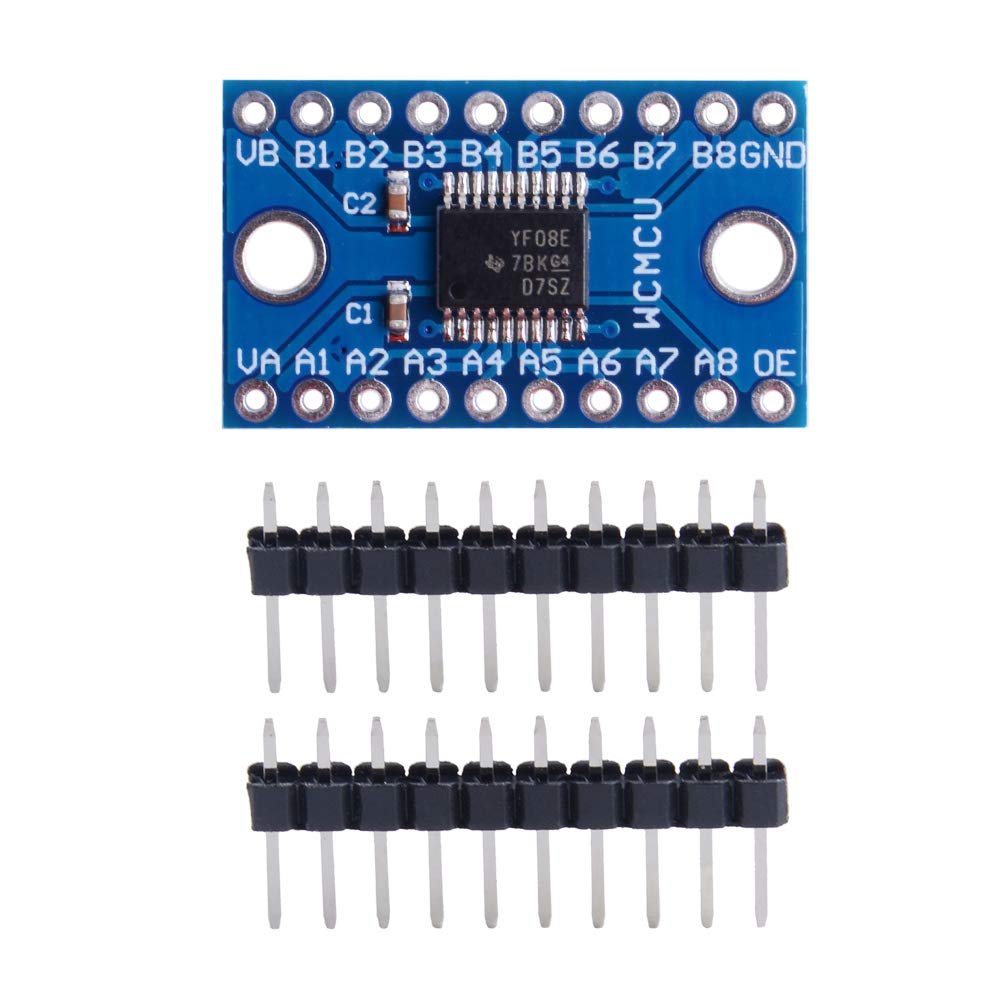

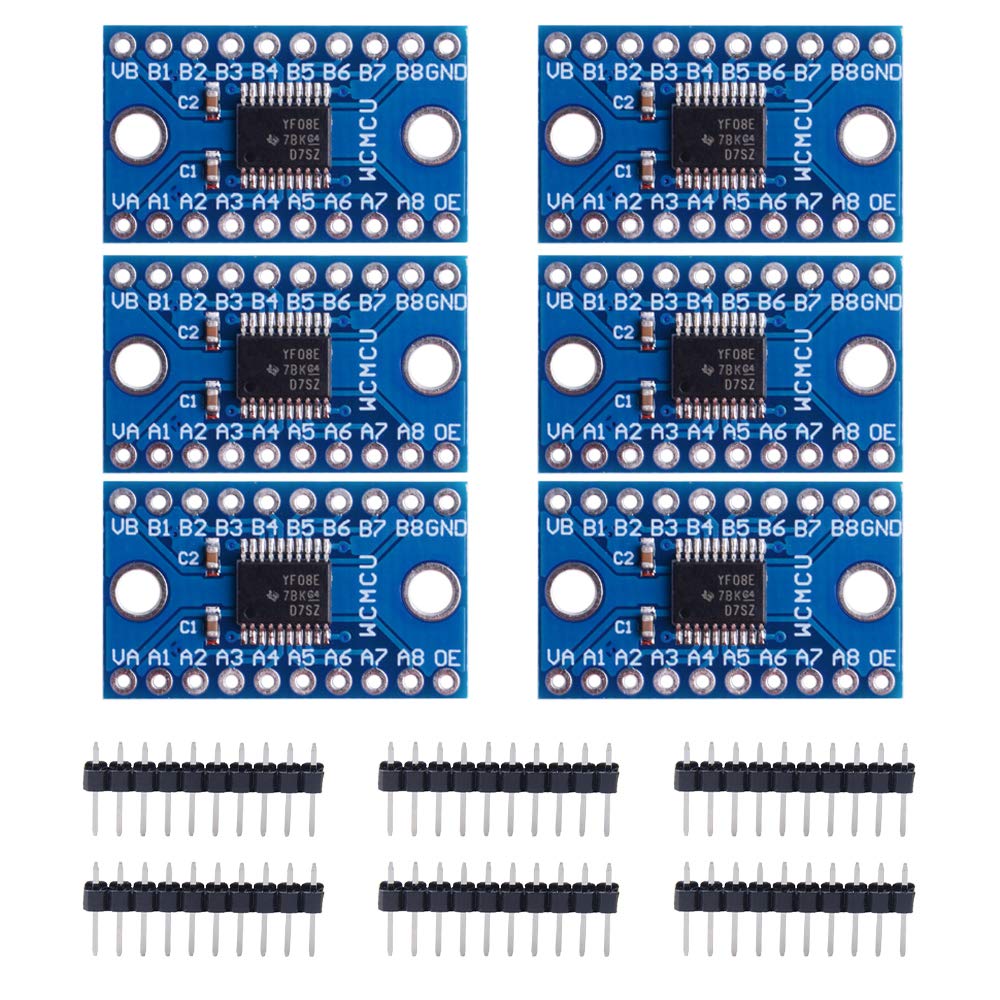

Package Includes:
6 x 8 Bit Level conversion module
12 x 8Pin header

  • 8 digit bi-directional 3.3V-5V/5V-3.3V logic level converter board; It can bidirectionally transfer with 8 channels between high logic voltage and low logic voltage.
  • VCCA side voltage range: 1.2V-3.6V; VCCB side voltage range: 1.65v-5.5v
  • Serial communication interface is compatible with UART/IIC/SPI port, which is easy to connect.
  • Widely used in the communication between 5V SCM and 3.3V device, 3.3V SCM and 5V device. It can also apply in the level conversion between MCU and SD card, MCU and iic/spi serial port devices.
  • Item Dimensions: Width: , Height: , Length:
  • Item Package Dimensions: Width: 10.7 centimeters, Height: 13.2 centimeters, Length: 1.3 centimeters

Attribute Value
fcc radio frequency emission compliance
item package quantity 1
brand GeeekPi
item type keyword power-converters
part number D-0010
item package weight 0.02
manufacturer GeeekPi
model number D-0010
supplier declared dg hz regulation not_applicable
batteries required False
product site launch date 5/13/2020 7:00:00 AM
batteries included False
