The Size of 4 Layers Case
One acrylic plate: 100mm*72mm*30mm
The gap between two acrylic plates: 25mm
Four Layers Case: 120mm*100mm*72mm

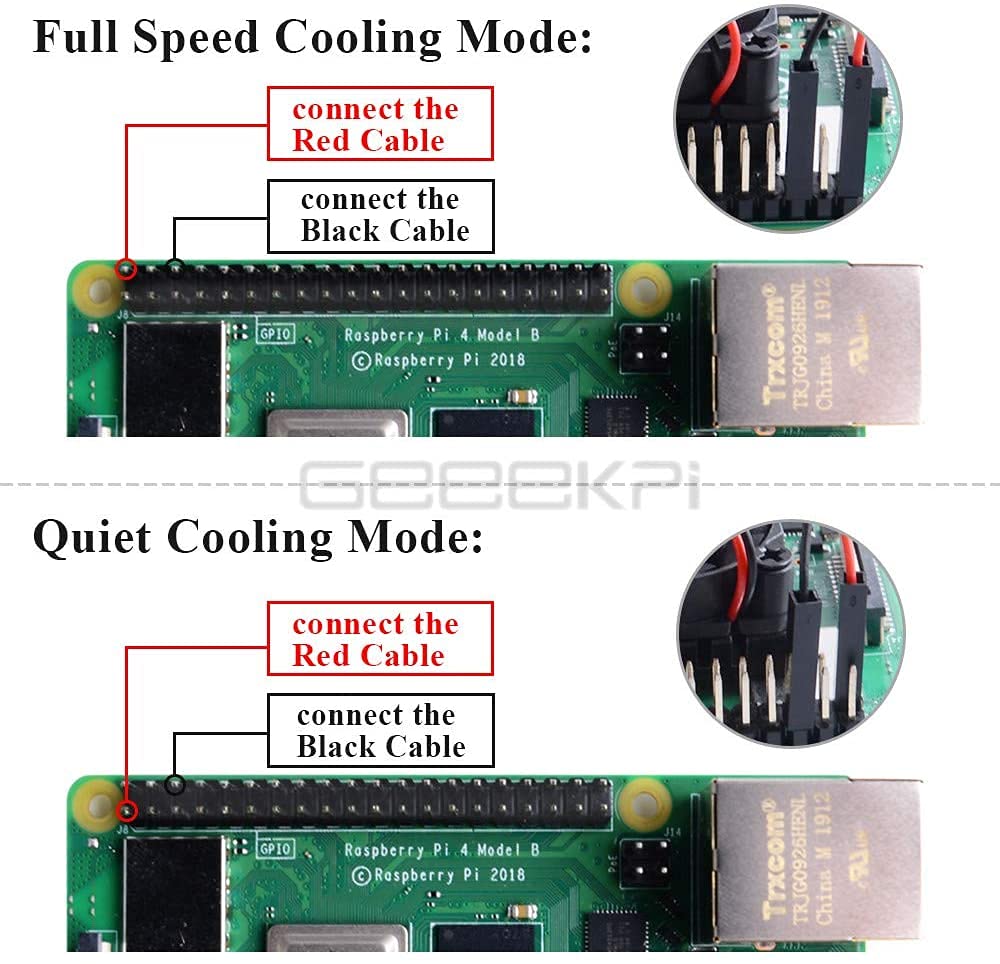

Mini Cooling Fan
Cable Length: 80mm
Working Voltage and Current: DC 5V / 0.15A
Rotation speed: 6000RPM±10%
Color: Black

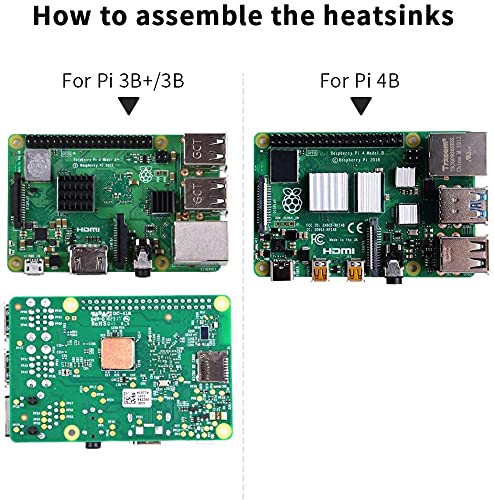

Heatsinks
---Big black one
Materiel: Aluminum
Size: 14mm*14mm*6mm
---Small black one
Materiel: Aluminum
Size: 9mm*9mm*5mm
---Thin copper one
Size: 12mm*12mm*1mm
They all have adhesive thermal tapes on the back.
Outer Package:135mm*98mm*42mm
Weight: 260g

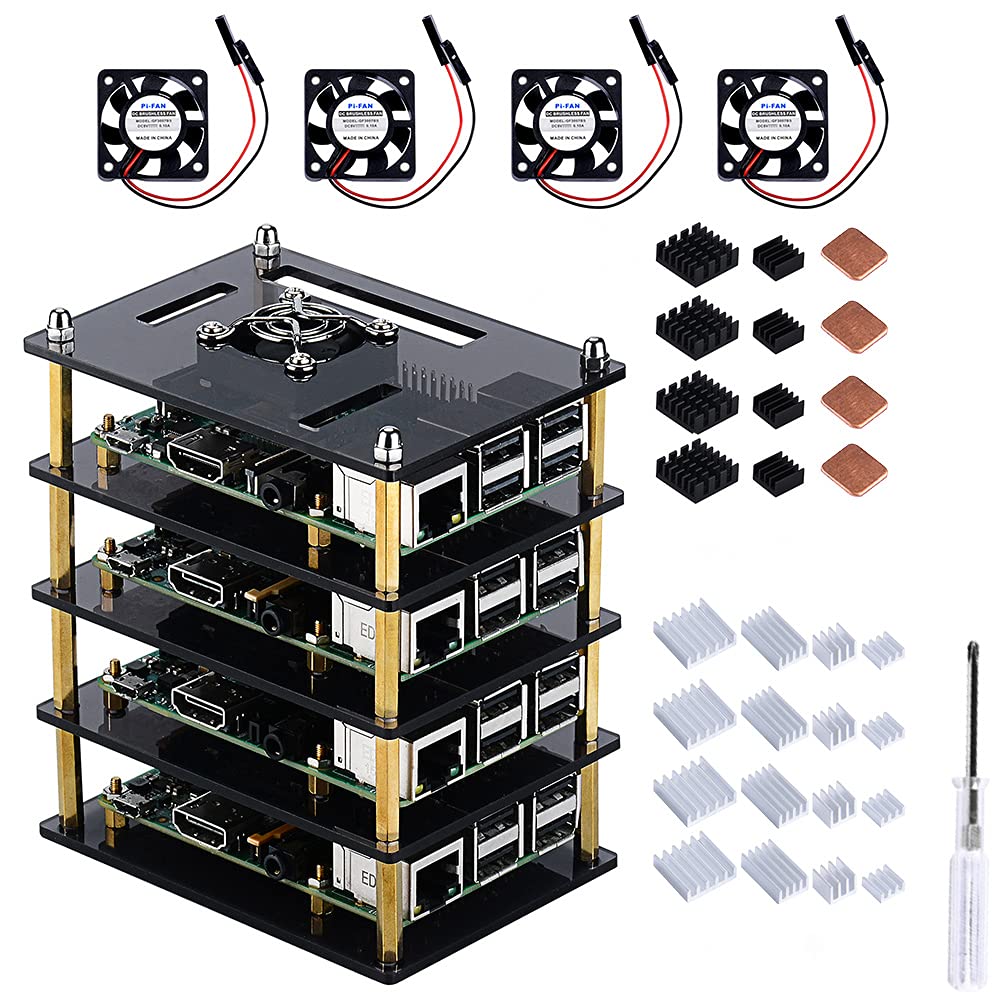

Package Includes
5x Acrylic Plates
4x Cooling Fan
12x Heatsinks for Raspberry Pi 3B+/3B/2B
16x Heatsinks for Raspberry Pi 4 Model B(Added on 2019.8.2)
1x Screw Set
1x Screw Driver
1x Instruction Manual
- Compatible with Raspberry Pi 4 Model B & Raspberry Pi 3 B+ & Raspberry Pi 3/2 Model B; Raspberry Pi Board Not Included!
- Access to all ports and slots of Raspberry Pi, including SD card slot, GPIO port, USB ports, HDMI port and so on.
- The case includes cooling fans and heatsink for cooling down your Raspberry Pi better. The metal protective cover on the top will protect the cooling fan against being destroyed.

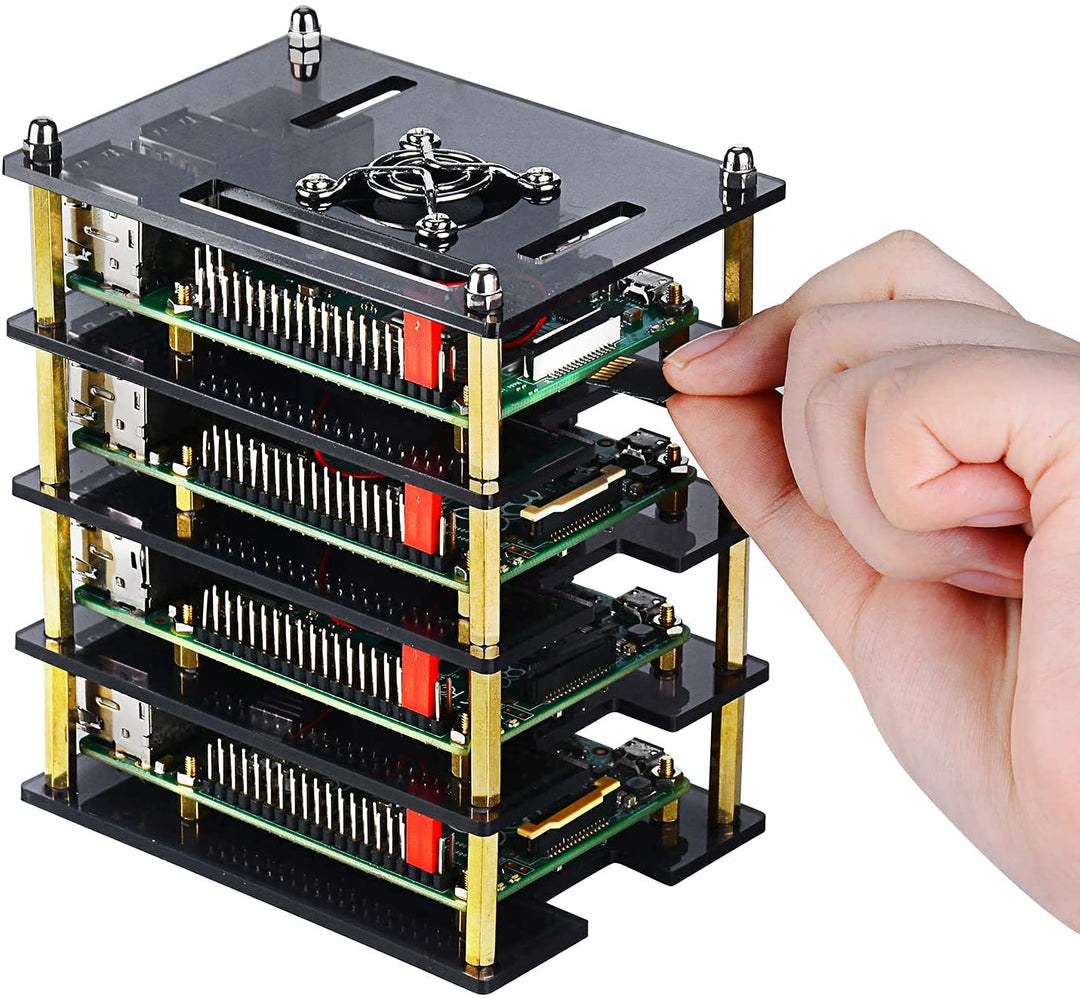

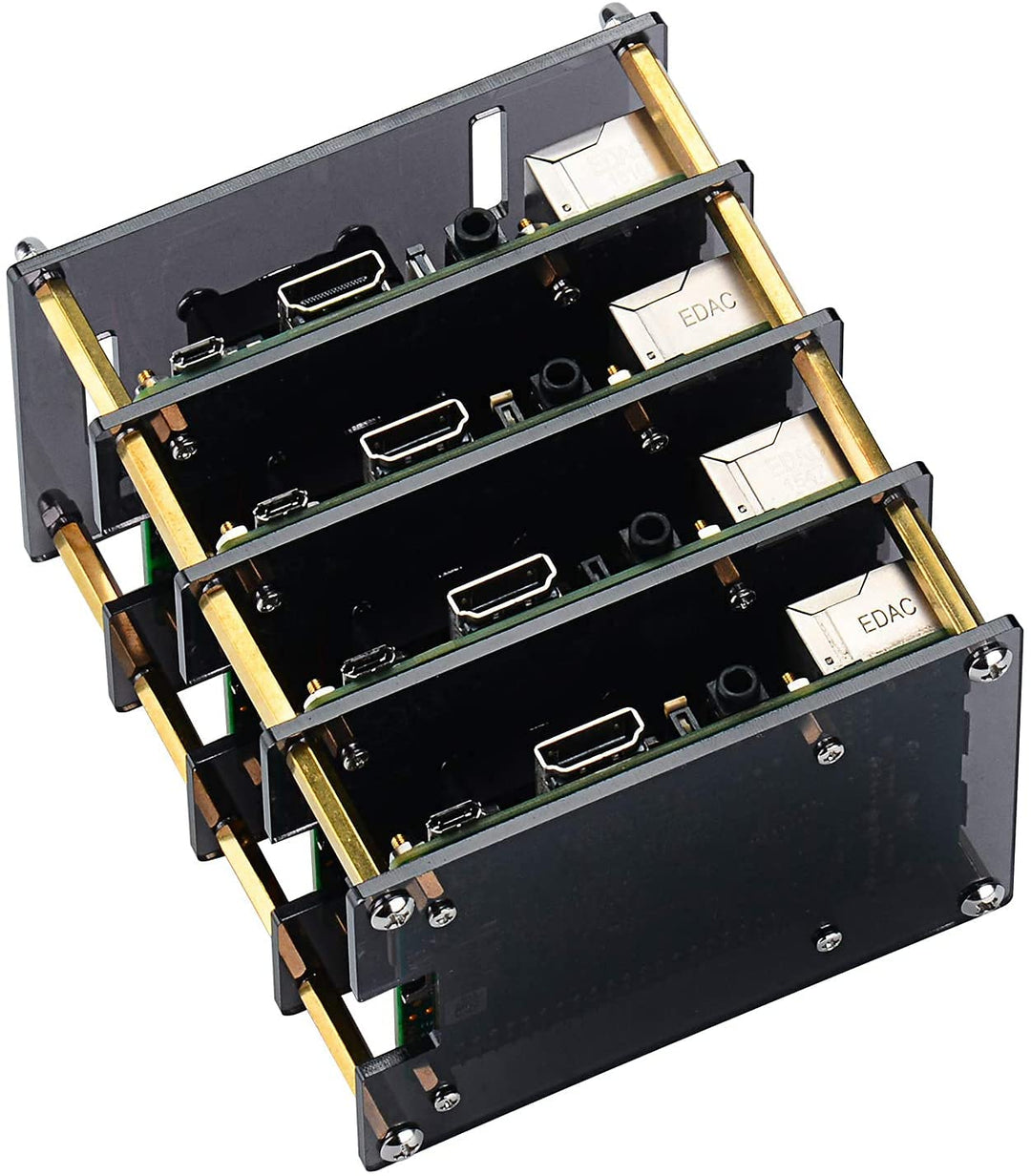

- The stackable case can provide you with an environment to put four pieces of Raspberry Pi board together. The instruction manual will tell you how to assemble step by step.
- Package Includes: 5x Acrylic Plates, 4x Cooling Fans with Metal Protective Cover, 12x Heatsinks for Raspberry Pi 3B+/3B/2B,16x Heatsinks for Raspberry Pi 4 Model B(Added on 2019.8.2), 1x Screw Set, 1x Screw Driver,1x Instruction Manual
- Item Weight: 0.6 pounds
- Item Dimensions: Width: 400 millimeters, Height: 72 millimeters, Length: 55 millimeters
- Item Package Dimensions: Width: 10.1 centimeters, Height: 13.4 centimeters, Length: 4.2 centimeters
Attribute | Value |
---|---|
fcc radio frequency emission compliance | |
cooling method | Air |
model name | GeeekPi Cluster Case |
item package quantity | 1 |
brand | GeeekPi |
supported motherboard | |
item type keyword | single-board-computers |
recommended uses for product | Gaming, Business |
power supply maximum output | 15 |
warranty description | 6 months |
part number | DE030-WHM-181 |
color | Brown |
item package weight | 0.27 |
manufacturer | GeeekPi |
model number | ZP-0039 |
supplier declared dg hz regulation | not_applicable |
special feature | Cooling Fans and Heatsinks |
computer memory | |
batteries required | False |
product site launch date | 1/17/2019 8:00:00 AM |
compatible devices | Raspberry Pi 4 Model B, Raspberry Pi 3 B+, Raspberry Pi 3/2 Model B |
material | Acrylic, Aluminum, Metal |
batteries included | False |
