HiLetgo 2pcs 12V Single Bistable Self-Locking Relay Module Push To Start And Stop

Purposes:
Press the trigger button, relay lock, press again, cut the relay, also can be connected with the trigger switch, and low level trigger.
Household electrical appliance control, lighting control family, factory equipment control, used to control a variety of small current control for high voltage and high power products.

Parameters:
Power supply voltage: 12V
Power supply current: more than 100mA
Load: 250V 10A (AC) or 30V 10A (DC)
Life: 1000000 times

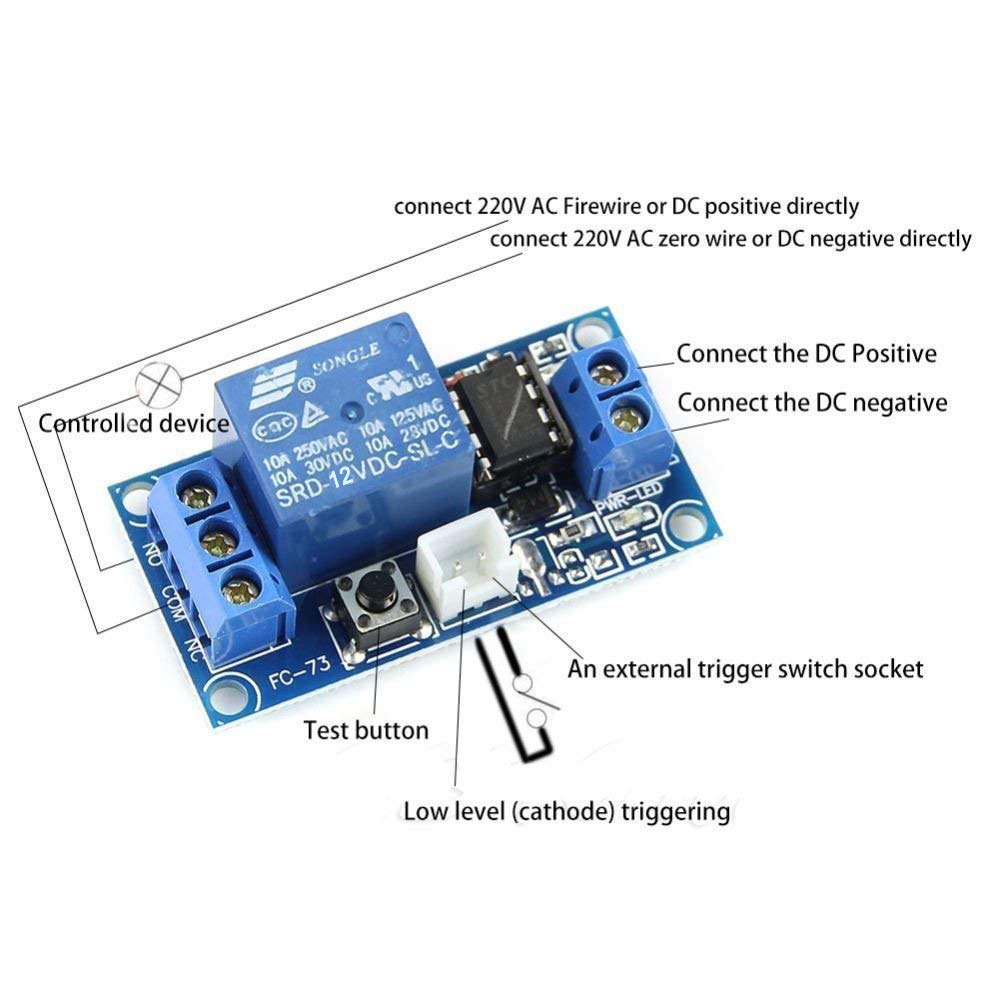

How to use:
1 .According to the direct power supply voltage connected to the correspondingversion;
2. Power supply according to the line graph of the requirements, can not bereversed, although the protection circuit, but not for a long time to reverse;
3. Using a voltage stabilizing tube (5V no voltage regulator tube) a slight fever, is a normal phenomenon, relay working long hours also have normal heatingphenomenon, is a normal phenomenon;
4. Load power to relay load leave some margin, should avoid high power (about 2000W) and long time working environment, will have a certain impact on the service life of the product.

Package Includes:

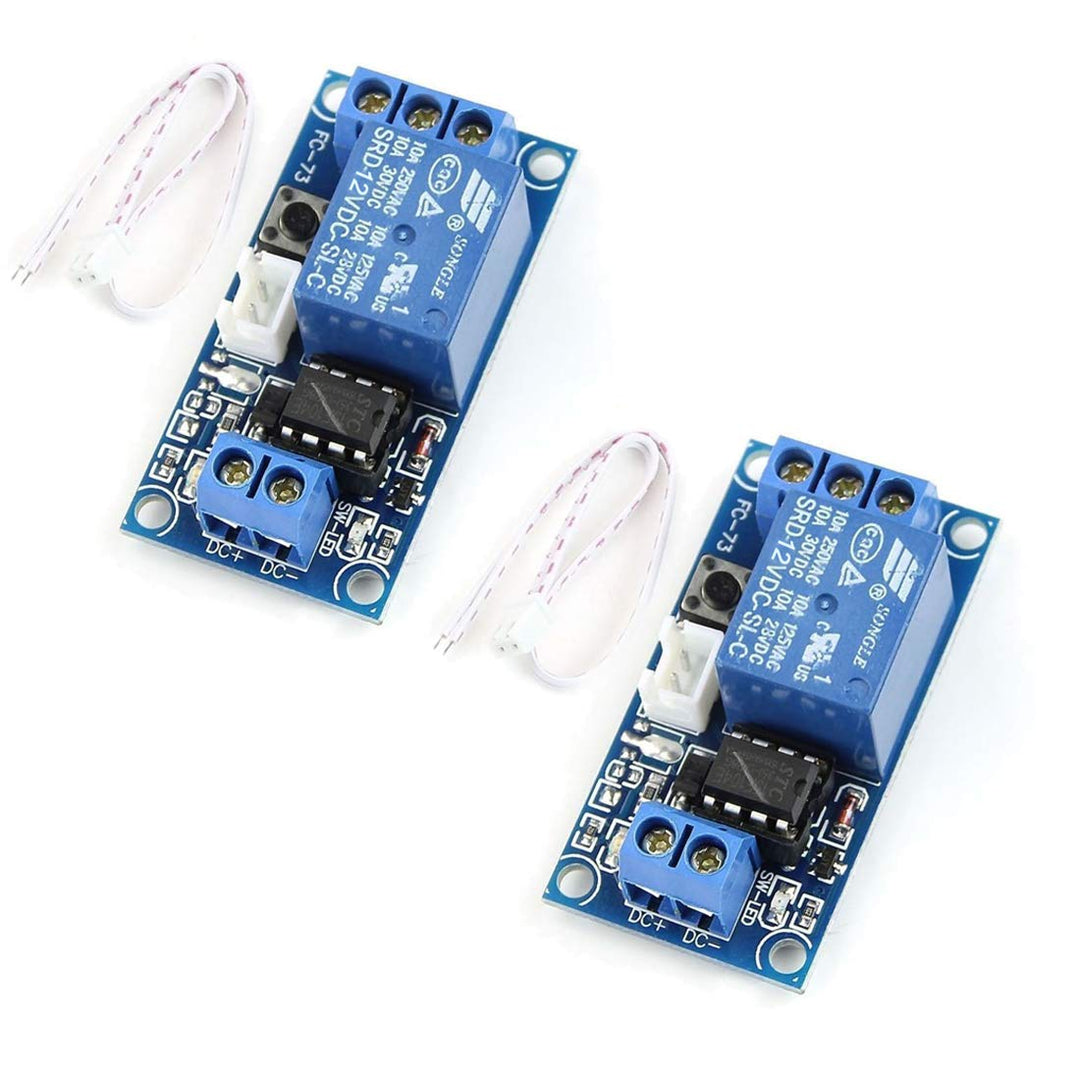

2 * 12V Single Bistable Self-Locking Relay Module

  • 12V Self-Locking Relay Module
  • Item Dimensions: Width: , Height: , Length:
  • Item Package Dimensions: Width: 8.3058 centimeters, Height: 9.7028 centimeters, Length: 2.9972 centimeters

Attribute Value
number of terminals 3
maximum switching current 10
contact
item package quantity 1
brand HiLetgo
coil
current rating 10
item type keyword electromechanical-relays
number of items 800
part number 3-01-0824-A
item package weight 0.041
manufacturer HiLetgo
wattage 2000
model number 3-01-0824-A
supplier declared dg hz regulation not_applicable
minimum switching voltage 12
operation mode Automatic
batteries required False
maximum switching voltage 12
product site launch date 6/23/2016 7:00:00 AM
material iron
batteries included False
