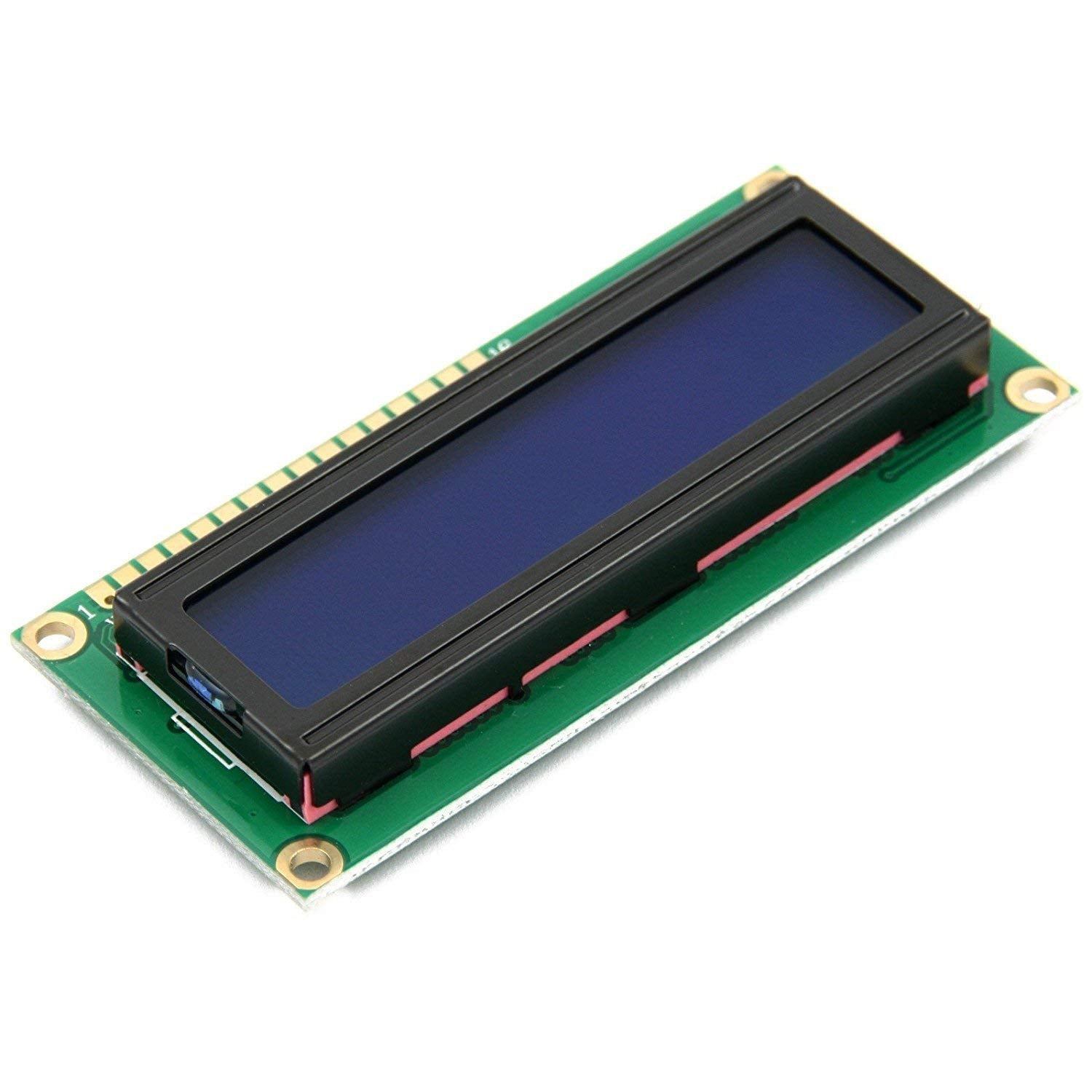

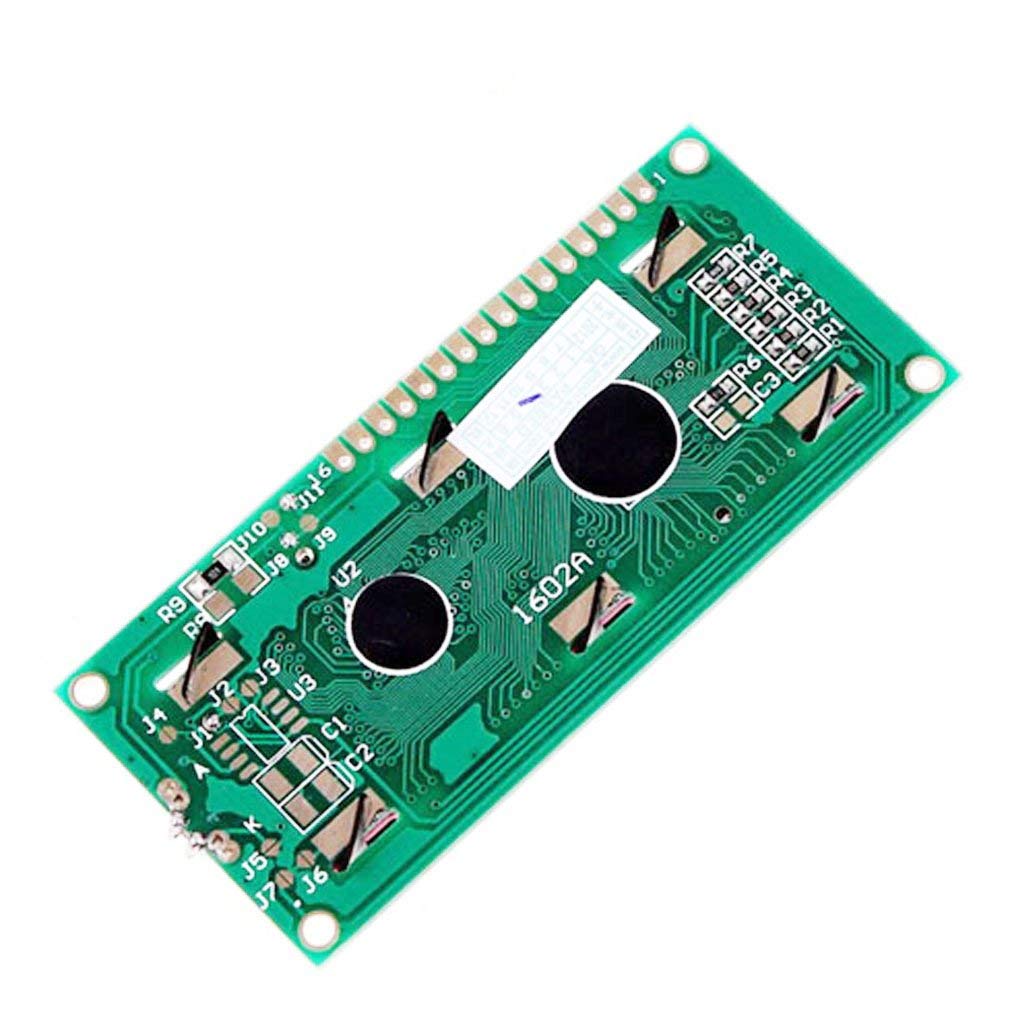

HiLetgo 2pcs HD44780 1602 LCD Display Module DC 5V 16x2 Character LCM Blue Blacklight New

Introduction:
As we all know, though LCD and some other displays greatly enrich the man-machine interaction, they share a common weakness. When they are connected to a controller, multiple IOs will be occupied of the controller which has no so many outer ports. Also it restricts other functions of the controller.
Therefore, LCD1602 with an I2C port is developed to solve the problem. It is also simple to handle. It has only two bidirectional data lines, a serial data line and a serial clock one.

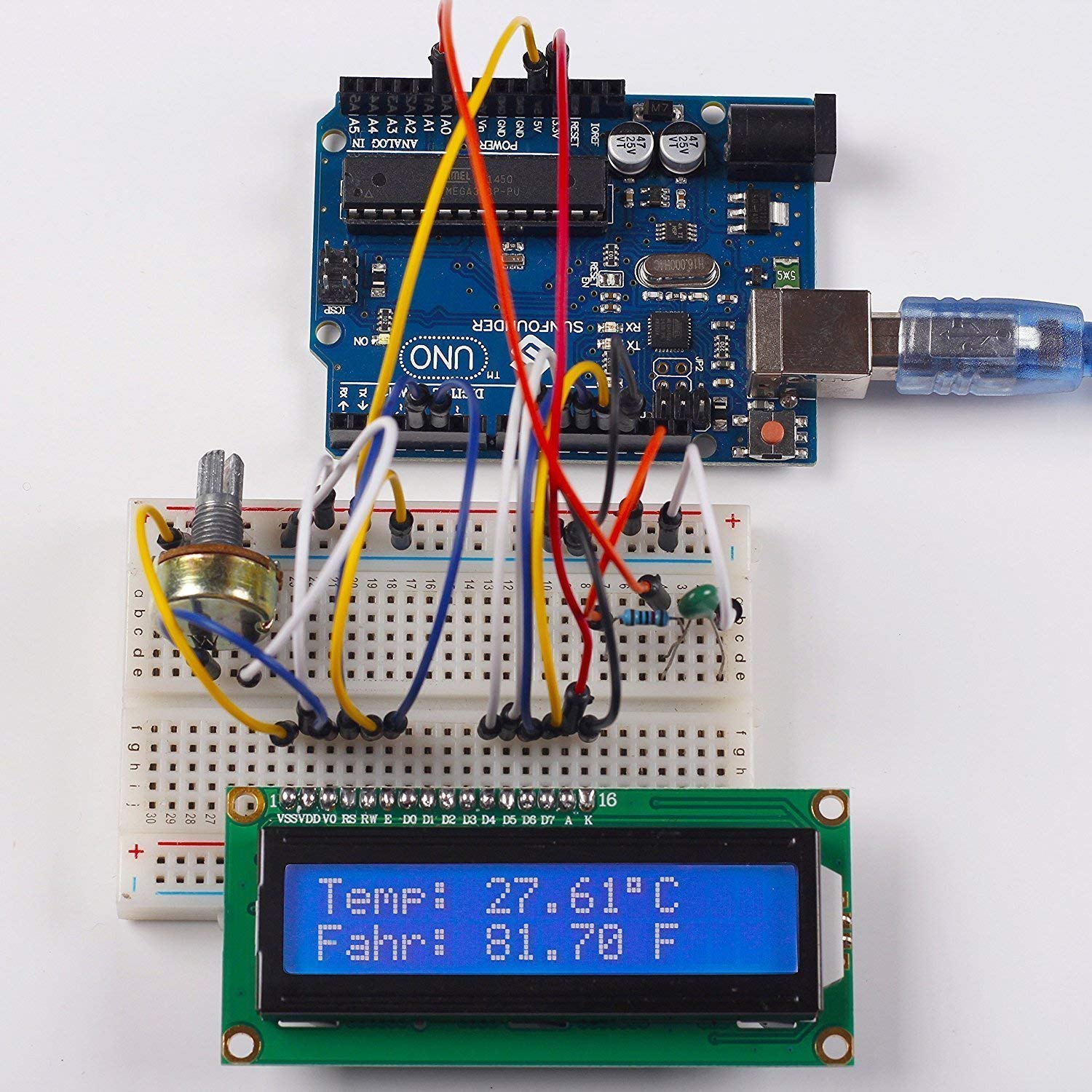

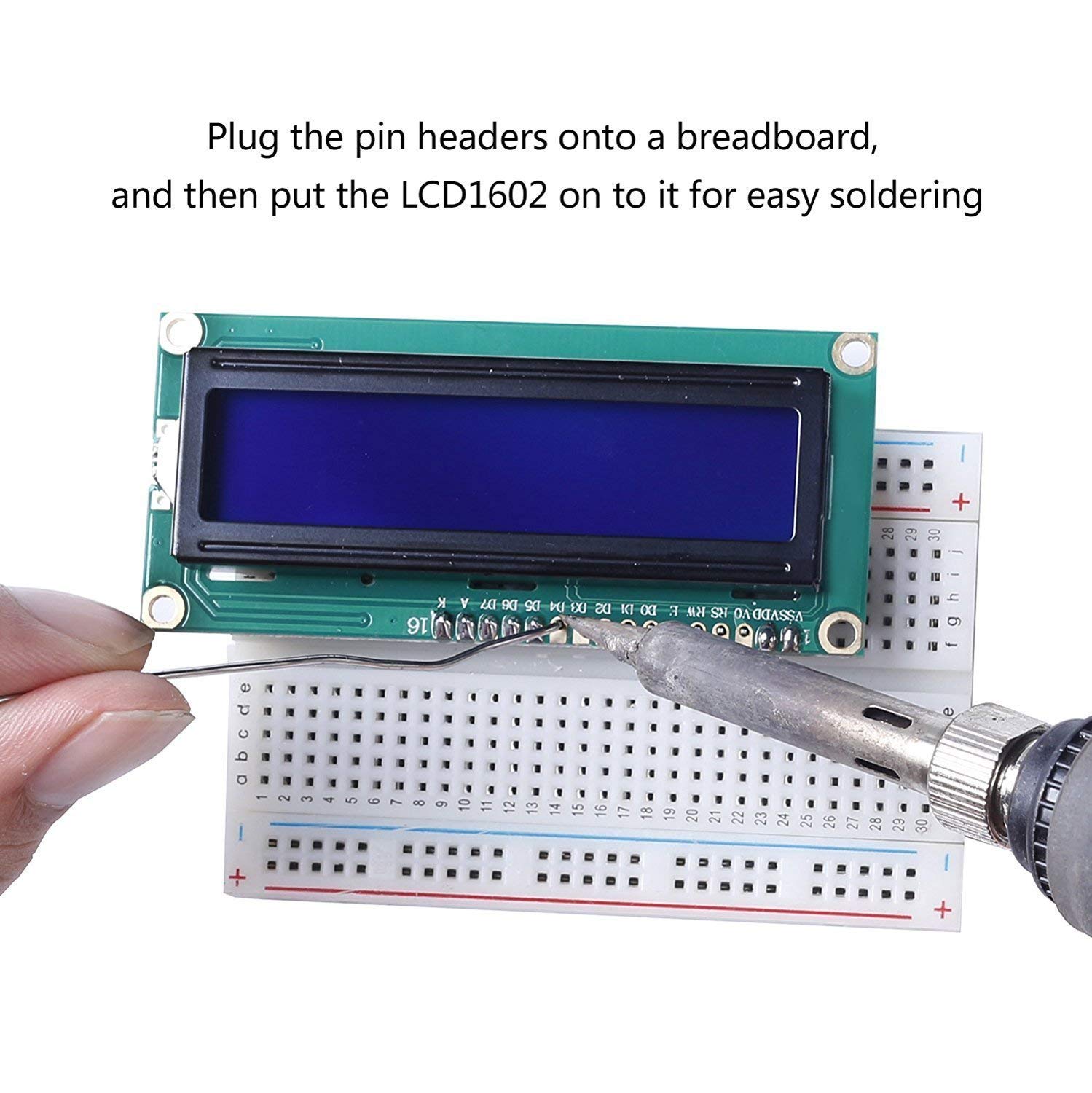

How to wire:
GND—GND; VCC—VCC; SDA—A4; SCL—A5

Features:
Voltage: 5V DC
LCD display type: Characters
Module dimension: 80mm x 35mm x 11mm

Data:
1602 standard 16-pin interface, including:
Pin 1: VSS is the ground power.
2 feet: VDD then 5V positive power supply.
3 feet: V0 LCD contrast adjustment end, then the positive power supply when the contrast is the weakest, the highest contrast when grounded power, the contrast is too high will have a ghosting, when used by a 10K potentiometer to adjust the contrast.
4 feet: RS for the register selection, high-level data register selection, low-level instruction register selection.
5 feet: R / W for the read and write signal lines, high-level read operation, low-level write operation.
6th foot: E end is enable end, when E end jumps from high level to low level, the liquid crystal module carries out the order.
7 ~ 14 feet: D0 ~ D7 for the 8-bit bidirectional data lines.
15 feet: the positive power supply backlight
16th foot: backlight power negative

Packing included:

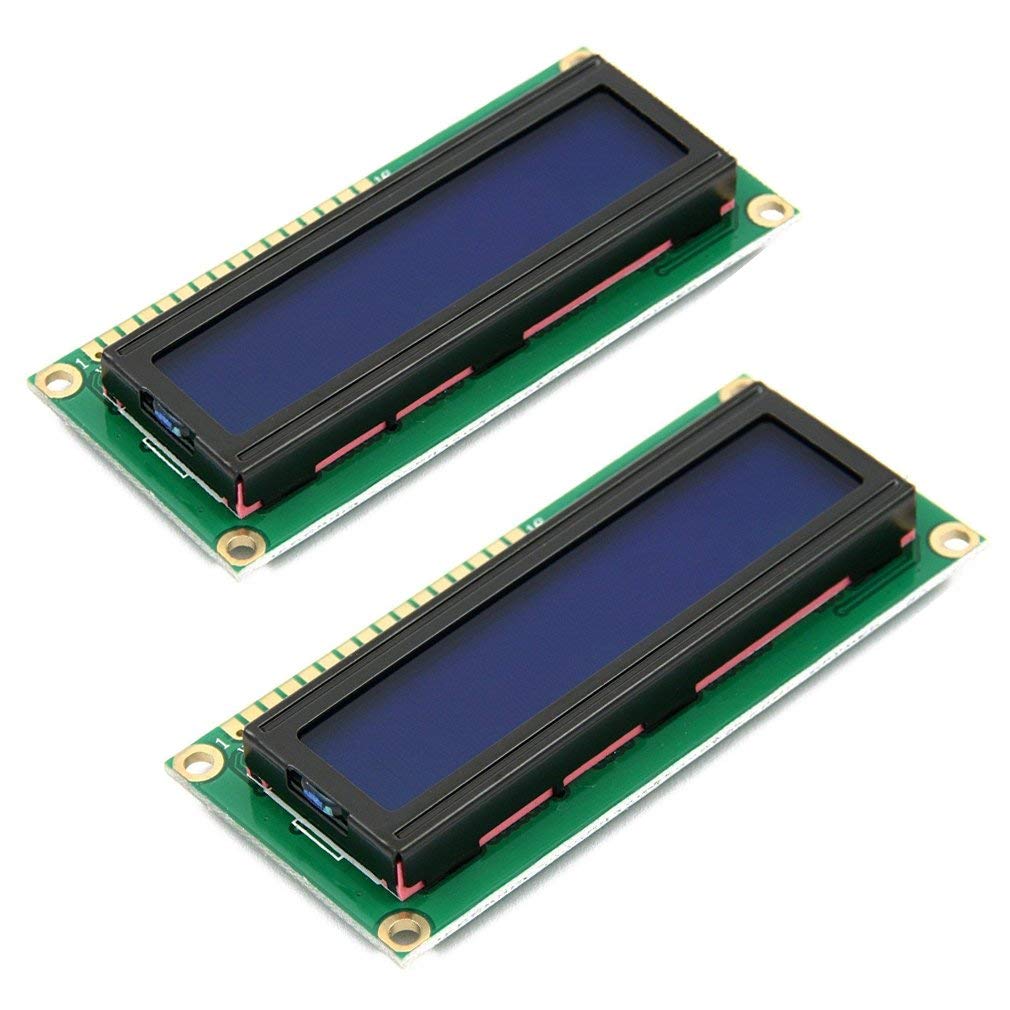

2pcs 1602 16x2 LCD Display Module

If you need documents or instructions, please kindly contact us.
