HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control
HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control

HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control

HiLetgo

USA Icon USA Store
Condition: New
Price
Save Rs. -1,681
/
  • Free shipping all over India
  • Free & Easy Returns*
  • 100% Secure payments*
theglobalgenie payment options
🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.
  • In stock, ready to ship
  • Backordered, shipping soon
Product Usage:

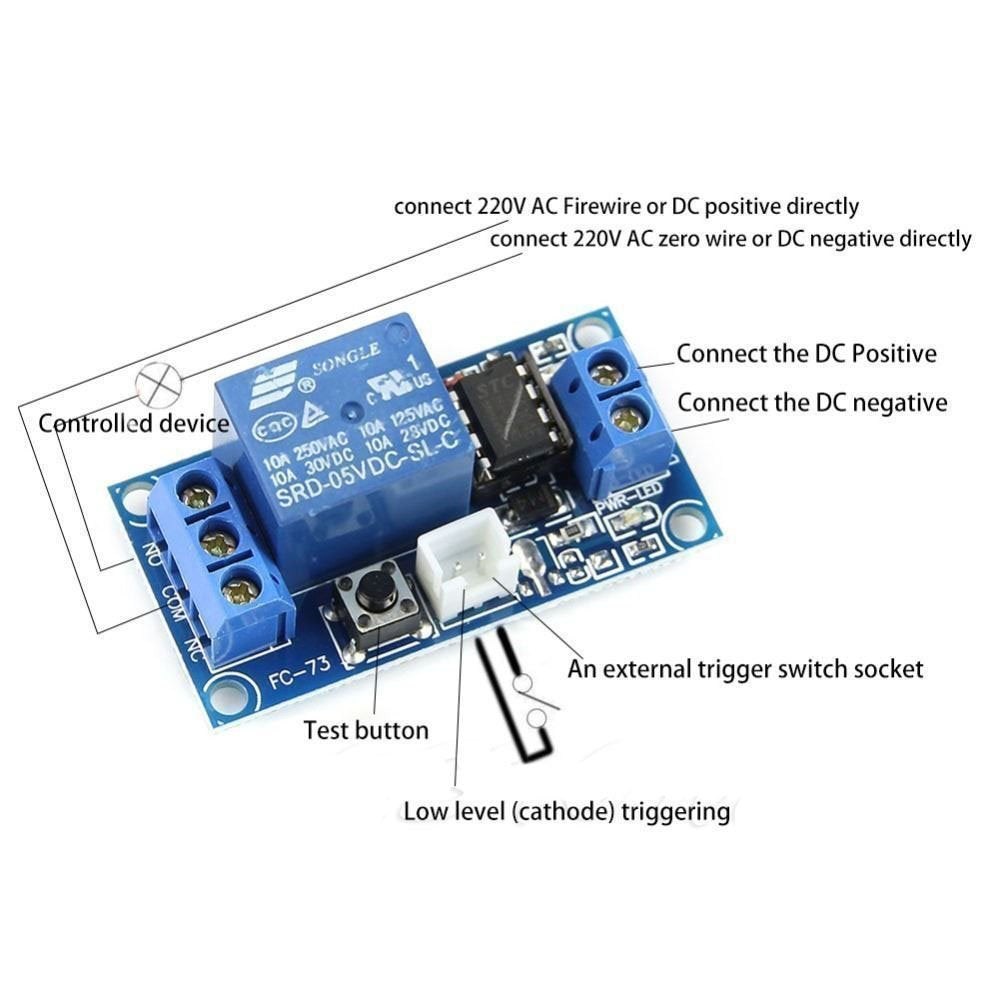

Press the trigger button, the relay pull lock, press again, the relay is disconnected, you can also contact the trigger switch, and trigger with a low level.
Household appliances control, family lighting control, factory equipment control, for a variety of small current control high-voltage high-power product control.

Other Features:
1.Tactile switch as a product testing, direct testing of product stability;
2.Trigger can also be used to trigger other sensor modules, as long as the trigger is active low, the function has more extensions

Electrical parameters:
Supply voltage: 5V Supply current: more than 100mA
Load: 250V 10A (AC) or 30V 10A (DC)
Life expectancy: 1 million times

Product instructions:
1. Press the voltage version connected to the appropriate direct power supply;
2. Power can not be reversed, although the protection circuit, but can not be reversed for a long time;
3. The load power To leave a certain margin for the relay load should be avoided high-power (2000W or so) and long working environment, the product life will have a certain impact.

Package Included:
1*5V 1 Channel Latching Relay Module with Touch Bistable Switch

  • Using double-panel design PCB; MCU control, stable and reliable performance, strong anti-interference, will not trigger by mistake, superior performance than CD4013;
  • With high-power regulator to provide adequate and stable voltage, and have enough cooling holes to ensure long-term stable and reliable products work;
  • With anti-power reverse diode protection, a short time reverse power supply without any damage to the product;
  • The use of genuine Songle relay control load, 250V 10A (AC) and 30V 10A (DC) under the load can withstand;
  • Triggering can also be an external trigger switch, the product is equipped with a good seat and lead wire, more convenient to use.
  • Item Dimensions: Width: , Height: , Length:
  • Item Package Dimensions: Width: 2.794 centimeters, Height: 7.62 centimeters, Length: 1.778 centimeters

Attribute Value
number of terminals 3
maximum switching current 10
contact
item package quantity 1
brand HiLetgo
coil
current rating 10
item type keyword voltage-monitoring-relays
size Small
part number 3-01-0378
color Blue
item package weight 0.0181436948
manufacturer HiLetgo
wattage 2000
model number 3-01-0378
operation mode Automatic
batteries required False
maximum switching voltage 250
product site launch date 7/17/2014 2:07:22 PM
material lead
batteries included False
