HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino
HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino

HiLetgo HC-06 RS232 4 Pin Wireless Bluetooth Serial RF Transceiver Module Bi-Directional Serial Channel Slave Mode for Arduino

HiLetgo

USA Icon USA Store
Condition: New
Price
Save Rs. -2,159
/
  • Free shipping all over India
  • Free & Easy Returns*
  • 100% Secure payments*
theglobalgenie payment options
🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.
  • In stock, ready to ship
  • Backordered, shipping soon
Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.
This bluetooth bluetooth is perfect for adding bluetooth functionality to your arduino project. But don't think that it is limited to just being used there. Another use you will find for this bluetooth module is with your flight management controller on your quadcopter.
It should be able to be used with several of the available options, so long as the control software supports bluetooth functionality. With this module, you don't have to plug into your flight controller with a micro usb cable every time you want to tweak something, upload a new configuration, or check data.
So long as you are within range,youI can connect to it through bluetooth instead.
There is even an android version of your flight controller software so you can do everything from your phone and not have to carry a laptop with you. Do some googling and you should also be able to find instructions and how-to's for changing the settings on the bluetooth module itself, like the name it uses to identify itself and the pass code for pairing it with devices, along with enabling and disabling different bluetooth protocols.
Note:
1.SPP-CA Bluetooth module serial port level to 3.3V, if connect 5V level,the system needs to increase the level conversion chip.
2.The Bluetooth signal is greatly affected by the surrounding, such as trees, metals, walls and other obstacles will have a certain Bluetooth signal absorption or shielding, we advise do not installed in the metal shell.
3.Due to the metal will weaken the antenna function,we advise when you lay board for the module, the module below the antenna do not shop and alignment, it is best to hollow out.
Package included:

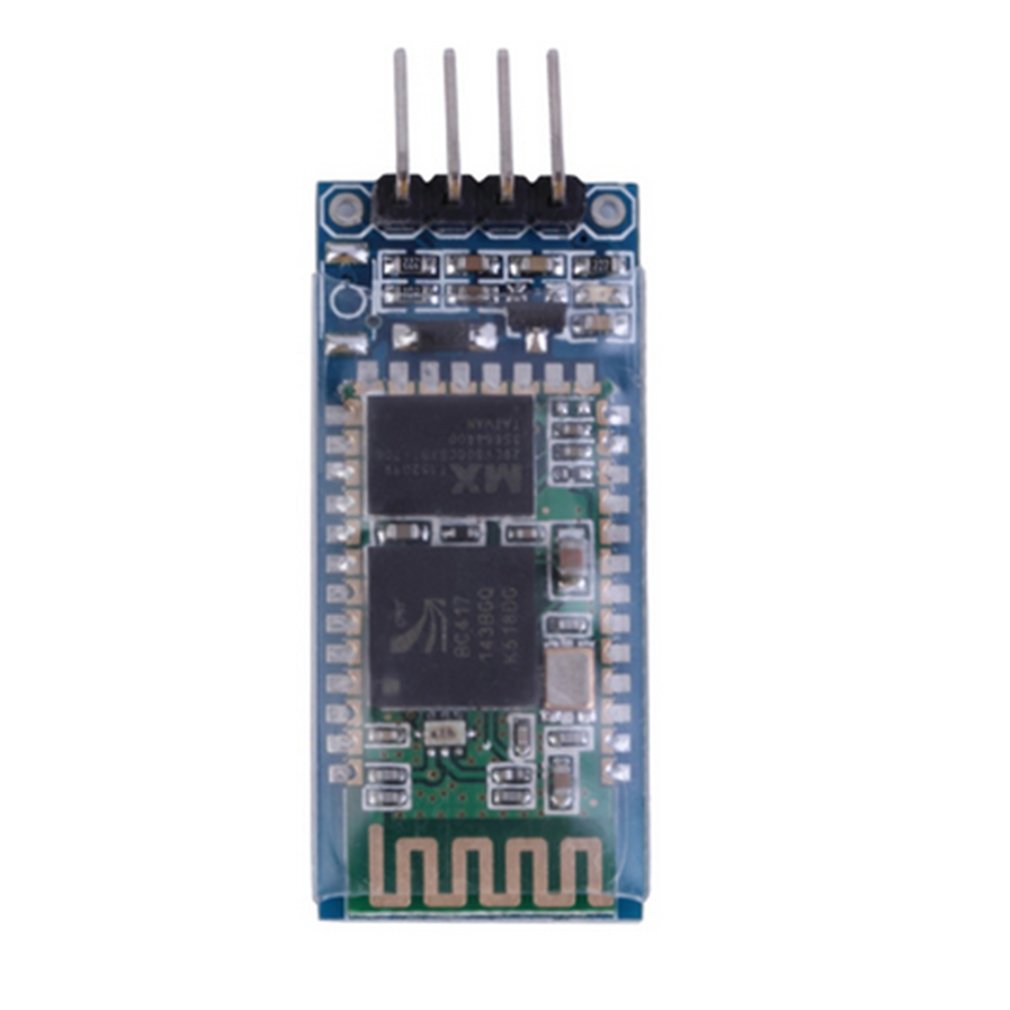

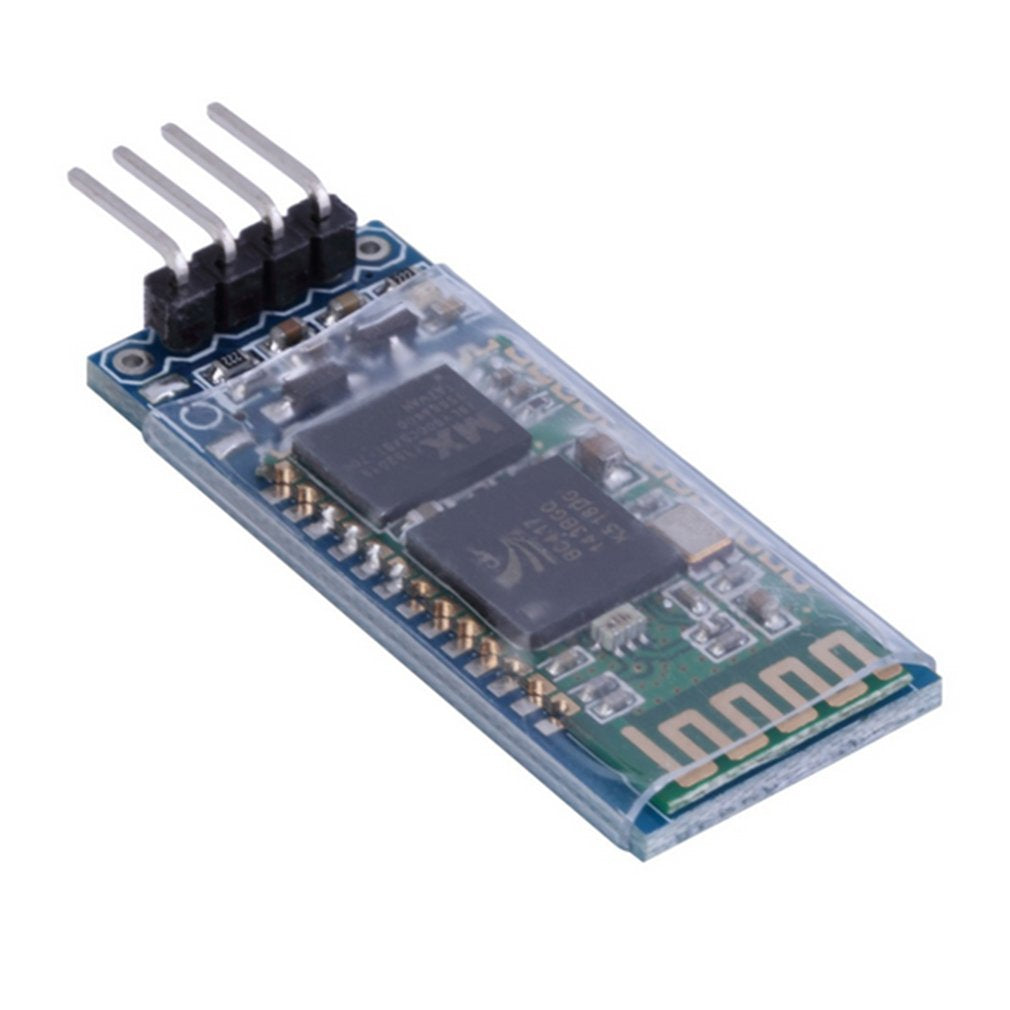

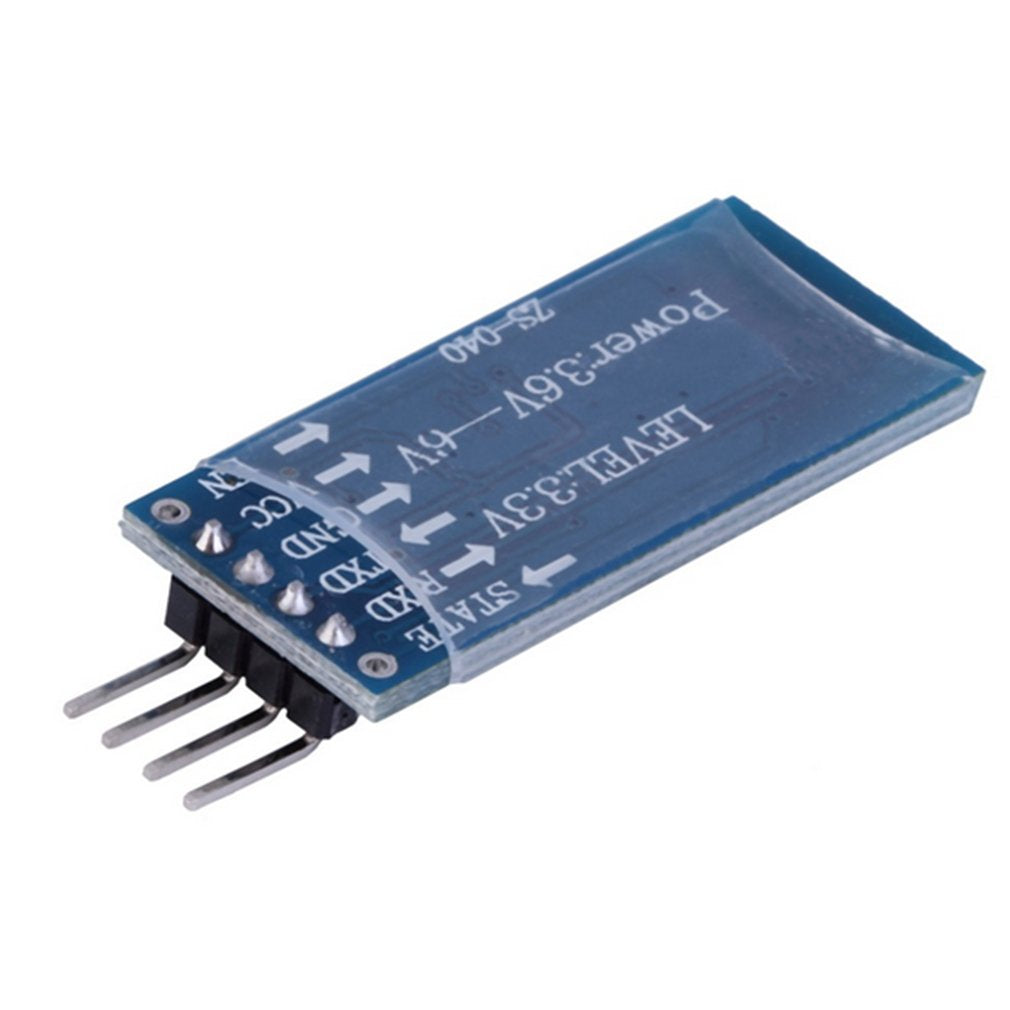

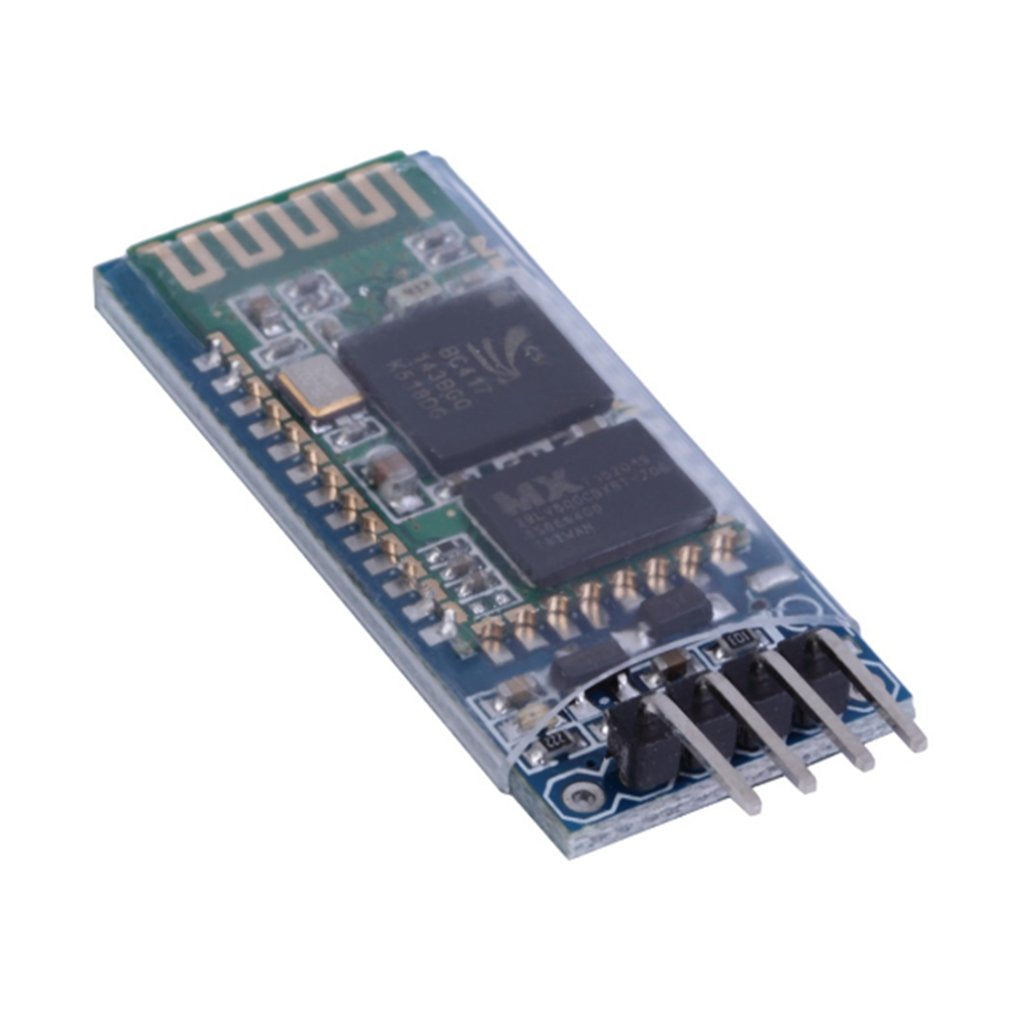

1*HC-06 RS232 4 Pin Wireless Bluetooth Serial Transceiver Support Module

  • Works with any USB Bluetooth adapters, running in slave role: Pair with BT dongle. Led indicate Bluetooth connection status, flashing Bluetooth connectivity, lit the Bluetooth connection and open a port Backplane

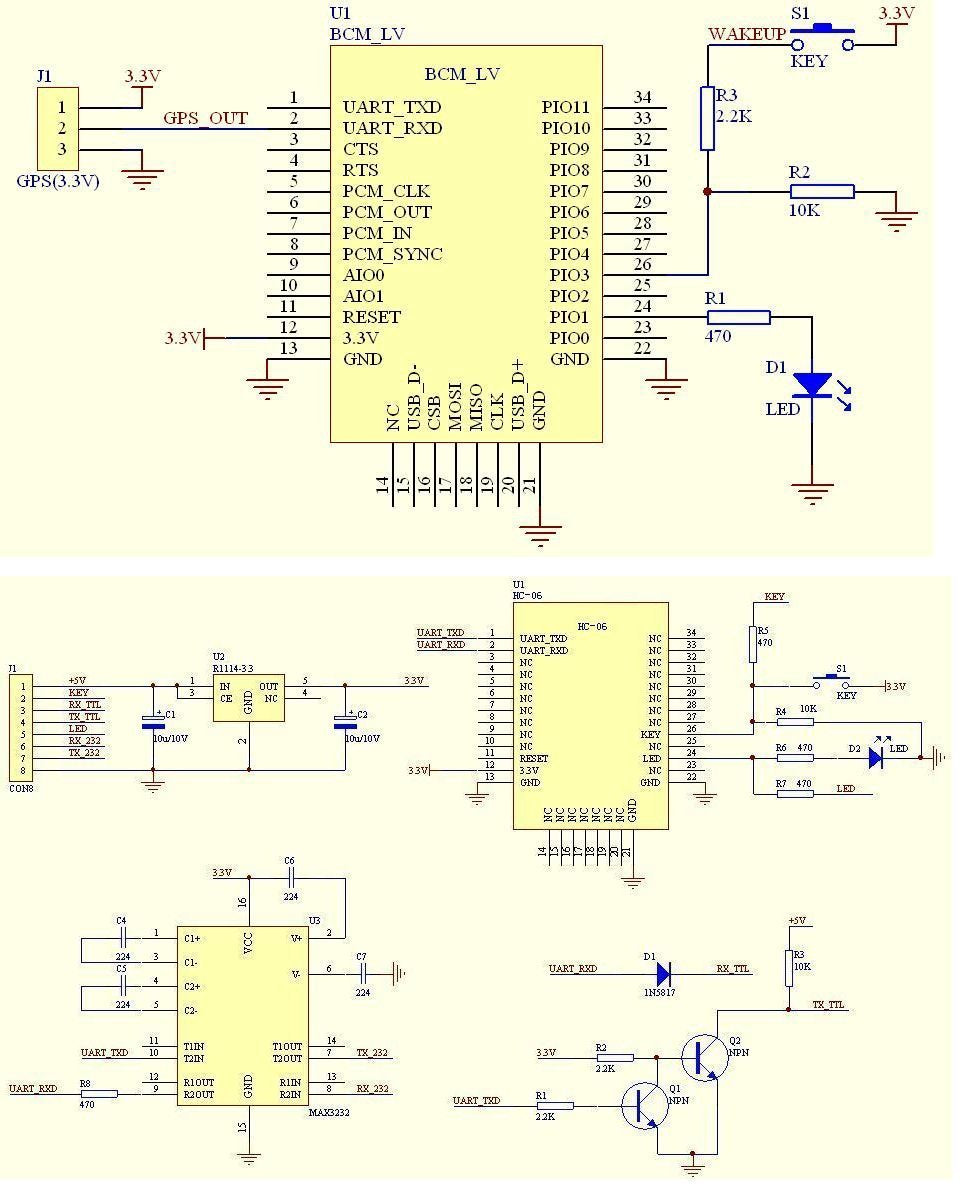

  • Core module uses HC-06, leads from the module interface includes VCC, GND, TXD, RXD, reserve LED status output pin, the microcontroller can be judged by the foot state Bluetooth has connected KEY pin slave invalid.
  • Small size, low power consumption,high sensitivity for send and receive. Bluetooth version: V2.0+EDR &Operating voltage: 3.3V &Host Interface:UART &Storage Temperature:-40~+150&Signal coverage: 30ft &Item size: 4.3 * 1.6 * 0.7cm &Item weight: 3g.
  • The module is mainly used for short-range data wireless transmission,such as Bluetooth wireless data transmission,Industrial remote control, telemetry,Traffic, underground positioning, alarm,Smart home ect.
  • Industrial serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc. Computer and peripheral devices.
  • Item Weight: 3 grams
  • Item Dimensions: Width: , Height: , Length:
  • Item Package Dimensions: Width: 5.9944 centimeters, Height: 8.7122 centimeters, Length: 0.7112 centimeters

Attribute Value
data link protocol USB, Bluetooth
data transfer rate 3
fcc radio frequency emission compliance
item package quantity 1
brand HiLetgo
item type keyword network-transceivers
number of items 1
size Small
hardware interface usb, bluetooth
part number 3-01-0179-A
color 1pc
item package weight 0.018
customer package type Standard Packaging
manufacturer HiLetgo
model number 4328604318
supplier declared dg hz regulation not_applicable
batteries required False
voltage 3.3
product site launch date 3/5/2016 3:46:04 AM
compatible devices Laptop, Desktop
batteries included False
