Discover the authentic Thermal Adhesive Tape 30mm by 25M, High Performance Thermally Conductive Tape Apply for Coolers, Heat Sink, LED Strips, Computer CPU, GPU, Easy to Apply & High Durability by HPFIX, part of our Adhesive Transfer Tape collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Adhesive Transfer Tape – Thermal Adhesive Tape 30mm by 25M, High Performance Thermally Conductive Tape Apply for Coolers, Heat Sink, LED Strips, Computer CPU, GPU, Easy to Apply & High Durability by HPFIX
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
Dimension: 30mm x 25m
Thickness: 0.2mm
Reinforcement Carrier : Fiberglass Mesh
Thermal Conductivity:1.5 W/m-k
Breakdown Voltage: 4KVAC
Thermal impedance : 0.3in2/w
Initial Adhesion: 1.3kg/inch
180°Adhesion power: >16 N/25mm
Heat Resistance: 120°C (long time), 180°C ( short time)
Applicable temperature range:-30~+120 °C
Application:
Electronics Components: ICCPU MOS .......
LEDM/BP/S Heat Sink LCD -TV Notebook PC PCTelecom DeviceWireless Hub
DDR Module DVD Applications Hand-set Application
Features:
Good adhesion (Acrylic PSA)
Very good thermal conductivity
Soft and compressibility
Easy to assemble
Long lifetime working : normal temperature(80-120 ) can work for a minimum of 5 years
Notes For Attention:
1.When using thermal conductive double-sided tape, keep the adhesive surface clean and dry.
2.After tearing off the heat-conductive double-sided tape to peel the paper, double-sided thermal tape is evenly pressed with your fingers (just a little strength).
3.The viscosity of the heat-conductive double-sided adhesive tape have initial viscosity and persistent viscosity, and at room temperature, it takes 72 hours
to achieve the maximum adhesive strength. That is, at the beginning of the sticky adhesive that is the initial viscosity to 40% of its maximum viscosity, persistent stickiness is stable over time.
4.In the paste process, the appropriate heating (60 ~ 70 ), will greatly contribute to the effective increase in the area of adhesive, and as soon as possible to achieve maximum adhesion.
In the lower temperature of the winter, it's little tips that heating to increase the viscosity of the heat-conductive double-sided tape when using the thermal conductive tape.
Package included:
1 Roll Thermal Conductive Double-sided Tape
- HPFIX double side thermal adhesive Tape is a simple and practical heat conductive tape, very easy to use, even for beginners.

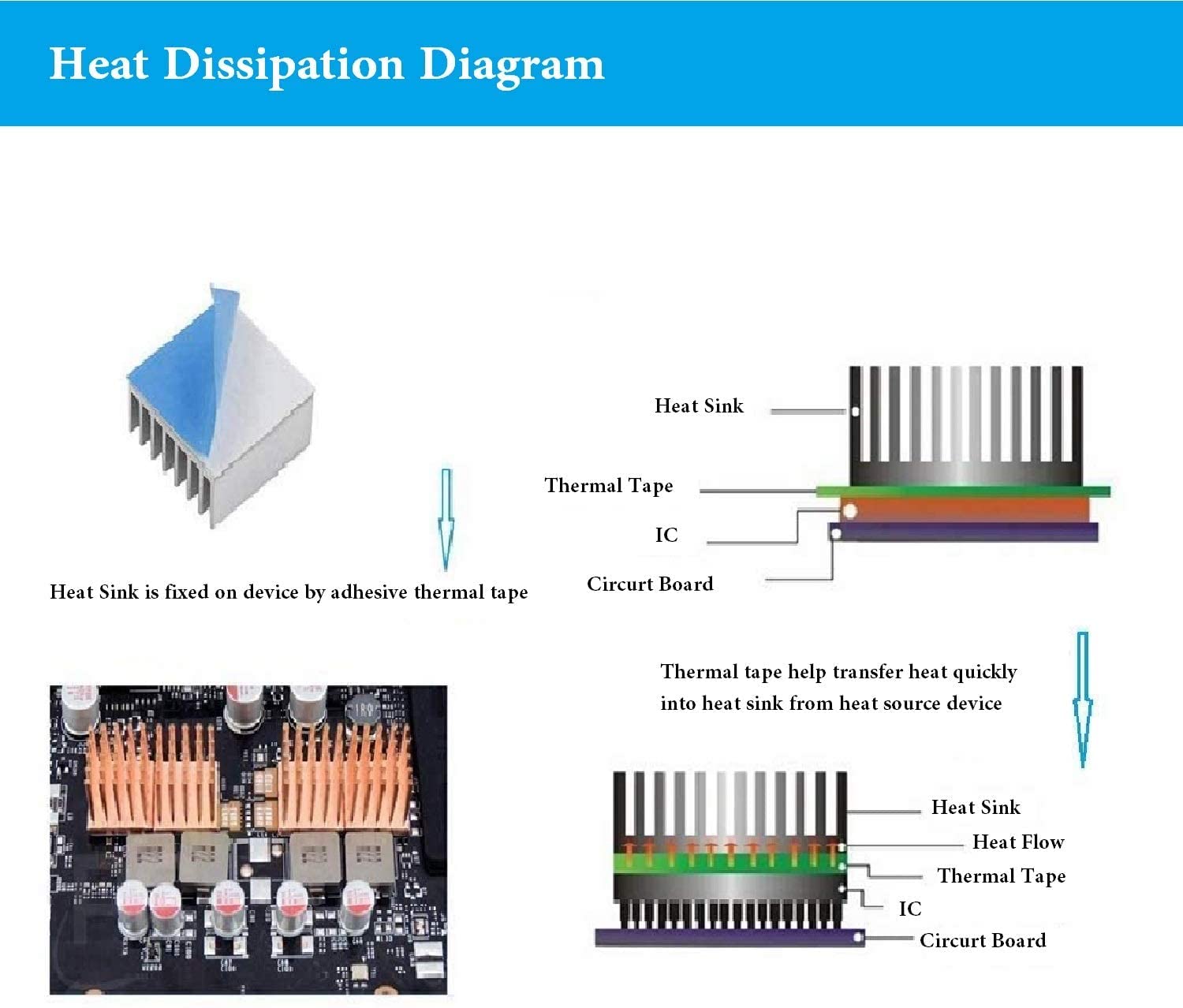

- Thermally conductive tape has very strong adhesion and has good thermal conductivity. It is often used on heat sinks- efficiently transfer heat dissipation for electronics. If combined with thermal paste, the effect will be better.
- HPFIX thermal tape has thermal conductivity 1.5 W/m-k to meet most of electronics heat dissipation demands.
- Thermal tape is widely used for high power LED,High power power supply, Computer CUP, GPU, automotive electronic heating module, motor controller, communication equipment, power semiconductor, MOS tube,GBT chip,Video Card RAM, DDR Memory Modules, SSD drives, new energy heating power.
- Thermal tape heat conductivity is high and stable, its life is longer than the general heat-dissipating double-sided sticker, and it can work for at least 5 years at normal temperature (80-120°C ).
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 16.51 centimeters, Height: 18.0086 centimeters, Length: 3.2004 centimeters
| Attribute | Value |
|---|---|
| item package quantity | 1 |
| surface recommendation | Paper, Metal |
| brand | HPFIX |
| item type keyword | adhesive-transfer-tape |
| number of items | 1 |
| recommended uses for product | Electronics |
| size | 30mm x 25M |
| item thickness | |
| part number | CYD-013 |
| item length width thickness | |
| color | Blue |
| item package weight | 0.259 |
| manufacturer | U.S CAYEDA DIRECT |
| model number | HF-001 |
| supplier declared dg hz regulation | not_applicable |
| special feature | Heat-Resistant |
| compatible material | Automotive |
| batteries required | False |
| product site launch date | 9/6/2017 7:00:00 AM |
| material | Fiberglass |
| upper temperature rating | 180 |
| unit count | 82 |
| batteries included | False |
