Discover the authentic 16mm Chassis Switch Metal Button Switch with 100CM 3.3FT Extension Cable Red Ring Suitable for DIY Computer Switch and Restart Button by KNACRO, part of our Categories collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Categories – 16mm Chassis Switch Metal Button Switch with 100CM 3.3FT Extension Cable Red Ring Suitable for DIY Computer Switch and Restart Button by KNACRO
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country

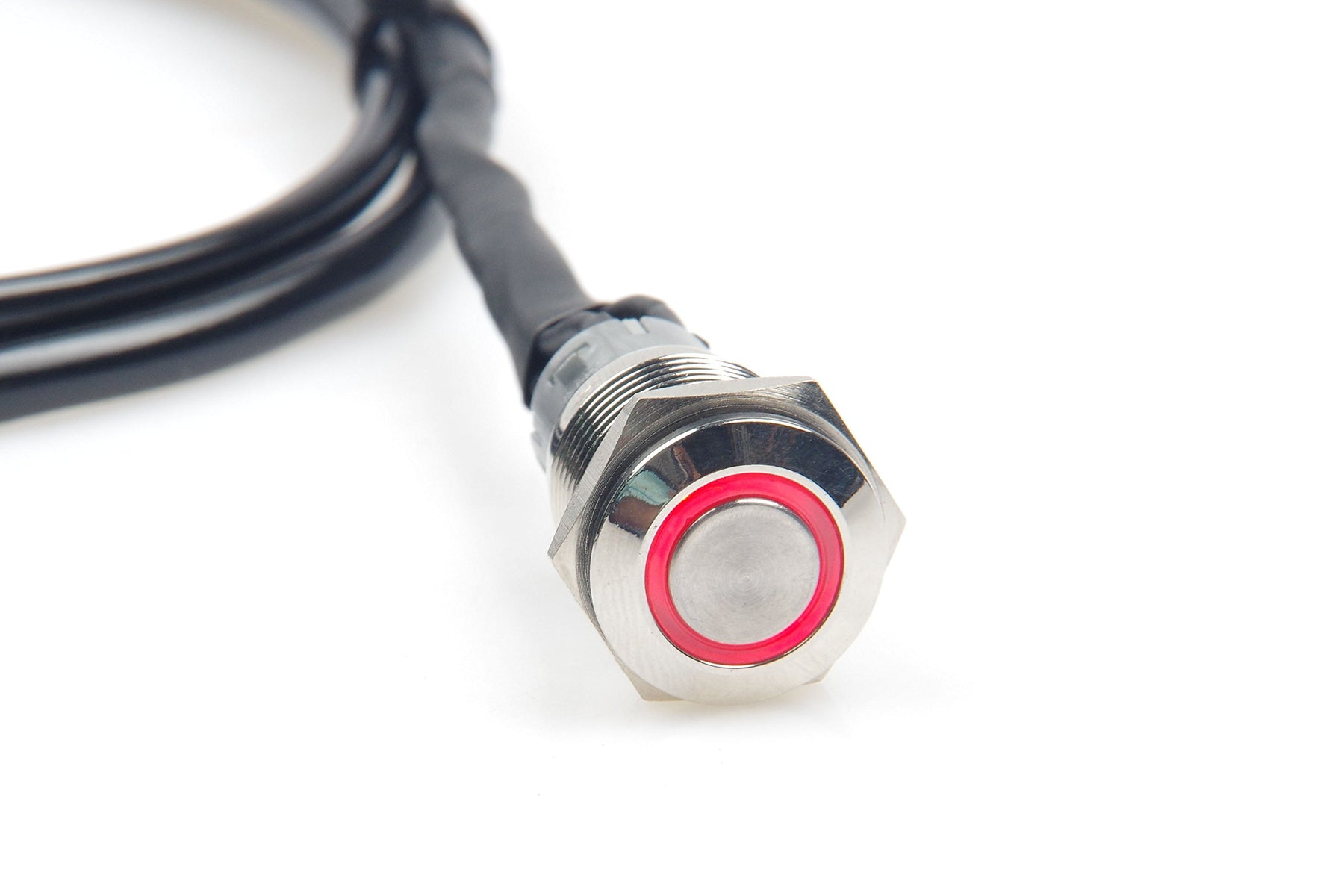

These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red Yellow Blue Green LED ring With switch symbol.
Suitable for DIY Computer Switch and Restart Button.
Metal Button Technical Parameters
Installation diameter: 16MM.
LED Type: High brightness LED lamp, Cool.
Led life: 40,000hours.
Rated Voltage: 3-6V.
Rated Current: =20mA.
Switch rated load: AC / DC 220V 5A Max.
Switch Type: Fast moving single contact.
Contact resistance: =50mO.
Insulation resistanace: =1000MO.
Insulation strength: 1900VAC.
Ambient temperature: -30°C-+80°C.
Waterproof grade IP66,
Explosion grade IK10(for metal material)
Operating pressure: 2.5- 3.5 N.
Outer Shell: Stainless steel.
Press key: Stainless steel.
Base seat: Engineering plastic.
Touchpoint: Silver alloy.
[About after-sales service]
Our aim is to provide the best products and services for every customer. So if you need any help when using our products, you can contact us.
We are also looking forward to your feedback on the use of the product., which will be valuable for us to develop new products.
Package Included:

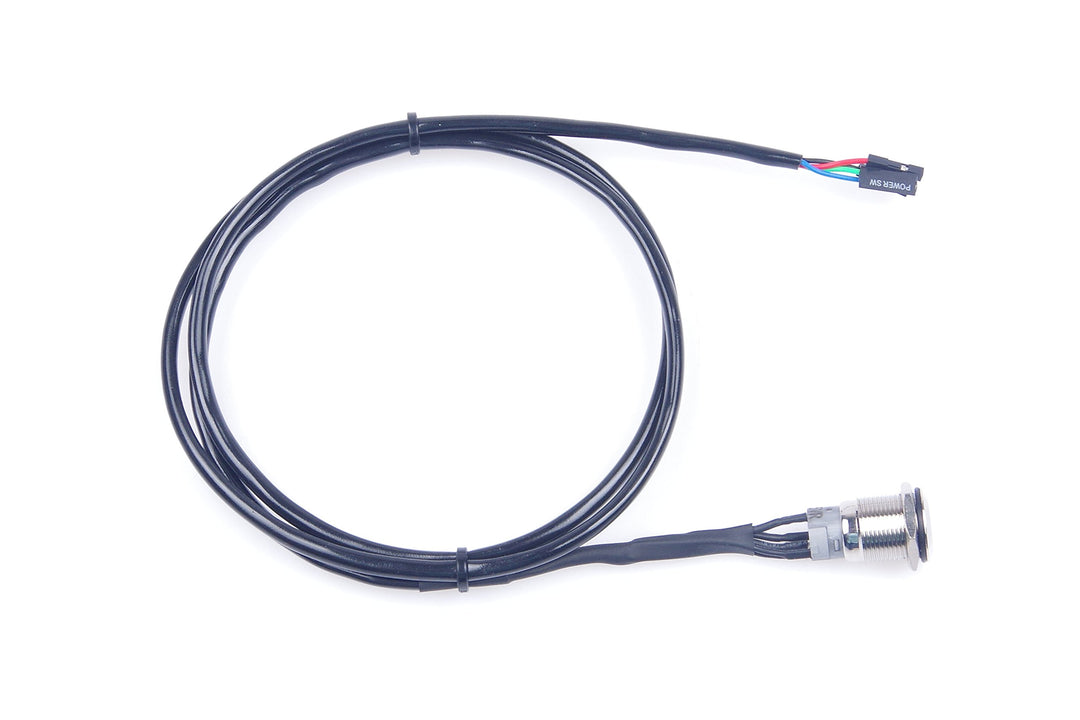

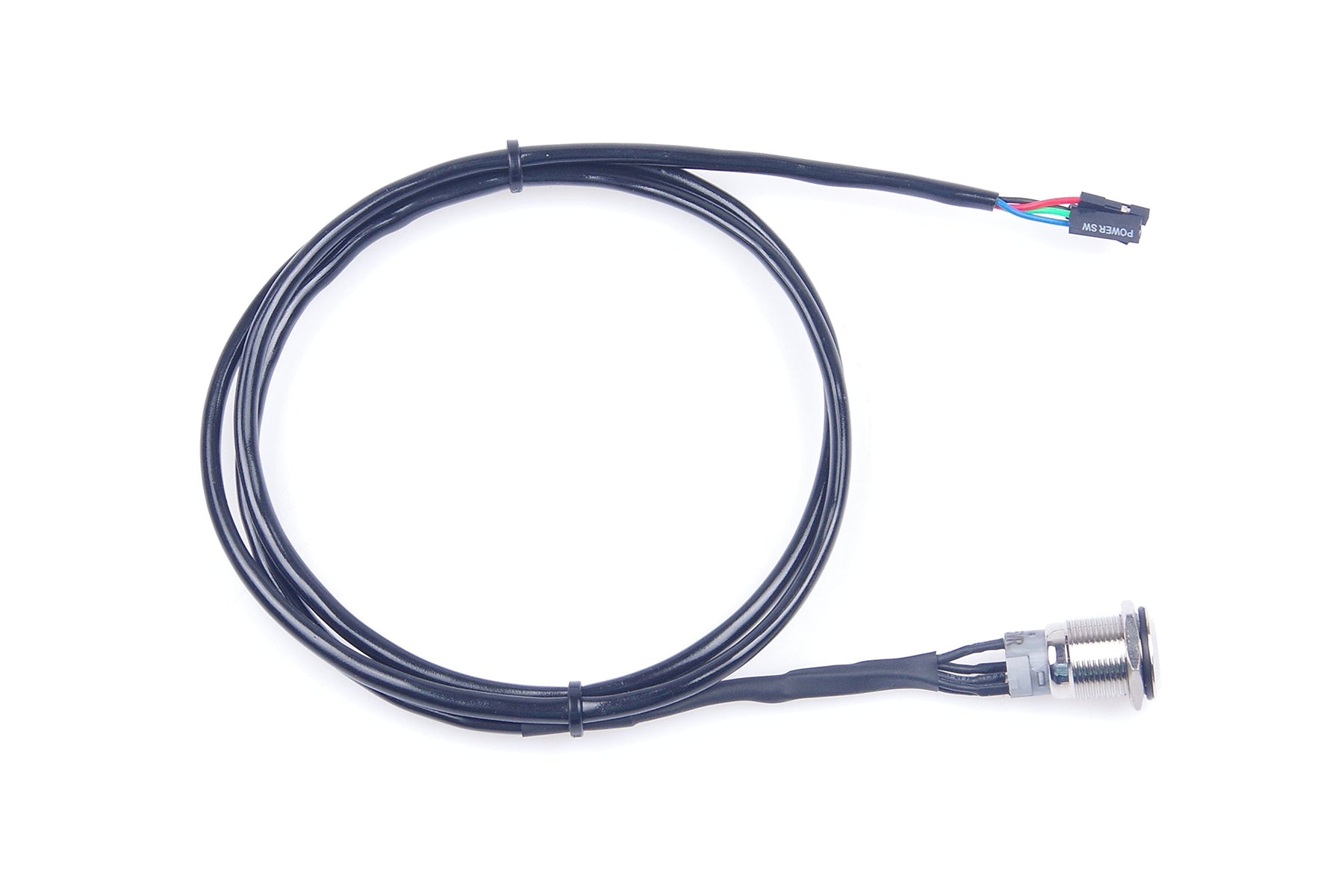

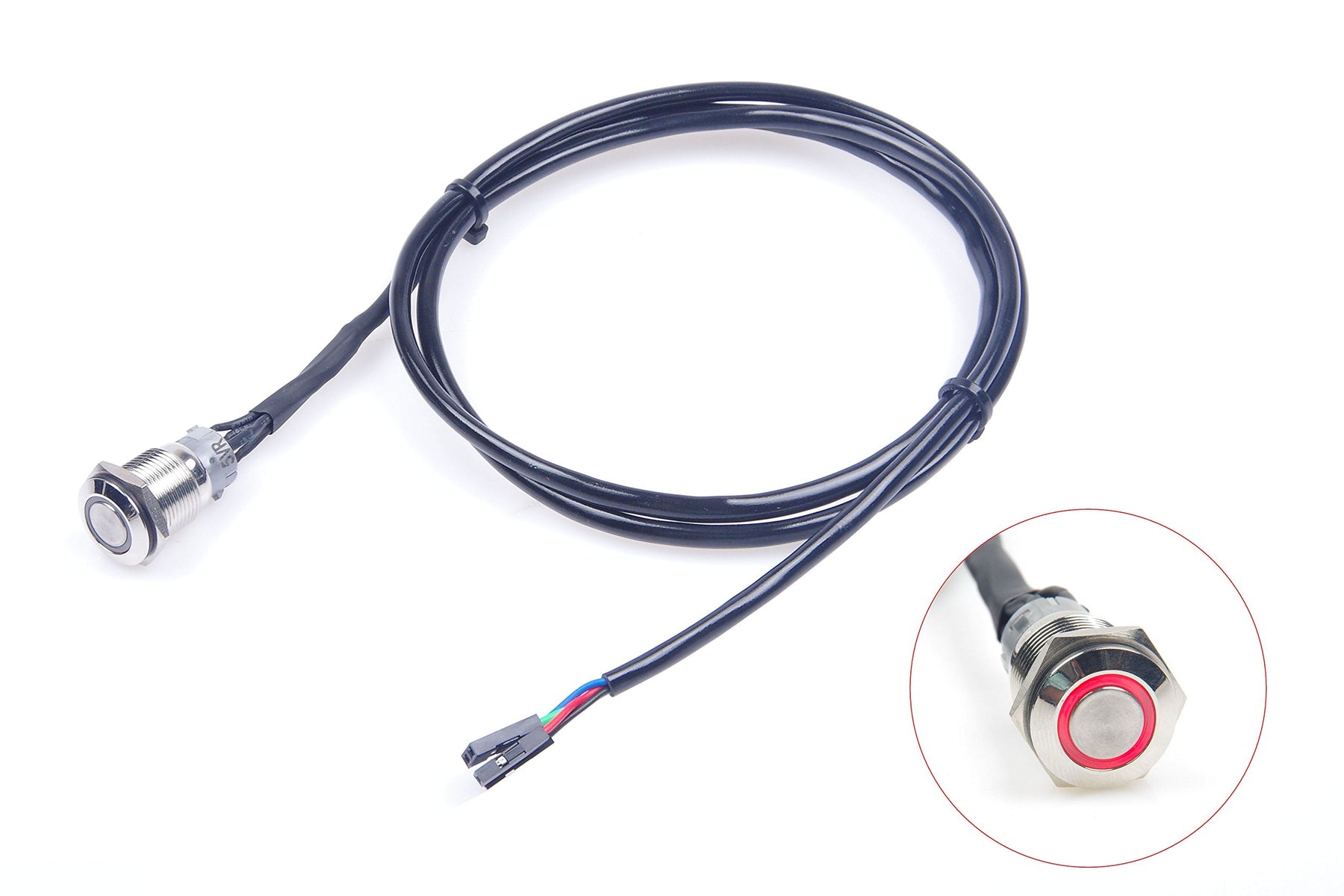

1pc KNACRO Chassis Switch Host Metal Button Switch With 1M Extension Cable
- This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated Red LED Ring l.
- It is a SPDT with 16mm threading and 1mm pitch. This button is perfect for basic On/Off functions with cable length 1m / 3.3ft.
- These latched buttons are rated up to 5A and 250V AC while the LED is rated for 3-6V.
- Momentary switch: Push & Hold,ON; Release,OFF
- Works well with the Mac Mini and any device that requires a momentary 12V pulse to initiate on/off functions
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 13.7 centimeters, Height: 19.3 centimeters, Length: 2.1 centimeters
Attribute | Value |
---|---|
switch type | Push Button |
number of positions | 1 |
actuator | |
contact | |
item package quantity | 1 |
connector type | Plug In |
brand | KNACRO |
item type keyword | speaker-cables |
connectivity protocol | X-10 |
part number | RED LED RING |
terminal type | Button |
item package weight | 0.053 |
manufacturer | KNACRO |
controller type | Push Button, Ring |
model number | RED LED RING |
supplier declared dg hz regulation | not_applicable |
operation mode | ON-OFF |
international protection rating | IP66 |
batteries required | False |
product site launch date | 6/8/2017 7:00:00 AM |
material | Plastic, Metal, Polycarbonate |
mounting type | Panel Mount |
operating voltage | 250 |
unit count | 1 |
batteries included | False |
