Discover the authentic 5 Kit 3 Pin Way DT Series Connector Gray Receptacle IP67 Waterproof Heavy Duty 14-18 AWG 13 Amps Continuous DT04-3P DT06-3S w/Wedge Lock W3P W3S (5 Kits, 3 Pin) by MUYI, part of our Accessories collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
Original Accessories – 5 Kit 3 Pin Way DT Series Connector Gray Receptacle IP67 Waterproof Heavy Duty 14-18 AWG 13 Amps Continuous DT04-3P DT06-3S w/Wedge Lock W3P W3S (5 Kits, 3 Pin) by MUYI
100% authentic and sourced from trusted suppliers
Imported from the USA with strict quality checks
Available at the best price in India
Fast and secure delivery across the country

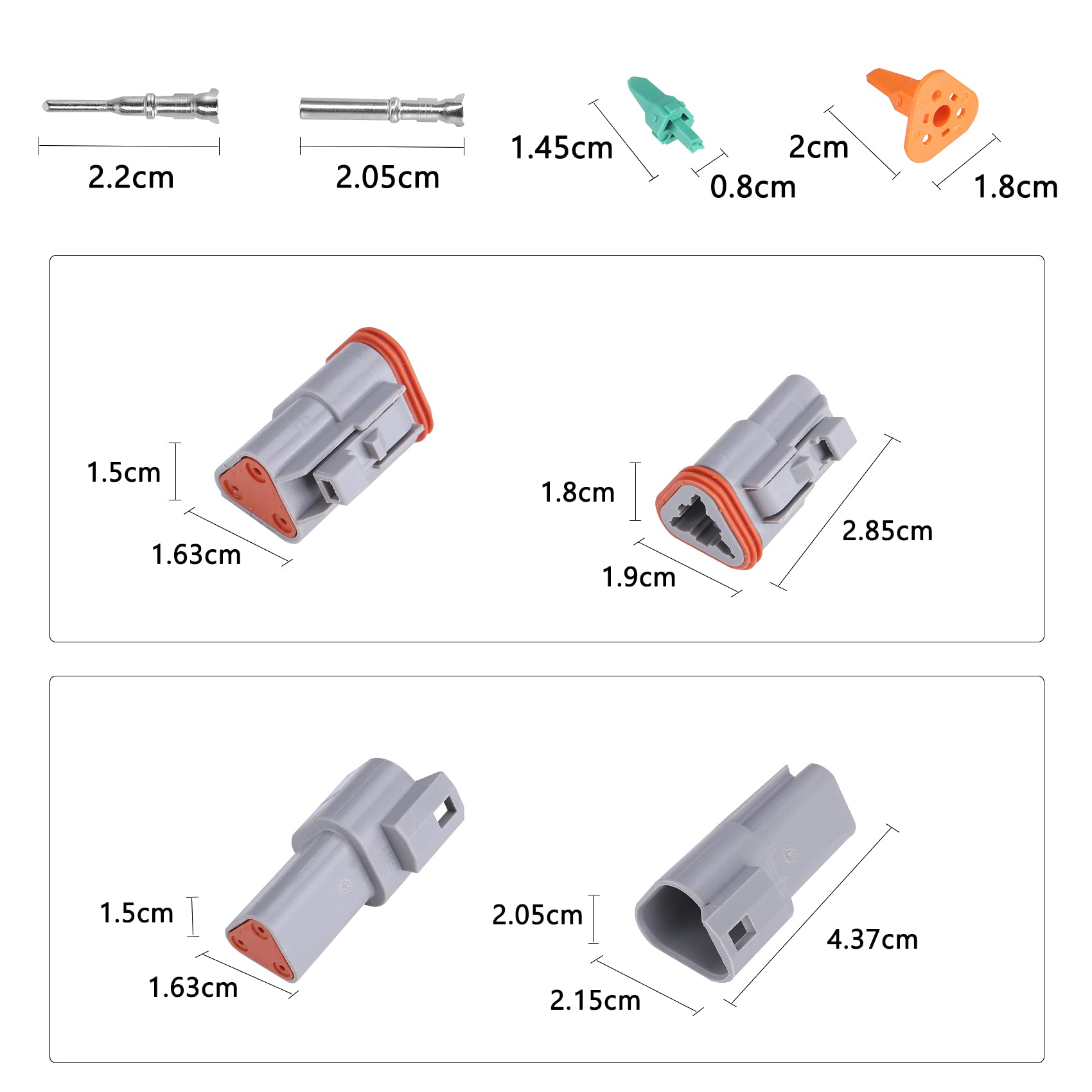

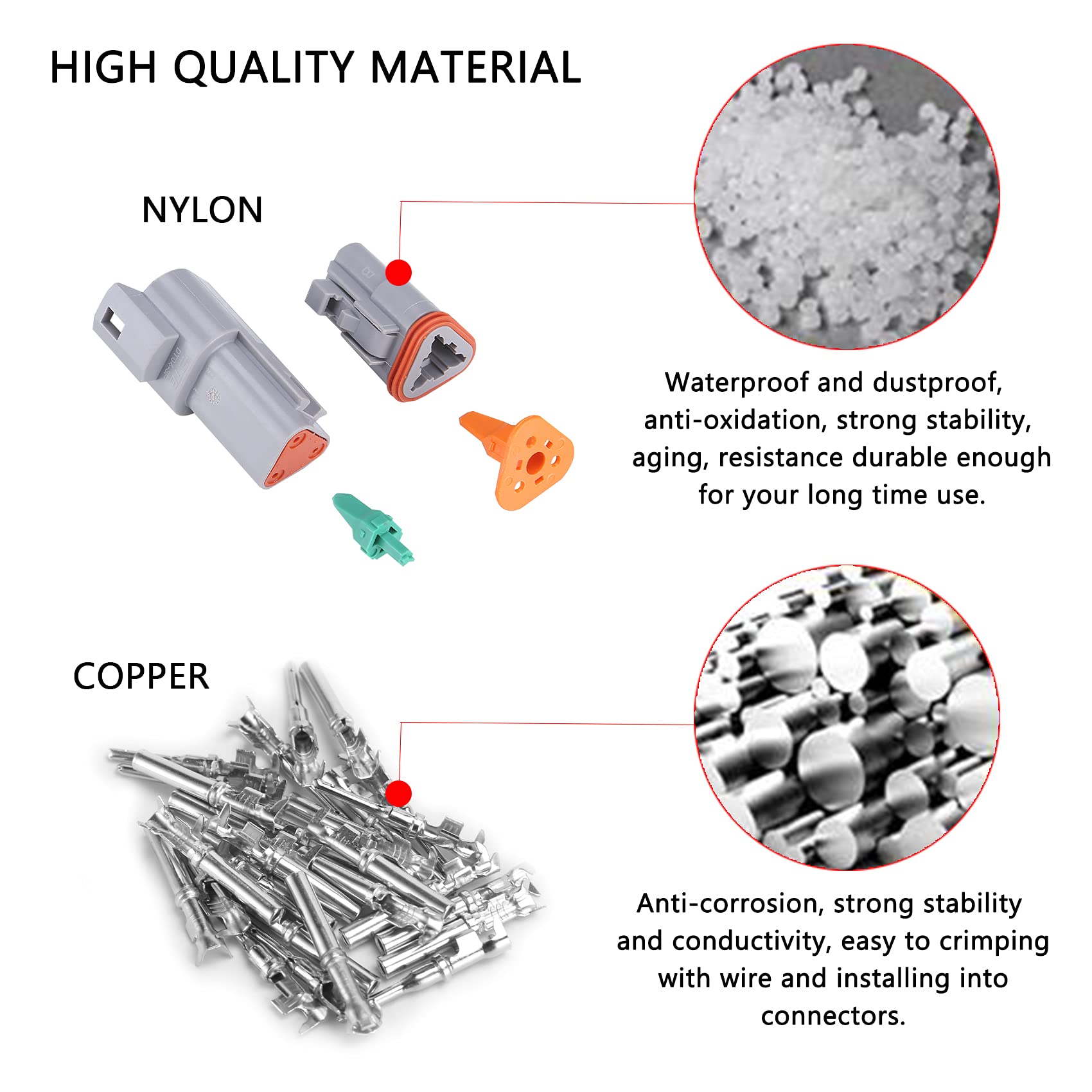

Manufacturer Name: DT IPD Housing Part Number: DT04-3P, DT06-3S Series: DT Series Material: Thermoplastic Operating Temperature: 14°F (-10°C) to +176°F (+80°C) IP Rating: IP67 Color: Gray Shape: Rectangular Insulation: .088-.145 Wire Gauge: 14-18 AWG Contact Size: 16 Current Rating: 13 Amps Continuous

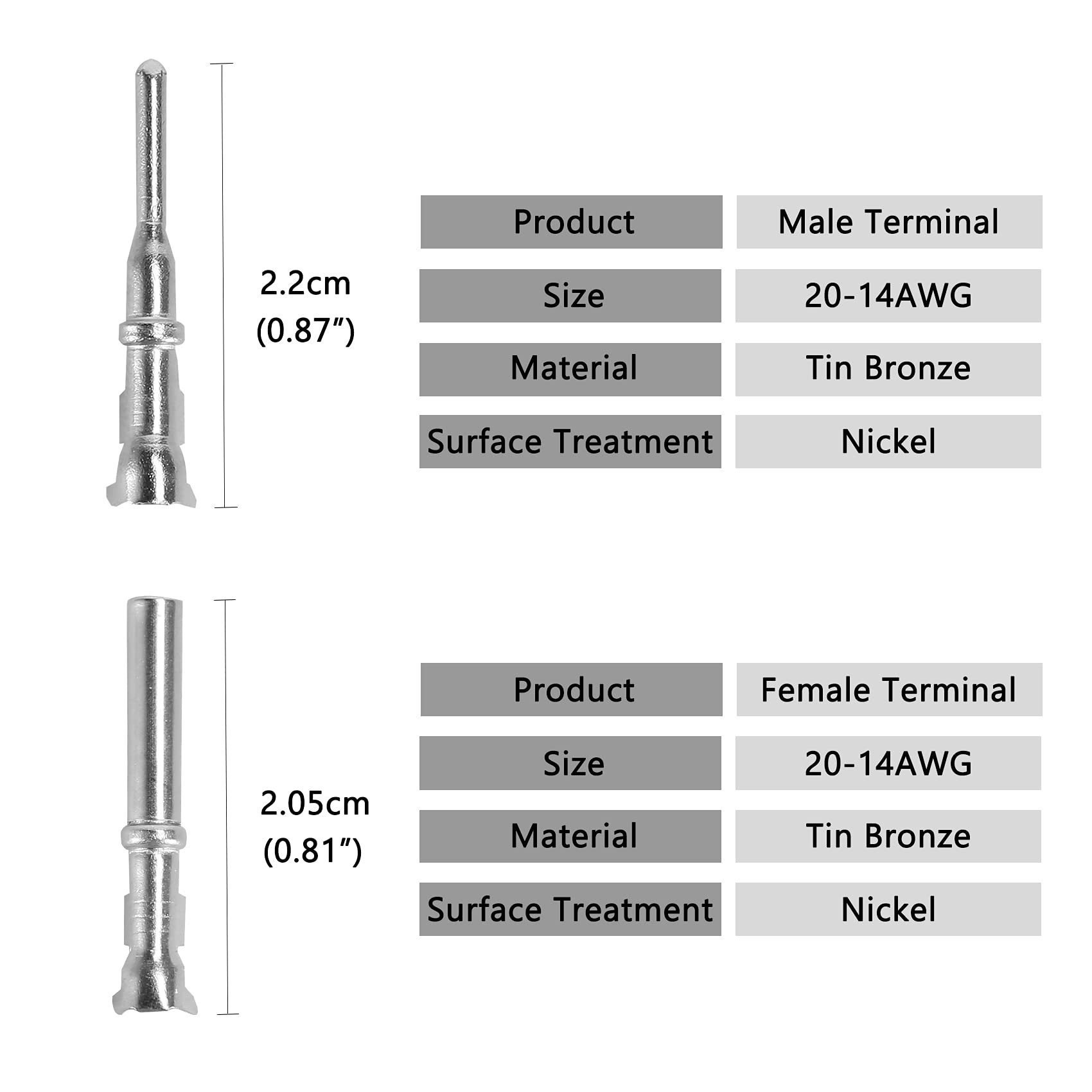

Each set include: 1 x DT04-3P 1 x DT06-3S 1 x W3P 1 x W3S 5 x Male Terminal 5 x Female Terminal
Package include: 5 Kit 3 Pin Way DT Connector (DT04-3P+DT06-3S)
DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility. The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.
DT electrical connectors will stand up to the harsh environmental challenges that are common to industrial markets that require advanced performance. Proper parts, procedures, and tooling must be used.
Temperature Operating at temperatures from -10° C to +80° C continuous at rated current.
Durability No electrical or mechanical defects after 100 cycles of engagement and disengagement.
Insulation Resistance 1000 megohms minimum at 25° C.
Moisture Resistance Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
Dielectric Withstanding Voltage Current leakage less than 2 milliamps at 1500 VAC.

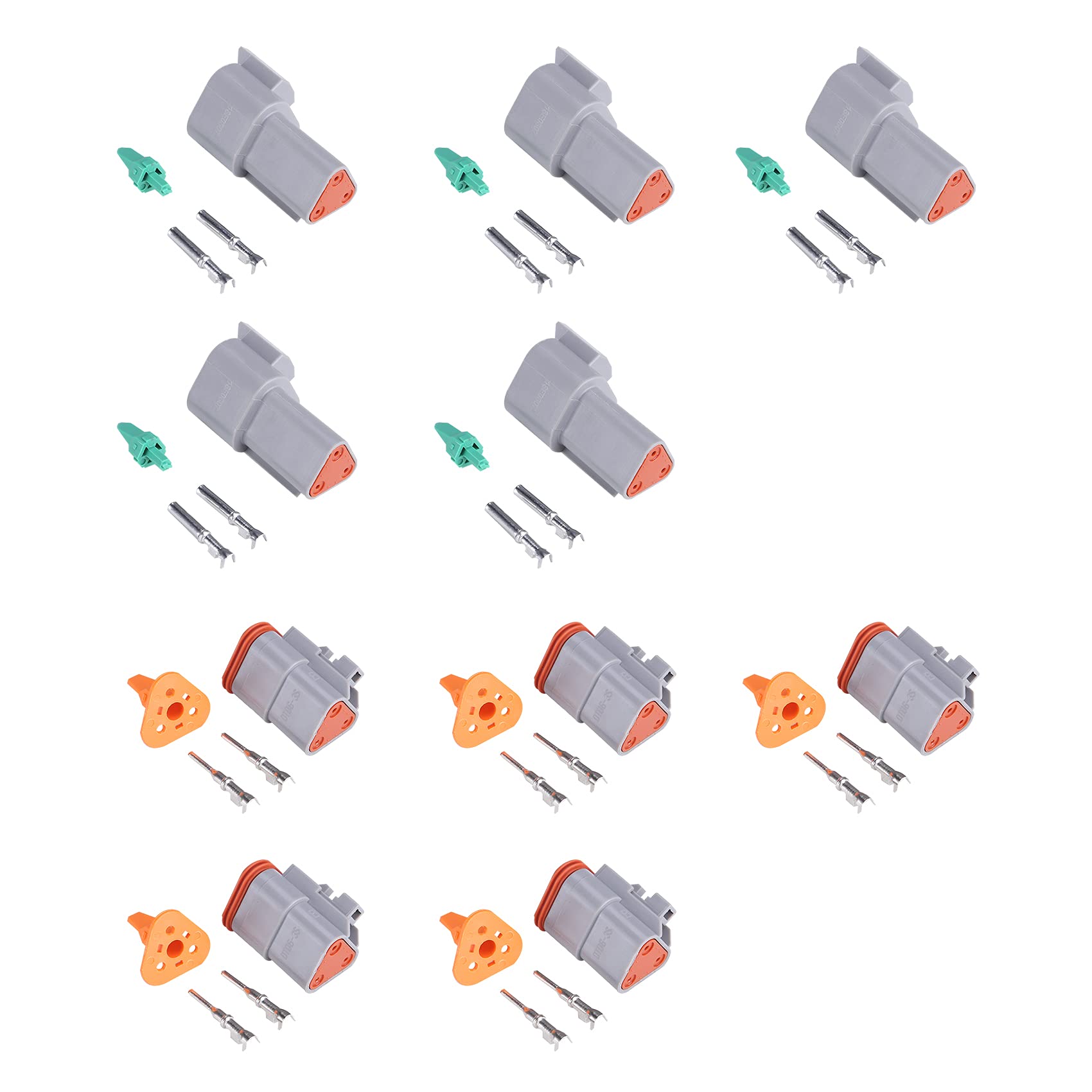

Package Included: 5x Male housing, 5x Female housing, 5x Orange wedgelock, 5x Green wedgelock, 15x Male contact, 15x Female contact.
