Discover the authentic NanoVNA S-A-A-2 V2 Vector Network Analyzer 10KHz~3GHz HF VHF UHF Antenna Analyzer 2.8 inch, Measuring Duplexer, S Parameters, Voltage Standing Wave Ratio, Phase, Delay, Smith Chart Nano VNA by Dearsee, part of our Spectrum Analyzers collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
Original Spectrum Analyzers – NanoVNA S-A-A-2 V2 Vector Network Analyzer 10KHz~3GHz HF VHF UHF Antenna Analyzer 2.8 inch, Measuring Duplexer, S Parameters, Voltage Standing Wave Ratio, Phase, Delay, Smith Chart Nano VNA by Dearsee
100% authentic and sourced from trusted suppliers
Imported from the USA with strict quality checks
Available at the best price in India
Fast and secure delivery across the country
Specifications:
Frequency range: 10kHz - 3GHz
System dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points/s

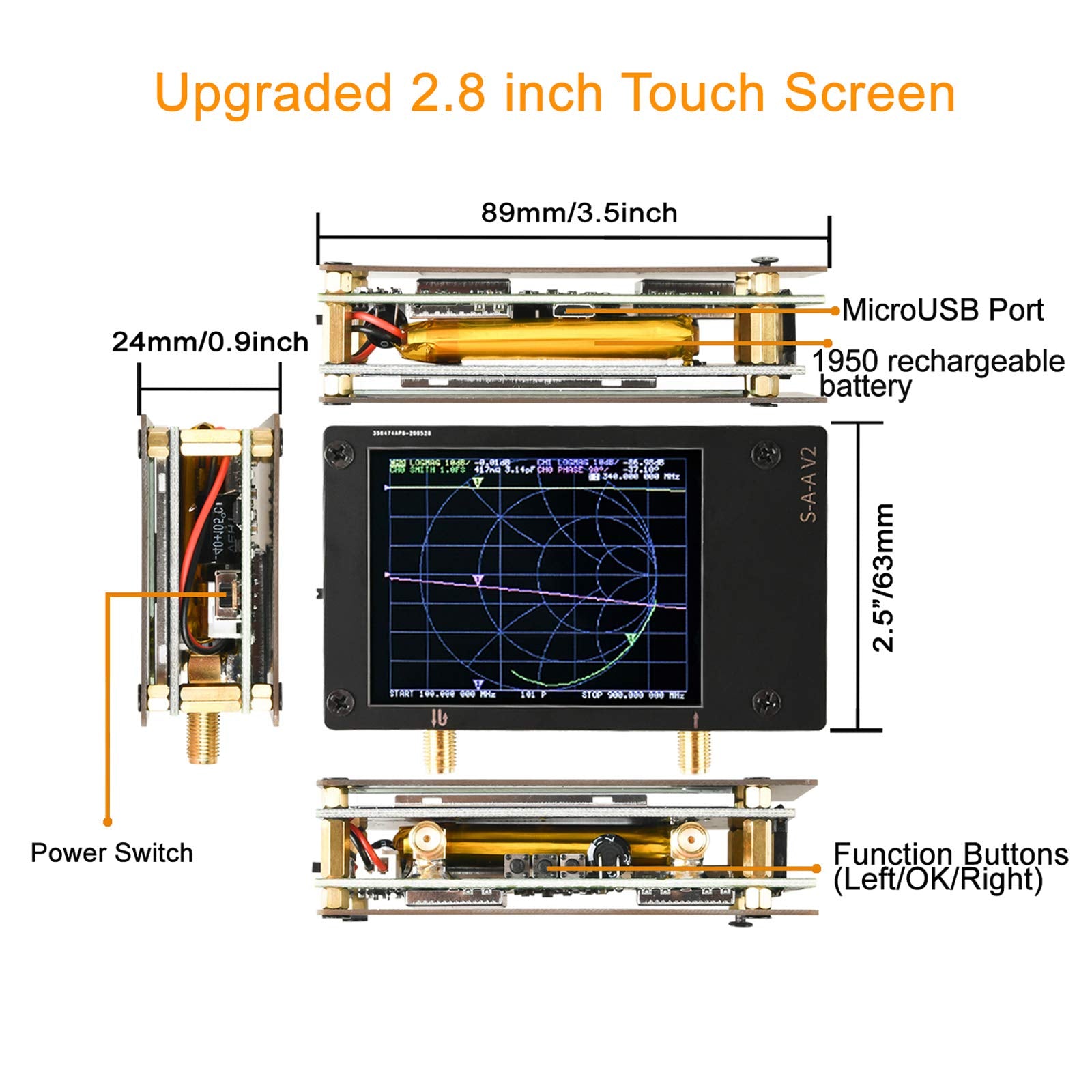

Display: 2.8'', 320 x 240
USB interface: Micro USB
Power: USB, Maximum charge current 1A
Battery: 1950mAh lithium-ion
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB min
VNA-QT software supported platforms: Linux, Windows (7+), Mac OS planned

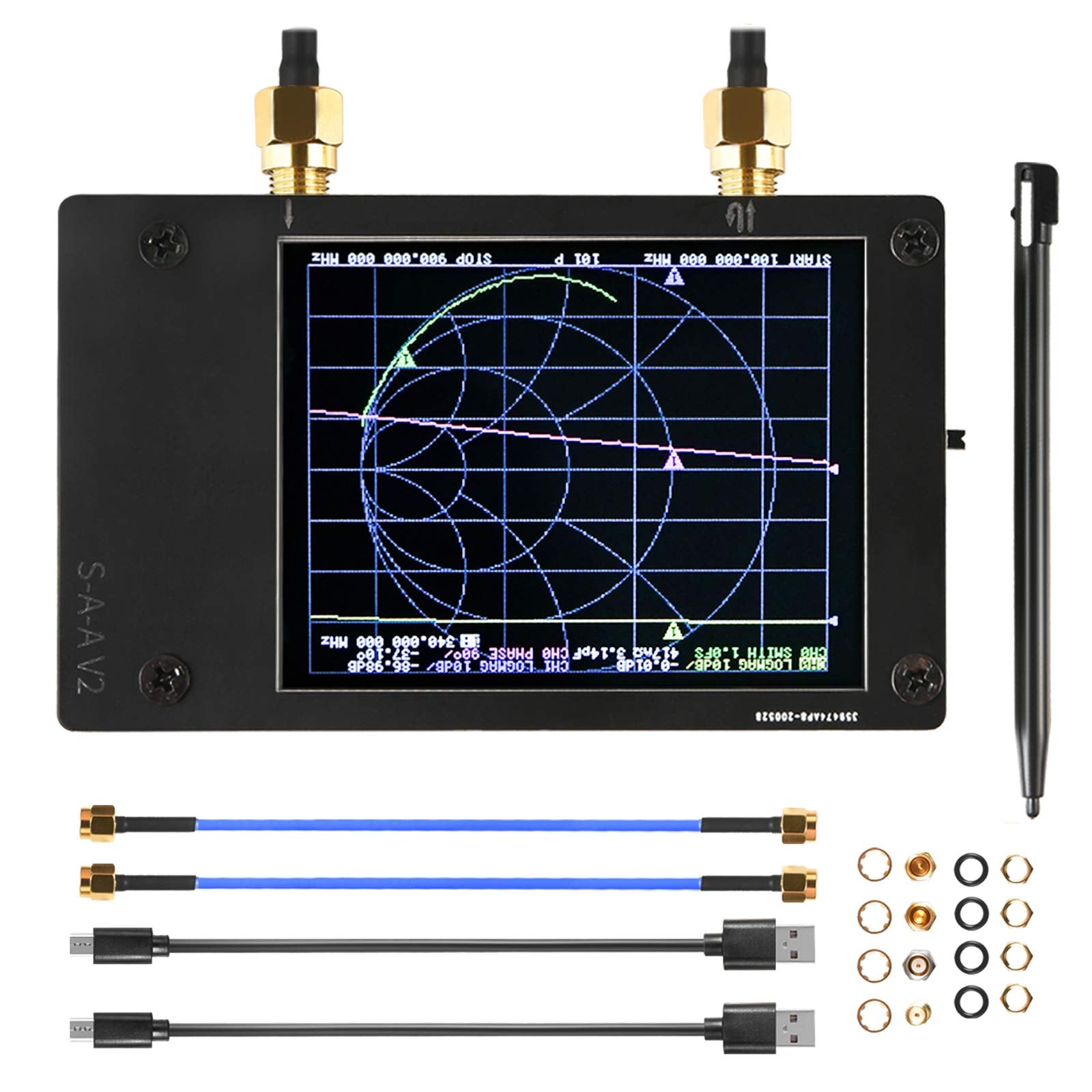

Packing list:
1 x S-A-A-2 Host (with 1950mAh battery)
1 x Micro USB Data Cable
2 x 30cm SMA Male to Male SS405 RF Cable
1 x SMA Male Calibration kit - OPEN
1 x SMA Male Calibration kit - SHORT
1 x SMA Male Calibration kit - LOAD
1 x SMA Female to Female Connector
The S-A-A-2 NanoVNA V2 is only 2.8 inch screen, It's compact and small to carry on. But it has an advanced configuration, Such as it add wifi, GPS, Blutooth function when you connect the computer.
It has more superior frequency than other nanovna,the 50K-1500MHz frequency range provides better than 70dB dynamic, and the extended 150M-3000MHz band provides better than 60dB of dynamics.
The Nanovna V2 could connect windows computer, After you download the software VNA-QT or Nanovna Saver, It can display on bigger screen.

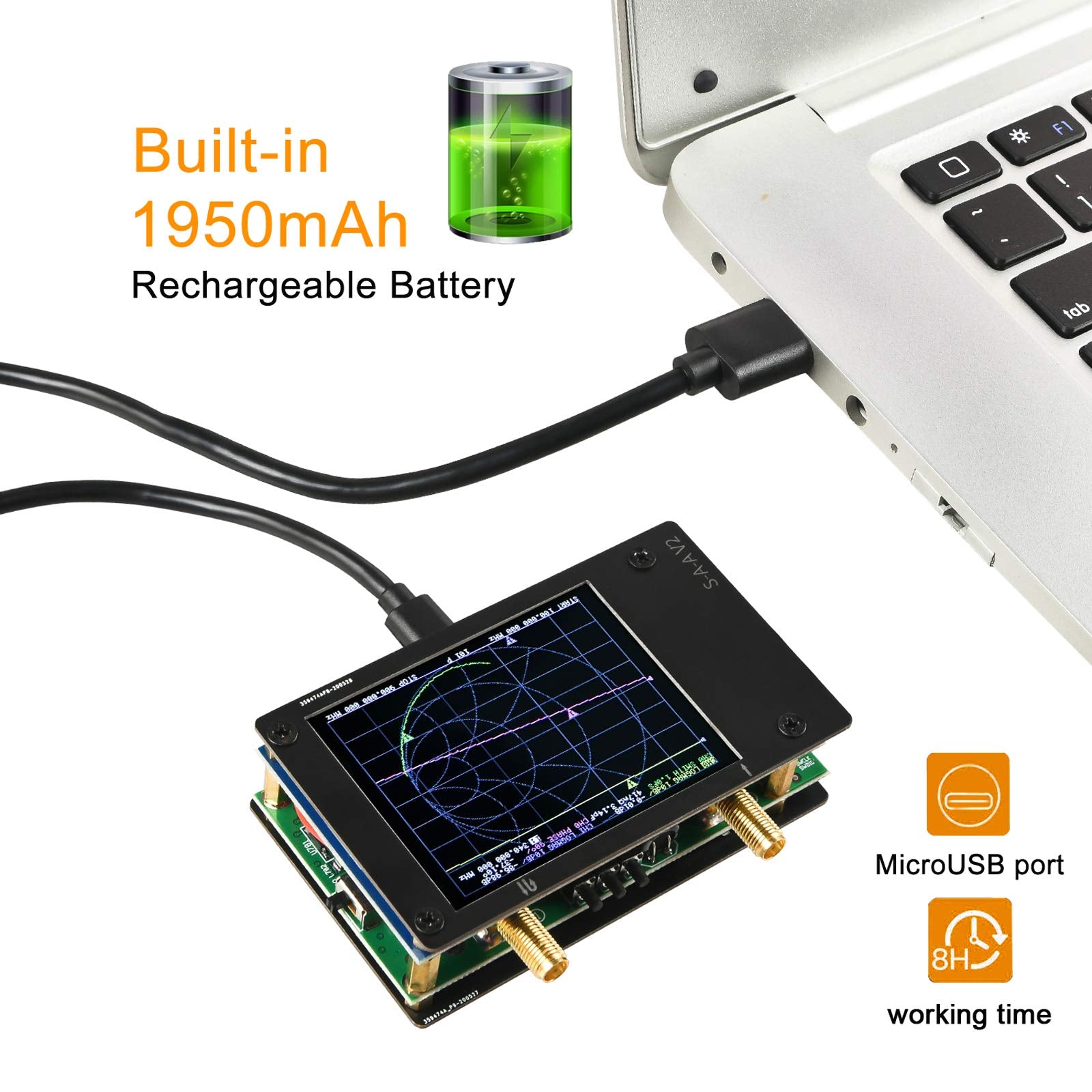

With the useful function,it can improve data accuracy. Built-in 1950mAh battery, It has a longer use time, and it supply by USB.
It's convenient for you to test the nanovna. And it also suitable for other nanovna. SMD electronic components have been soldered.
