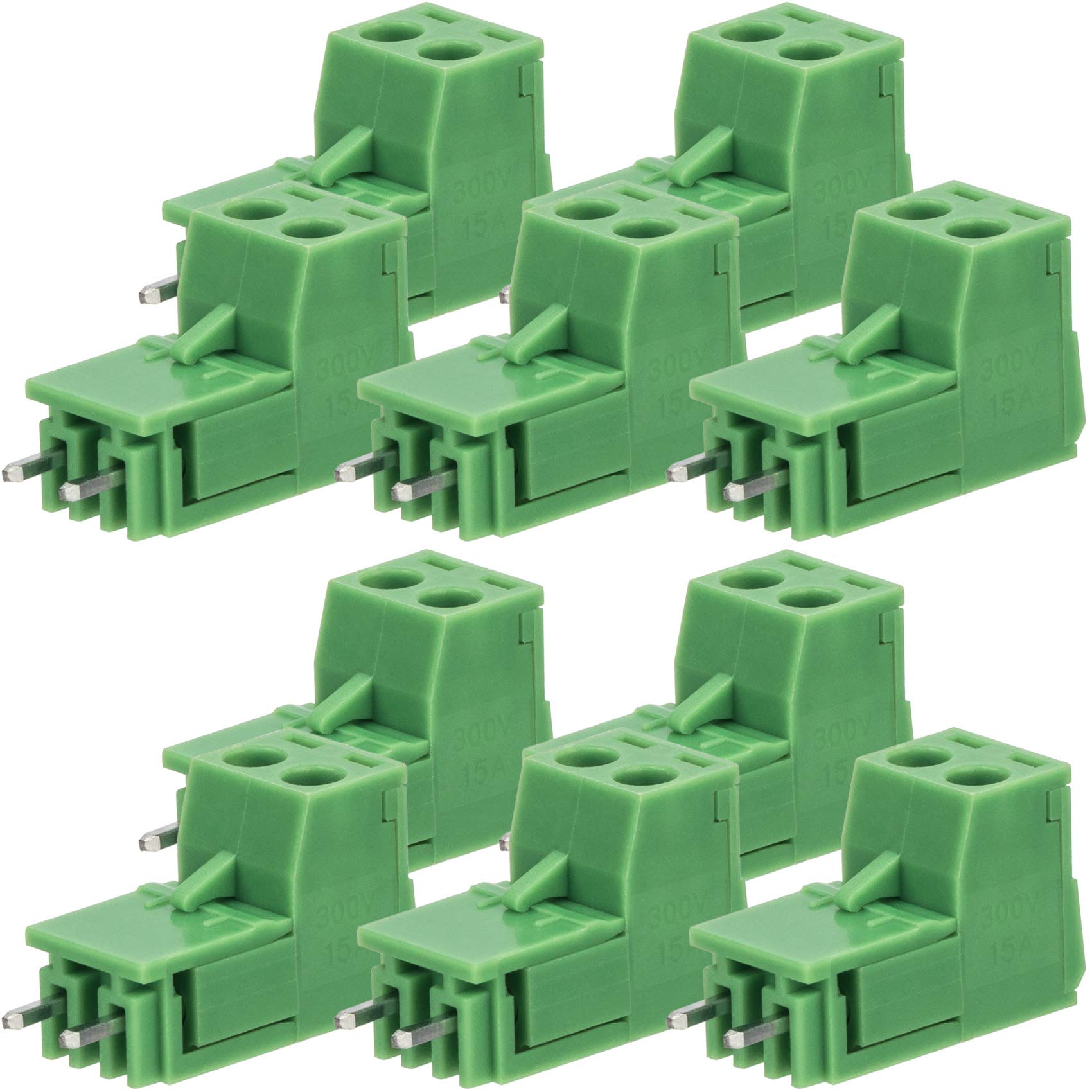

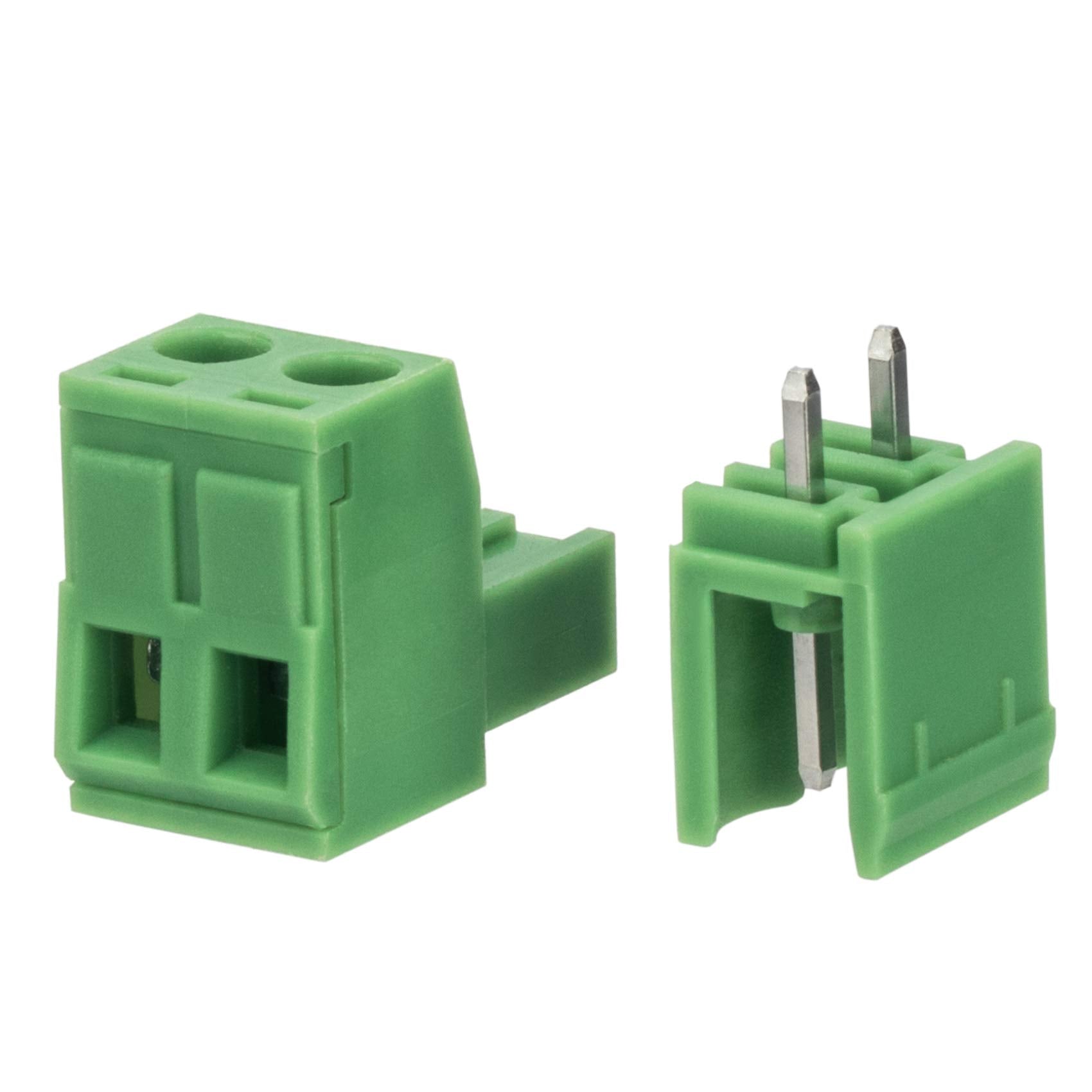

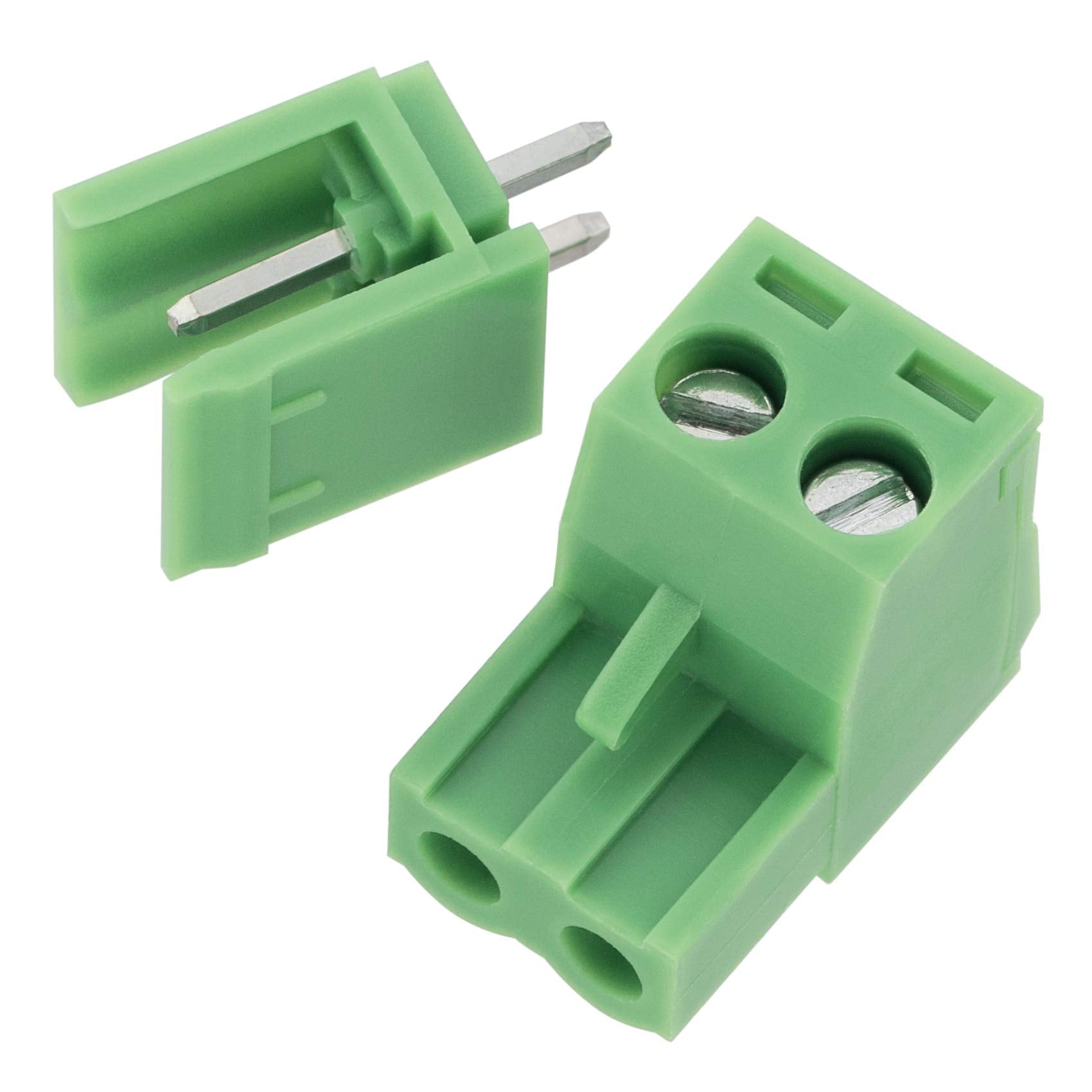

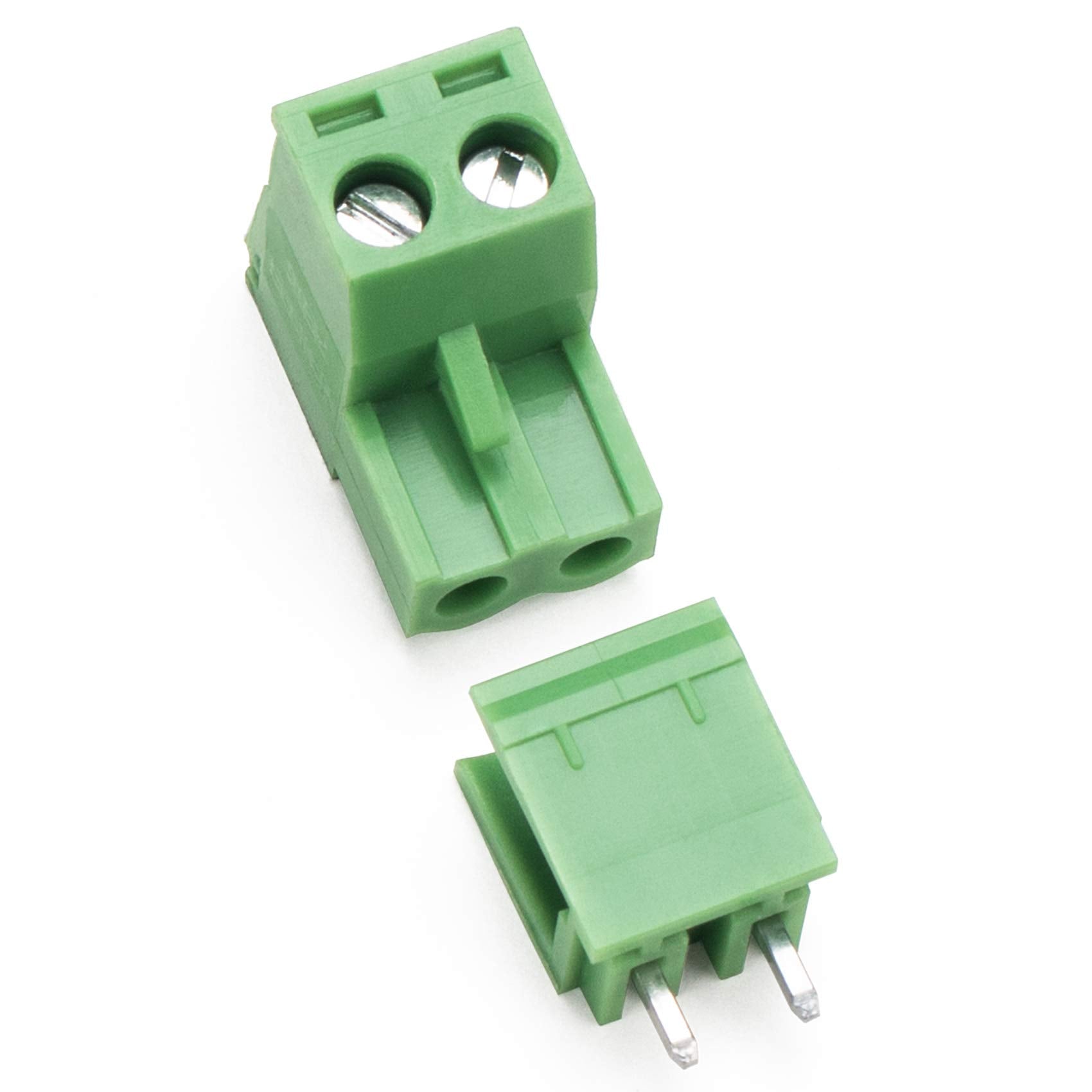

Discover the authentic 10 Sets 2-Pin 5.08mm Pitch Mount Screw Terminal Block, Straight Plug-in 2-Pin (2 Pole) Screw Terminal Block Connector, Pluggable Male Female Connectors- Green by OIIKI, part of our Screw collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Screw – 10 Sets 2-Pin 5.08mm Pitch Mount Screw Terminal Block, Straight Plug-in 2-Pin (2 Pole) Screw Terminal Block Connector, Pluggable Male Female Connectors- Green by OIIKI
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country

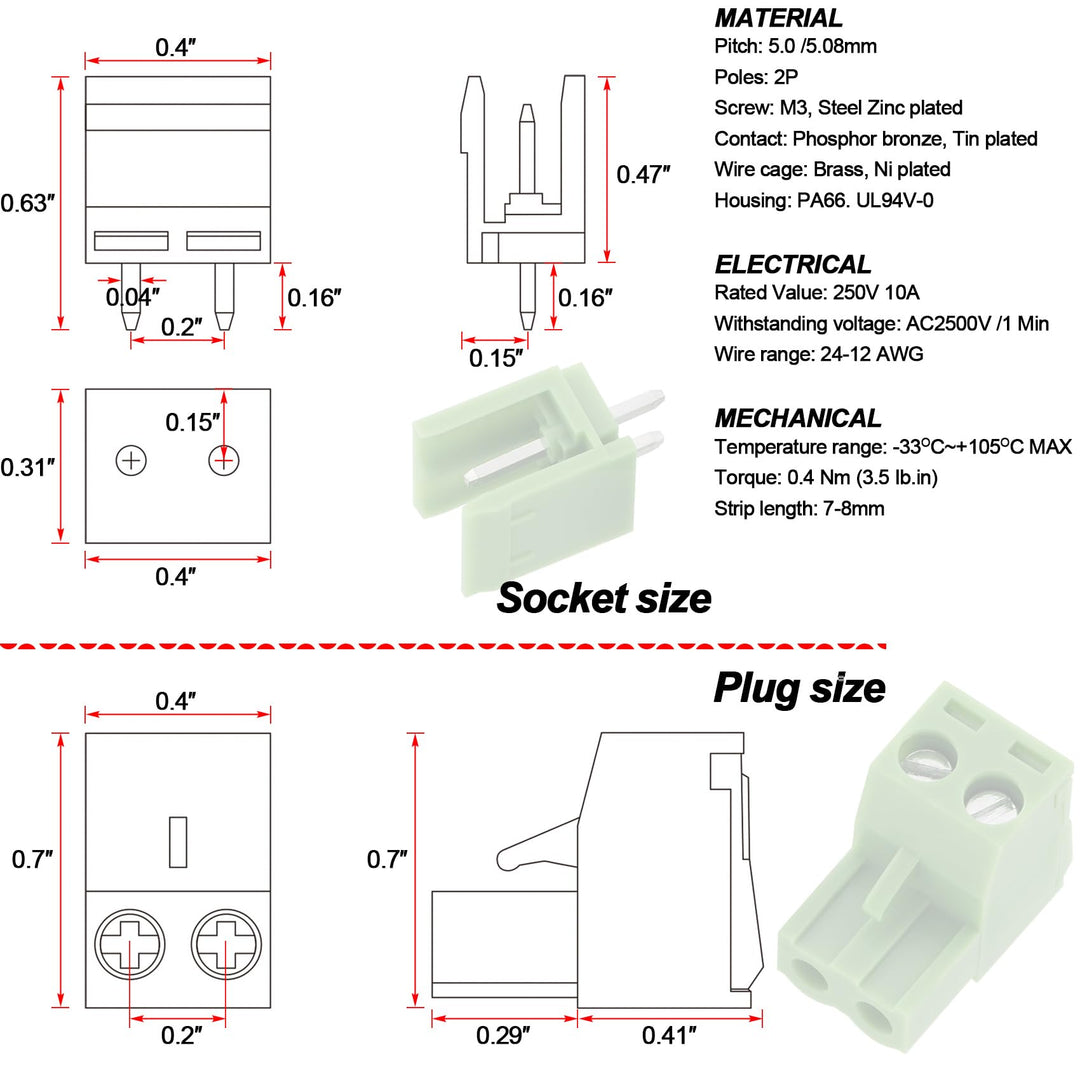

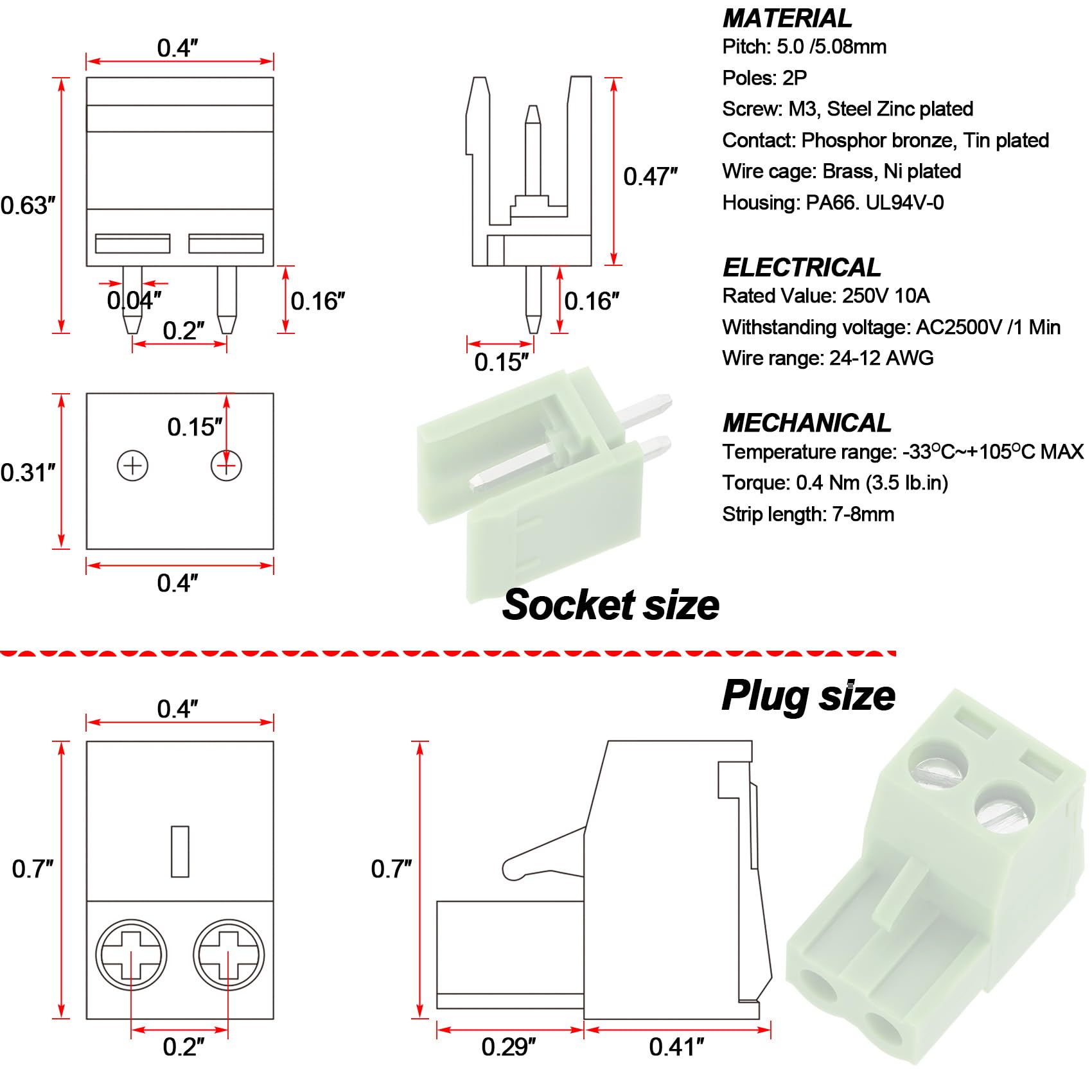

PARAMETER:
MATERIAL
Pitch: 5.0 /5.08mm
Poles: 2P
Screw: M3, Steel Zinc plated
Contact: Phosphor bronzeTin plated
Wire cage: BrassNi plated
Housing: PA66. UL94V-0
ELECTRICAL
Rated Value: 250V 10A
Withstanding voltage: AC2500V /1 Min
Wire range: 24-12 AWG
MECHANICAL
Temperature range: -33~+105 MAX
Strip length: 7-8mm
Application:
The 5.08mm pitch terminal block is widely used for wire connections and in the electronics, communication equipment, instruments, calculator, automatic control system, domestic appliance and warning devices, etc.
Package Includes:
10 x 2-Pin Screw Terminal Block
- Package Included - 10 Set x 2-Pin Screw Terminal Block
- Model - 5.08mm-2P
- Rated Value - 250V 10A
- Wire range - 24-12 AWG
- Application - The 5.08mm pitch Screw terminal block is widely used in electronics, communication equipment, instruments, calculator, automatic control system, domestic appliance and warning devices, etc.
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 10.6934 centimeters, Height: 15.7988 centimeters, Length: 1.4986 centimeters
| Attribute | Value |
|---|---|
| number of positions | 2 |
| number of poles | 2 |
| specification met | |
| connector type | Screw |
| temperature range | -33~+105 |
| brand | OIIKI |
| gauge | |
| current rating | 10 |
| item type keyword | screw-terminals |
| part number | LH2277-CA |
| style | 2 PIN |
| color | Green |
| item package weight | 0.032 |
| customer package type | Standard Packaging |
| manufacturer | OIIKI |
| model number | LH2277-CA |
| supplier declared dg hz regulation | not_applicable |
| item pitch | |
| batteries required | False |
| voltage | 250 |
| product site launch date | 8/26/2020 9:05:46 AM |
| material | Brass |
| mounting type | PCB Mount |
| number of contacts | 2 |
| operating voltage | 300 |
| upper temperature rating | 105 |
| batteries included | False |
