Buy (Pack of 2) 301-1C-C-R1 U01 12VDC Automotive Relay 5 Pins SPDT Products Online In India

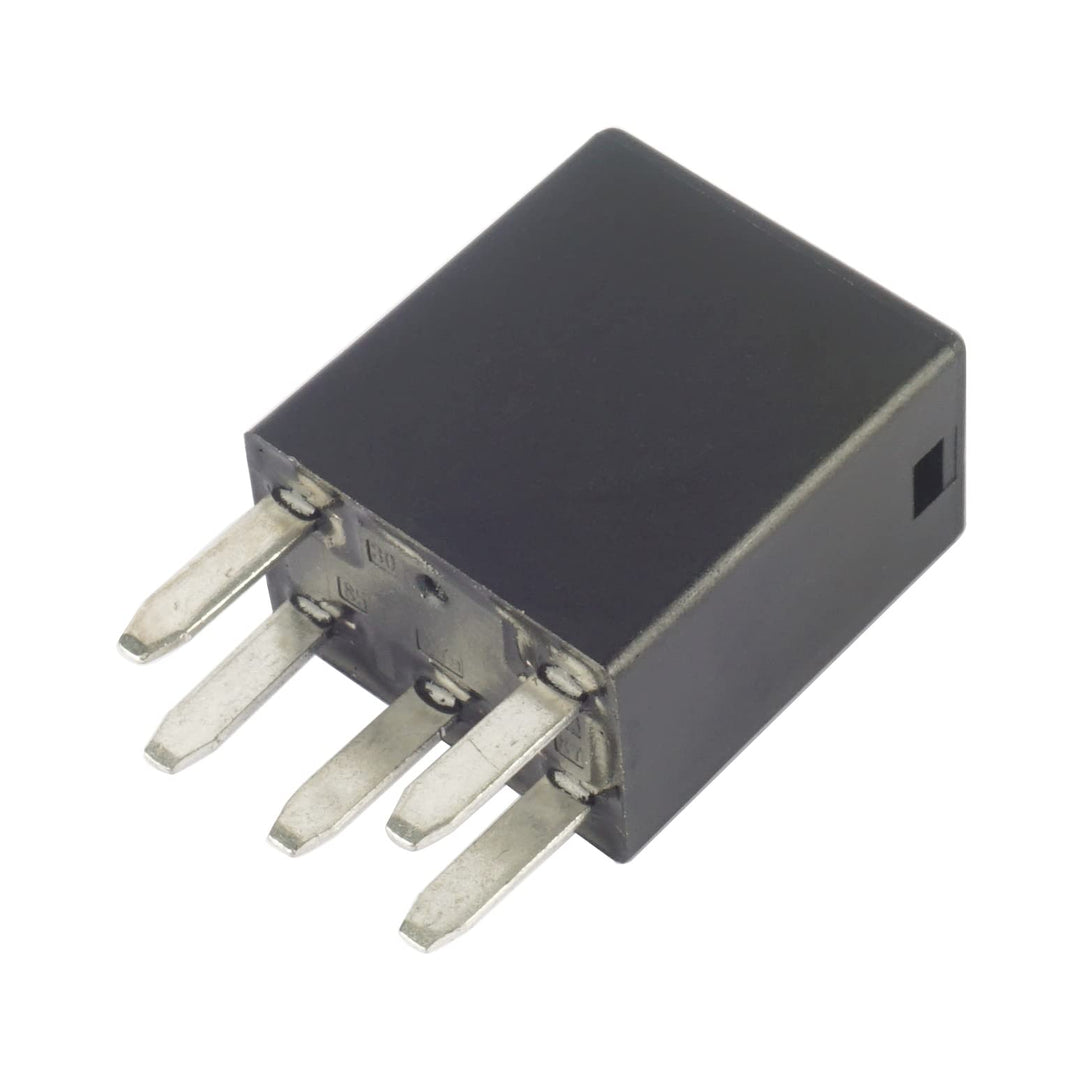

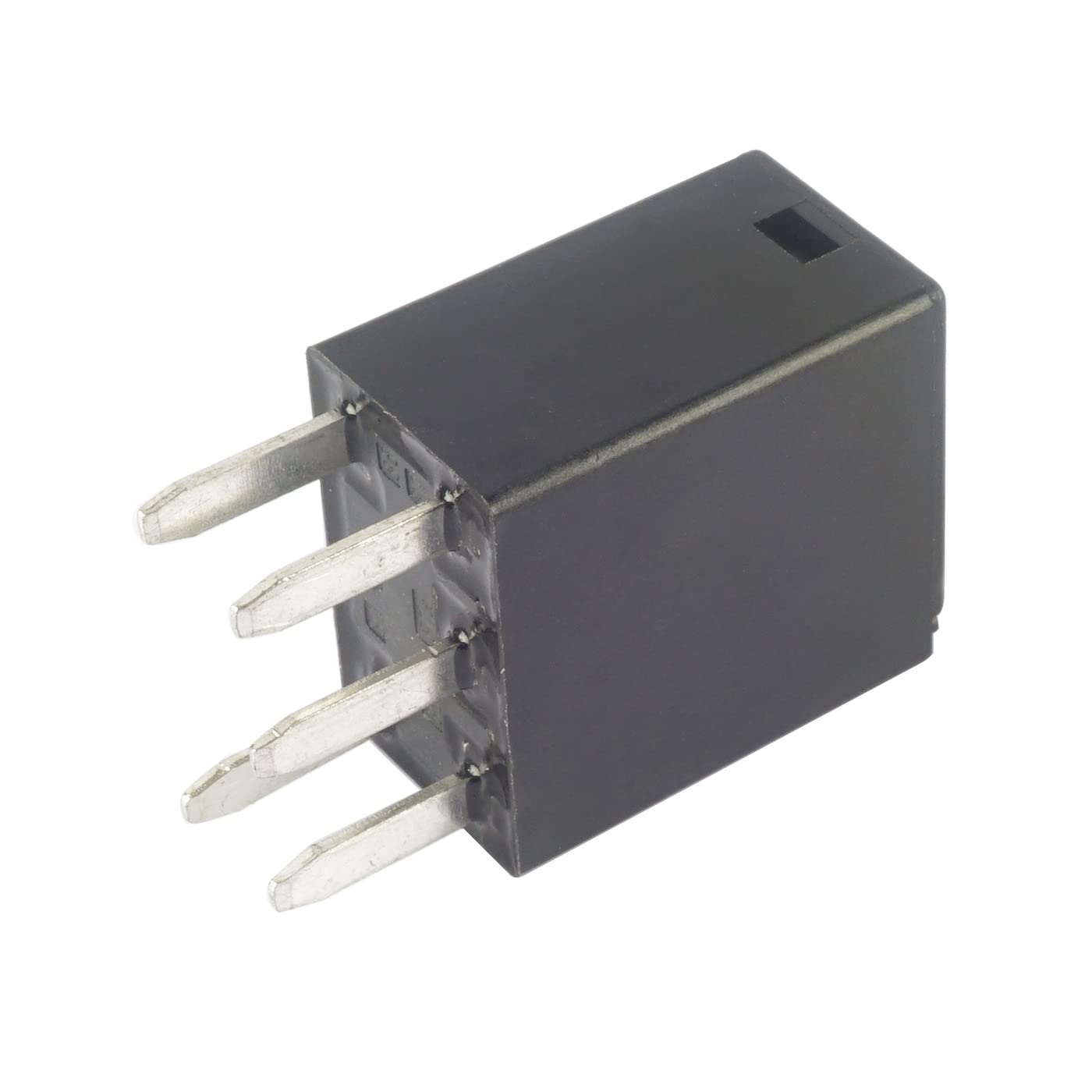

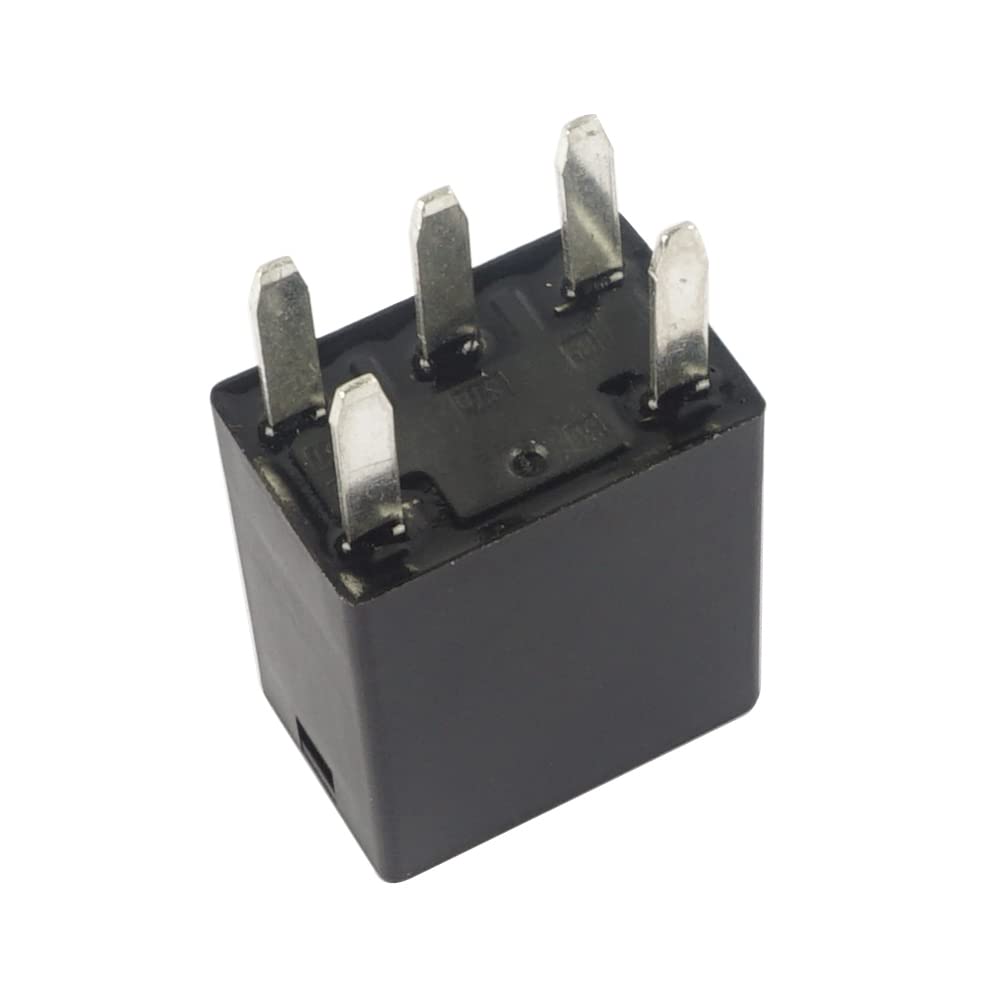

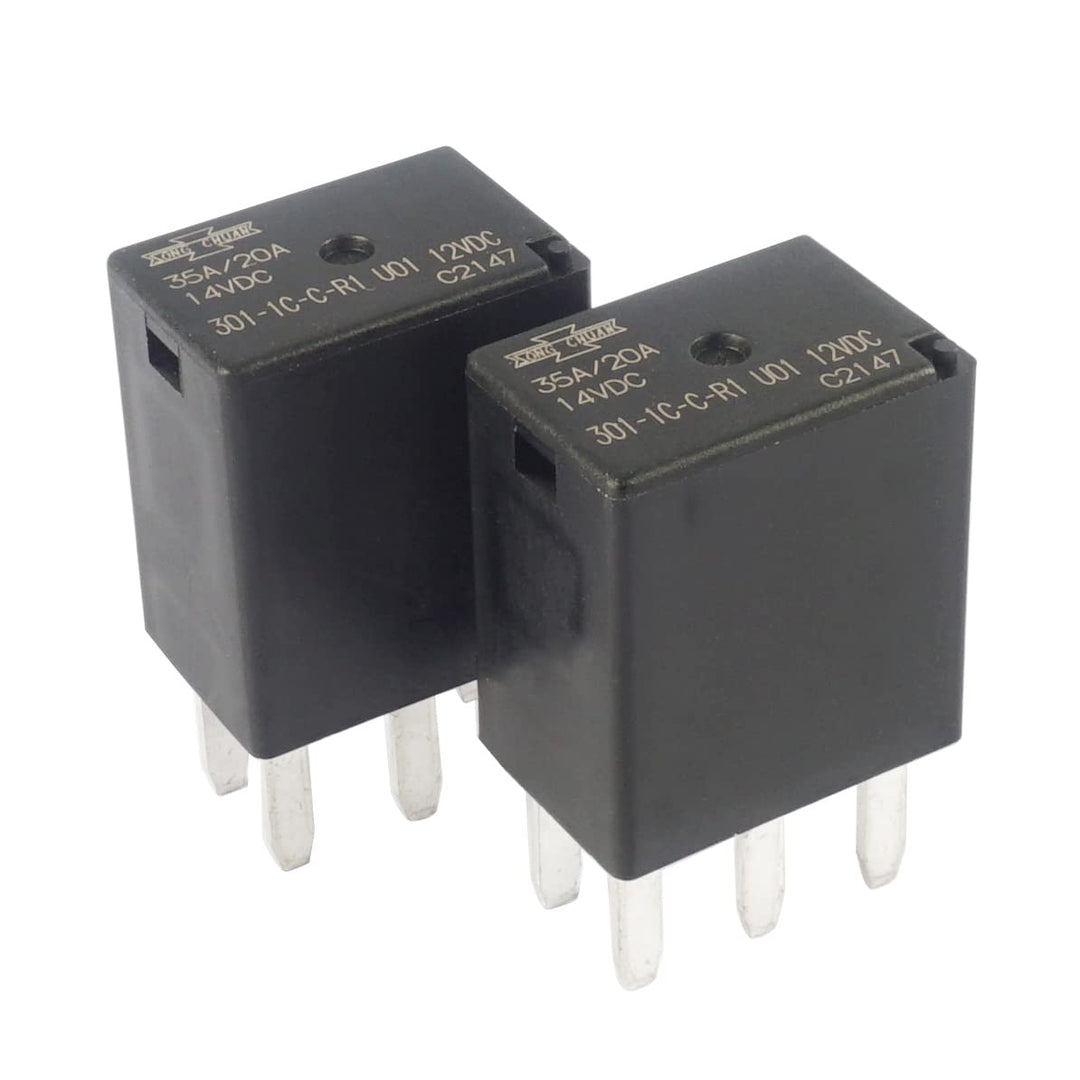

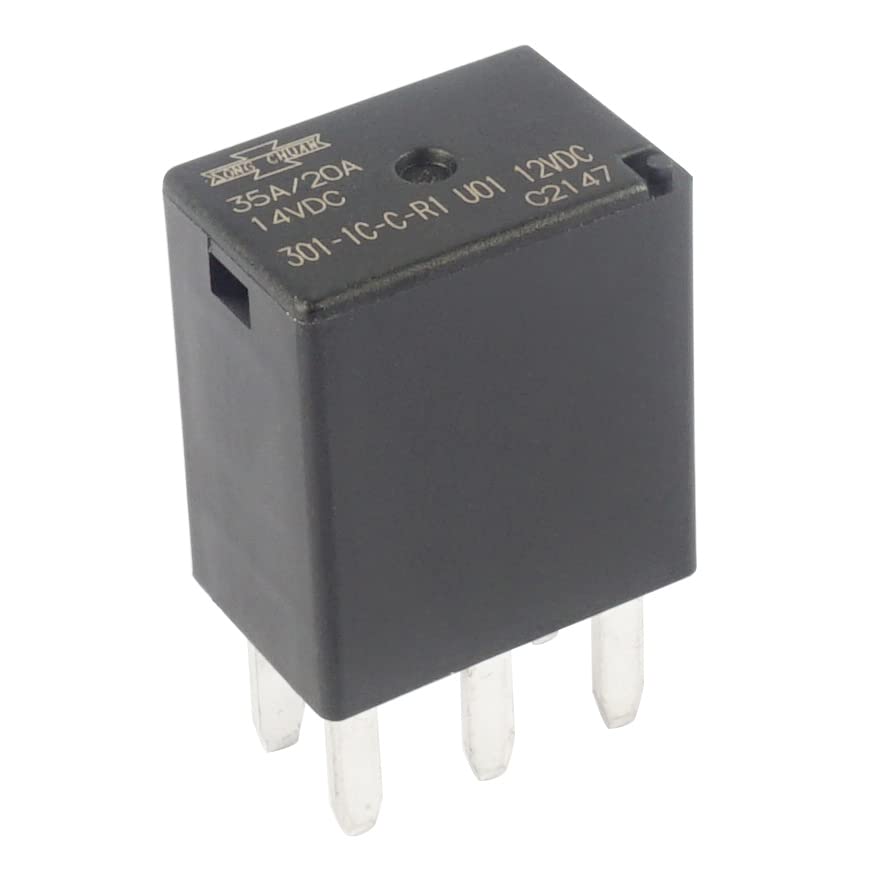

(Pack of 2) 301-1C-C-R1 U01 12VDC Automotive Relay 5 Pins SPDT

Name: (Pack of 2) 301-1C-C-R1 U01 12VDC Automotive Relay 5 Pins SPDT
Brand: Song Chuan
Price: 2182.00 INR
Availability: InStock

Song Chuan

USA Store

Condition: New

Price

~~Rs. 0.00~~

Save Rs. -2,182

Free shipping all over India

Free & Easy Returns*

100% Secure payments*

🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.

In stock, ready to ship
Backordered, shipping soon

Nominal Coil Voltage: 12 VDC

Contact Form: SPDT

Contact material: AgSnO alloy

Enclosure style:Flux tight

Resistive load:NO : 35A 14VDC, 15A 28VDC

NC : 20A 14VDC, 10A 28VDC

Contact voltage drop: Typ. 40mV at 10A

Operate time : 10 ms Max.

Release time : 10 ms Max.

Insulation resistance:20MO Min. (DC 500V)

Operating ambient temperature:-40~+125°C (no freezing)

Weight: Approx.20 g

Package Content: 2 x 301-1C-C-R1 U01 12VDC

Attention:

Do not use the relay exceeding the coil rating, contact rating and life expectancy, or this may cause the risk of overheating.

Micro 280 automotive relay
SPDT contact configuration.
NO contacts switch 35A resistive load, NC contacts switch 20A resistive load, 100,000 ops., 23°C.
Operating ambient temperature -40°C to 125°C.
Resistor for coil transient suppression.
Item Dimensions: Width: 3 centimeters, Height: 5 centimeters, Length: 3 centimeters
Item Package Dimensions: Width: 4.191 centimeters, Height: 5.588 centimeters, Length: 3.2004 centimeters

Attribute	Value
contact
specification met	Ms
brand	Song Chuan
coil
current rating	20, 15, 10, 35
item type keyword	automotive-accessory-power-relays
number of items	2
size	12VDC
operating time	0.02
part number	301-1C-C-R1 U02 12VDC
item package weight	0.041
manufacturer	SONG CHUAN
model number	301-1C-C-R1 U02 12VDC
supplier declared dg hz regulation	not_applicable
minimum switching voltage	12
operation mode	Automatic
batteries required	False
product site launch date	4/27/2022 12:53:51 PM
upper temperature rating	125
batteries included	False
