Discover the authentic 19mm 3/4 Latching Pushbutton Switch LED 12V DC 5A Power Symbol ON-OFF Waterproof Toggle Switch Stainless Steel Shell with Wire Connector Plug(Red light) by Quentacy, part of our Pushbutton Switches collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Pushbutton Switches – 19mm 3/4 Latching Pushbutton Switch LED 12V DC 5A Power Symbol ON-OFF Waterproof Toggle Switch Stainless Steel Shell with Wire Connector Plug(Red light) by Quentacy
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
1* Push Button Switch
1* Wire Connector Sockets
What's Latching Switch:
Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatches

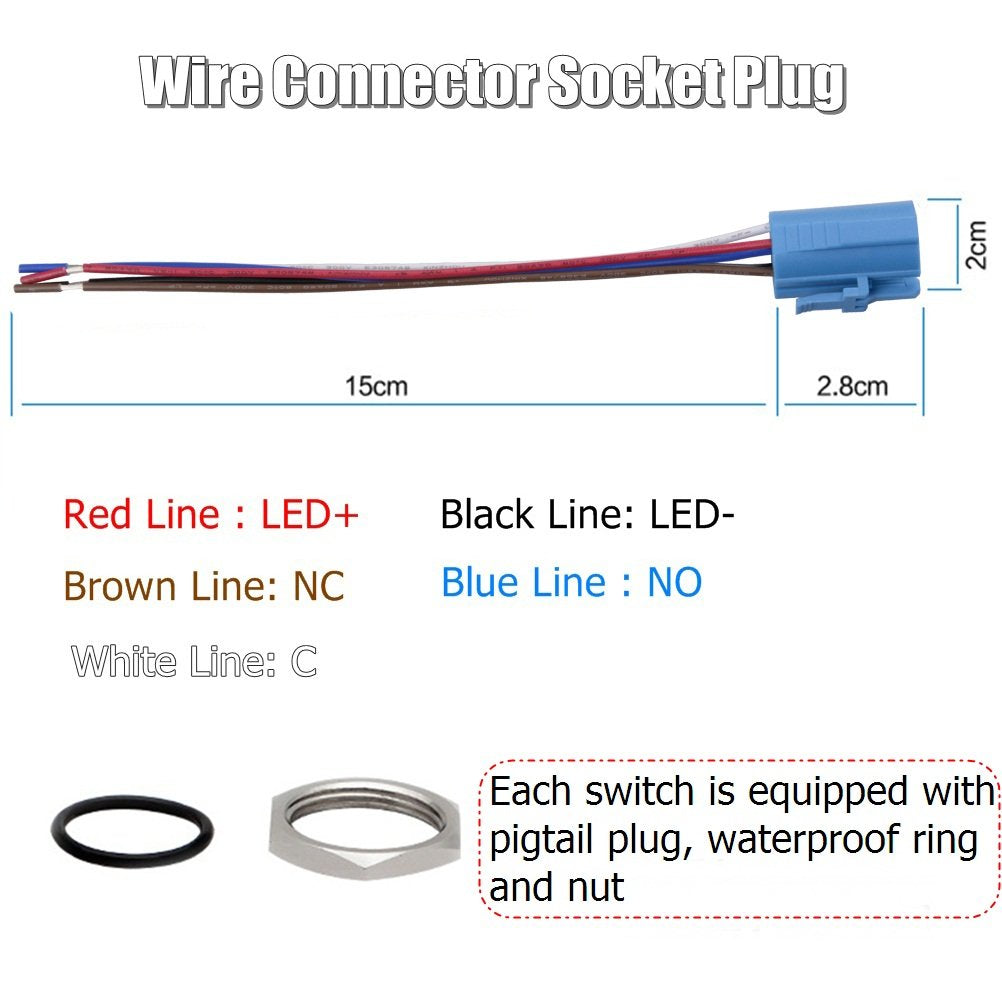

What's the Wire Connector:

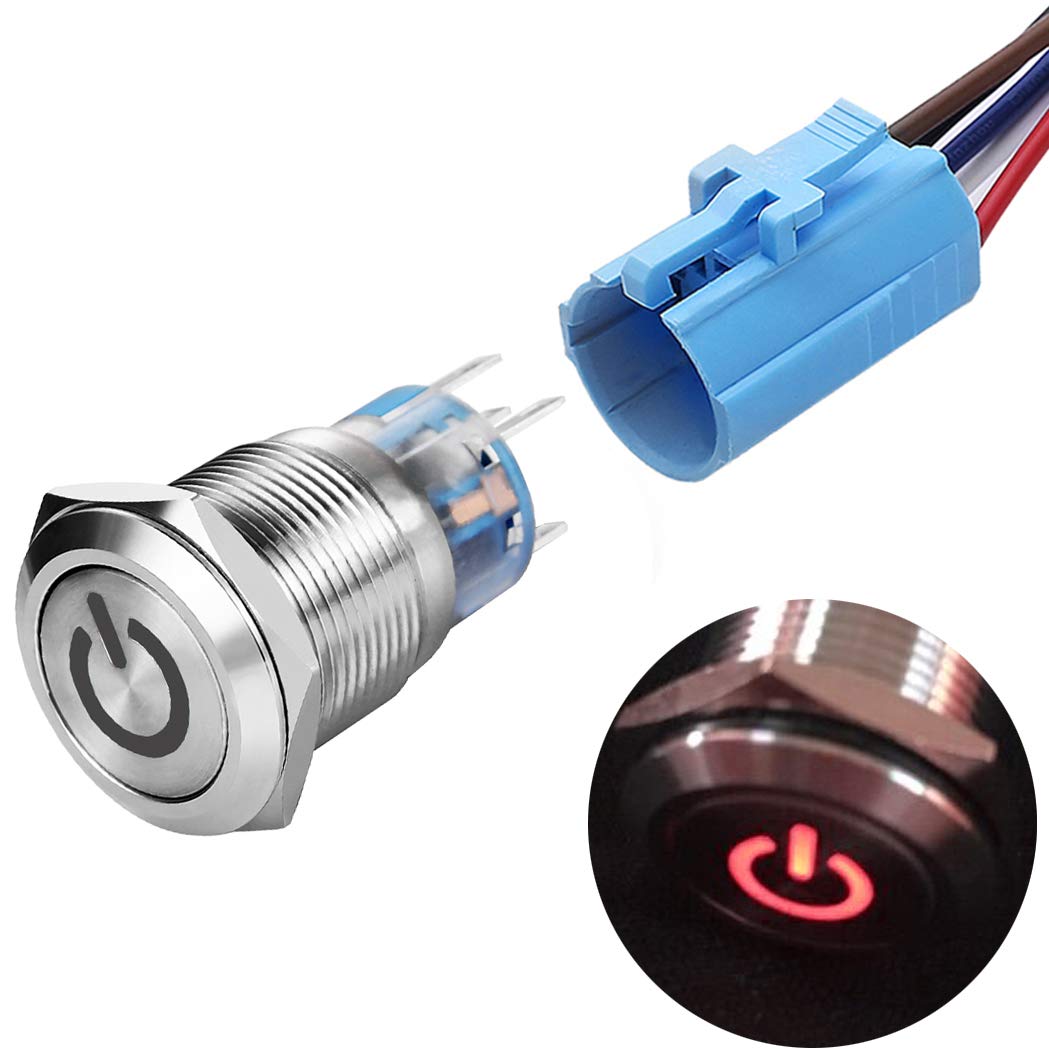

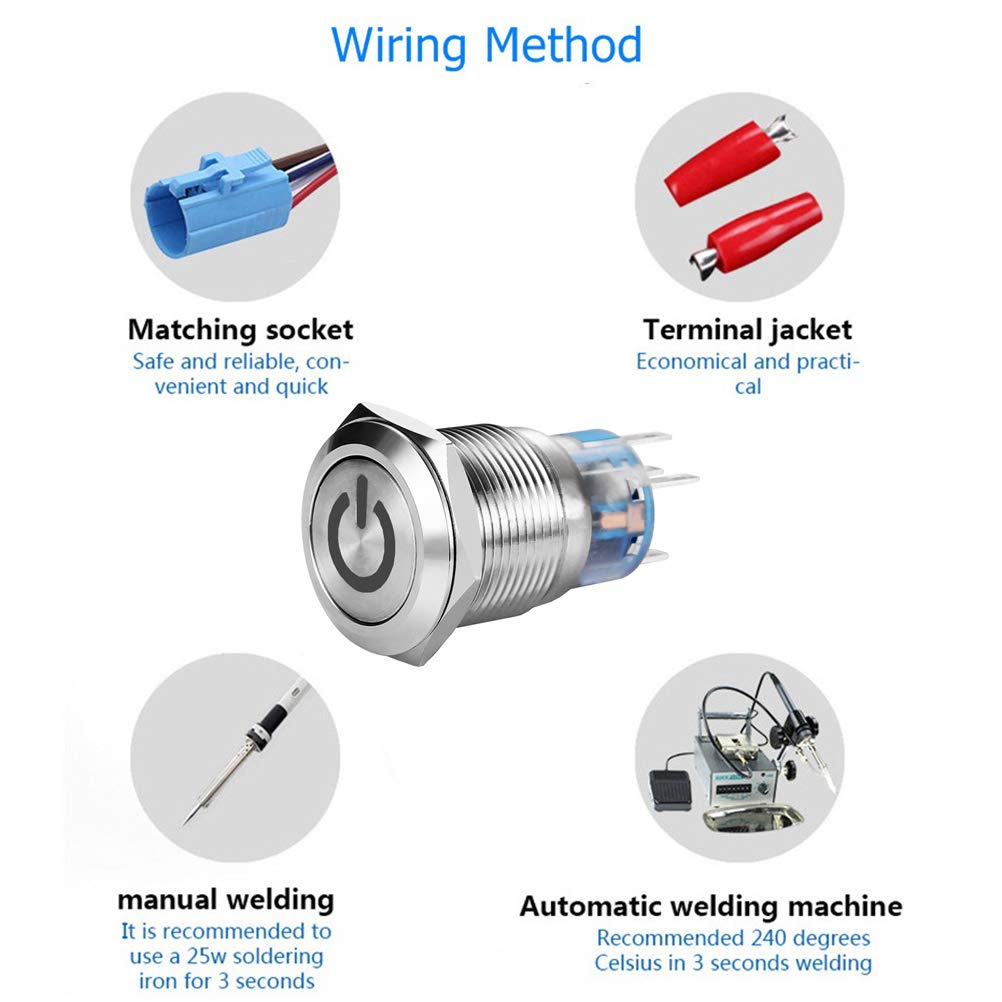

With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket
What's Latching Switch Used for:
Most often latching switches are used for various additional electric equipment, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light)
What's Note:
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out
What's Customer Support:
If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you

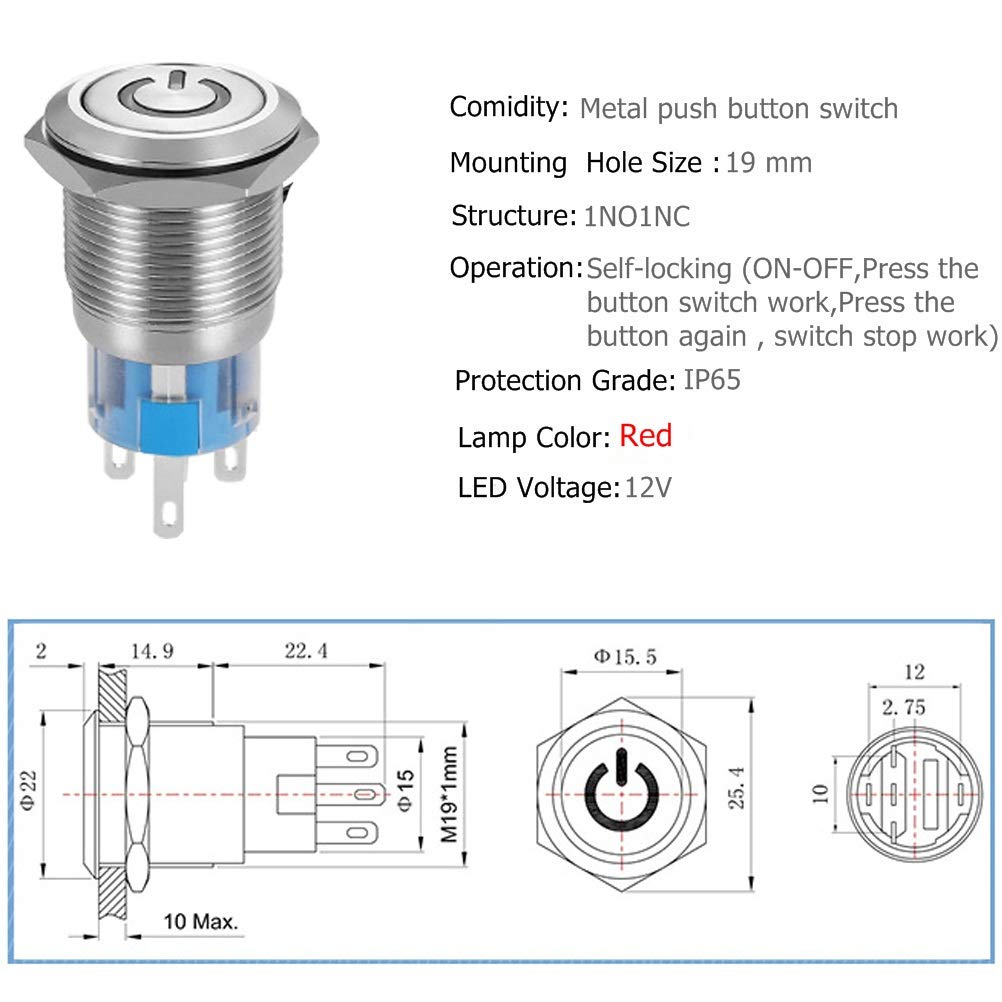

Specifications:
Head diameter: 7/8 (22mm)
Mounting hole size: 3/4 (19mm)
Depth inc contacts: 1.5 (38mm)
Switch combination: 1NO1NC
Operation types: Latching
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, AC/DC 12V
Head shape: Flat
Enclosure material: Stainless steel
Protection level: IP65, IK10
- Mounting Hole Diameter: f19mm
- Red LED voltage: 12V only ; Switch Rating : 250V 5A
- Shell Metarial:Stainless Steel (waterproof degsain)
- Self-locking Switch , Press the button switch work ; Press the button again ,switch stop work .
- Latching Push Button Switch can be applied to car motorcycle modificine ,electric equipment ,appliance,machine ,home Lamps and so on
- Item Dimensions: Width: 22 millimeters, Height: 22 millimeters, Length: 39 millimeters
- Item Package Dimensions: Width: 5.08 centimeters, Height: 9.398 centimeters, Length: 1.524 centimeters
| Attribute | Value |
|---|---|
| switch type | Push Button |
| actuator | |
| contact | |
| specification met | Ip |
| item package quantity | 1 |
| connector type | Plug In |
| brand | Quentacy |
| current rating | 5 |
| item type keyword | automotive-pushbutton-switches |
| number of items | 1 |
| connectivity protocol | X-10 |
| size | Mounting Hole Diameter: f19mm |
| part number | 19Q-K17S-Red |
| terminal type | Solder |
| color | Silver-red |
| item package weight | 0.023 |
| manufacturer | Quentacy |
| controller type | Push Button, Ring |
| light type | led |
| supplier declared dg hz regulation | not_applicable |
| operation mode | ON-NONE-OFF |
| international protection rating | ip65 |
| batteries required | False |
| voltage | 12 |
| product site launch date | 4/27/2017 7:00:00 AM |
| material | Stainless Steel |
| mounting type | Panel Mount |
| operating voltage | 250 |
| unit count | 1 |
| batteries included | False |
