Discover the authentic T-AC03 Security Access Control Keypad,RFID Keypad,Door Access Control,Stand-Alone Keypad,2000 Users,Wiegand 26-bit,Support Proximity RFID Card by Retekess, part of our Access-Control Keypads collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Access-Control Keypads – T-AC03 Security Access Control Keypad,RFID Keypad,Door Access Control,Stand-Alone Keypad,2000 Users,Wiegand 26-bit,Support Proximity RFID Card by Retekess
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
It works with wiegand 26 bit tcp ip network access control board panel controller
Suitable for detached garage; security gate; man gate;vehicles gate;gated entrance;office;household

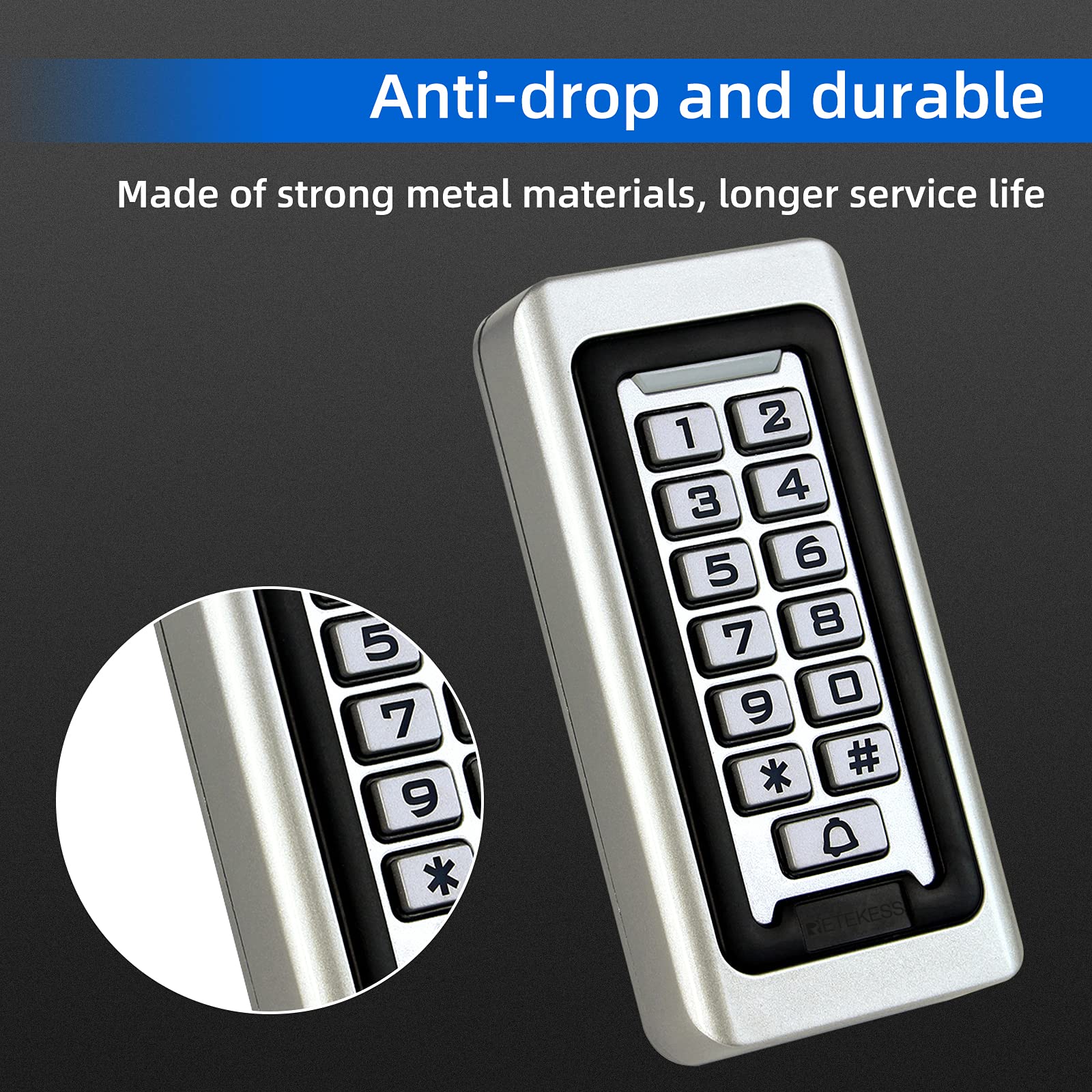

Heavy Cast Vandal Resistant Housing
Access control keypad use active keypad with zinc alloy electroplated anti-vandal material;so can be mounted anywhere outside of the home for durable use
Waterproof Function
Keypad access control has waterproof features; so you can use it in outdoors;The sleek keys of this keypad can be operated with a bare finger or a snow-covered glove equally well

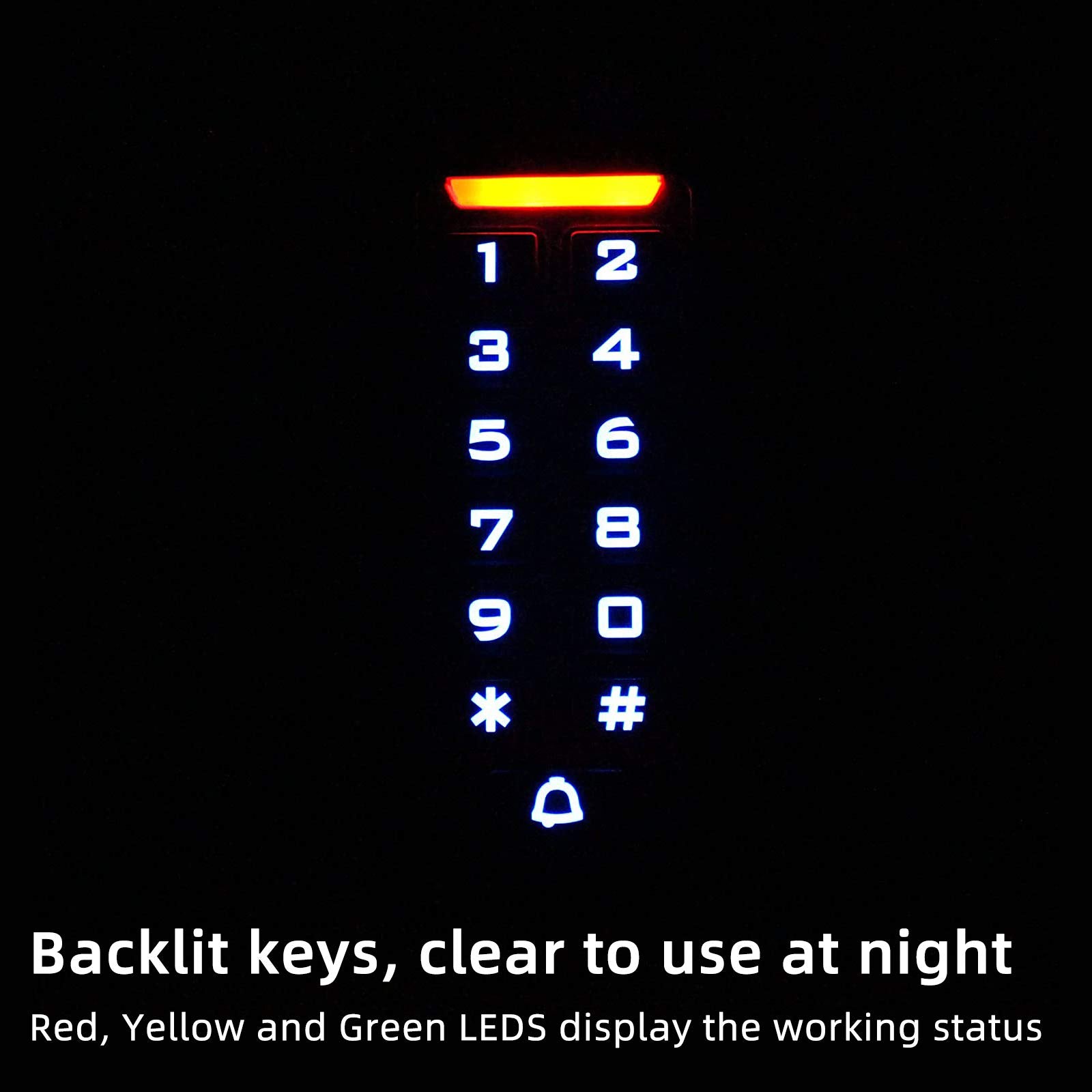

Backlight Keys
So you can operate the access control system in night to see the keypad number clear;Also it woks with low power consumption about 30mA
Large User Capacity
It supports most 2000 users; supports Card, PIN, Card + PIN 3 access ways to open the door; so it can be a good choice for factories, warehouses, laboratories, banks; also it has adjustable door output time, alarm time, door open time functions
Easy to install and program
The piezoelectric buttons work simply by tapping the surface, and do not require an actual physical movement;built in buzzer;Red Yellow and Green LEDS display the working status
Specification
Power Supply: 12VDC + 10%
Unlock relay: 12VDC/2A
Electric lock output: Max 3A
Alarm output: Max 20A
Effective Cards: 2000
Ambient temperature: -49-140°F
Password: 4 digit PIN code
Compatible Cards: 125KHz EM standard card
Card Reading Distance:1.18~2.36inch
Electric locking interface: Relay output or input of optional
Open access: 1
Doorbell button: 1
Interface to an alarm: 1
Add-in Reader Interface: 1 WG26 interface
Package Includes
1x Access Control
1 x Installation Kit
1x English User Manual
- Access control keypad is sturdy rugged keypad; with zinc alloy electroplated technology;The circuit board is completely encapsulated in epoxy to be weatherproof; keyboard is waterproof so you can use it outdoor or indoor

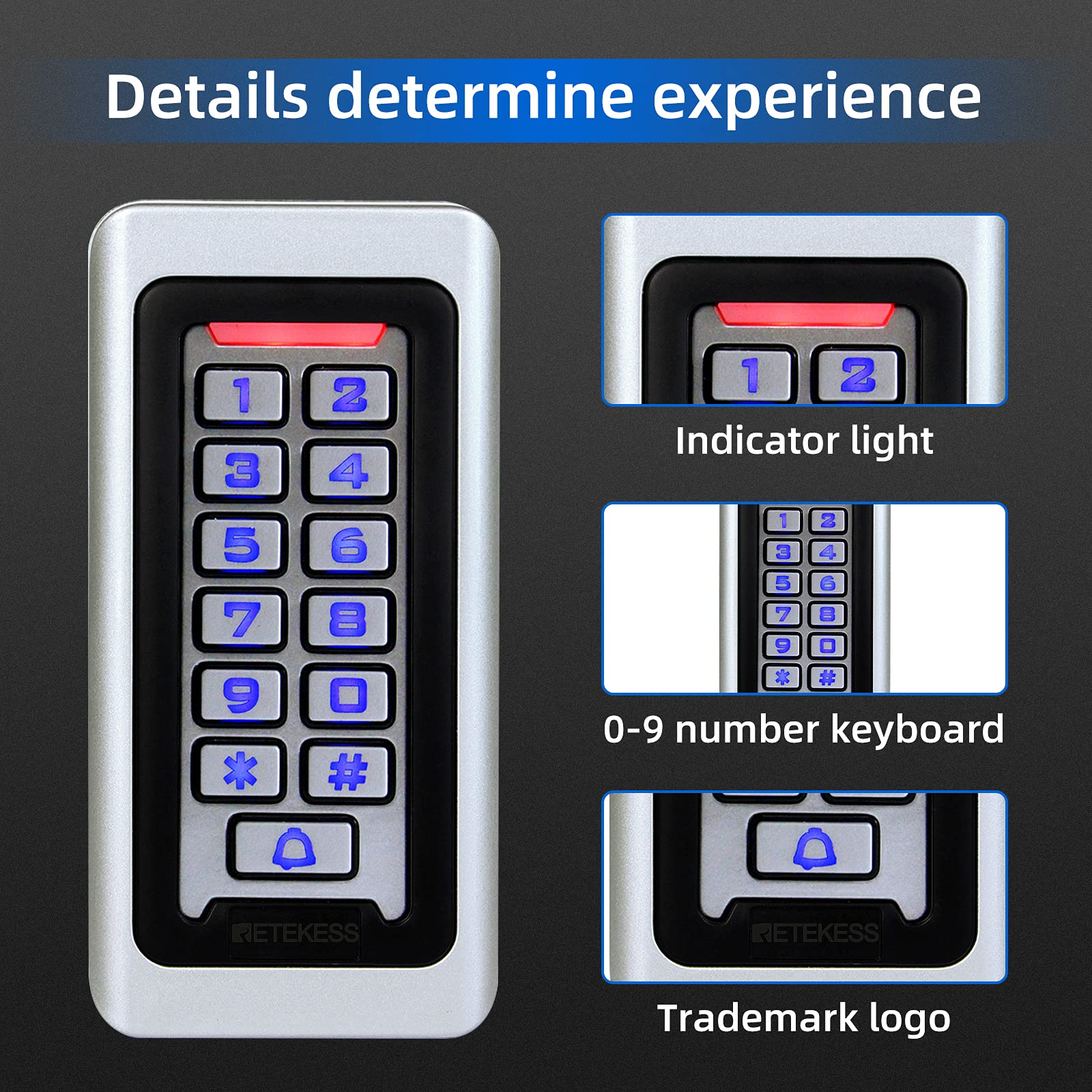

- Key backlight function; the keys light will stay on in dark places or at night; indicator light; Red light stands for enter into programming mode; Yellow light for in the programming mode;Green light for operation successful mode

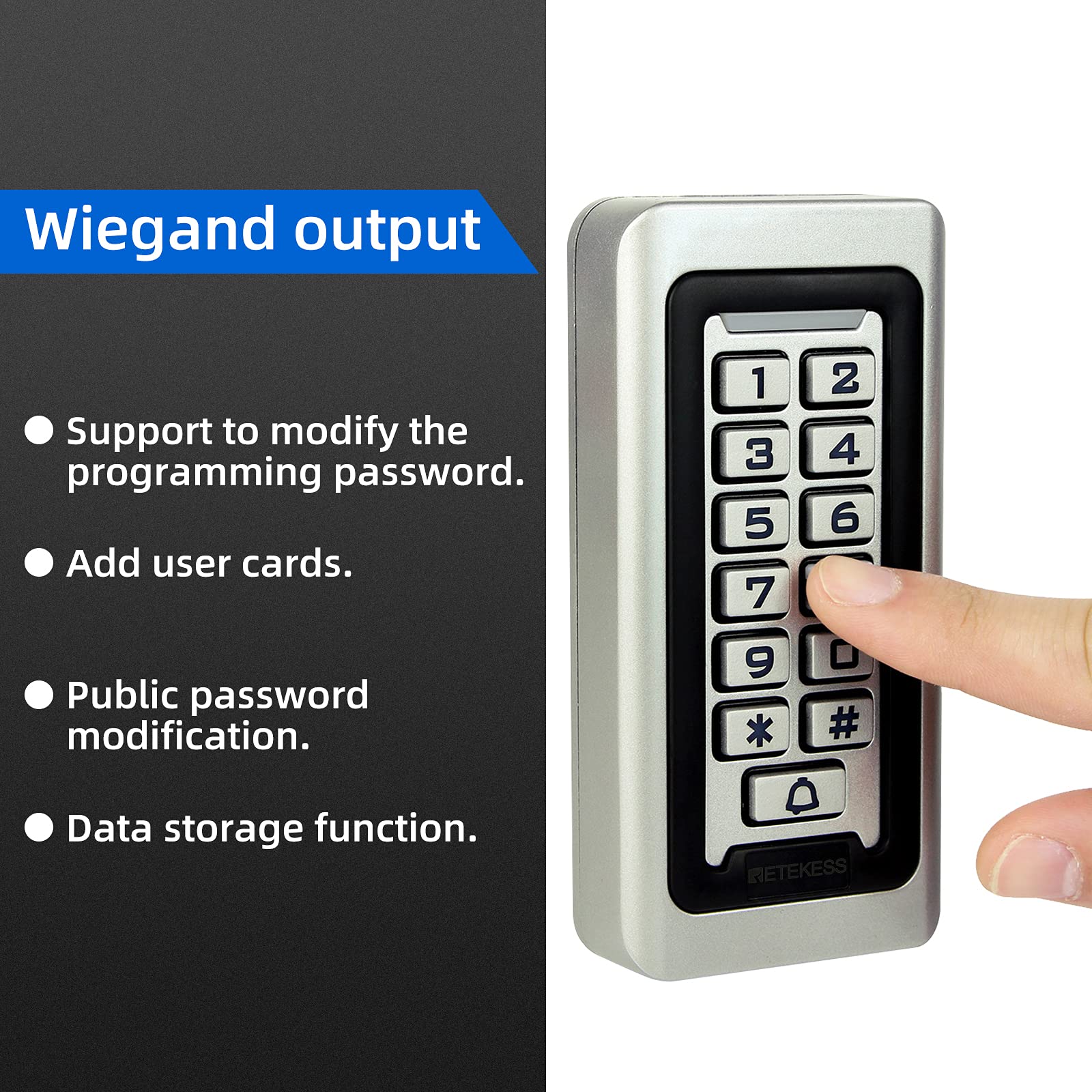

- Wiegand access control keypad can be as a standalone reader or keypad;0-99s adjustable door relay time; It is a relay output to open the door; so that you could connect this to a powered device without the use of some computing intermediate
- Easy to use;full programming from the keypad;support 3 access ways for card;PIN or card with PIN;you can set the public password or private password and the password can be changed which is more secure and personalized
- You can use the access control keypad to add and delete 2000 user information; set the door open delay time; it is suitable for garages; shops; homes; warehouses; laboratories; it has short circuit protection
- Item Weight: 13.1 ounces
- Item Dimensions: Width: 20 millimeters, Height: 118 millimeters, Length: 56 millimeters
- Item Package Dimensions: Width: 9.4996 centimeters, Height: 14.605 centimeters, Length: 4.3942 centimeters
Attribute | Value |
---|---|
fcc radio frequency emission compliance | |
item package quantity | 1 |
brand | Retekess |
item type keyword | access-control-keypads |
number of items | 1 |
size | 5.70*3.74*1.77in |
part number | FAUF9501D |
color | Silver |
item package weight | 0.39 |
item length width height | |
manufacturer | retekess |
model number | F9501D |
supplier declared dg hz regulation | not_applicable |
display | |
batteries required | False |
voltage | 12 |
product site launch date | 12/15/2016 8:20:42 AM |
material | Zinc Alloy |
batteries included | False |
