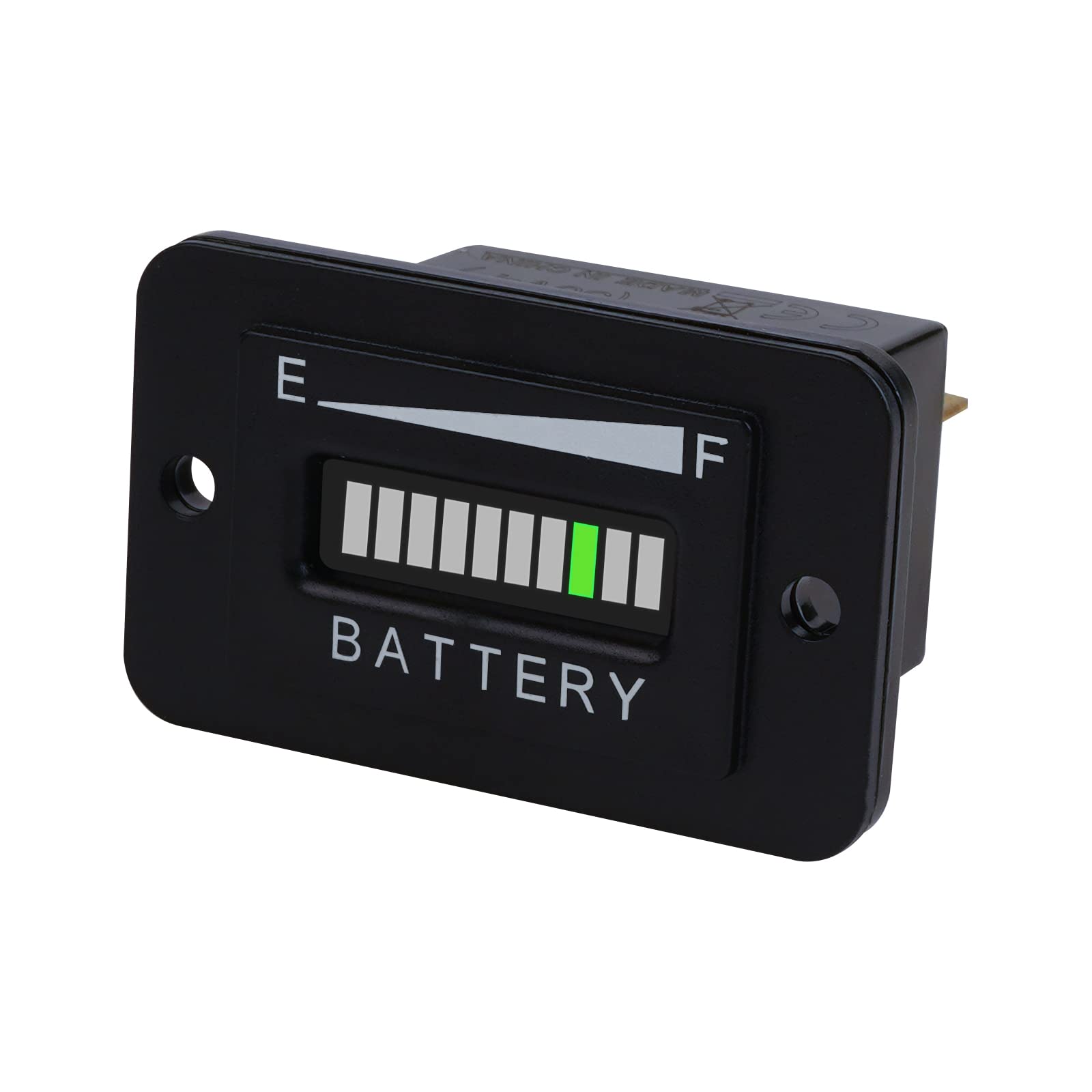

Discover the authentic 48V LED Battery Power Indicator,Battery Charge & Discharge Display,Applicable to Lead Acid Battery Powered Golf Cart Forklift Lawn Mower Leaf Trimmer Motorhome etc. by Runleader, part of our Battery Testers collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Battery Testers – 48V LED Battery Power Indicator,Battery Charge & Discharge Display,Applicable to Lead Acid Battery Powered Golf Cart Forklift Lawn Mower Leaf Trimmer Motorhome etc. by Runleader
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
1 Battery Level Indicator ---- Measure and display the current capacity for lead acid battery.
Determine how much power left for battery.
3 colors(1 red, 2 yellows and 7 greens) for 10 LED bars with 10% capacity per each.
It indicate the full battery capacity by first green LED bar, and low battery capacity by final red LED bar.
Different battery capacity will be displayed by related voltage percentage discharge from 10% to 90% (full to empty).
2 Charging Reminder
When battery power is low, it will flash to remind by red and yellow bars alternatively.
It will display the charging status by voltage percentage change from 90% to 10(empty to full).
3 Connection
You can connect your battery with device directly by positive, negative and C plugs(C is neccessary connect plug)
You can connect your battery with device by key switch control by positive,negative and C plugs(C is neccessary connect plug, key switch with positive plug)
Once LED bar scan from F to E, that means connection is successful.
4 Specifications
Product size 53x32x24mm(2.09x1.25x0.95 inches)
Operared Voltage: 48V;Operated Current:=20mA;Operated Temperature:-10 to +50
Applicable Battery Type: Lead Acid
Accessories: Screws,Insert springs,plug spring sheath,user manual
CE RoHS certification
Waterproof rate: IP65.

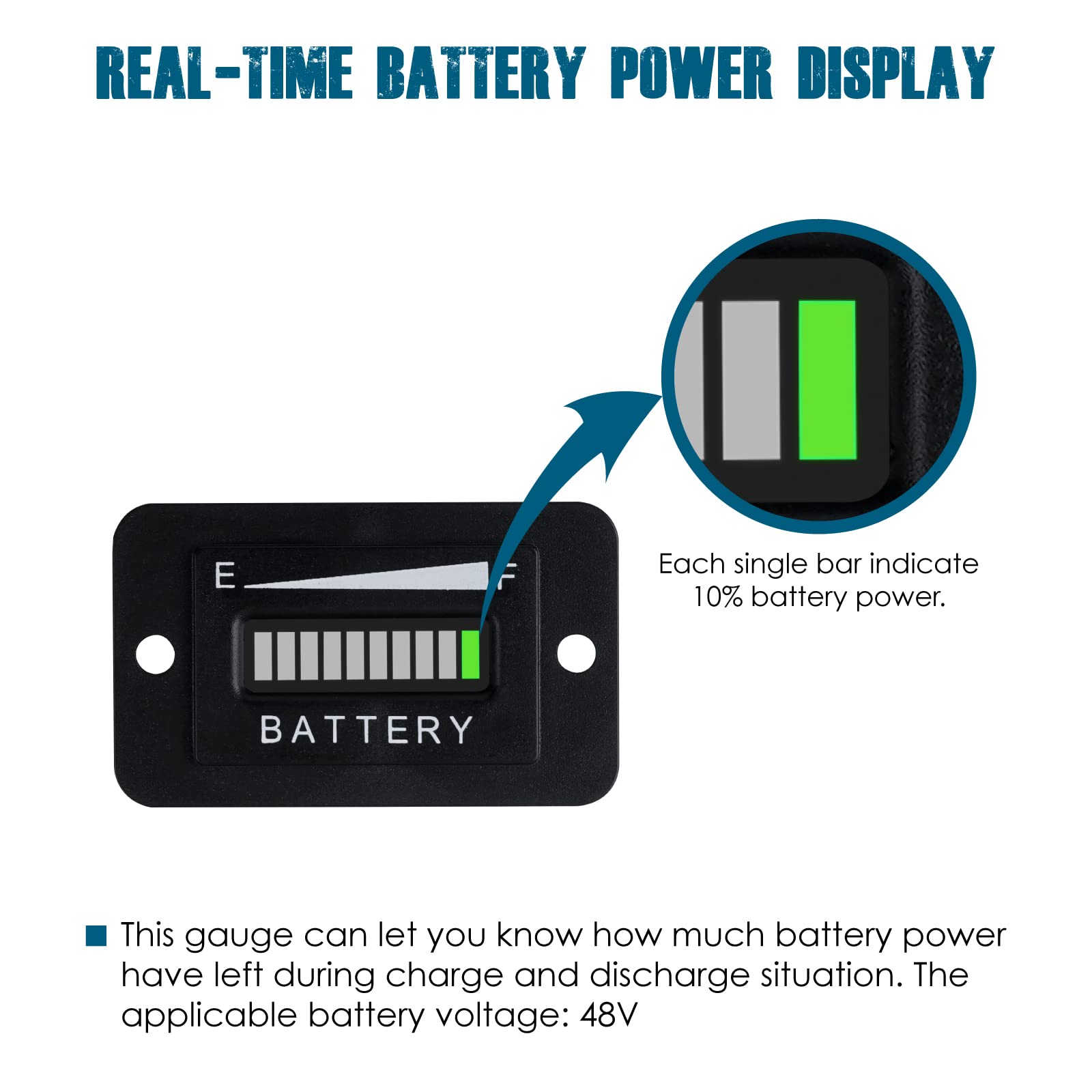

- LED BATTERY INDICATOR---- It is a useful device to help you to know how much battery power have left by 10 LED bars with 3 colors(1 red 2 yellows 7 greens,each bars indicate 10% battery power); It is applicable to 48V lead acid battery(not trojan) powered machines.

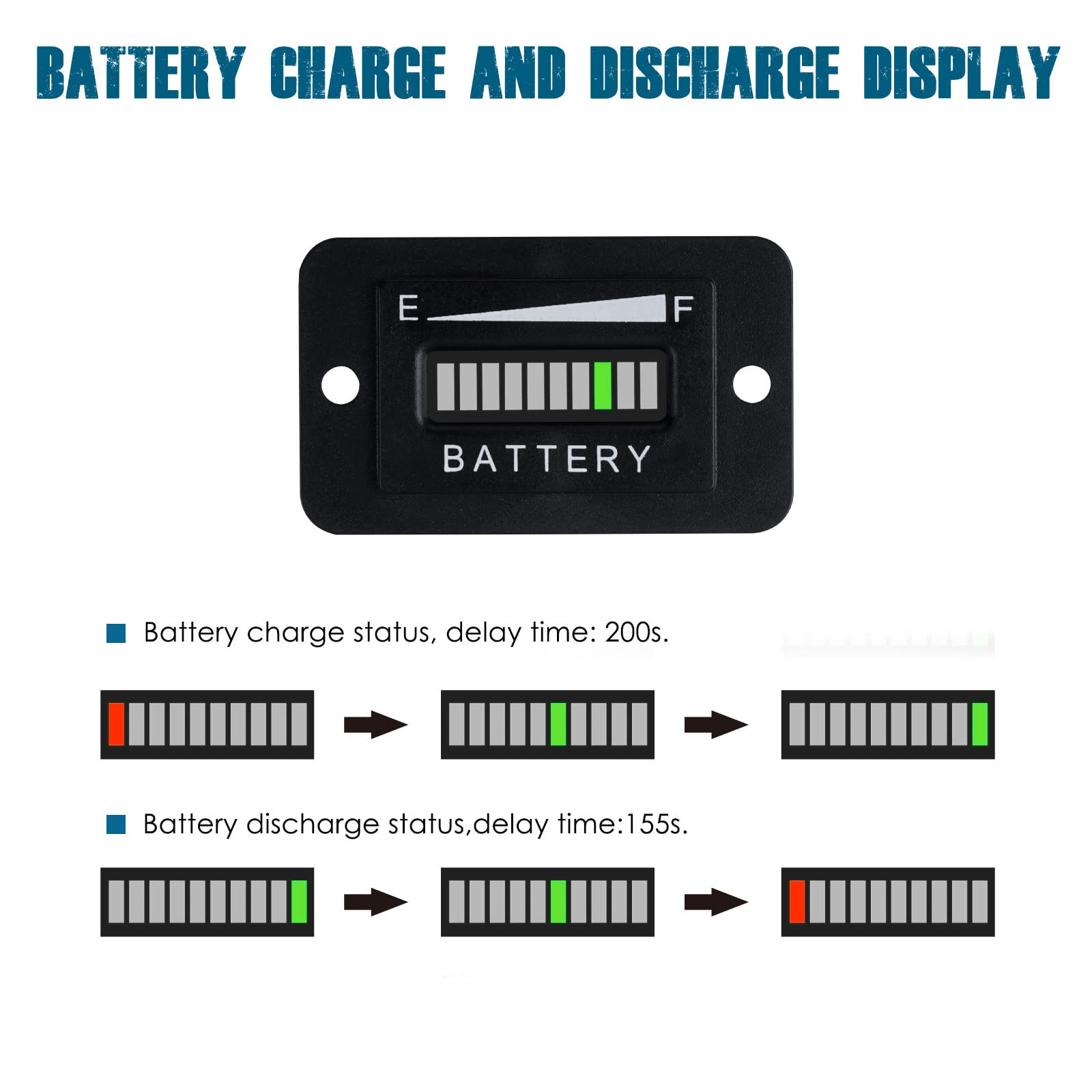

- BATTERY STATE OF CHARGE & DISCHARGE---- It display battery charge status by LED bars step up,and display battery discharge status by LED bars step down. Battery charge delay time: 200s;Battery discharge time:155s.

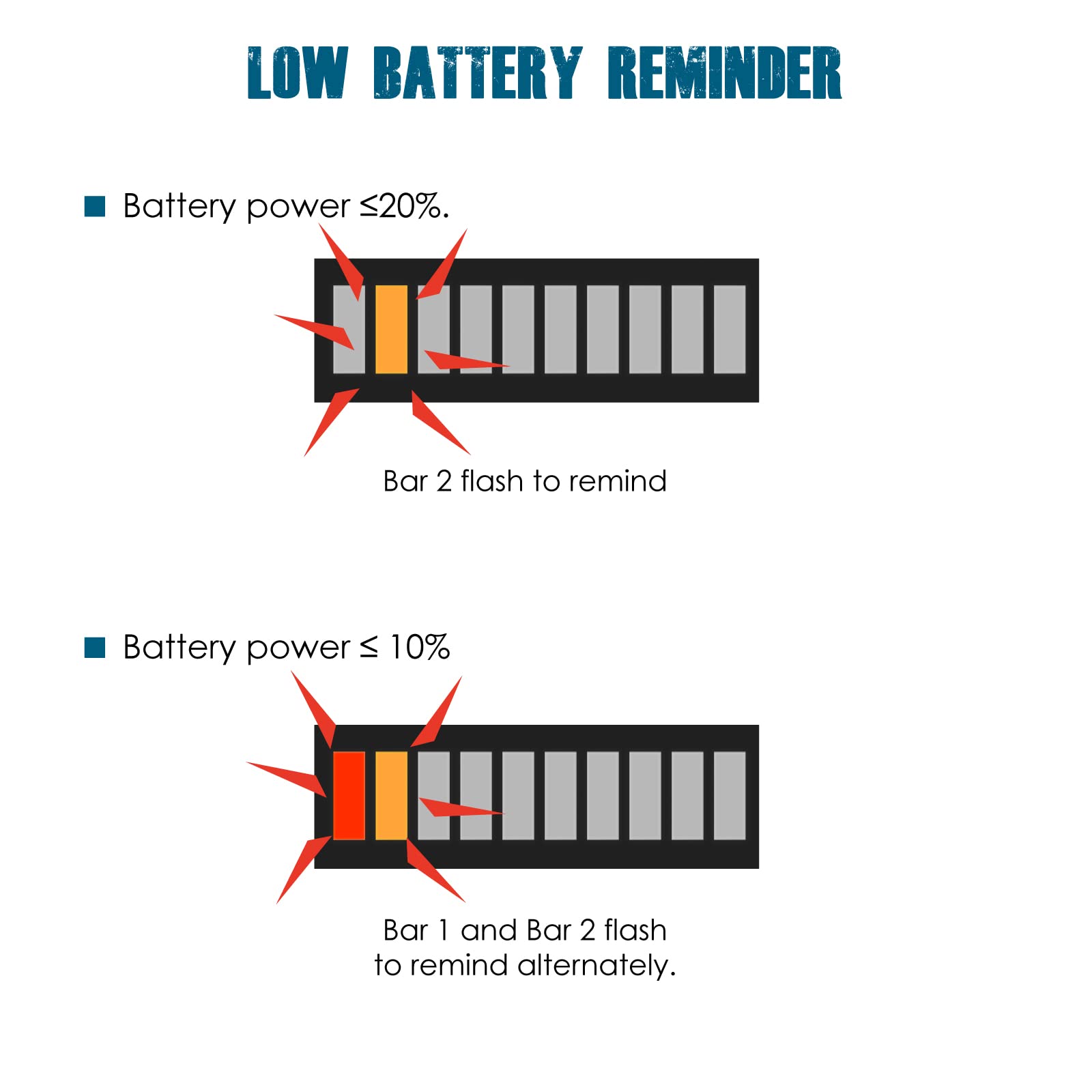

- LOW BATTERY REMINDER ---- It with ability to let you know when to charge the battery,when battery capacity =20%, it will remind you by 1 flashing LED bar,when battery capacity=10%,it will remind you by 2 bars flashing alternately.
- INSTALLATION ---- Easy to mount it at any proper place by snap-in pannel cut-out size: 37.00mm*25.00mm(1.46 inches*0.98 inch);Avaliable 2 kinds of power connection methods: direct power connection and key switch power connection based on easy positive and negative connection; Link the “C” pole with positive(+) as a key step for normal battery power display.

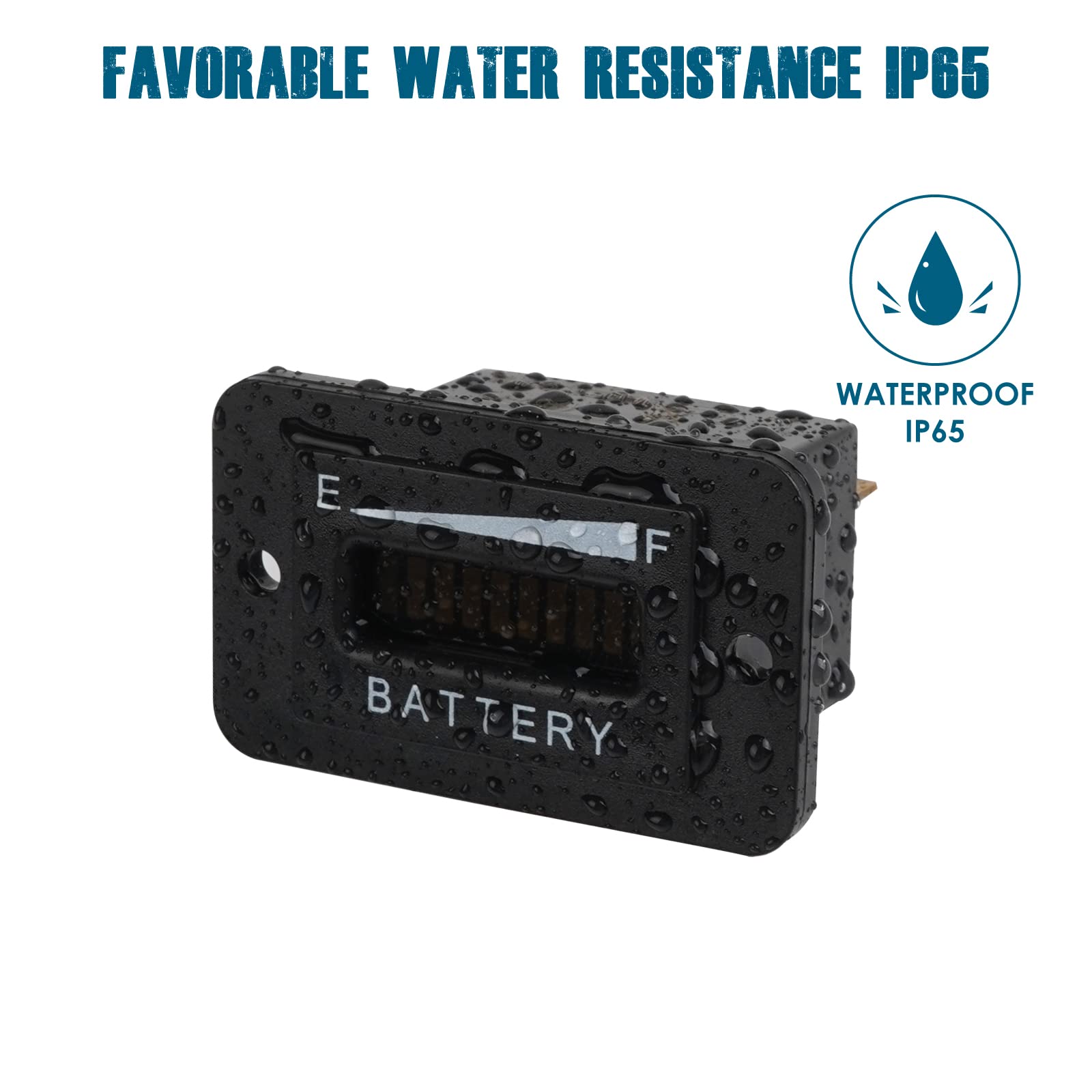

- OTHER FEATURES---- Favorable water resistance up to IP65;Well-compeleted accessories;Excellent after-sales and technical support(2 years warranty)
- Item Weight: 0.01 ounces
- Item Dimensions: Width: 32 millimeters, Height: 24 millimeters, Length: 53 millimeters
- Item Package Dimensions: Width: 5.3086 centimeters, Height: 6.2992 centimeters, Length: 4.3942 centimeters
| Attribute | Value |
|---|---|
| measurement type | Voltmeter |
| included components | no |
| item package quantity | 1 |
| specification met | CE, RoHS |
| brand | Runleader |
| item type keyword | auto-battery-testers |
| number of items | 1 |
| size | 48V |
| part number | RL-BI003 |
| style | Voltage Tester |
| color | black |
| measurement accuracy | 0.01 |
| item package weight | 0.041 |
| manufacturer | Ningbo Jiangbei Run Leader Electronics Co., Ltd |
| minimum operating voltage | 48 |
| model number | RL-BI003 |
| supplier declared dg hz regulation | not_applicable |
| batteries required | False |
| power source type | Battery Powered,electric |
| product site launch date | 5/25/2016 5:24:41 AM |
| material | ABS |
| upper temperature rating | 50 |
| unit count | 1 |
| batteries included | False |
