Discover the authentic 12V DC 6 inch 150mm Stroke Linear Actuator Heavy Duty 750N 165lbs Maximum Lift by SOViK, part of our Linear Motion Actuators collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Linear Motion Actuators – 12V DC 6 inch 150mm Stroke Linear Actuator Heavy Duty 750N 165lbs Maximum Lift by SOViK
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
Product Details
SOViK 6 inch 150mm Stroke Linear Actuator was produced for applications which require a quiet and heavy-duty operation state. The wider range of temperature has made the operation much easier, and it's also suitable for using outdoor. Please pay attention to the MAX LOAD, MAX CURRENT and DUTY CYCLE, which are the most direct factors that affect the life of linear actuator.
Specification
Input Voltage: 12 DC
Stroke Length: 6 inch/150mm
Maximum Load: 165lbs/ 750N
Type of Gear: Powder metallurgy gear
Maximum self-locking force: 2300N / 507lbs
Mounting Holes: 6mm diameter
Minimum Mounting Length =Retracted Length: 10 inch/255mm
No Load Speed: 10mm (0.39 inch)/second
Duty cycle: 20%
Operating temperature range: -20 to +65 degree Celsius
Protection Class: IP54 Rated
Material: Aluminum alloy
Color: Silver
Suggestion
As we know, the heavy load is always with the slow speed. Actually, if you don't need a lot of load, you can select a lighter but faster item.

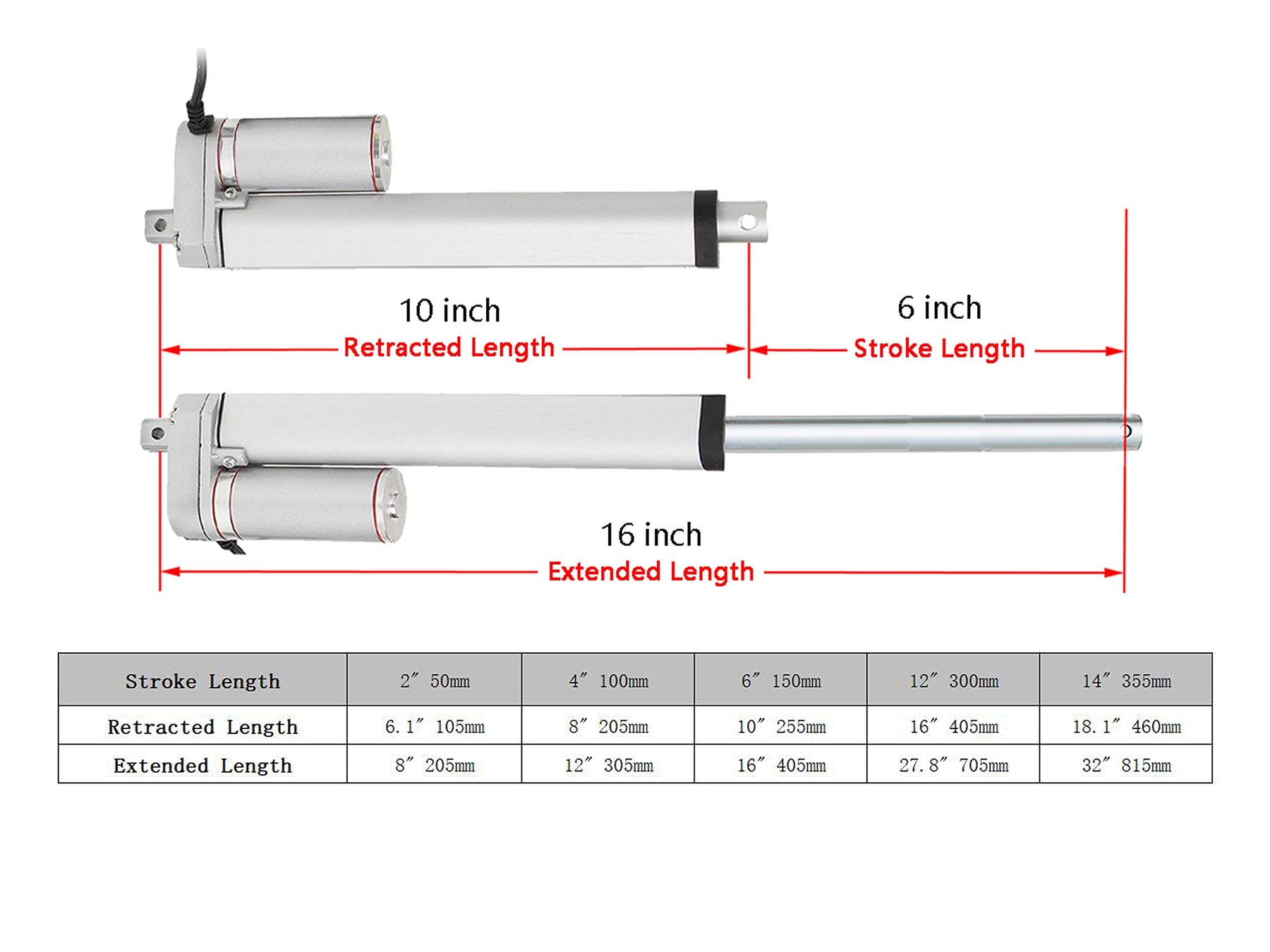

- 6 inch stroke length, 10 inch(255mm) retracted length, 16 inch(405mm) extended length
- 165Lbs(750N) Maximum Load. No-load speed:10mm per sec
- 6mm diameter mounting holes. Built-in limit switch
- Protection class IP54, incomplete waterproofing. Maximum current 3A

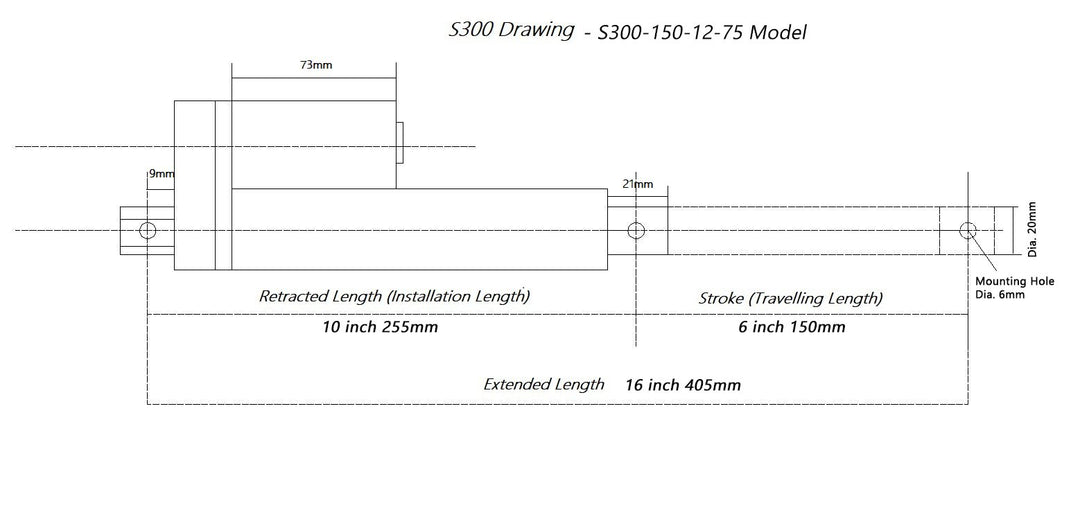

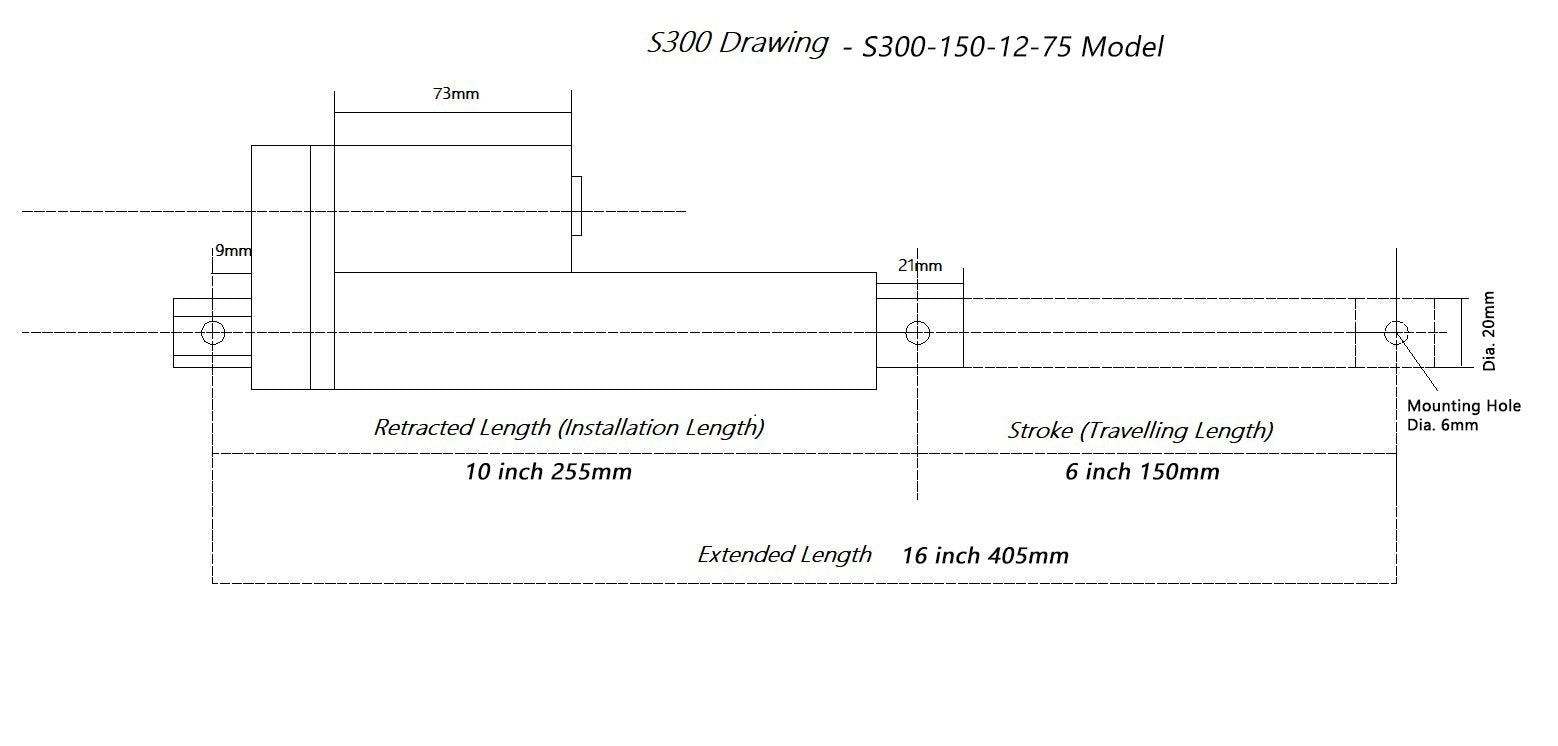

- Please pay attention to the dimension of product, SEE DIMENSIONAL DRAWING AND ADDITIONAL TECHNICAL SPECIFICATIONS. To avoid order a wrong size.
- Item Weight: 2 pounds
- Item Dimensions: Width: 3 inches, Height: 1.6 inches, Length: 10.83 inches
- Item Package Dimensions: Width: 9.398 centimeters, Height: 28.956 centimeters, Length: 5.08 centimeters
| Attribute | Value |
|---|---|
| load capacity | 165.00 |
| item package quantity | 1 |
| brand | SOViK |
| item type keyword | linear-motion-actuators |
| number of items | 1 |
| size | 6 |
| part number | S300-150-12-75 |
| item package weight | 0.93 |
| manufacturer | SOViK |
| model number | S300-150-12-75 |
| supplier declared dg hz regulation | not_applicable |
| batteries required | False |
| product site launch date | 11/24/2017 8:00:00 AM |
| material | Aluminum |
| batteries included | False |
