Buy SparkFun Sound Detector Audio Sensing Breakout Three Different outputs Audio Presence of Sound Binary Indication Amplitude Analog Representation VCC: 3.5V to 5.5V Ideal Voltage is 5V Products Online In India
Sound Detector Audio Sensing Breakout Three Different outputs Audio Presence of Sound Binary Indication Amplitude Analog Representation VCC: 3.5V to 5.5V Ideal Voltage is 5V by SparkFun
🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.
In stock, ready to ship
Backordered, shipping soon
Share:
Free shipping all over India
Free & Easy Returns*
100% Secure payments*
Discover the authentic Sound Detector Audio Sensing Breakout Three Different outputs Audio Presence of Sound Binary Indication Amplitude Analog Representation VCC: 3.5V to 5.5V Ideal Voltage is 5V by SparkFun, part of our Sensors collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
Original Sensors – Sound Detector Audio Sensing Breakout Three Different outputs Audio Presence of Sound Binary Indication Amplitude Analog Representation VCC: 3.5V to 5.5V Ideal Voltage is 5V by SparkFun
100% authentic and sourced from trusted suppliers
Imported from the USA with strict quality checks
Available at the best price in India
Fast and secure delivery across the country

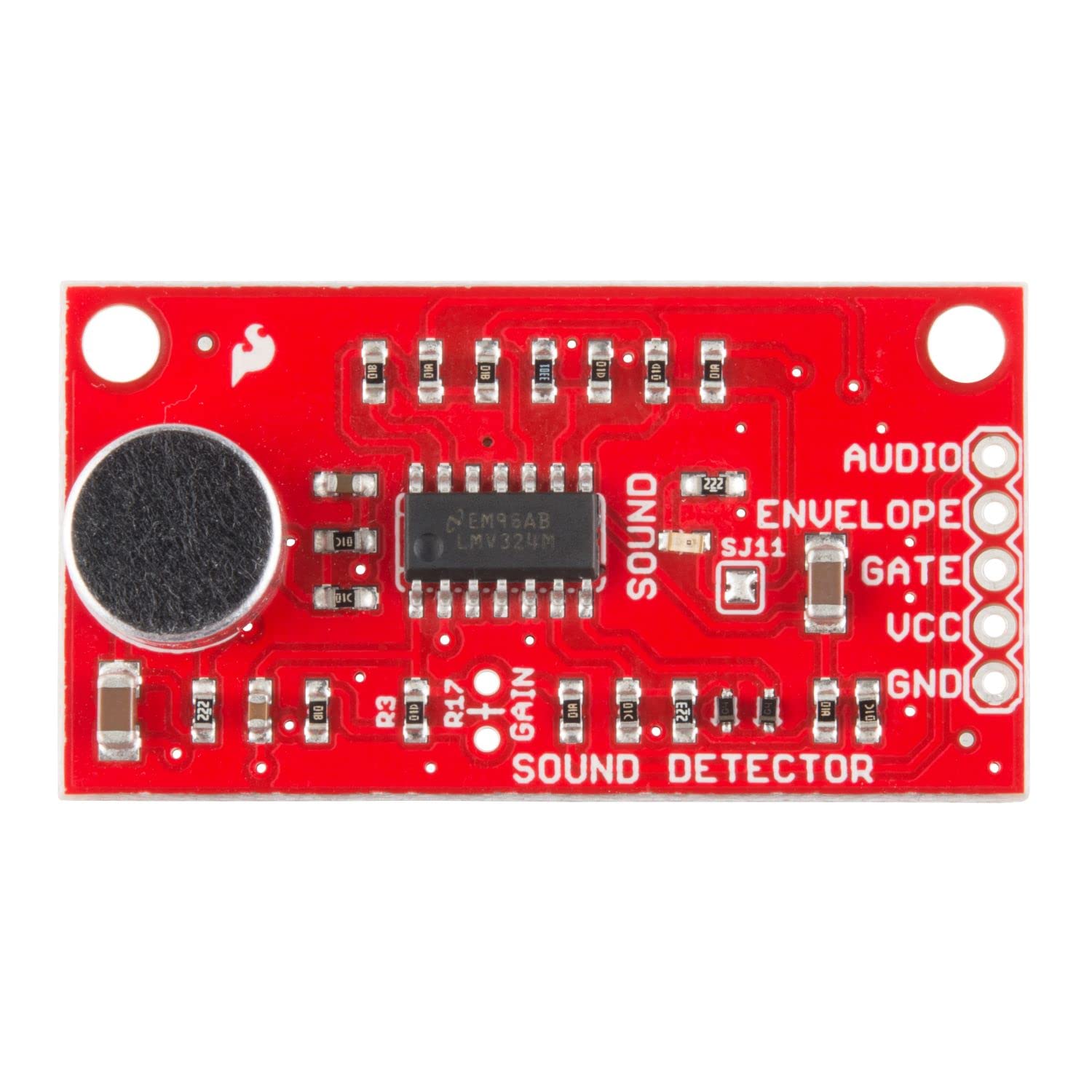

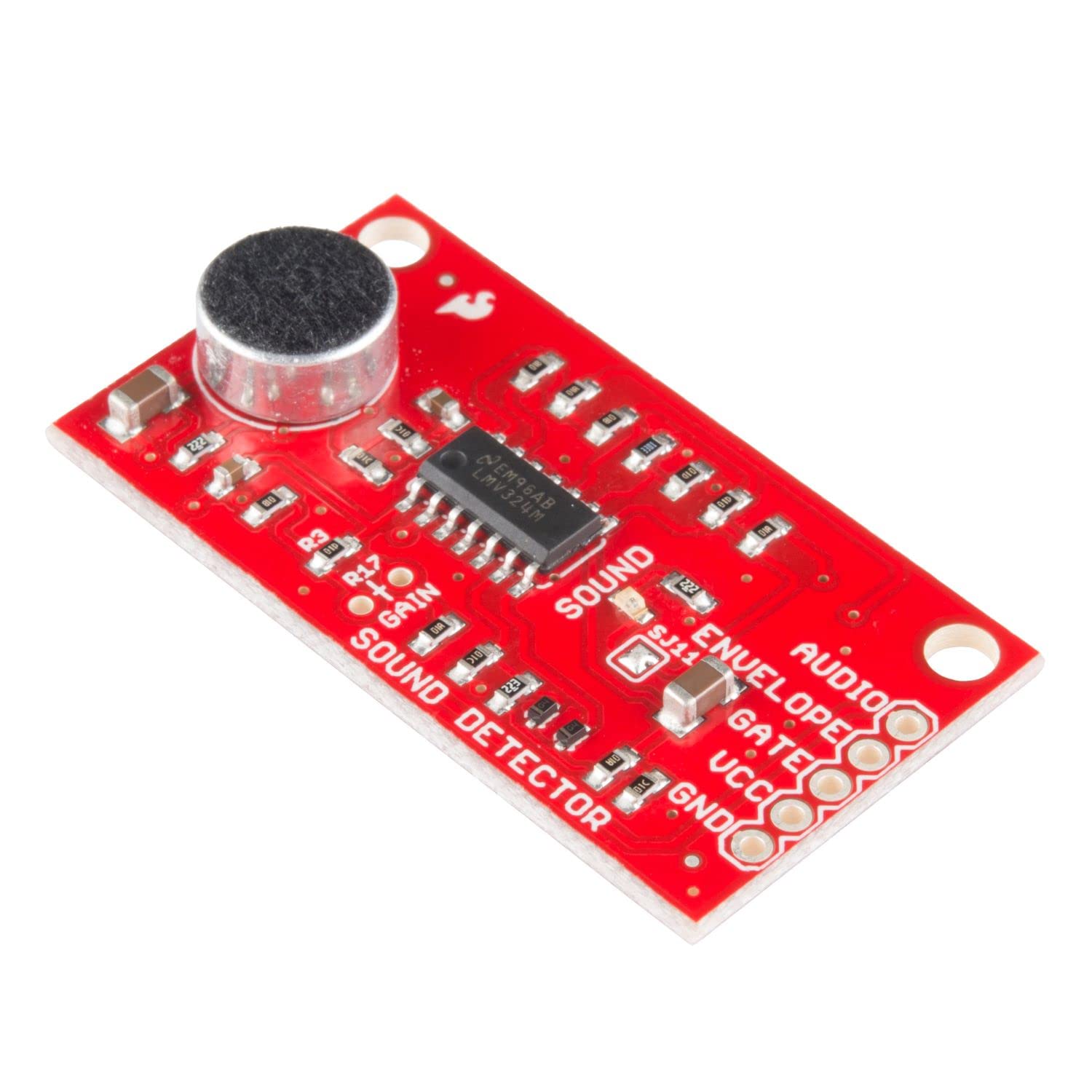

The SparkFun Sound Detector is a small and very easy to use audio sensing board with three different outputs. The Sound Detector not only provides an audio output, but also a binary indication of the presence of sound, and an analog representation of its amplitude. The 3 outputs are simultaneous and independent, so you can use as many or as few as you want at once.
The envelope output allows you to easily read amplitude of sound by simply measuring the analog voltage. Gain can be adjusted with a through-hole resistor, to change the threshold of the binary (gate) output pin as well. Check the hookup guide for more information about setting gain.

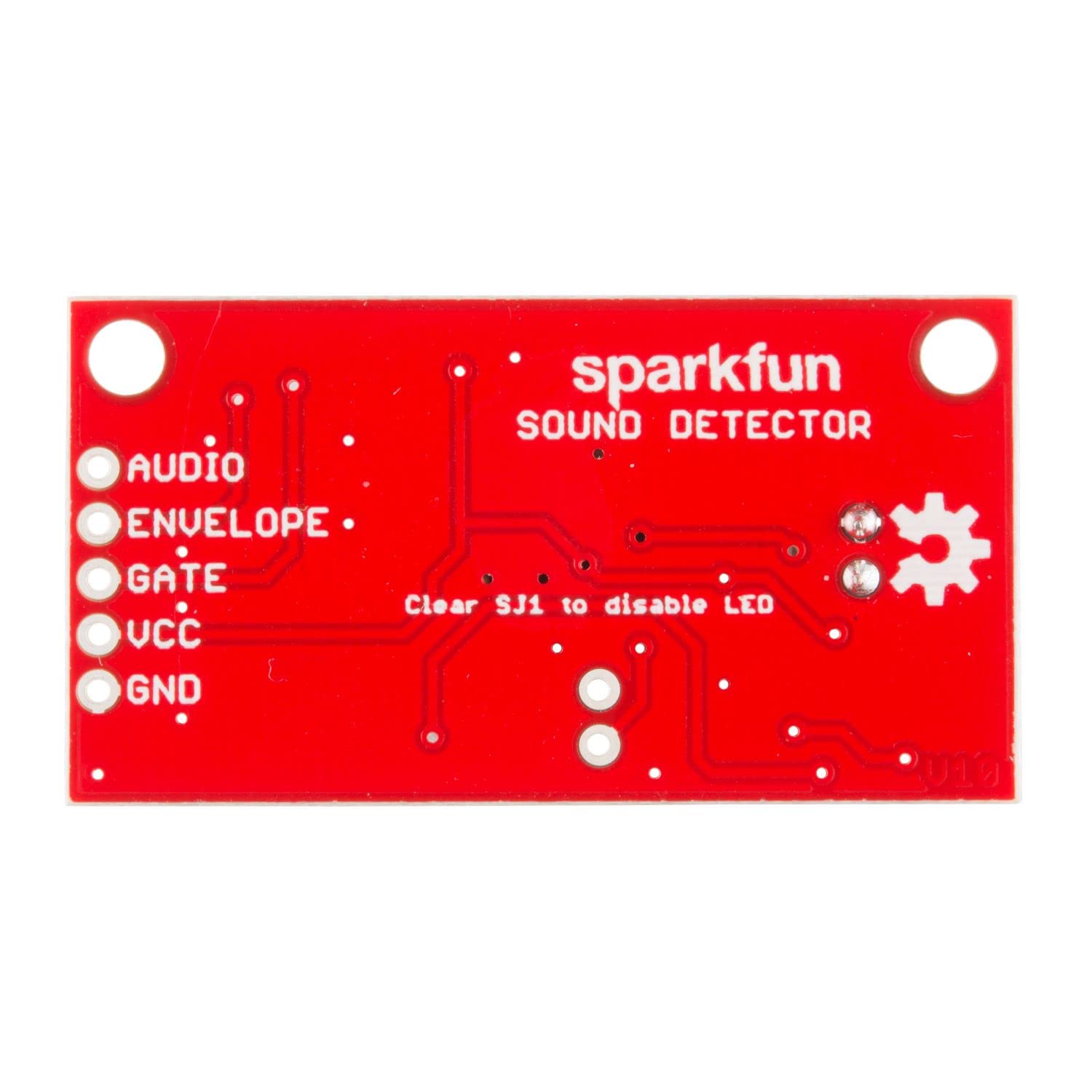

Each of the three output signals is present on the .1 header at the edge of the board. They are active simultaneously. If you aren’t using one in your particular application, simply leave that pin disconnected.
VCC: 3.5V to 5.5V. Ideal voltage is 5V.
Three independent outputs: The SparkFun Sound Detector provides three outputs—audio, binary sound detection, and analog amplitude—allowing you to use any combination of them simultaneously
Envelope output for amplitude measurement: Easily read the amplitude of sound by measuring the analog voltage from the envelope output pin
Adjustable gain: Gain can be modified using a through-hole resistor, which also adjusts the threshold for the binary (gate) output pin
Simple pin-out connection: The three output signals are accessible on a .1 pin-out at the edge of the board and are active simultaneously
Flexibility in usage: If a particular output is not needed, simply leave the corresponding pin disconnected while still using the others
At The Global Genie, we bring global products closer to you. Whether it’s Sensors like the Sound Detector Audio Sensing Breakout Three Different outputs Audio Presence of Sound Binary Indication Amplitude Analog Representation VCC: 3.5V to 5.5V Ideal Voltage is 5V by SparkFun or any other international favorite, we guarantee authenticity, fair pricing, and doorstep delivery across India. Shop confidently knowing every product is carefully verified and backed by our trusted supplier network.
Now you can order Sound Detector Audio Sensing Breakout Three Different outputs Audio Presence of Sound Binary Indication Amplitude Analog Representation VCC: 3.5V to 5.5V Ideal Voltage is 5V by SparkFun by from anywhere in India — including Delhi, Mumbai, Bangalore, Hyderabad, and Chennai — with fast doorstep delivery from TGG
TheGlobalGenie operates solely as a global cross-border e-commerce logistics provider. Our role is limited to facilitating the delivery of goods selected by you, as received from the original brand or its authorized distributors. We do not assume any responsibility for the quality, functionality, or any other issues related to the products you purchase through our platform. Our services are strictly limited to the transportation and delivery of your selected items. Any concerns regarding the product itself, including but not limited to defects, quality, or performance, must be addressed directly with the manufacturer or authorized distributor. TheGlobalGenie disclaims all liability in this regard.
Delivery Timeline: Orders are typically delivered within 10 to 12 days from the date of purchase.
Shipping Coverage: We only use premium courier services like Blue Dart Express And India Post(For non-serviceable pin codes in Blue Dart Express , which may take more than usual time to deliver). So all the pin codes across India serviceable by Blue Dart Express and India post are covered in our shipping capability.
Order Processing: Once an order is placed, it will be processed and shipped within the shortest possible time.
Customs & Duties: Any applicable customs duties or import fees will be the responsibility of the TheGlobalGenie.(YOU PAY WHAT YOU SEE).
