Discover the authentic Reader Module Kit Mifare RC522 Reader Module with S50 White Card and Key Ring Compatible with Arduino Raspberry Pi by SunFounder, part of our Single Board Computers collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Single Board Computers – Reader Module Kit Mifare RC522 Reader Module with S50 White Card and Key Ring Compatible with Arduino Raspberry Pi by SunFounder
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
The original Philips MFRC522 chip design circuit card reader is easy to use and low cost, and applies to the user equipment development, The reader and the development of advanced applications, and the need for the user RF card terminal design/production. This module can be directly loaded into various reader modules. It utilizes a voltage of 3.3V, through the SPI interface with simply a few wires. Directly connected with a CPU motherboard, the module can work in a stable and reliable manner as a distance card reader.
Specifications:
Operating current :13-26mA/DC 3.3V
Idle current :10-13mA/DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Read Range: 0 ~ 35mm (mifare1 card)
Size: 40mm×60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Module interfaces SPI: Data transfer rate maximum 10Mbit/s
Supported card types: Mifare1 S50, Mifare1 S70, MIFARE Ultralight, Mifare Pro, and MIFARE DESFire.

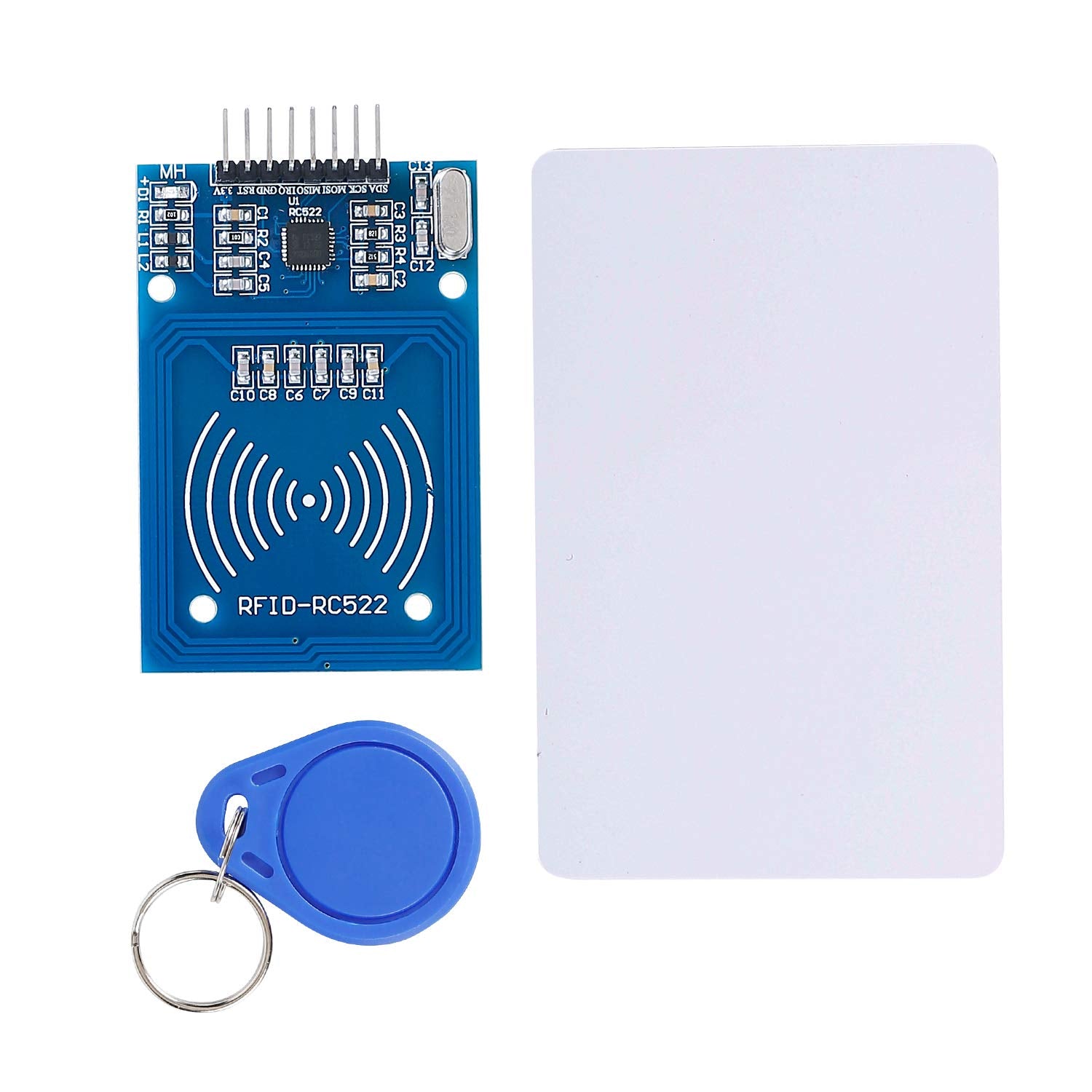

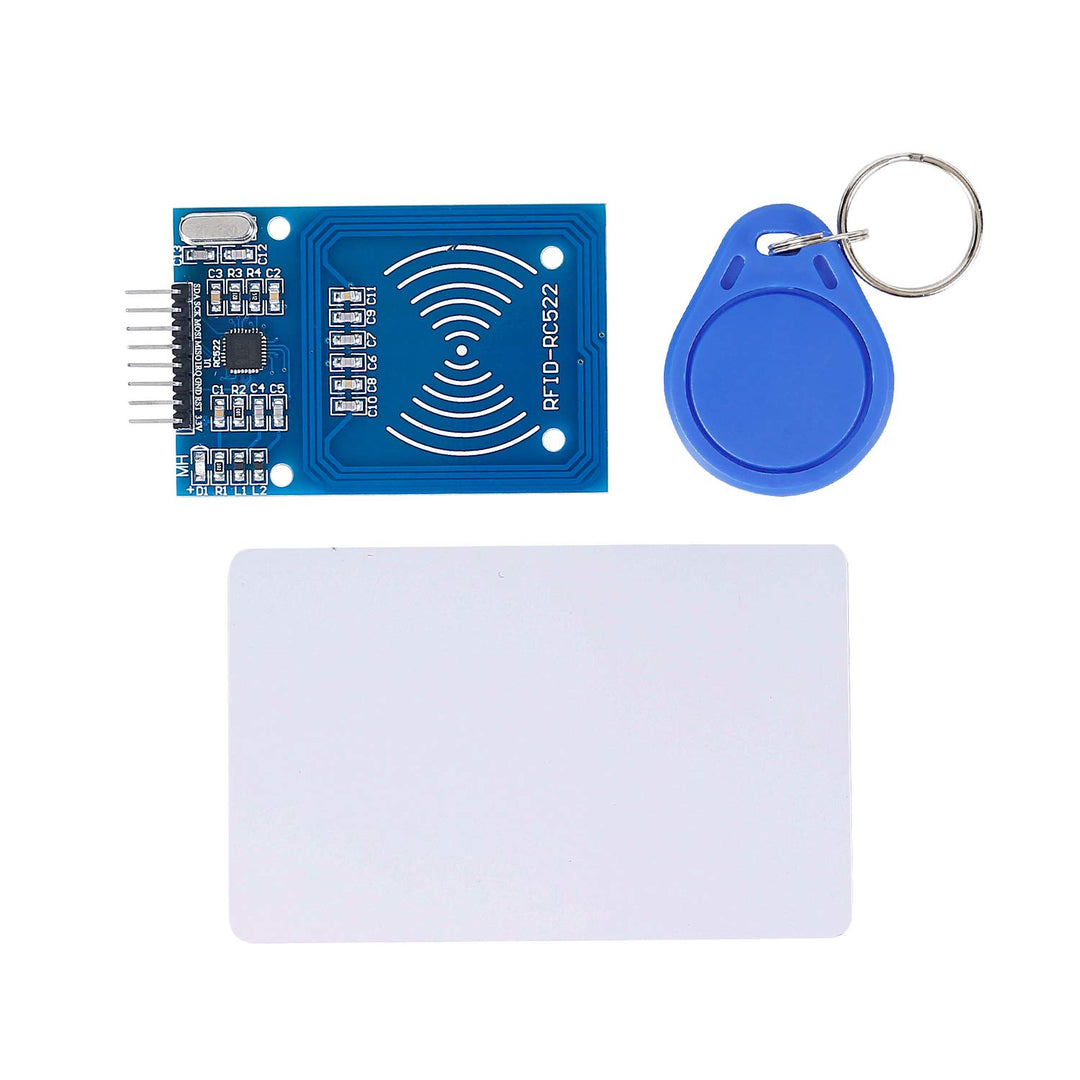

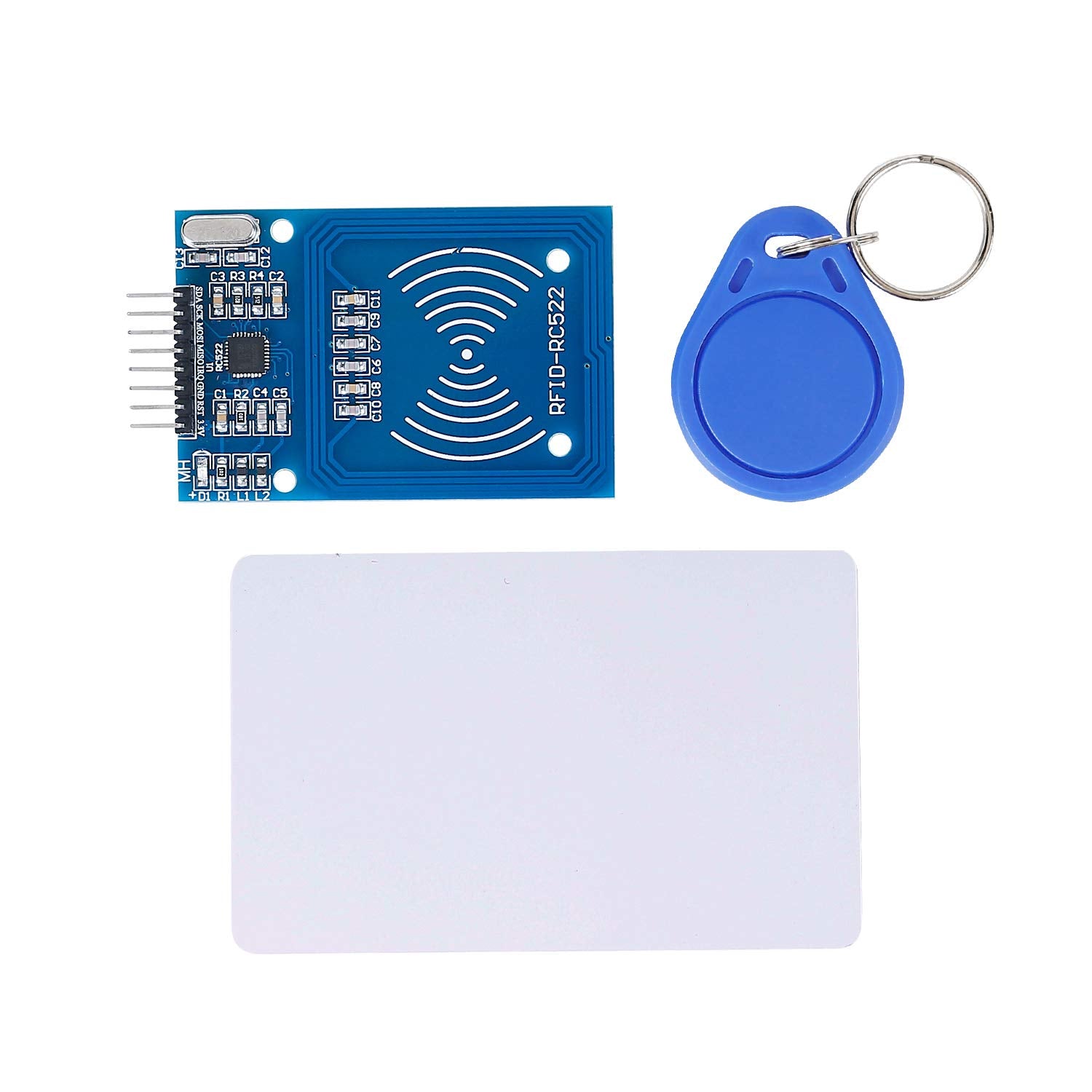

Package included:
1 * RC522 module

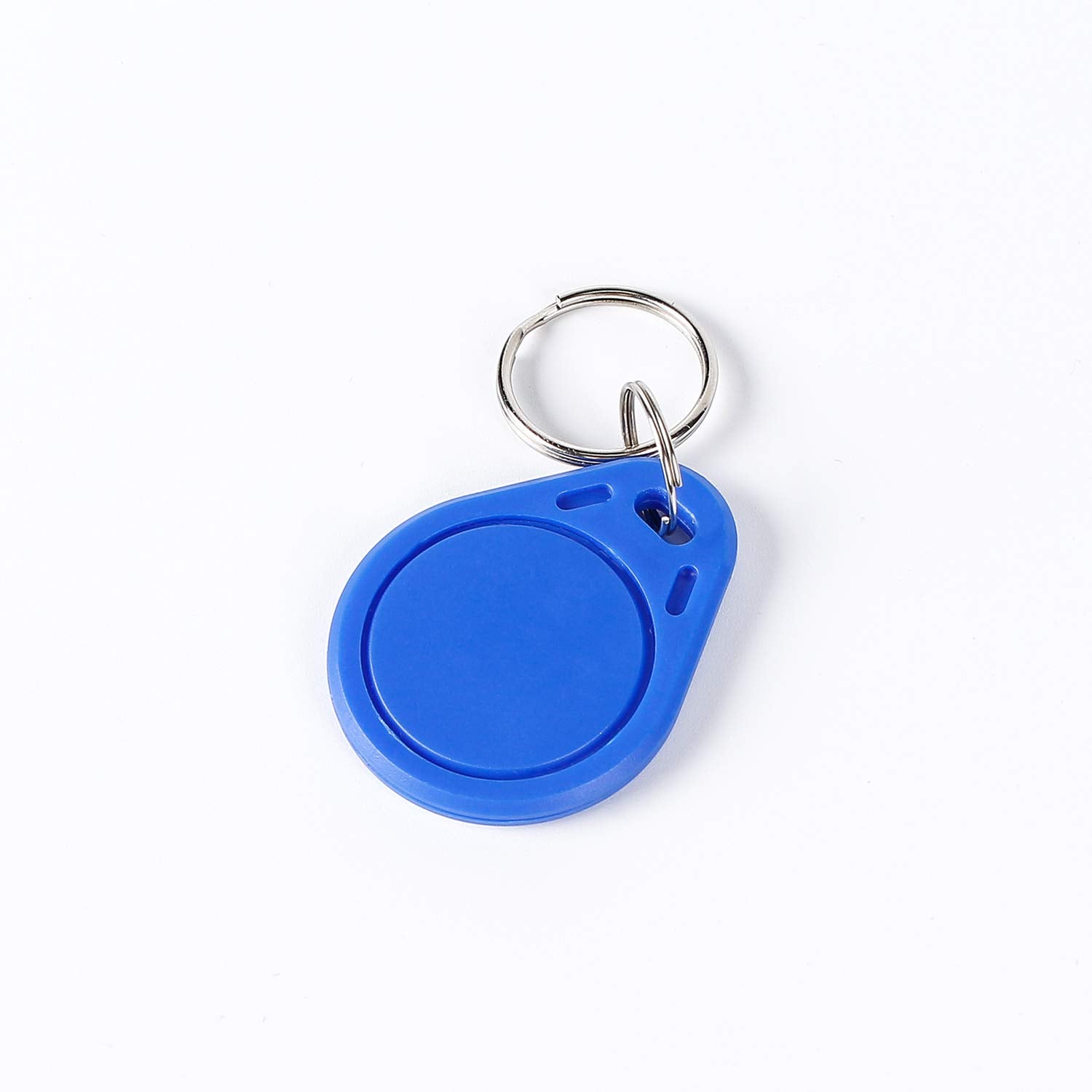

1 * key fob
1 * Reader Module Card

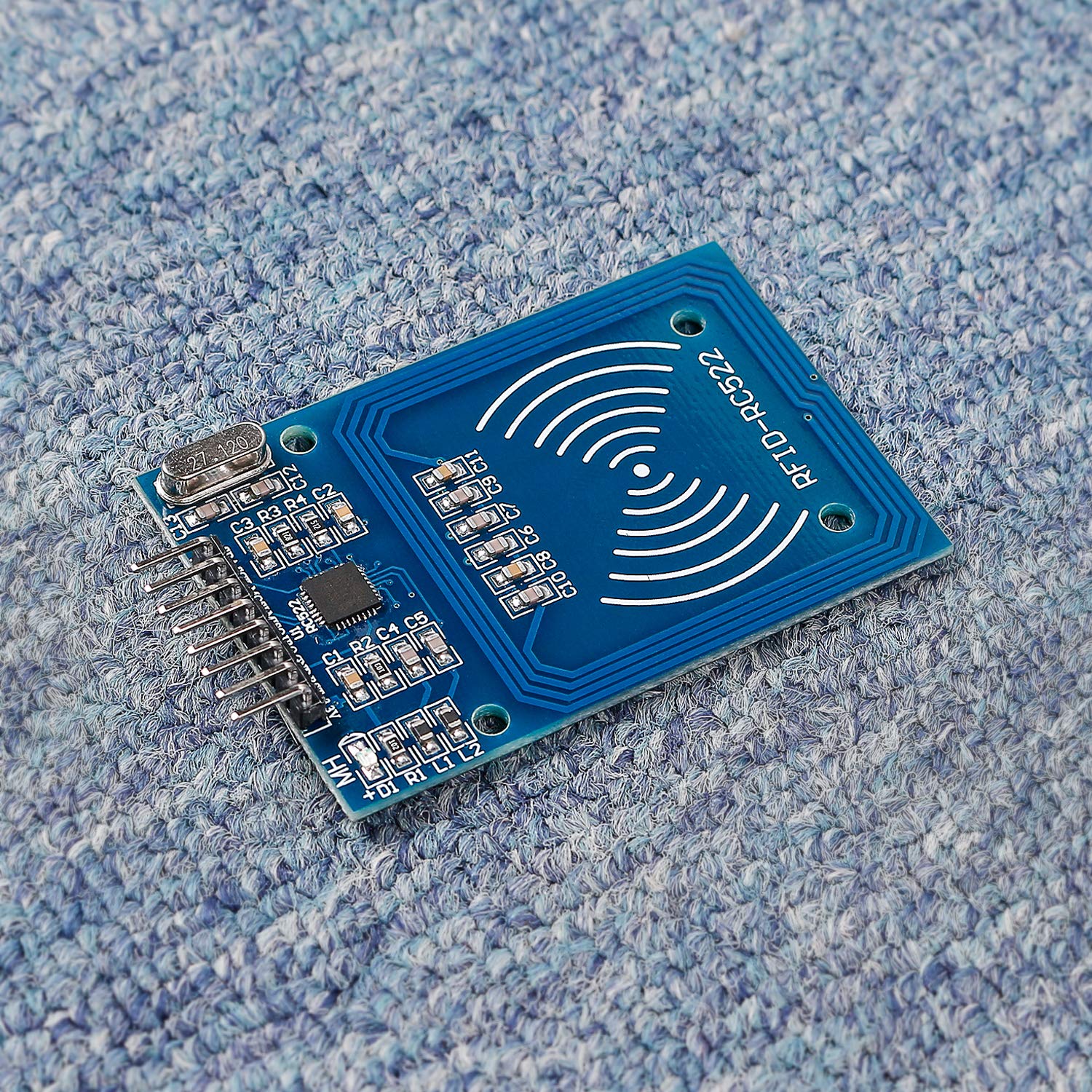

- The RF IC Card module design the circuit of card read by using the original Philips MFRC522 chip

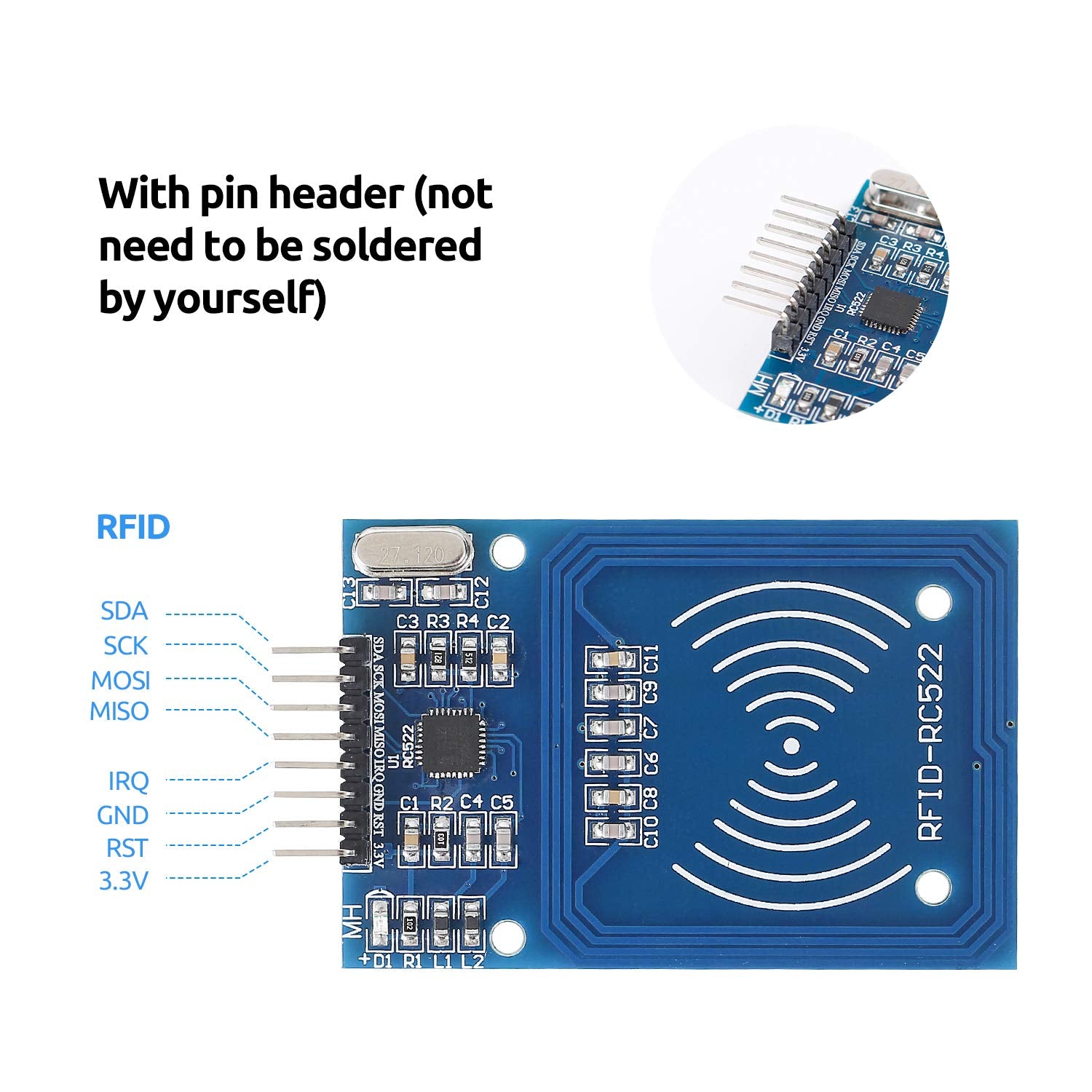

- Easy to use, with pin header. The module can be directly loaded into the various reader molds.
- Applicable for the user who need to design or manufacture the RF card terminal.
- Module Interface: SPI, Data transfer rate: Maximum 10Mbit/s.
- Power Voltage : 3.3V,Operating frequency: 13.56MHz.
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 8.7122 centimeters, Height: 12.4968 centimeters, Length: 1.397 centimeters
Attribute | Value |
---|---|
connectivity technology | SPI |
fcc radio frequency emission compliance | |
resolution | 1920 x 1080 |
brand | SunFounder |
item type keyword | single-board-computers |
hardware interface | usb |
warranty description | 1 Year Guarantee |
part number | RC522 Reader Module |
specific uses for product | RFID Technology, Data Communication |
personal computer design type | mini_pc |
aspect ratio | 16:9 |
color | Version 2(blue) |
item package weight | 0.018 |
manufacturer | SunFounder |
graphics description | Dedicated |
cpu model | |
operating system | Linux |
model number | NA |
supplier declared dg hz regulation | not_applicable |
keyboard layout | qwerty |
special feature | Lightweight |
human interface input | keypad |
wireless communication technology | rf |
display | |
batteries required | False |
product site launch date | 11/13/2018 8:00:00 AM |
compatible devices | Raspberry Pi, Arduino |
native resolution | 1920 x 1080 |
graphics card interface | integrated |
batteries included | False |
