Discover the authentic Spiral Flute Taps, 1/4-28 UNF 2B High Speed Steel (HSS) Uncoated Machine Thread Milling Threading Screw Tap 3 Flutes Tapping Tool by uxcell, part of our Spiral Flute Taps collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Spiral Flute Taps – Spiral Flute Taps, 1/4-28 UNF 2B High Speed Steel (HSS) Uncoated Machine Thread Milling Threading Screw Tap 3 Flutes Tapping Tool by uxcell
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country

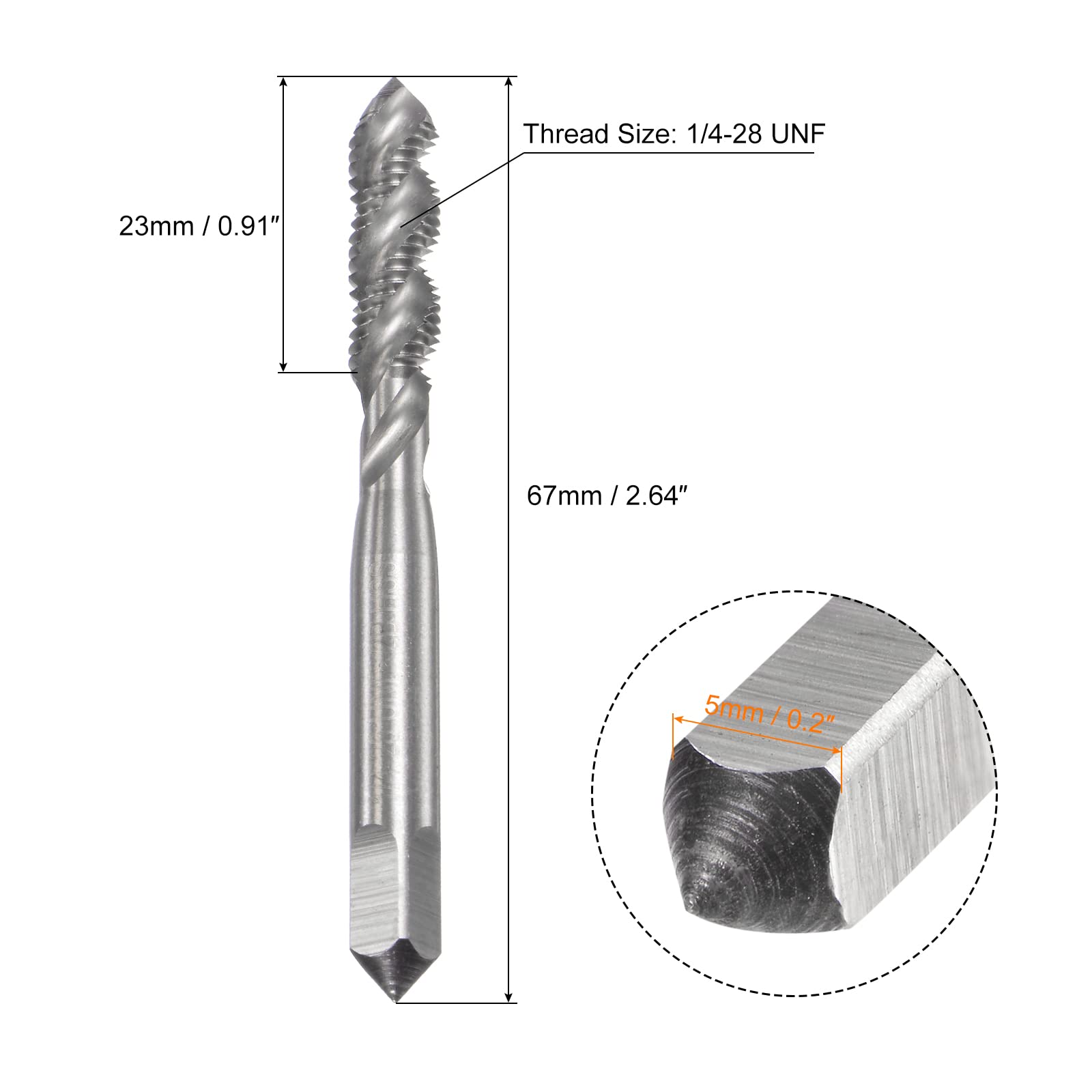

Thread Size: 1/4-28 UNF
Thread Length: 23mm / 0.91
Square End Size: 5mm / 0.2
Total Length: 67mm / 2.64
Thread Tolerance Grade: 2B
Material: High Speed Steel (HSS)
Finish: Uncoated
Numbers of Flutes: 3 Flutes
Cutting Direction: Right Hand
Package Content: 1pcs x Spiral Flute Thread Tap

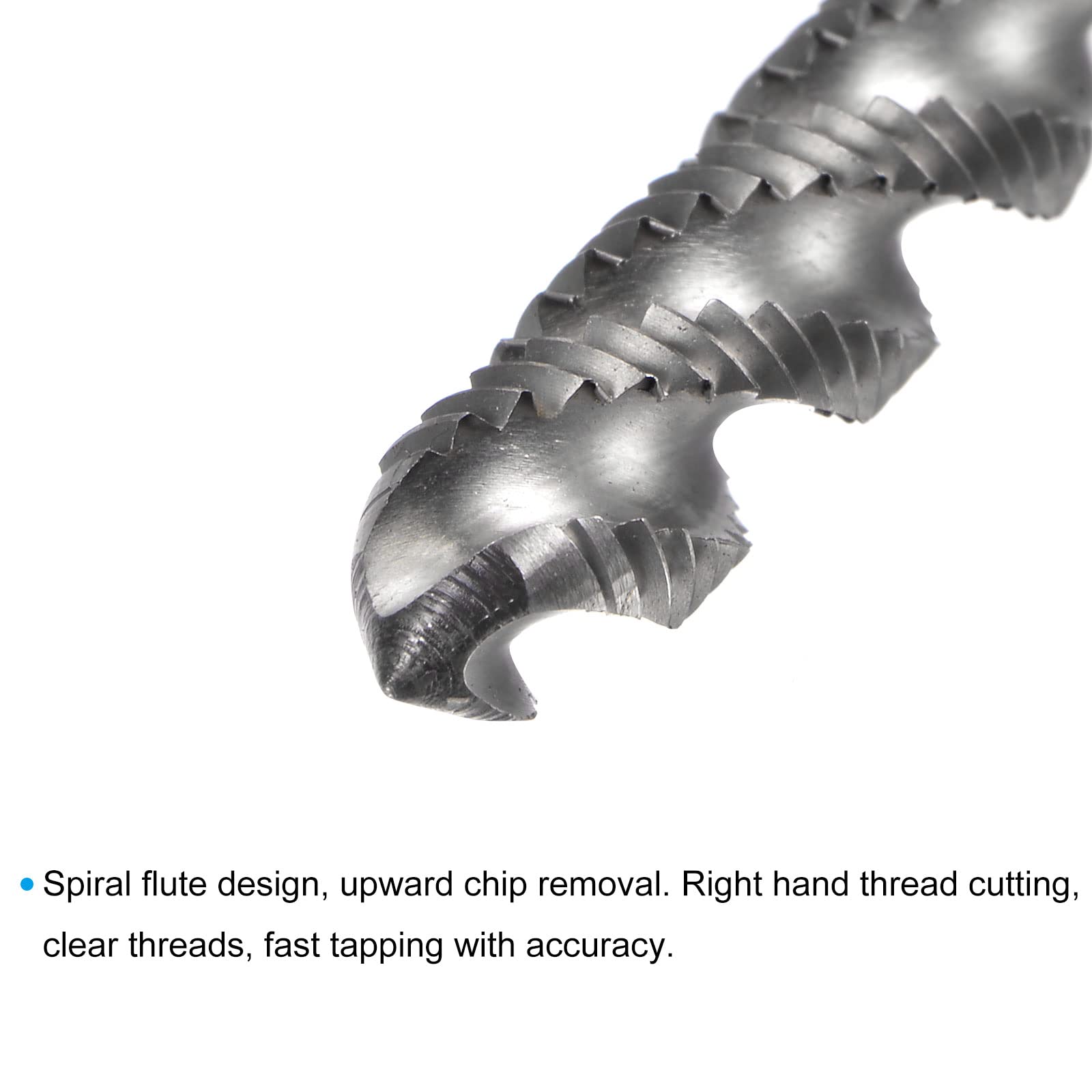

Descriptions:Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy. High speed steel tool has high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Fit for most general purpose thread tapping.
Suitable for processing holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break
Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
Tips: Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps are mainly used in clocks and watches, as well as for making holes in wood and soft metals with lower hardness.
- Spiral Flute Taps: Thread Size: 1/4-28 UNF; Tolerance Grade: 2B; Square End Size: 5mm / 0.2. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.

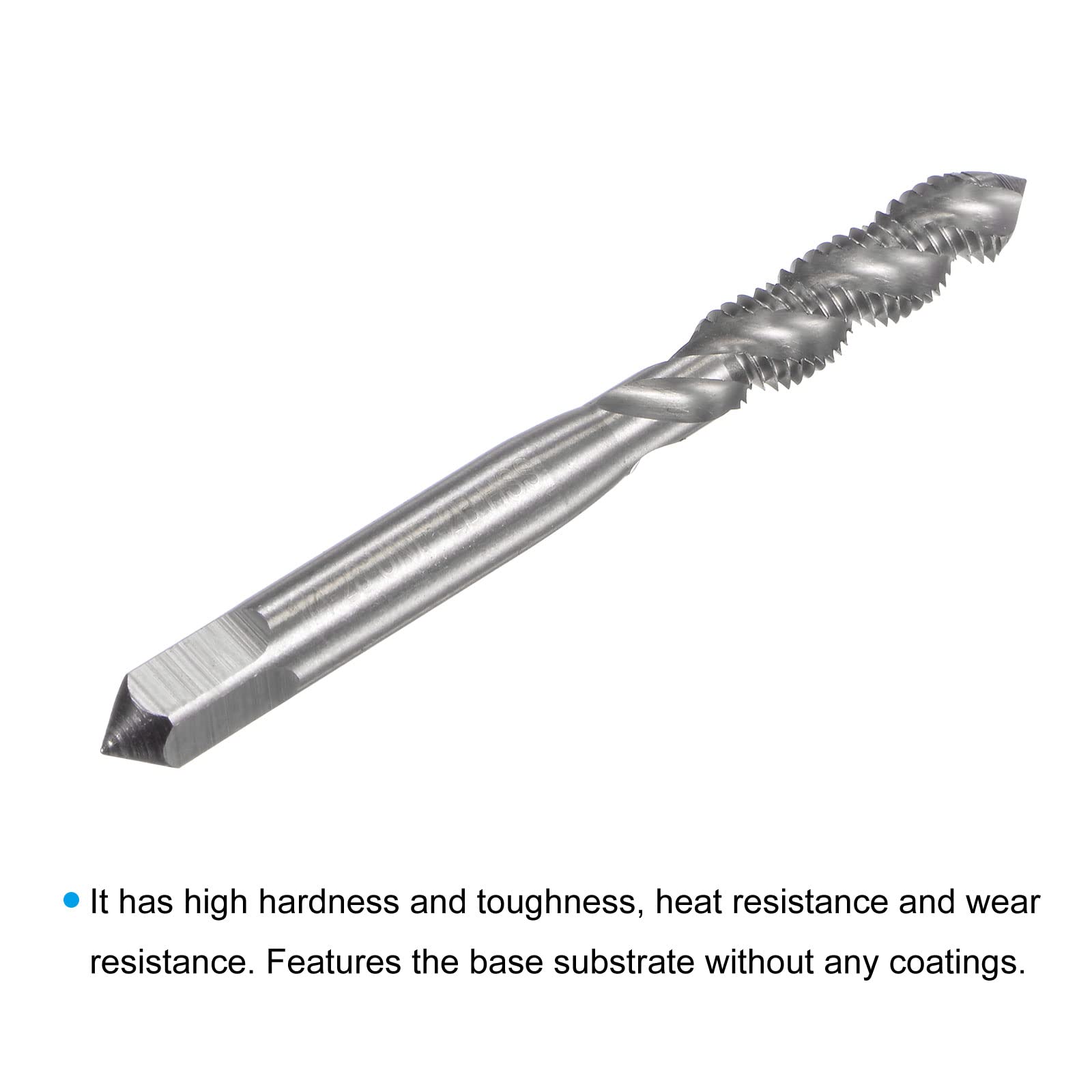

- High-speed steel tool: High speed steel tool has high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Fit for most general purpose thread tapping.

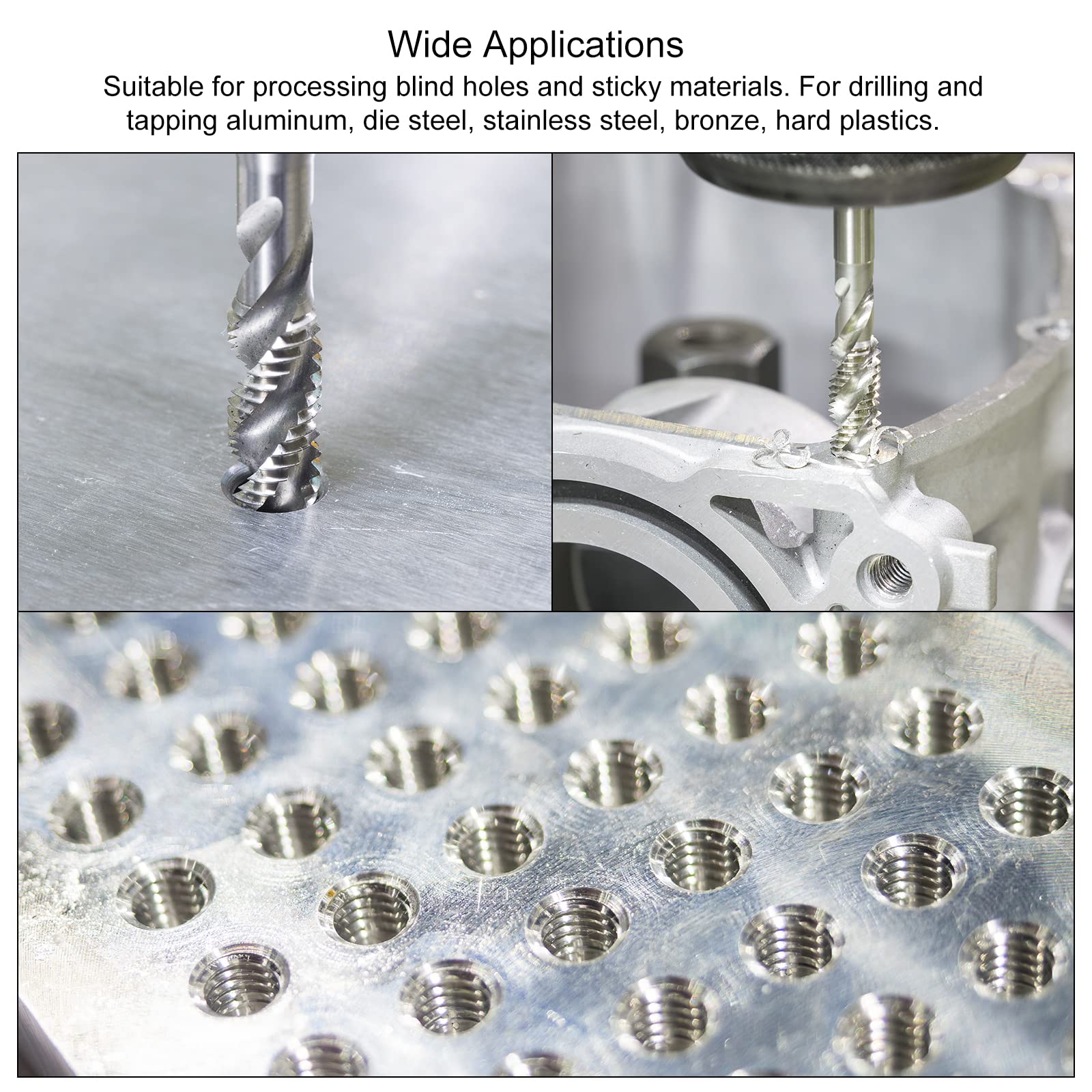

- Wide Applications: Suitable for processing blind holes and sticky materials. For drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
- Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection.
- Tips: Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps are mainly used in clocks and watches, as well as for making holes in wood and soft metals with lower hardness.
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 9.9 centimeters, Height: 13.2 centimeters, Length: 0.7 centimeters
| Attribute | Value |
|---|---|
| item package quantity | 1 |
| brand | uxcell |
| item type keyword | spiral-flute-threading-taps |
| finish type | Uncoated |
| size | 1/4-28 UNF |
| part number | a22022400ux0713 |
| specific uses for product | Machine Use |
| style | Spiral Flute Taps |
| color | Silver Tone |
| item package weight | 0.02 |
| manufacturer | uxcell |
| model number | a22022400ux0713 |
| supplier declared dg hz regulation | not_applicable |
| batteries required | False |
| product site launch date | 4/29/2022 10:10:48 AM |
| material | High Speed Steel |
