Discover the authentic T-Slot Milling Cutters, 5mm Depth 16mm Cutting Dia 10mm Shank Tungsten Carbide Tip 4 Flutes T Slot End Mill for Stainless Steel Copper Aluminum by uxcell, part of our T-Slot Milling Cutters collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original T-Slot Milling Cutters – T-Slot Milling Cutters, 5mm Depth 16mm Cutting Dia 10mm Shank Tungsten Carbide Tip 4 Flutes T Slot End Mill for Stainless Steel Copper Aluminum by uxcell
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country

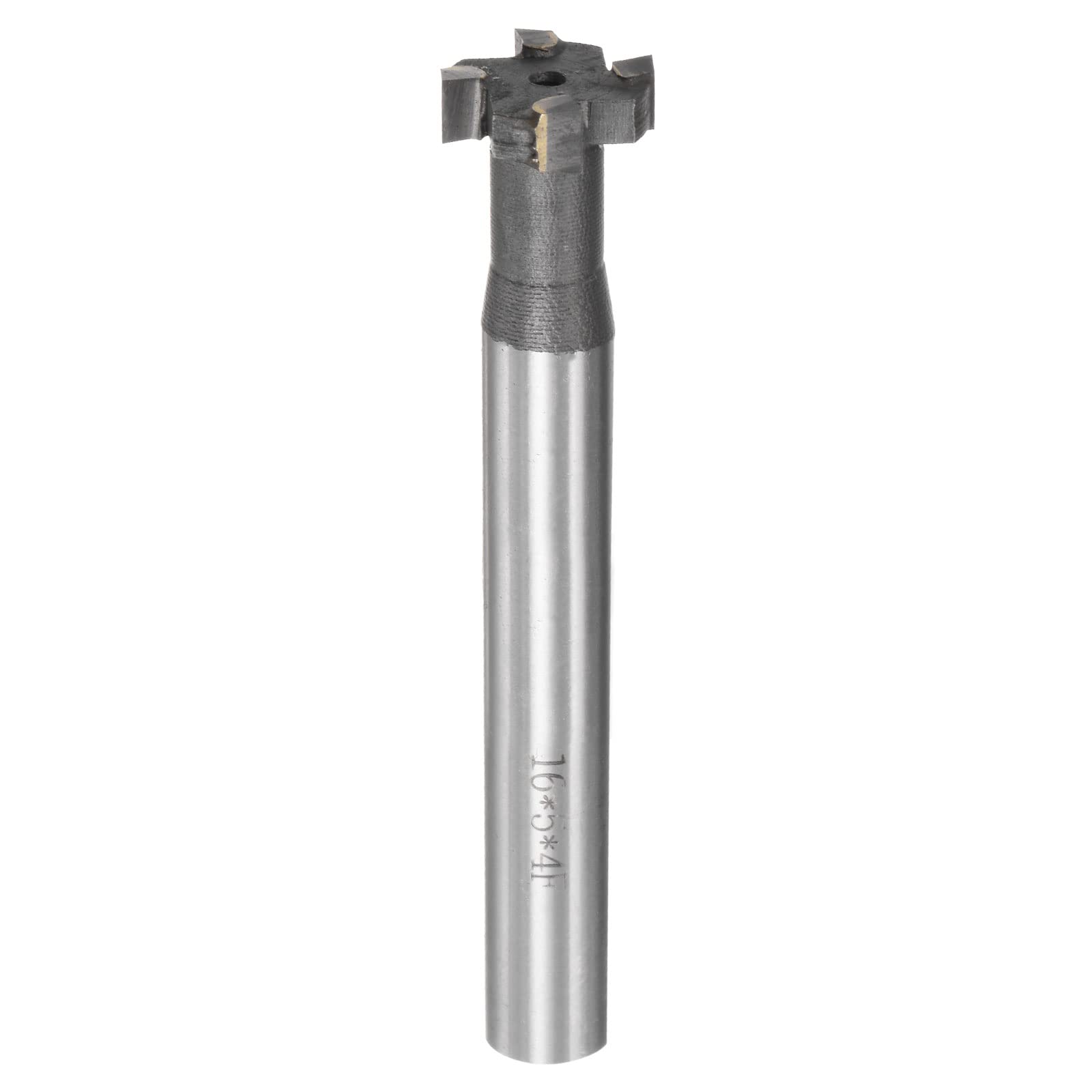

Cutting Diameter: 16mm / 0.63
Cutting Depth: 5mm / 0.2
Shank Diameter: 10mm / 0.39
Shank Length: 60mm / 2.36
Total Length: 80mm / 3.15
Number of Flutes: 4 Flutes
Material: Tungsten Carbide (Tip), High Speed Steel (Shank)
Package Included: 1pcs x T-Slot Milling Cutters

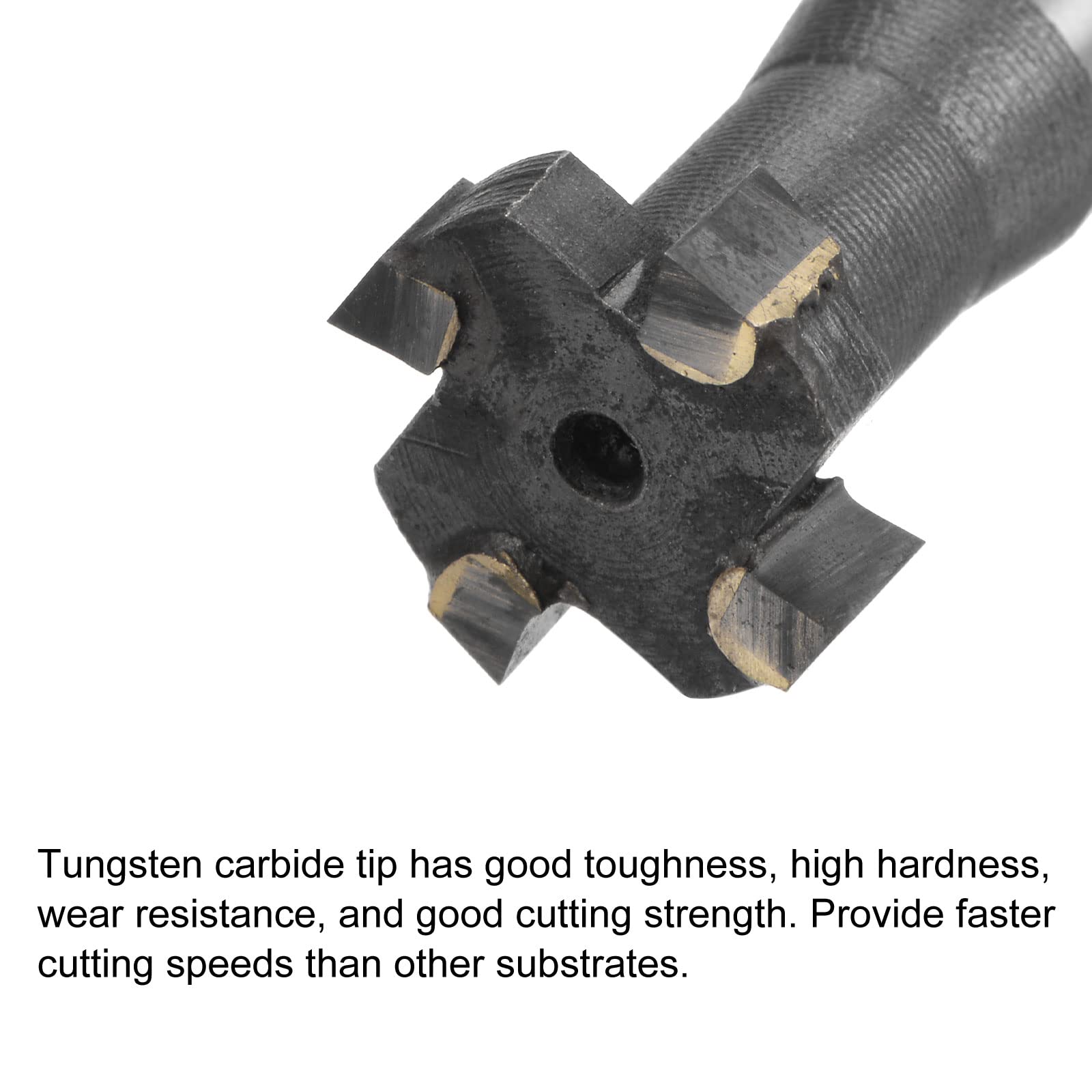

Descriptions:Tungsten carbide tip has good toughness, high hardness, wear resistance and heat resistance. It has good cutting strength and offers faster cutting speeds than other substrates.

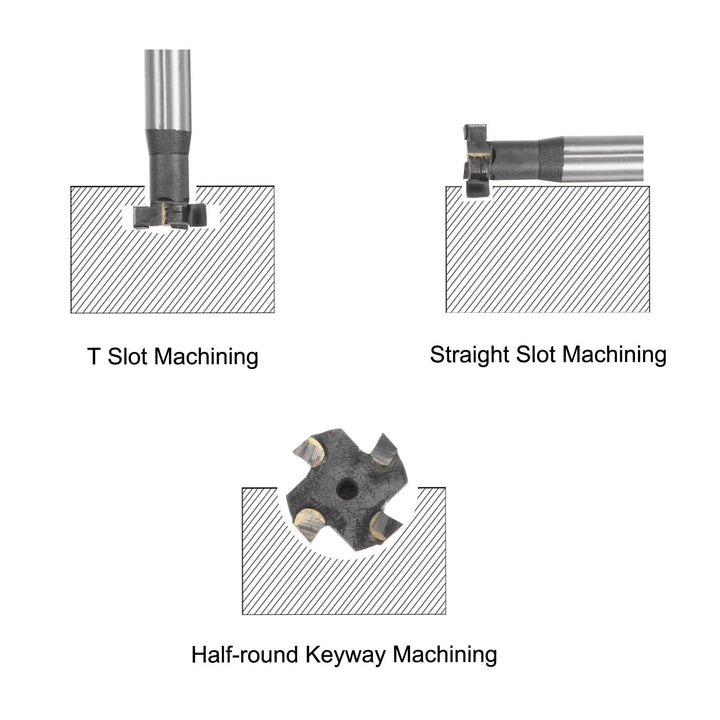

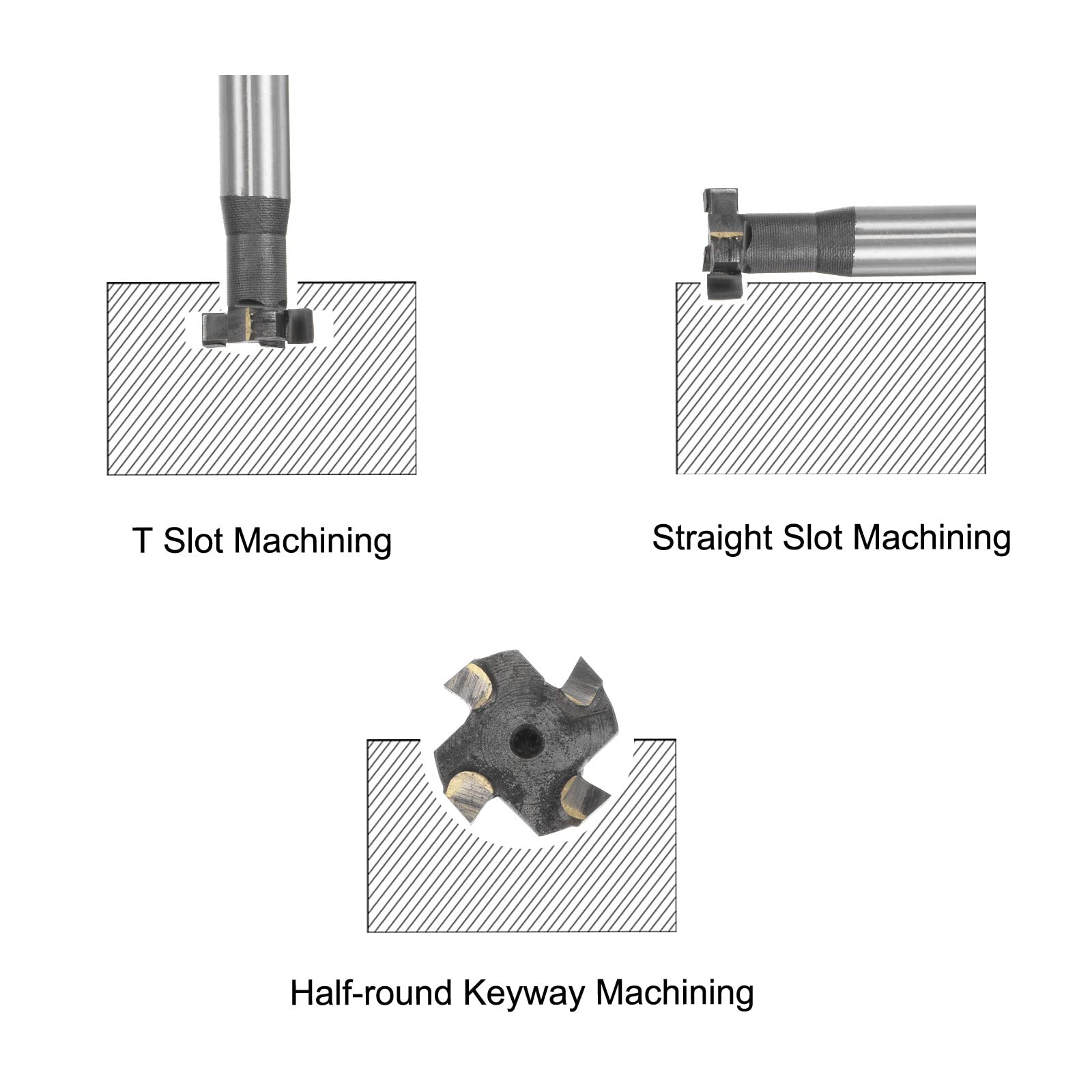

Suitable for machining T slotting, straight slotting, side grooving and half-round keyway on the work piece. Widely used for milling stainless steel, carbon steel, alloy steel, copper, tool steel, cast iron, aluminum, etc..
The cutting edge is sharp and not easy to break. High-frequency welding process is adopted for the connection between the cutter head and the cutter body. Universal chamfered round shank, easier clamping, stable cutting process.
Used on drilling and milling machines, machining centers. Properly reduce the cutting speed and feed can prolong the life of the milling cutter. Add cutting fluid to protect the cutting edge and make the cutting smoother when working.
The longer the length of the tool clamped by the chuck, the better. If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life.
- T-Slot Cutters: Cutting Dia.: 16mm / 0.63; Cutting Depth: 5mm / 0.2; Shank Dia.: 10mm / 0.39; Total Length: 80mm / 3.15; Number of Flutes: 4 Flutes. Tungsten carbide tip has good toughness, high hardness, wear resistance, and good cutting strength. Provide faster cutting speeds than other substrates.

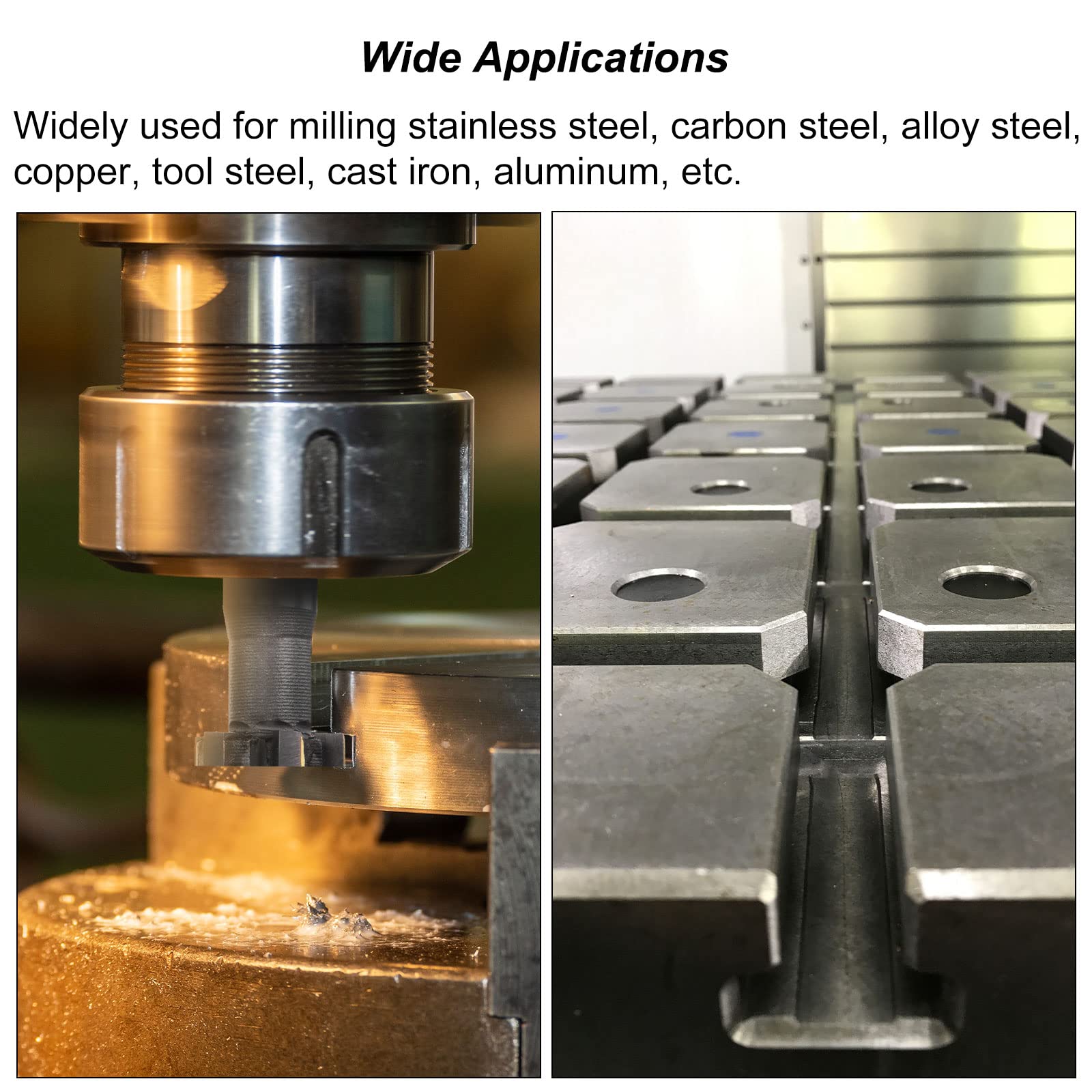

- Wide Applications: Suitable for machining T slotting, straight slotting, side grooving and half-round keyway on the work piece. Widely used for milling stainless steel, carbon steel, alloy steel, copper, tool steel, cast iron, aluminum, etc..
- Features: The cutting edge is sharp and not easy to break. High-frequency welding process is adopted for the connection between the cutter head and the cutter body. Universal chamfered round shank, easier clamping, stable cutting process.
- Easy to Use: Used on drilling and milling machines, machining centers. Properly reduce the cutting speed and feed can prolong the life of the milling cutter. Add cutting fluid to protect the cutting edge and make the cutting smoother when working.
- Tips: The longer the length of the tool clamped by the chuck, the better. If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life.
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 6.1 centimeters, Height: 9.6 centimeters, Length: 1.7 centimeters
| Attribute | Value |
|---|---|
| number of flutes | 4 |
| item package quantity | 1 |
| brand | uxcell |
| cut type | Rounded |
| item type keyword | t-slot-cutters |
| size | 16mm x 5mm |
| part number | a22022400ux0565 |
| style | 4 Flutes |
| color | Gray, Silver Tone |
| item package weight | 0.058 |
| manufacturer | uxcell |
| item shape | Round |
| model number | a22022400ux0565 |
| supplier declared dg hz regulation | not_applicable |
| batteries required | False |
| product site launch date | 4/25/2022 8:40:35 AM |
| material | Tungsten Carbide |
| unit count | 1 |
