Discover the authentic Linear Actuator Controller DC Motor 12V Momentary Switch Forward/Reverse Wireless Remote Control DPDT Relay for Motors by UYGALAXY, part of our Linear Motion Actuators collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.
Highlights & Benefits
- Original Linear Motion Actuators – Linear Actuator Controller DC Motor 12V Momentary Switch Forward/Reverse Wireless Remote Control DPDT Relay for Motors by UYGALAXY
- 100% authentic and sourced from trusted suppliers
- Imported from the USA with strict quality checks
- Available at the best price in India
- Fast and secure delivery across the country
Input Voltage:12V
Output Voltage:12V
Max Current: 8Amps
Remote Control Distance: Within 50ft (Rated 65ft if no barrier)
Control Method: Momentary switch
Specific functions are described below:

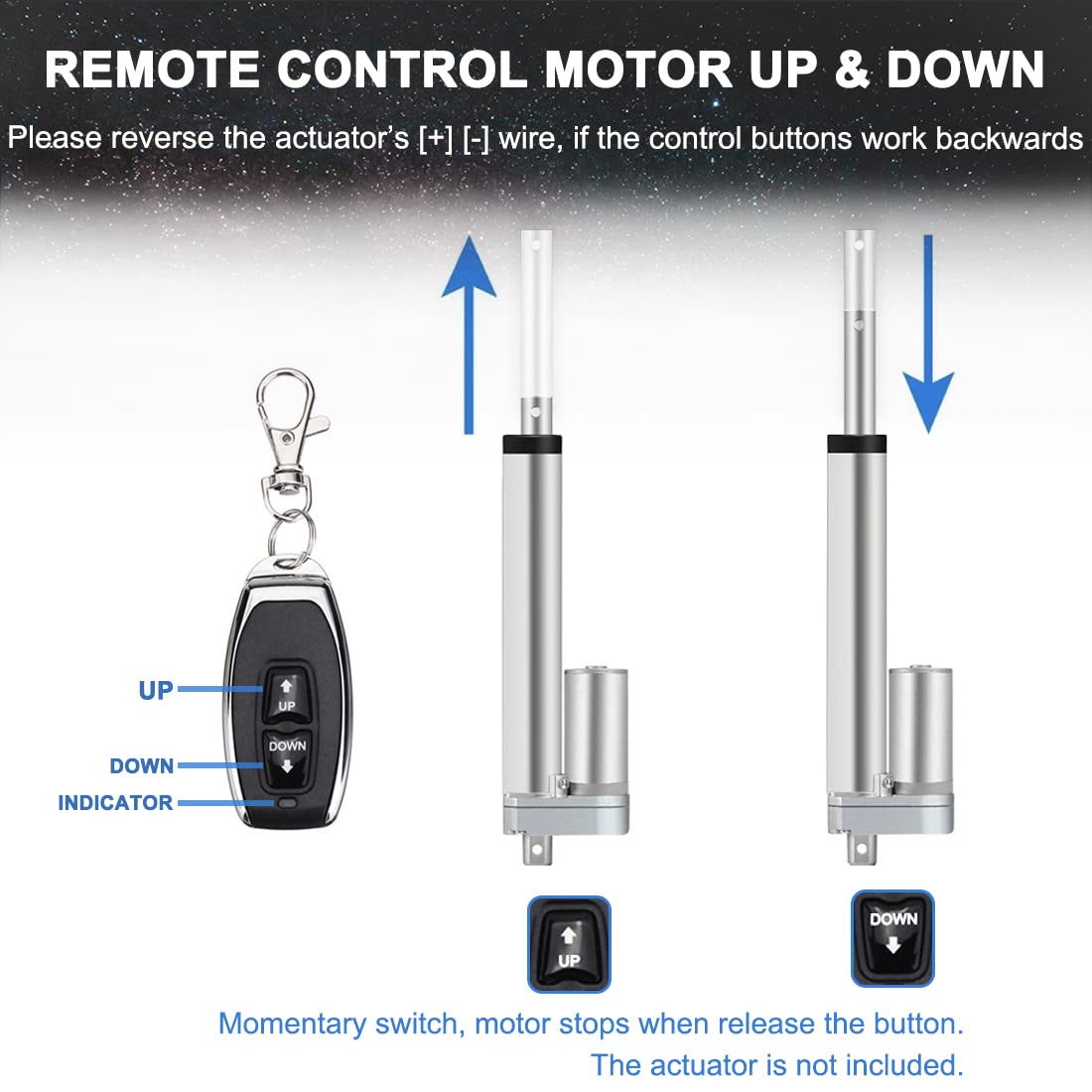

1.Keys [UP] control motor forward(clockwise) turn: When you press UP, the motor action by corotation, stop when loosen.
2.Keys [DOWN] control motor reverse(counterclockwise) turn : When you press down, the motor action by reversal, stop when loosen .
Notes:
1.The input/output voltage and operating current should be 12volt.
2.The cotroller is not weatherproof, please keep it from water and direct sunlight.
3.Avoid to press the UP and DOWN in a short time.
4.It needs to replace the battery (2pc CR2016) inside the remote controller when the remote control distance is shorter than before.
Package Included:
·1Pc Wireless Remote Control Receiver
·1Pc Wireless Remote Controller(battery included)

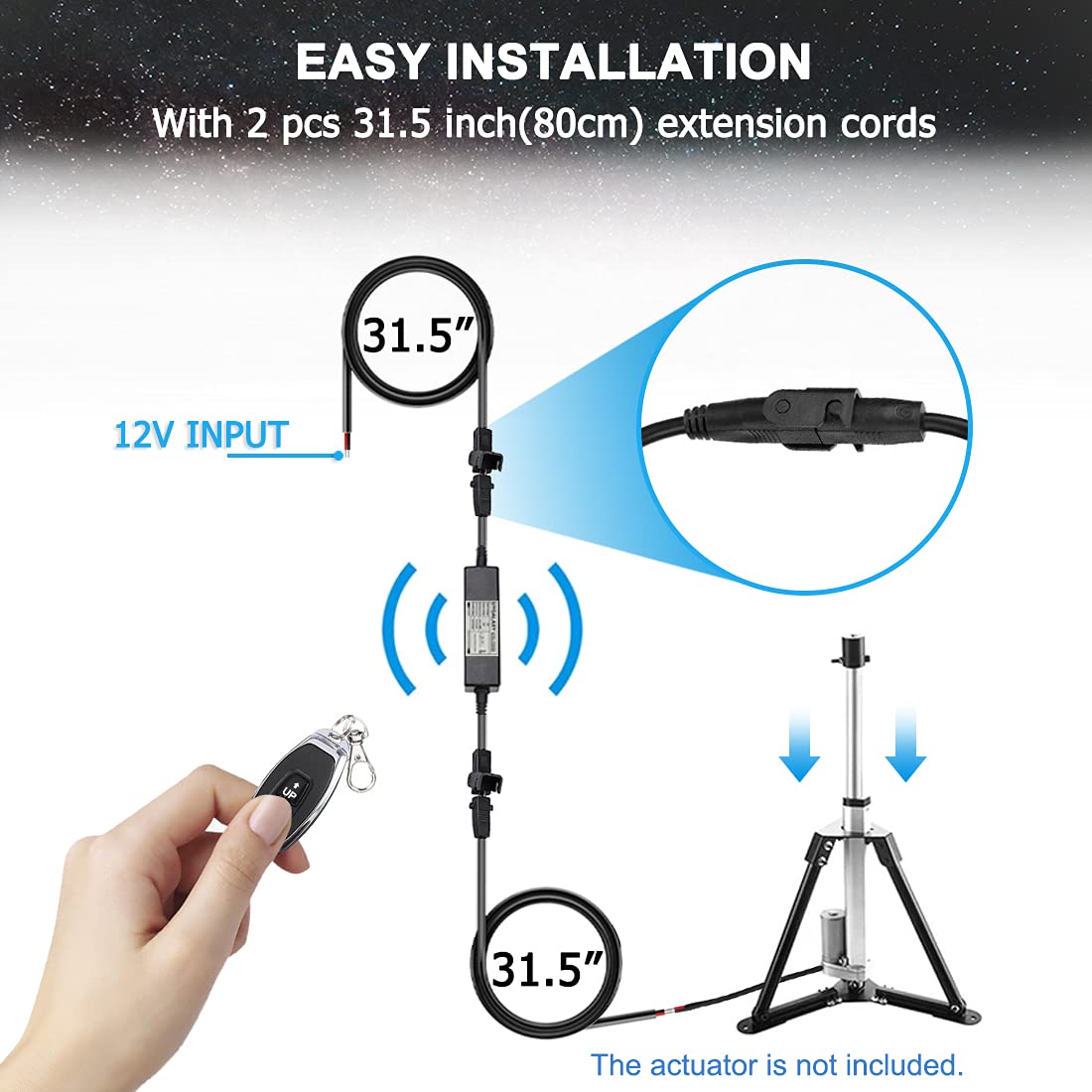

·2Pcs extension cords (31.5inch each)
(Manual & gift in the box)

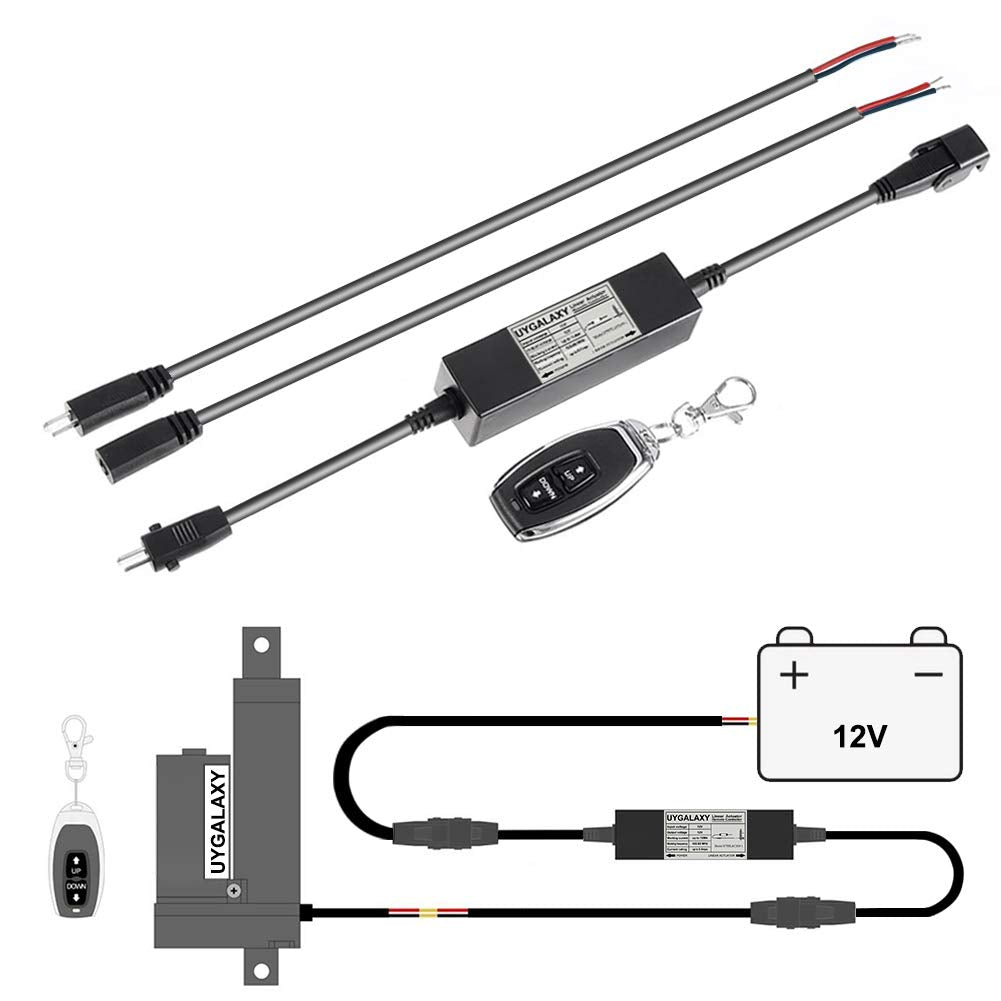

- Design for 12V DC motor, like linear actuators, 12V 5A power supply is suggested.
- Momentary switch forward(clockwise) and reverse(Counterclockwise) the motor, means motor stops when release the button.
- RF 433.92 Mhz remote control within 50ft distance.
- Widely used in home furniture, hospital & healthcare fields, such as open doors, lift tables, raise flat screens, adjust recliners for the headset, footrests, relaxation beds.
- Package included: 1 Remote fob controller + 1 Receiver + 2 Extension Wires(2.6ft long) + 1 User Manual
- Item Dimensions: Width: , Height: , Length:
- Item Package Dimensions: Width: 15.0876 centimeters, Height: 15.1892 centimeters, Length: 5.207 centimeters
| Attribute | Value |
|---|---|
| measurement system | Imperial |
| fcc radio frequency emission compliance | |
| maximum switching current | 5 |
| contact | |
| brand | UYGALAXY |
| coil | |
| current rating | 5 |
| item type keyword | linear-motion-actuators |
| number of items | 1 |
| size | 1 fob key |
| operating time | 2 |
| part number | UYG1209LARC |
| style | Controller |
| item package weight | 0.231 |
| battery | |
| manufacturer | UYGALAXY Shenzhen Keshilian Electronic Technology Co., Ltd. |
| number of lithium metal cells | 1 |
| lithium battery | |
| model number | UYG1209LARC |
| supplier declared dg hz regulation | not_applicable |
| num batteries | |
| release time | 18 |
| operation mode | Manual |
| batteries required | True |
| voltage | 12 |
| maximum switching voltage | 12 |
| product site launch date | 9/8/2020 9:14:09 AM |
| material | Plastic |
| batteries included | True |
