Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A

Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A by VictorsHome

Brand: VictorsHome
USA Icon USA Store
Price
Save Rs. -2,955
/
🚚 Usually gets delivered in 10 business days. Once the order is placed, it dispatches from USA facility.
  • In stock, ready to ship
  • Backordered, shipping soon
  • Free shipping all over India
  • Free & Easy Returns*
  • 100% Secure payments*

Discover the authentic Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A by VictorsHome, part of our Selector Switches collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.

Highlights & Benefits

  • Original Selector Switches – Changeover Switch LW28-20 3 Positions 12 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A by VictorsHome
  • 100% authentic and sourced from trusted suppliers
  • Imported from the USA with strict quality checks
  • Available at the best price in India
  • Fast and secure delivery across the country

Description

1. Suitable for the thickness between 1mm to 5mm of the mounting board.

2. Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.

3. Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.

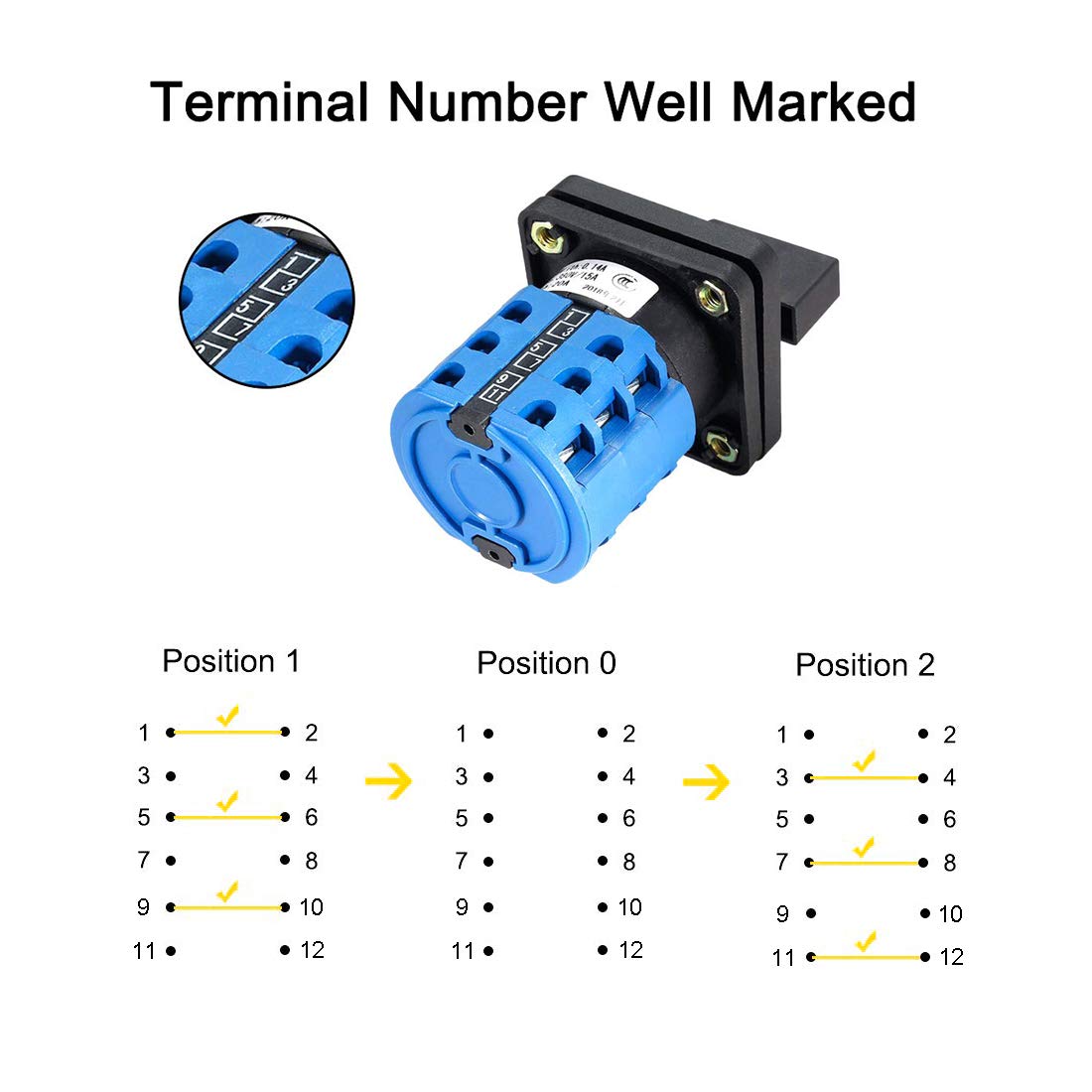

Image3 has shown which terminal will be connected in different position , please read the wiring diagram as a reference.

Position 1 : 1-2 , 5-6 , 9-10

Position 0 : All terminal disconnected

Position 2 : 3-4 , 7-8 , 11-12

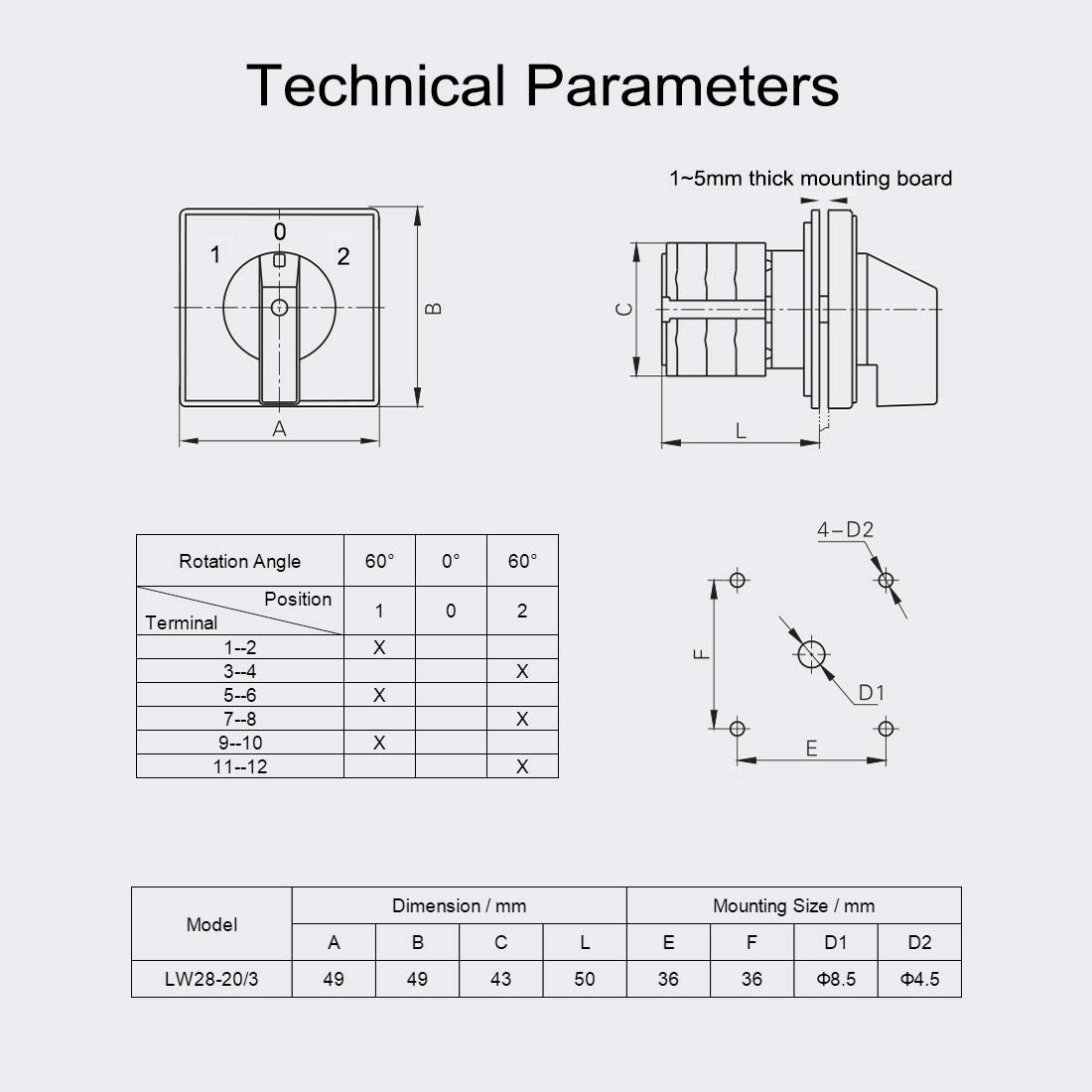

Specifications

Model: LW28-20/3

Positions: 3

Terminals: 12

Ui: 550V Ith: 20A

Action Type: Latching

Positioning angle: 60-0-60 Degree

Rating: DC-13: Ui: 220V, Ith: 0.14A; AC-15: Ue / Ie: 380V / 1.5A

Mounting Hole Distance: 36mm x 36mm / 1.41inch x 1.41inch (L*W)

Total Size: 49mm x 49mm x 82mm / 1.93inch x 1.93inch x 3.23inch (L*W*H)

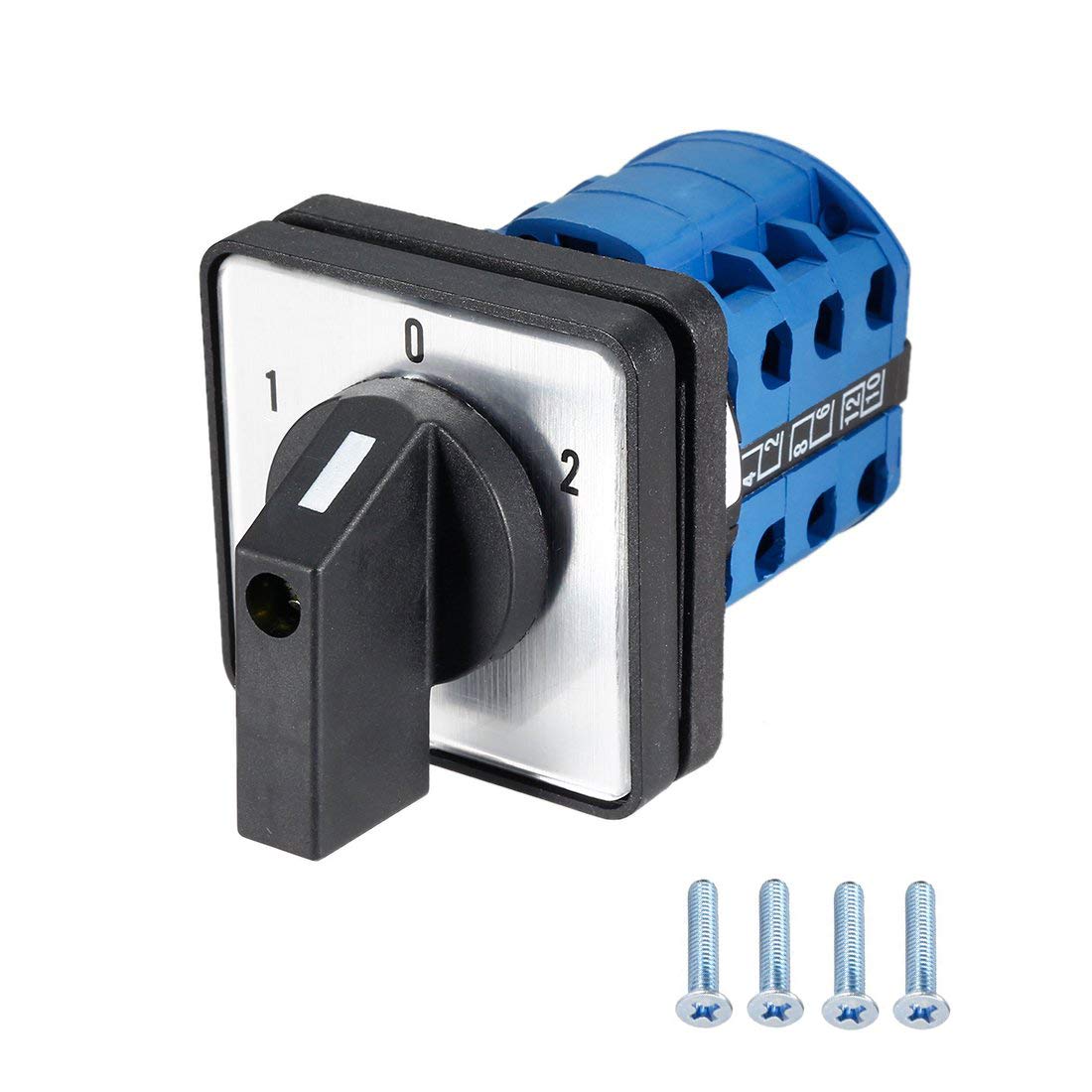

Package Content

1 x Changeover Switch

4 x Mounting Screws


  • HIGH QUALITY DESIGN: Flame retardant PC material shape has good insulation and high temperature resistance. With flexible handle conversion, rotary selector is easy to control, square plate and screws for easily mounting.
  • EXCELLENT COPPER PARTS: Premium copper parts with silver alloy point, make it not easy to slide and has strong thermal conductivity. The quality and service life of changeover switch are improved, it is durable for use.
  • TECHNICAL SPECIFICATIONS: Model: LW28-20/3, 3 positions(1-0-2), 3 phases, 12 terminals latching type switch, Ui 550V Ith 20A. Image 3 has shown which terminal will be connected in different position, please read the wiring diagram as a reference.
  • WIDE APPLICATION RANGE: Ideal for electrical wiring in the power switch, speed switch and induction motor, also can make the conversion of the control circuit.
  • WHAT YOU GET: 1pcs x Changeover Switch, 4pcs x Screws. Technical parameters as images show. If you have any question, please feel free to contact us !
  • Item Weight: 0.01 ounces
  • Item Dimensions: Width: 49 millimeters, Height: 49 millimeters, Length: 82 millimeters
  • Item Package Dimensions: Width: 6.1976 centimeters, Height: 9.906 centimeters, Length: 5.8928 centimeters

Attribute Value
switch type Rotary, Temperature Switch
number of positions 3
actuator
contact
connector type Screws
brand VictorsHome
control method application
current rating 20
item type keyword electronic-component-selector-switches
number of items 1
connectivity protocol X-10
size 12 Terminals 20A
circuit type 3-way
part number Z20190120W02
terminal type Screw
item package weight 0.118
manufacturer VictorsHome
model number Z20190120W02
supplier declared dg hz regulation not_applicable
operation mode ON-OFF-ON
batteries required False
product site launch date 1/21/2019 8:00:00 AM
material Copper
mounting type Surface Mount
operating voltage 550
unit count 1
batteries included False
