Discover the authentic Changeover Switch LW28-63 3 Positions 16 Terminals Universal Rotary Cam Selector Latching Switches 690V 63A by VictorsHome, part of our Selector Switches collection. Imported directly from the USA and sourced from trusted suppliers, this product is 100% authentic and delivered anywhere in India at the best price.

Highlights & Benefits

Original Selector Switches – Changeover Switch LW28-63 3 Positions 16 Terminals Universal Rotary Cam Selector Latching Switches 690V 63A by VictorsHome
100% authentic and sourced from trusted suppliers
Imported from the USA with strict quality checks
Available at the best price in India
Fast and secure delivery across the country

Description

1.Suitable for the thickness between 1mm to 5mm of the mounting board.

2.Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.

3.Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.

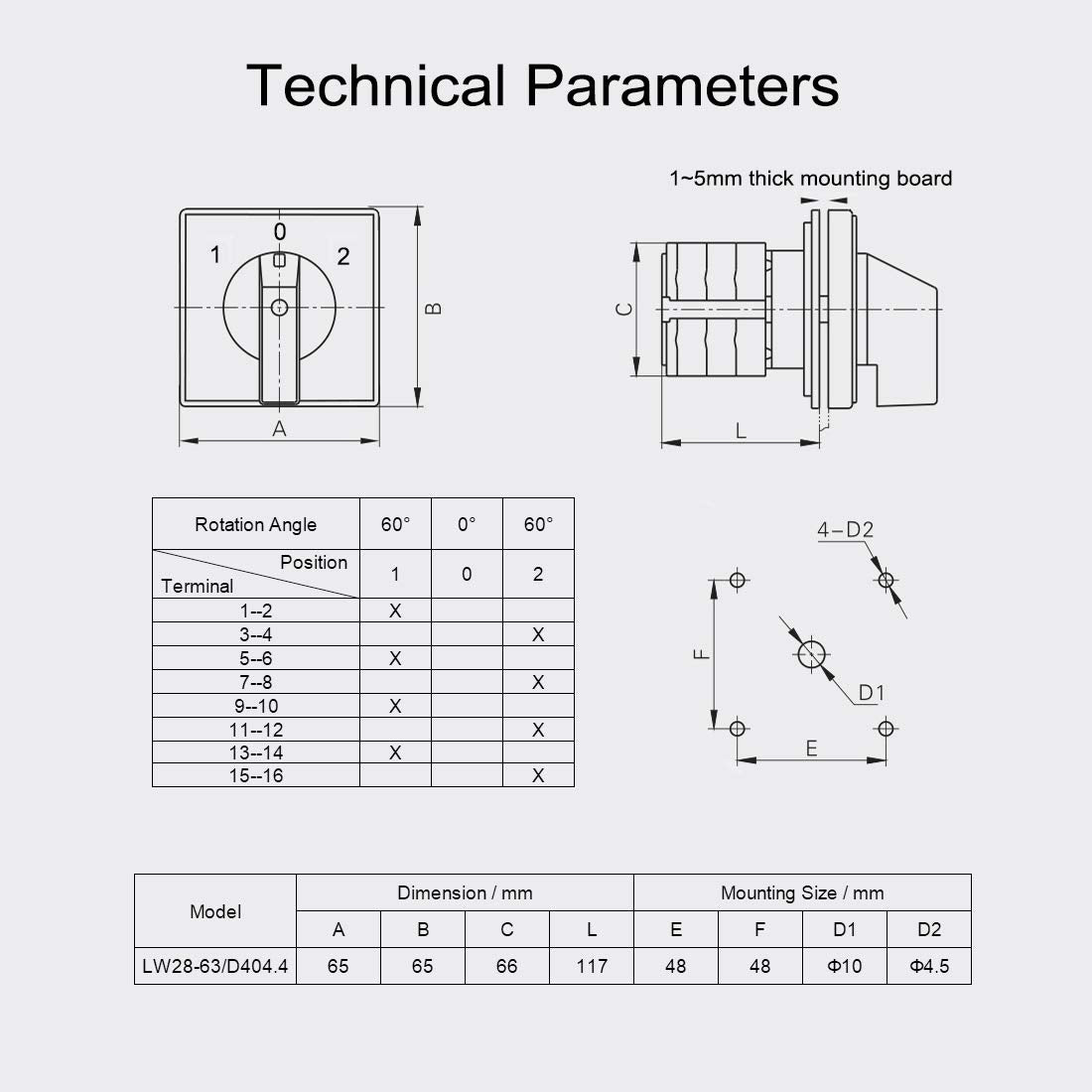

Image3 has shown which terminal will be connected in different position , please read the wiring diagram as a reference.

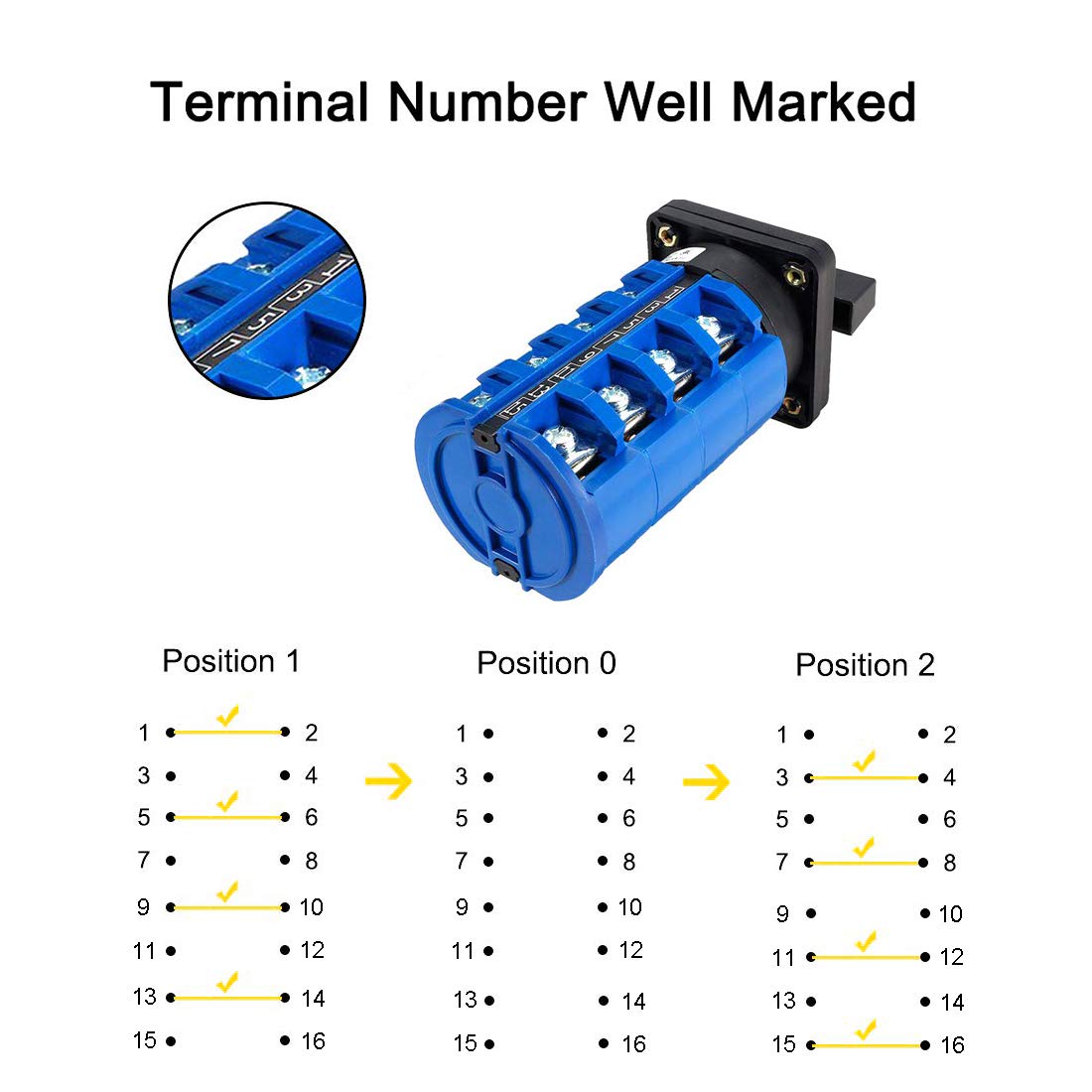

Position 1 : 1-2 , 5-6 , 9-10 , 13-14

Position 0 : All terminal disconnected

Position 2 : 3-4 , 7-8 , 11-12 , 15-16

Specifications

Model: LW28-63 D404.4

Positions: 3

Terminals: 16

Ui: 690V Ith: 63A

Action Type: Latching

Positioning angle: 60-0-60 Degree

Rating: DC-13: Ui: 220V, Ith: 0.14A; AC-15: Ue / Ie: 380V / 1.5A

Mounting Hole Distance: 48mm x 48mm / 1.89inch x 1.89inch (L*W)

Total Size: 65mm x 65mm x 153mm / 2.56inch x 2.56inch x 6.02inch (L*W*H)

Package Content

1 x Changeover Switch

4 x Mounting Screws

HIGH QUALITY DESIGN: Flame retardant PC material shape has good insulation and high temperature resistance. With flexible handle conversion, rotary selector is easy to control, square plate and screws for easily mounting.
EXCELLENT COPPER PARTS: Premium copper parts with silver alloy point, make it not easy to slide and has strong thermal conductivity. The quality and service life of changeover switch are improved, it is durable for use.
TECHNICAL SPECIFICATIONS: Model: LW28-63 D404.4, 3 positions(1-0-2), 3 phases, 16 terminals latching type switch, Ui 690V Ith 63A. Image 3 has shown which terminal will be connected in different position , please read the wiring diagram as a reference.
WIDE APPLICATION RANGE: Ideal for electrical wiring in the power switch, speed switch and induction motor, also can make the conversion of the control circuit.
WHAT YOU GET: 1pcs x Changeover Switch, 4pcs x Screws. Technical parameters as images show. If you have any question, please feel free to contact us !
Item Weight: 0.01 ounces
Item Dimensions: Width: 65 millimeters, Height: 117 millimeters, Length: 65 millimeters
Item Package Dimensions: Width: 7.8 centimeters, Height: 16.5 centimeters, Length: 7.6 centimeters

Attribute	Value
switch type	Rotary, Slide, Temperature Switch
number of positions	3
actuator
contact
connector type	Screws
brand	VictorsHome
current rating	63
item type keyword	electronic-component-selector-switches
connectivity protocol	X-10
size	16 Terminals 63A
circuit type	3-way
part number	HU-XI-201
terminal type	Screw
item package weight	0.544
manufacturer	VictorsHome
supplier declared dg hz regulation	not_applicable
operation mode	ON-OFF-ON
batteries required	False
product site launch date	1/22/2019 8:00:00 AM
material	Metal
mounting type	Panel Mount
operating voltage	690
unit count	1
batteries included	False
